Product |
Product id
| 949940
|
Brand
| TP-Link
|
Partnr
| EAP215-BRIDGE KIT
|
EAN/UPC code
| 4895252502565
|
Warranty (months)
| 3 year limited warranty
|
Management features |
Web-based management
| Y
|
Syslog
| Y
|
Packaging data |
Quick start guide
| Y
|
Features |
2.4 GHz
| N
|
5 GHz
| Y
|
Maximum data transfer rate
| 867 Mbit/s
|
6 GHz
| N
|
Maximum data transfer rate (5 GHz)
| 867 Mbit/s
|
Ethernet LAN data rates
| 10, 100, 1000 Mbit/s
|
Networking standards
| IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
|
Cabling technology
| 10/100/1000Base-T(X)
|
MIMO
| Y
|
MIMO type
| Multi User MIMO
|
VLAN support
| Y
|
Rate limiting
| Y
|
Quality of Service (QoS) support
| Y
|
Transmitting power (CE)
| <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP) dBm
|
Transmitting power (FCC)
| <22dBm (5 GHz band1/4) dBm
|
BeamForming
| Y
|
Security |
Security algorithms
| SNMP, SNMPv2, SNMPv3, SSH
|
MAC address filtering
| Y
|
Remote Authentication Dial-In User Service (RADIUS)
| Y
|
Access Control List (ACL)
| Y
|
Ports & interfaces |

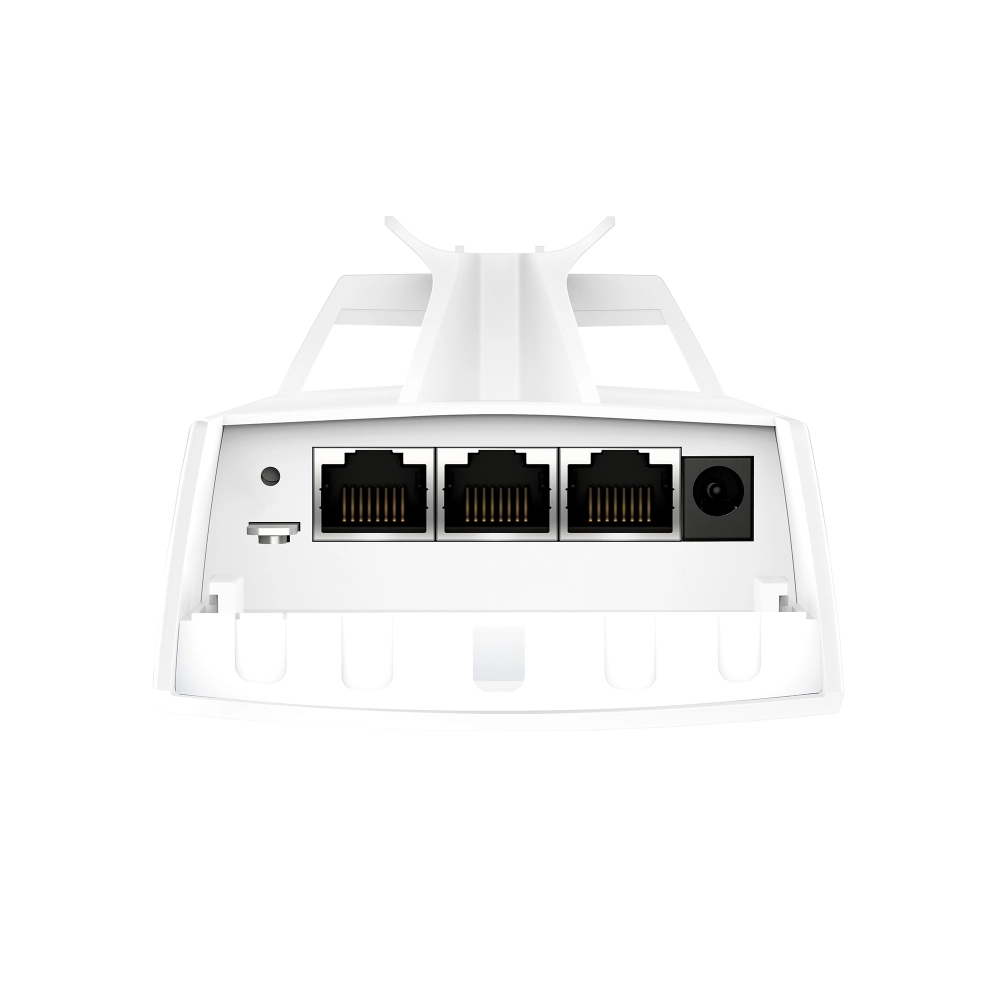

Ethernet LAN (RJ-45) ports
| 3
|
Power |
Power over Ethernet (PoE)
| Y
|
Power over Ethernet (PoE) type supported
| Passive PoE
|
DC voltage range
| 12 V
|
Design |
Placement
| Pole
|
Product colour
| White
|
Reset button
| Y
|
LED indicators
| Y
|
Certification
| CE, FCC, RoHS
|
Antenna |
Antenna type
| Internal
|
Antenna direction type
| Directional
|
Antenna features
| Integrated antenna
|
Antenna gain level (max)
| 11 dBi
|
Polarization
| Dual polarization
|
Operational conditions |
Operating relative humidity (H-H)
| 10 - 90 procent
|
Operating temperature (T-T)
| -40 - 70 °C
|
Storage temperature (T-T)
| -40 - 70 °C
|
Storage relative humidity (H-H)
| 5 - 90 procent
|
Weight & dimensions |
Width
| 224 mm
|
Depth
| 79 mm
|
Height
| 60 mm
|
Weight
| 330.9 g
|
