3m LC/SC OS2 Single Mode Fiber Cable



StarTech.com
Limited stock
€ 18,90
€ 22,86 incl 21% VAT
Enhance the performance capabilities of CWDM applications over an OS2 fiber networkOS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 10G networks. It supports CDWM (Coarse Wavelength Division Multiplexing) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances. CompatibilityThis 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments. Engineered for Optimal PerformancePrecision-manufactured ceramic ferrules ensure correct fiber alignment to preserve insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to SC fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652. D/G657. A1 and IEC60703-2-50 type B1.3/B6. a1 industry standards. LSZH Cable JacketHoused in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered. Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability. The StarTech. com Advantage

Specification

Product
Product id 949740
Brand StarTech.com
Partnr SMLCSC-OS2-3M
EAN/UPC code 065030903295
Warranty (months) Lifetime
Features
Cable length 3 m
Fibre optic type OS2
Connector 1 LC

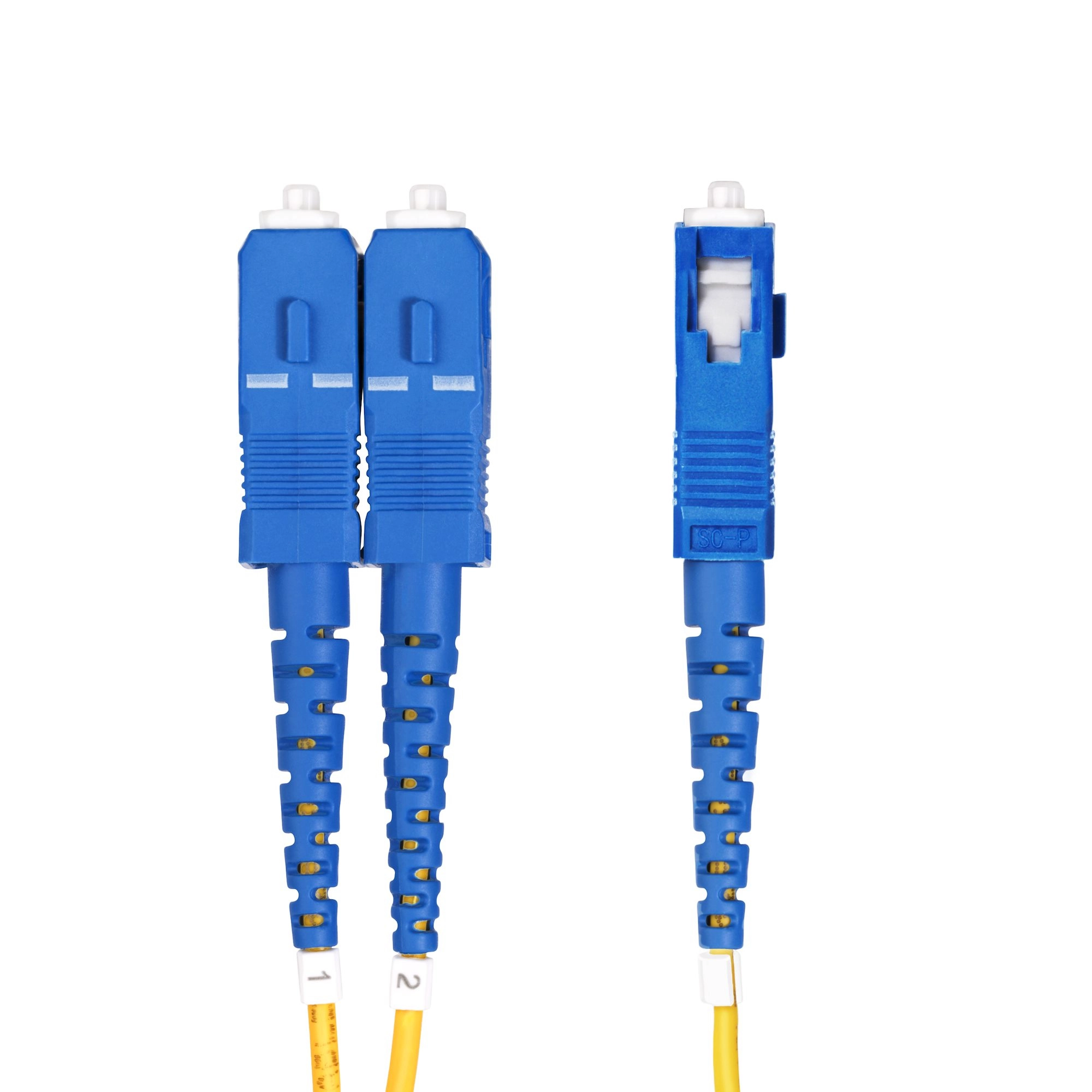

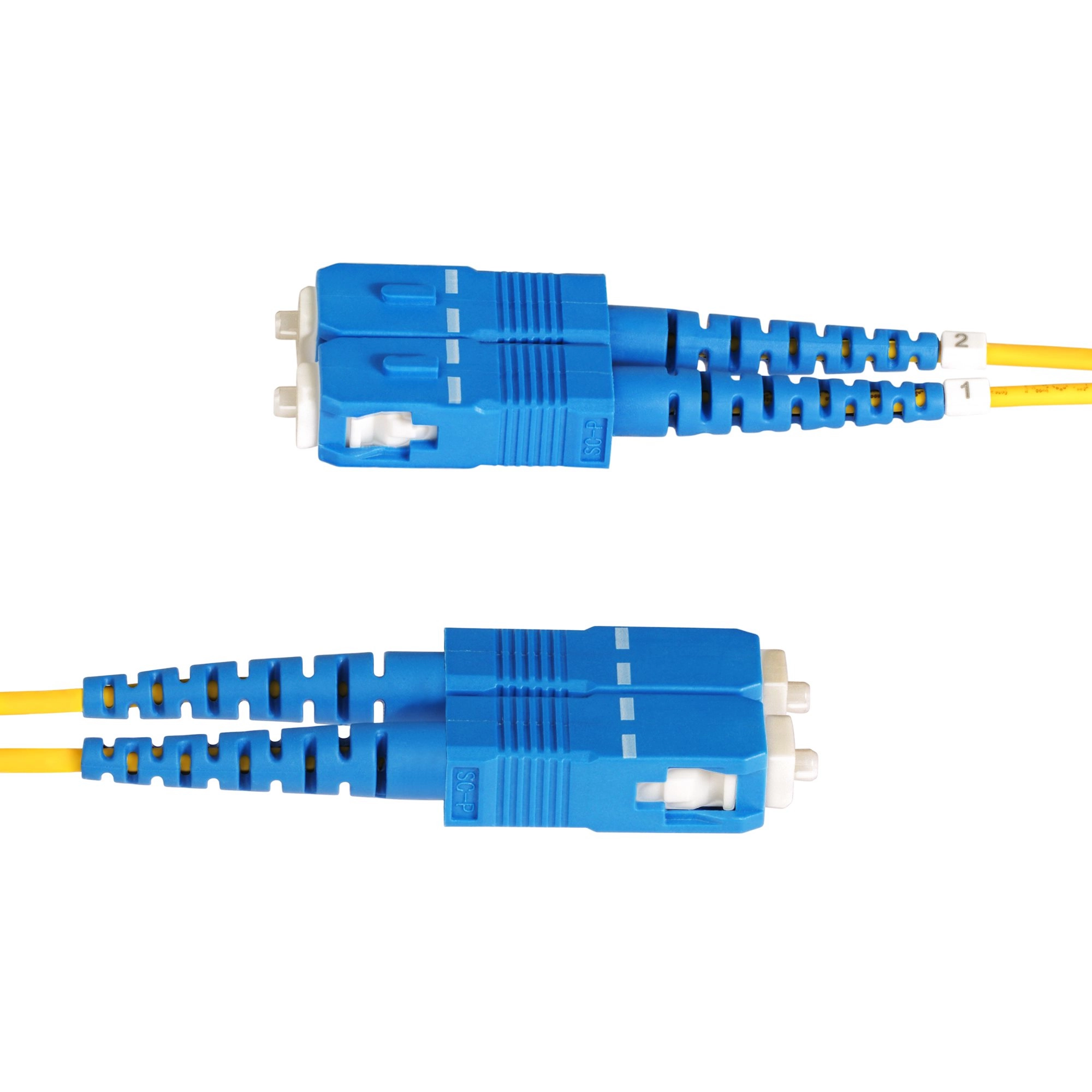

Connector 2 SC
Connector 1 gender Male connector
Full duplex Y
Connector 2 gender Male connector
Core diameter 9 µm
Connector polish type PC
Product colour Yellow
Cladding diameter 125 µm
Fiber mode structure Single-mode
Wavelengths supported 1260, 1280, 1300, 1310, 1383, 1490, 1550, 1590, 1600, 1625 nm
Data transfer rate 10 Gbit/s
Jacket material Low smoke zero halogen (LSZH), Polypropylene
Return loss 55 dB
Technical details
Sustainability compliance Y
Sustainability certificates RoHS
Insertion loss 0.3 dB
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -20 - 60 °C
Packaging data
Quantity per pack 1 stuk(s)
Package width 200 mm
Package depth 220 mm
Package height 3 mm
Package weight 32.2 g
Weight & dimensions
Cable diameter 2 mm
Bending radius 10 mm
Logistics data
Master (outer) case width 380 mm
Master (outer) case length 380 mm
Master (outer) case height 280 mm
Quantity per master (outer) case 400 stuk(s)
Other features
Attenuation (max) 0.35 dB/km
