APPC-10XP-R23



ProDVX
Limited stock
€ 524,83
€ 635,04 incl 21% VAT

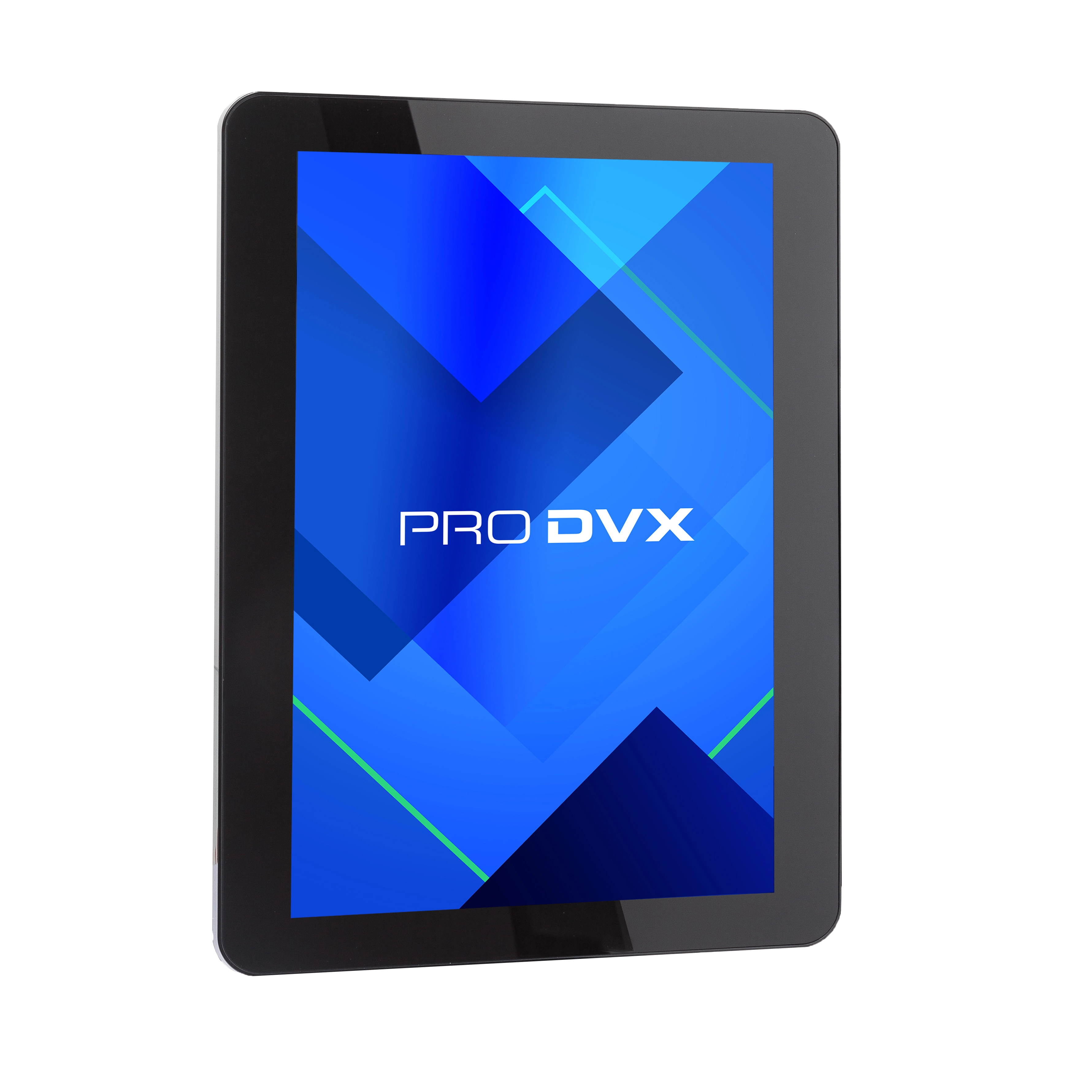

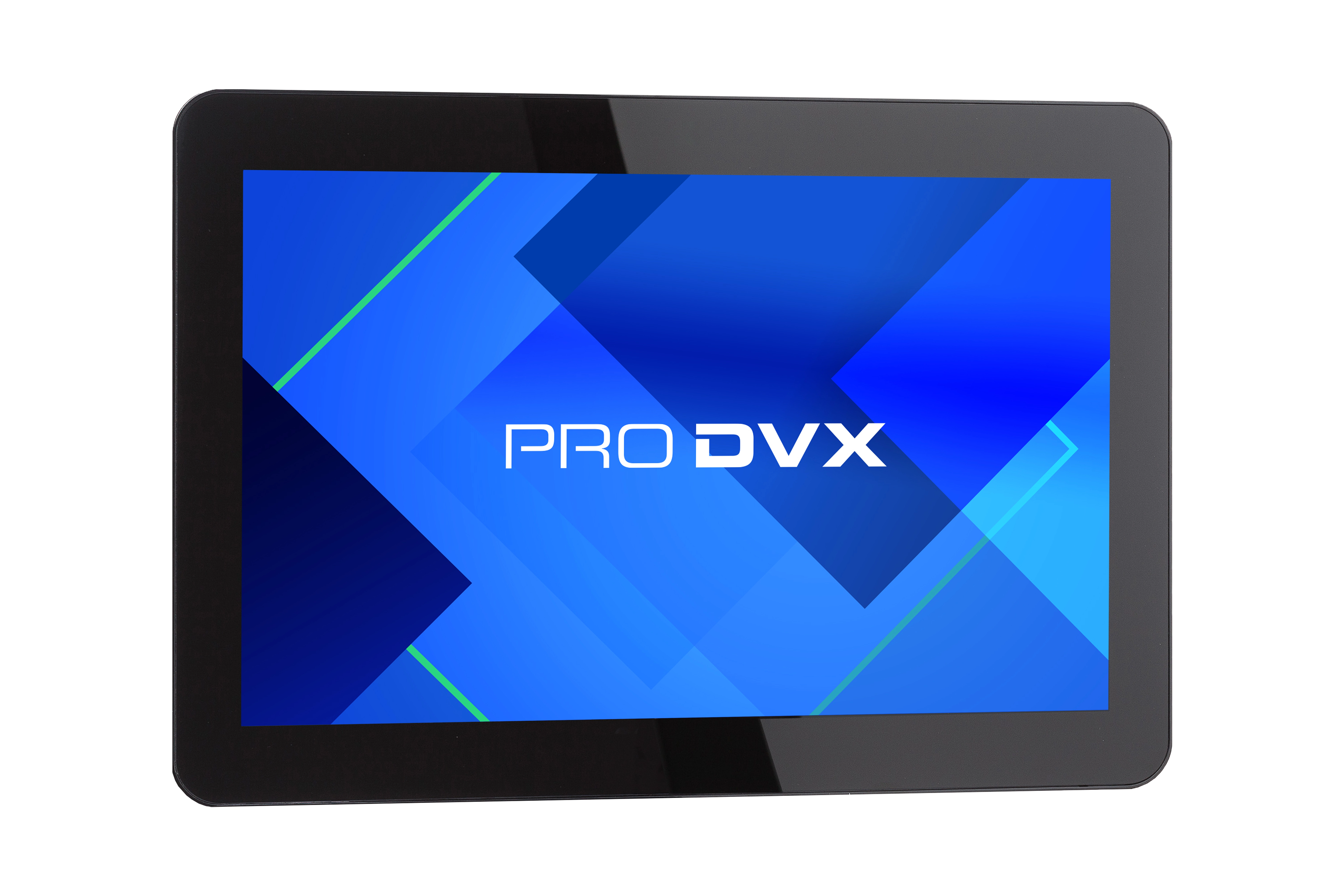

The APPC-10XP-R23 is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It ensures superior performance and next-level user experience.
Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the anti-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience.

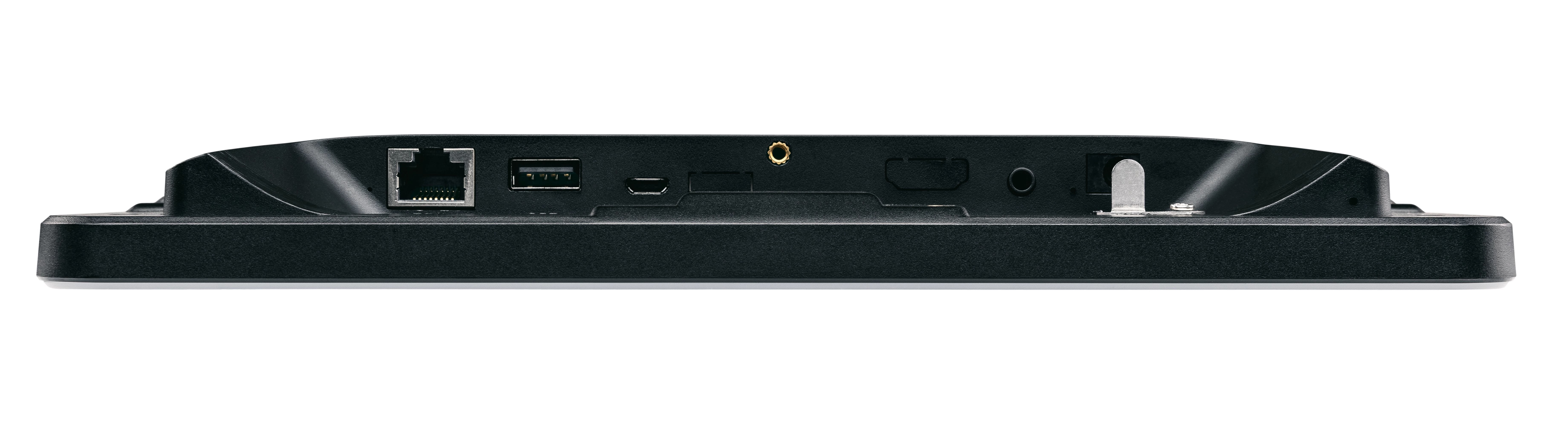

The APPC-10XP-R23 is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.

Specification

Product
Product id 949629
Brand ProDVX
Partnr 5010610
EAN/UPC code 5010610
Display
Display diagonal 10.1 inch
Display resolution 1280 x 800 Pixels
Touchscreen Y
HD type HD
Touch technology Multi-touch
Native aspect ratio 16:10
Display brightness 500 cd/m²
Display surface Matt
Panel type IPS
Anti-glare screen Y
Contrast ratio (typical) 800:1
Multi-touch Y
Viewing angle, vertical 160 °
Viewing angle, horizontal 160 °
Processor
Processor manufacturer Rockchip
Processor family Rockchip
Processor model RK3568
Processor frequency 2 GHz
Processor cores 4
Memory
Internal memory 4 GB
Internal memory type DDR4-SDRAM
Storage
Total storage capacity 16 GB
Storage media eMMC
Card reader integrated Y
Compatible memory cards SD
Graphics
Discrete graphics adapter N
Discrete graphics adapter model Not available
On-board graphics adapter Y
On-board GPU manufacturer ARM
On-board graphics adapter model ARM Mali-G52 2EE MC2
Audio
Built-in speaker(s) Y
Number of speakers 2
Camera
Built-in camera N
Network
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN Y
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Bluetooth Y
Bluetooth version 5.0
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 1
HDMI output ports quantity 1
HDMI ports quantity 1
Audio output Y
DC-in jack Y
Micro-USB ports quantity 1
Design
Product colour Black
Wall mountable Y
Housing material ABS synthetics
VESA mounting Y
Panel mounting interface 75 x 75 mm
Performance
Product type All-in-One tablet PC
Software
Operating system installed Android 12
Power
AC adapter output voltage 12 V
Weight & dimensions
Width (without stand) 255.3 mm
Depth (without stand) 26.7 mm
Height (without stand) 181 mm
Weight 650 g
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 55 °C
Operating relative humidity (H-H) 0 - 90 procent
Storage relative humidity (H-H) 0 - 90 procent
Packaging content
Cables included No
Technical details
Sustainability certificates Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Other features
Mean time between failures (MTBF) 50000 uur
Backlight Y
Backlight type Edge LED
