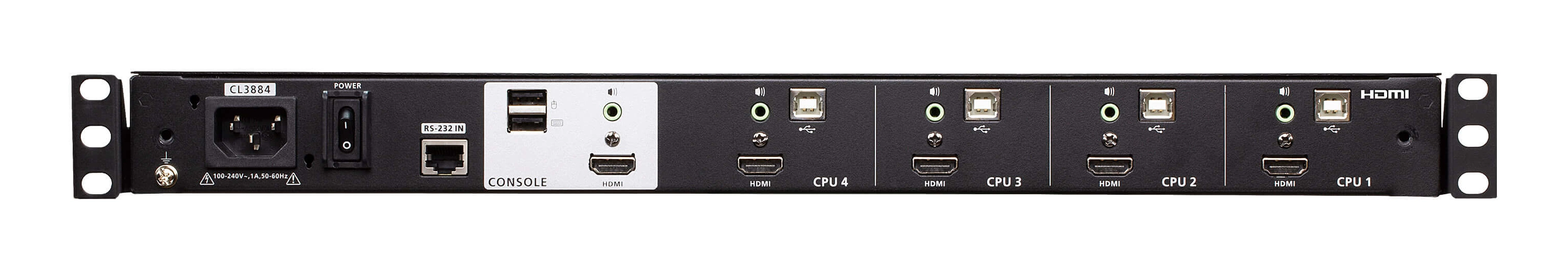

The ATEN CL3884NW LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.
1x CL3884NW LCD KVM Switch with Standard Rack Mounting Kit
2x LIN5-28V1-V11G KVM Cable Sets (USB, HDMI, Audio; 1.8m)
2x KC06-0024-100G/200G L Brackets
1x LIN2-418K-E12G Power Cord
1x User Instructions

Specification

Product
Product id	757561
Brand	Aten
Partnr	CL3884NW-ATA-XG
EAN/UPC code	4719264649240
Ports & interfaces
Number of computers controlled	16
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	4
USB 2.0 Type-B ports quantity	4
Console ports	3.5mm headphone, HDMI, USB A
Console USB ports quantity	2
USB connector type	USB Type-A, USB Type-B
Audio connections	Y
Headphone outputs	4
Serial port type	RJ-45
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Performance
HD type	Full HD+
Maximum resolution	1920 x 1200 Pixels
Video bandwidth	60 Hz
Scan interval	5, 10, 15, 30, 60, 90 s
Design
Rack mounting	Y
Product colour	Black
LED indicators	Y
Push button	Y
Display
Built-in display	Y
Display	LCD
Display diagonal	18.5 inch
Power
Power source	DC
AC input voltage	100 - 240 V
AC input frequency	50-60 Hz
Packaging data
Package width	668 mm
Package depth	718 mm
Package height	135 mm
Package weight	14635 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Weight & dimensions
Width	631 mm
Depth	480.6 mm
Height	42.8 mm
Weight	11800 g
Packaging content
Quick installation guide	Y
Manual	Y
Logistics data
Master (outer) case net weight	11800 g
Master (outer) case width	668 mm
Master (outer) case length	718 mm
Master (outer) case height	135 mm
Master (outer) case weight	14635 g
Quantity per master (outer) case	1 stuk(s)
