8 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

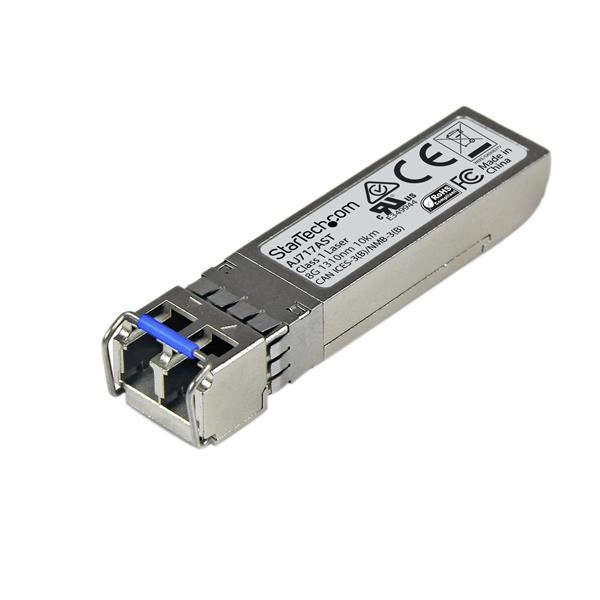

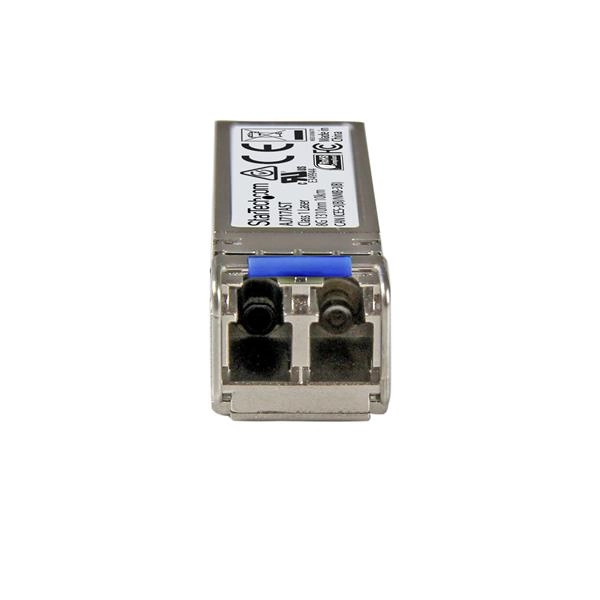

The AJ717AST is an HP AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

Wavelength: 1310 nm

Maximum Data Transfer Rate: 8 Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

MTBF: 2, 104, 865 hours

Power Consumption: Less than 1.5 Watts

Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% HPE AJ717A COMPATIBLE: Works with HPE switches like SN6000, SN6500, SN8600B, StoreFabric, and others
- TECHNICAL SPECS: 8G Fiber Channel WW
- 8Gbps

Specification

Product
Product id	565317
Brand	StarTech.com
Partnr	AJ717AST
EAN/UPC code	065030868570
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Technical details
Sustainability certificates	RoHS
Packaging data
Number of products included	1 stuk(s)
Package width	118 mm
Package depth	92 mm
Package height	33 mm
Package weight	49 g
Performance
Maximum data transfer rate	8000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Y
Fiber optic connector	LC
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Silver
Housing material	Aluminium
Hot-swap	Y
Mean time between failures (MTBF)	2104865 uur
Country of origin	China
Certification	CE, FCC, UR
Power
Power consumption (typical)	1.5 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width	13.9 mm
Depth	58.4 mm
Height	12.6 mm
Weight	21 g
Logistics data
Master (outer) case width	354 mm
Master (outer) case length	410 mm
Master (outer) case height	350 mm
Quantity per master (outer) case	100 stuk(s)
