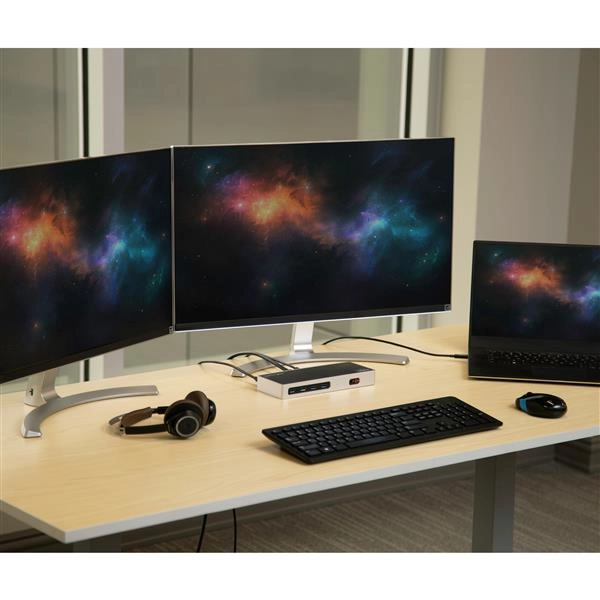

Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors.  The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.

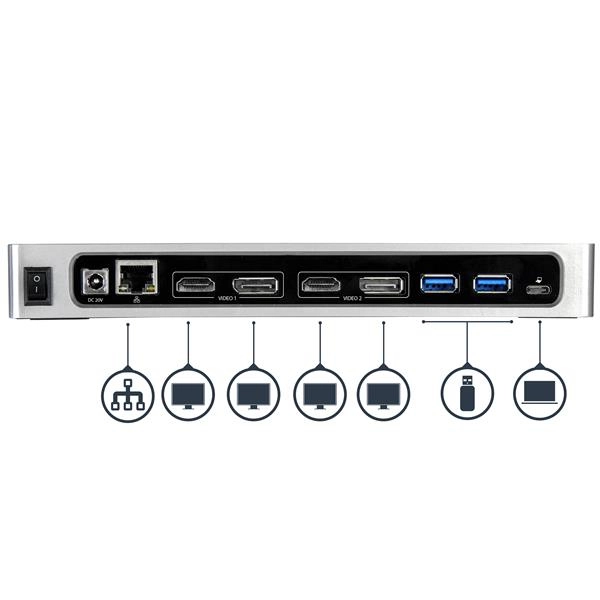

With the dual-4K dock, connect:

2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Connects to USB-C and USB-A Laptops
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.  

All the Connections You Need

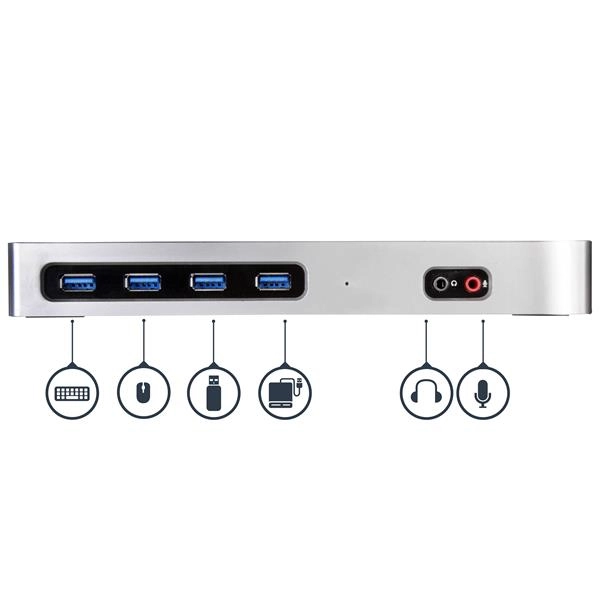

This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.

DK30A2DH is backed by a StarTech. com 3-year warranty and free lifetime technical support.

Specification

Product
Product id	583402
Brand	StarTech.com
Partnr	DK30A2DH
EAN/UPC code	065030868235
Warranty (months)	3 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
HDMI ports quantity	2
DisplayPorts quantity	2
Microphone in	Y
Combo headphone/mic port	N
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Y
Auto MDI/MDI-X	Y
10G support	N
Performance
Product colour	Black, Silver
Card reader integrated	N
Data transfer rate	5 Gbit/s
Maximum digital resolution	4096 x 2160 Pixels
Number of displays supported	2
Brand compatibility	Any brand
On/off switch	Y
Housing material	Aluminium, Plastic
LED indicators	Power
UASP support	Y
Certification	CE, FCC, REACH
Power
Power source type	AC
AC input voltage	100 - 240 V
Input current	1 A
Output current	2 A
Output voltage	20 V
Power consumption (typical)	40 W
Power plug type	Type N
Compatible power plug types	AU, EU, JP, UK, US
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility	Y
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave

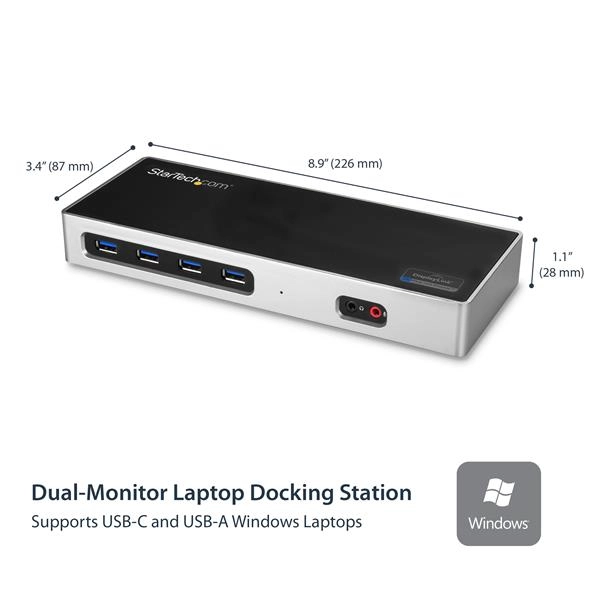

Weight & dimensions
Width	87 mm
Depth	226 mm
Height	28 mm
Weight	301 g
Packaging data
Package width	130 mm
Package depth	318 mm
Package height	52 mm
Package weight	900 g

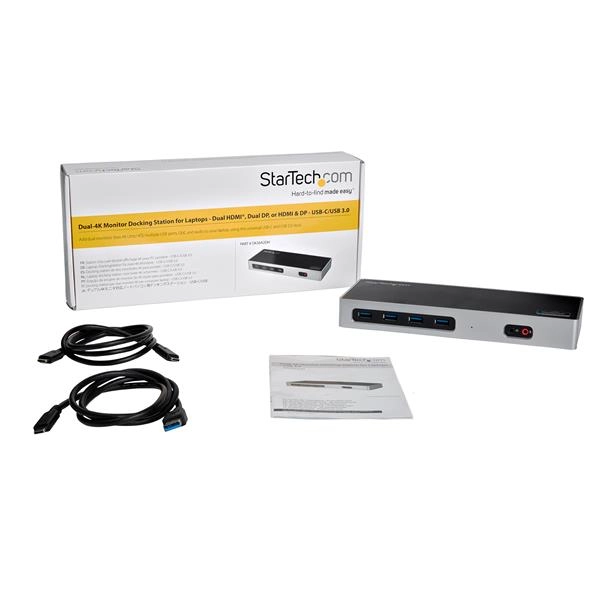

Packaging content
Quick start guide	Y
AC adapter included	Y
Cables included	USB Type-A to USB Type-C, USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Technical details
Sustainability certificates	RoHS
Logistics data
Master (outer) case height	305 mm
Master (outer) case length	325 mm
Master (outer) case width	325 mm
Quantity per master (outer) case	10 stuk(s)
Other features
Chipset	DisplayLink - DL-6950, VIA/VLI - VL813
Number of microphone inputs	1
USB data transfer rates	12, 480, 5000 Mbit/s
Cable length	0.152 m
