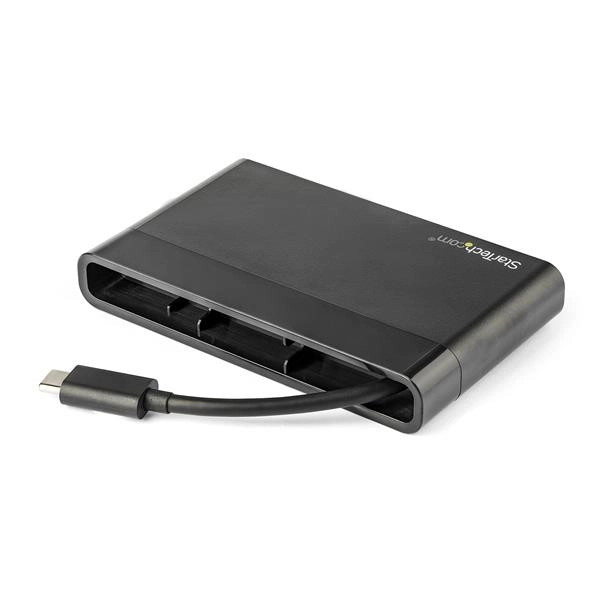

Portable Docking Station | Mac, Windows & Chrome OS | 4K | GbE | Hideaway Cable

Ideal for mobile workers, this USB-C multiport adapter with HDMI and VGA gives you flexible video output. It’s like four adapters in one, with HDMI or VGA connections, a Gigabit Ethernet port and a USB 3.0 port, all through one connection to your laptop’s USB-C port. Plus, it features a hideaway cable for better cable management and easier travel.

With easy plug-and-play installation on most operating systems, the USB-C adapter doesn’t require additional drivers or software.  It’s the perfect accessory for MacBook Pro, Dell XPS, Chromebook or other USB-C laptops.

Connect a UHD 4K HDMI or VGA Monitor

The USB Type-C multiport adapter keeps you prepared for business travel. You can extend your laptop’s display by connecting to a 4K HDMI (4096x2160 or 3840 x 2160p) or VGA (1920 x 1200p) monitor or projector, to make presentations or set up a workstation.

Convenient Cable Management

With multiple ports and an easily accessible hideaway cable, the USB-C all-in-one adapter makes an ideal travel dock, for easy connections on the go. Plus, the USB Type-C adapter is bus powered, so there’s no need to carry around a separate power adapter.

Enhance Productivity 

Connect a flash drive, mouse or other peripheral to your USB-C or Thunderbolt 3 laptop using the USB 3.0 Type-A port.  The USB-C adapter adds wired network connectivity with the GbE port, making it ideal in areas without Wi-Fi.   

DKT30CHVCM is backed by a StarTech. com 3-year warranty and free lifetime technical support.

The StarTech. com Advantage

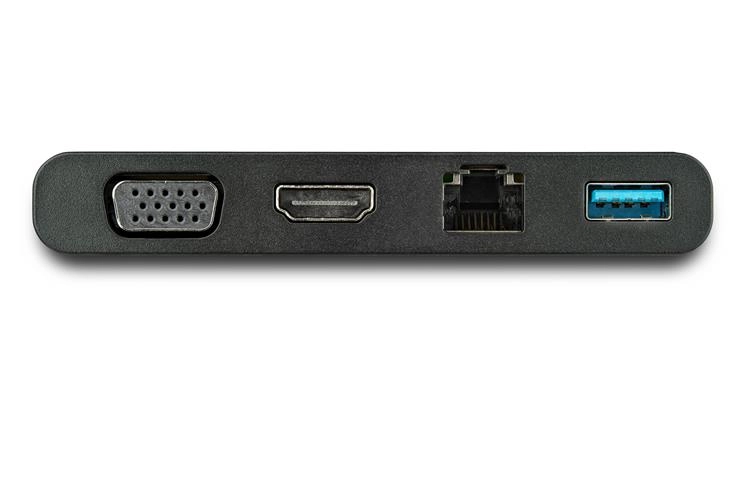

- 4-IN-1 PORTABLE DOCK: USB C Multiport Adapter w/ 4K 30Hz HDMI 1.4 or 1080p VGA single display video output, 5Gbps USB-A port & Gigabit Ethernet for USB-C/Thunderbolt 3 laptops, tablets, or smartphones
- IDEAL FOR TRAVEL: The mini USB C travel dock is compact, lightweight, & portable, features attached hideaway cable providing easy cable management to prevent tangles in laptop bags, pouches or pockets
- WIDE DEVICE COMPATIBILITY: Compatible with USB-C tablets or smartphones, this USB 3.0 (USB 3.1 Gen 1) Type C multiport hub works with HP, Lenovo, Dell, MacBook, Chromebooks and Samsung Galaxy devices

Specification

Product
Product id	632144
Brand	StarTech.com
Partnr	DKT30CHVCM
EAN/UPC code	065030880152
Warranty (months)	3 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Microphone in	N
USB connector type	USB Type-C
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Y
Auto MDI/MDI-X	Y
Performance
Product colour	Black
Card reader integrated	N
Data transfer rate	5 Gbit/s
Maximum digital resolution	4096 x 2160 Pixels
Maximum analog resolution	1920 x 1200 Pixels
Housing material	Plastic
UASP support	Y
Certification	CE, FCC, REACH
Power
Power source type	USB
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility	Y
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Other operating systems supported	Chrome
Weight & dimensions
Width	62 mm
Depth	105 mm
Height	16 mm
Weight	82 g
Packaging data
Package width	142 mm
Package depth	175 mm
Package height	30 mm
Package weight	168 g
Packaging content
Manual	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90 procent
Technical details
Sustainability certificates	RoHS
Logistics data
Master (outer) case height	250 mm
Master (outer) case length	330 mm
Master (outer) case width	285 mm
Quantity per master (outer) case	20 stuk(s)
Other features
Chipset	Genesys Logic - GL3523, Realtek - RTL8153, Eton Technology - EJ899T, Parade Technologies - PS176, ITE - IT6516
Cable length	0.085 m
