1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

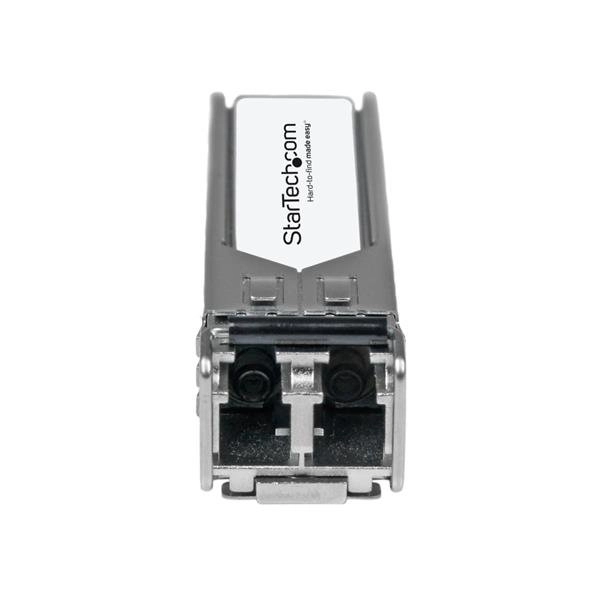

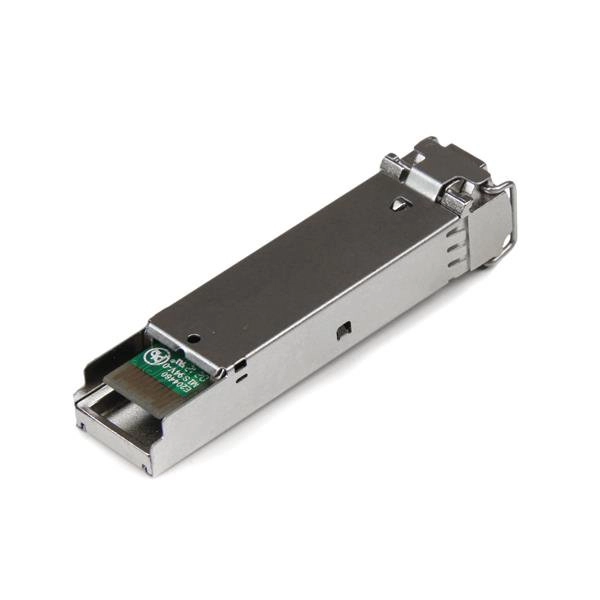

The EW3A0000712-ST is a Citrix EW3A0000712 compatible fiber transceiver module that has been designed, programmed and tested to work with Citrix brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

Wavelength: 1310nm

Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

MTBF: 634, 210, 013 hours

Power Consumption: < 1.3W

Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% CITRIX EW3A0000712 COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Citrix switches and routers to deliver dependable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-LX
- 1Gbps

Specification

Product
Product id	666193
Brand	StarTech.com
Partnr	EW3A0000712-ST
EAN/UPC code	065030885683
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Packaging data
Number of products included	1 stuk(s)
Package width	90 mm
Package depth	115 mm
Package height	31 mm
Package weight	50 g
Performance
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Y
Multi-mode fiber (MMF) supported	N
Fiber optic connector	LC
SFP transceiver standard	LX
Maximum transfer distance	10000 m
Wavelength	1310 nm
Fiber ethernet cabling technology	1000BASE‑LX
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Silver
Hot-swap	Y
Mean time between failures (MTBF)	634210013 uur
Brand compatibility	Citrix
Compatible products	EW3A0000712
Certification	CE, FCC, UR
Power
Power consumption (typical)	1.3 W
Weight & dimensions
Width	56.6 mm
Depth	13.7 mm
Height	12.5 mm
Weight	50 g
Logistics data
Master (outer) case width	90 mm
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Quantity per master (outer) case	1 stuk(s)
