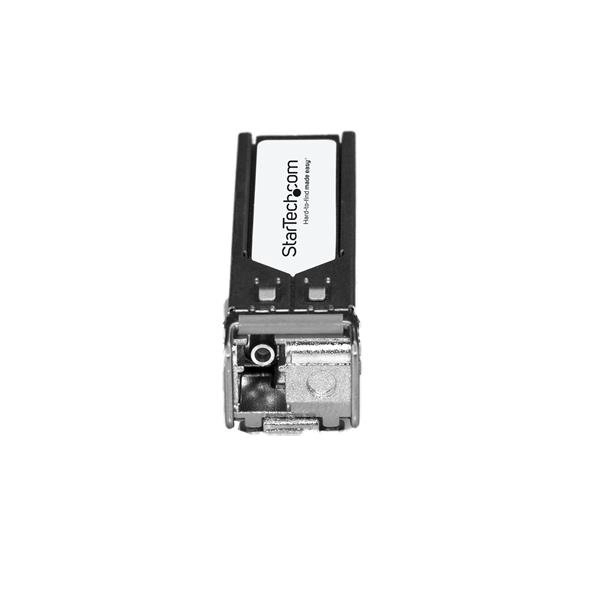

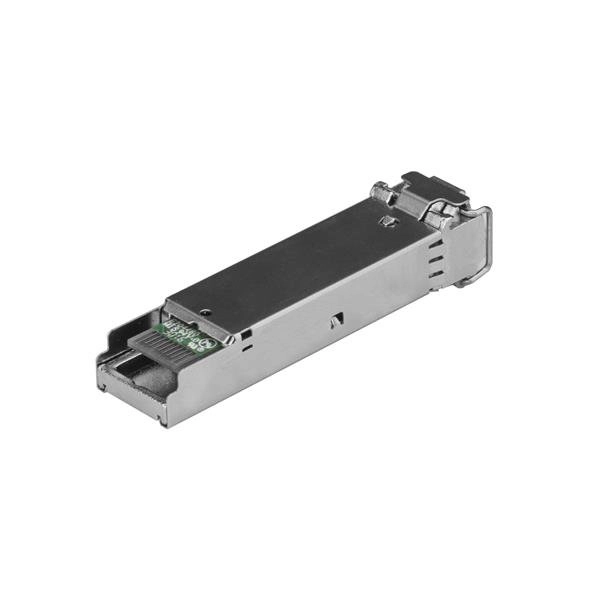

HP JD094B-BX60-U Compatible SFP+ Module - 10GBase-BX Fiber Optical Transceiver Upstream (JD094B-BX60-U-ST)



StarTech.com
Not in stock
€ 645,79
€ 781,40 incl 21% VAT
10 Gbps | Single Mode Fiber | LC | 60 km (37.3 mi) | Lifetime Warranty

The JD094B-BX60-U-ST is an HP JD094B-BX60-U compatible upstream fiber SFP+ transceiver which pairs with StarTech. com's JD094B-BX60-D-ST. They are designed, programmed and tested to work with 10GBase-BX compatible HP switches and routers. The SFP+ transceiver module supports a maximum distance of up to 60 km (37.3 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1270nmTx/1330nmRx

Maximum Data Transfer Rate: 10Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 60 km (37.3 mi)

Power Consumption: Low power consumption

DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% HPE JD094B-BX60-U COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 10GBASE-BX

Specification

Product
Product id 666199
Brand StarTech.com
Partnr JD094B-BX60-U-ST
EAN/UPC code 065030886291
Warranty (months) Lifetime
Network
SFP transceiver type Fiber optic
Packaging data
Number of products included 1 stuk(s)
Package width 90 mm
Package depth 115 mm
Package height 31 mm
Package weight 50 g
Performance
Maximum data transfer rate 10000 Mbit/s
Interface type SFP+
Single-mode fiber (SMF) supported Y
Multi-mode fiber (MMF) supported N
Fiber optic connector LC
SFP transceiver standard BX
Maximum transfer distance 60000 m
Tx wavelength (max) 1270 nm
Rx wavelength (max) 1330 nm
Digital Diagnostics Monitoring (DDM) Y
Features
Product colour Silver
Hot-swap Y
Mean time between failures (MTBF) 646156559 uur
Brand compatibility HP
Compatible products JD094B
Weight & dimensions
Width 58.4 mm
Depth 13.9 mm
Height 12.6 mm
Weight 24 g
Logistics data
Master (outer) case width 90 mm
Master (outer) case length 115 mm
Master (outer) case height 31 mm
Quantity per master (outer) case 1 stuk(s)
