10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

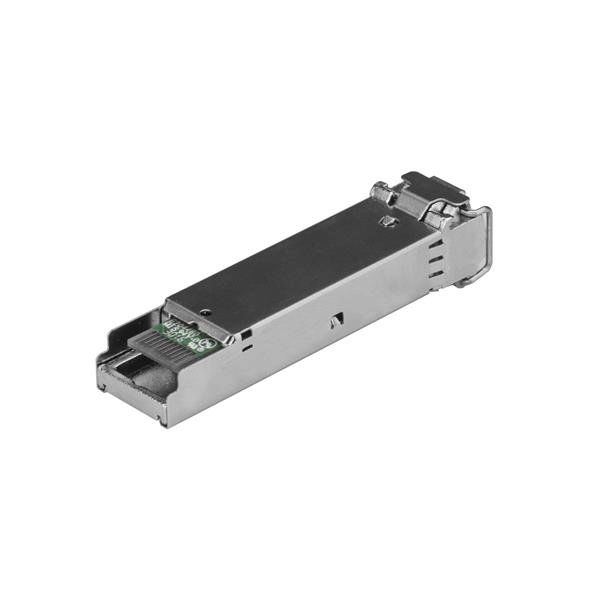

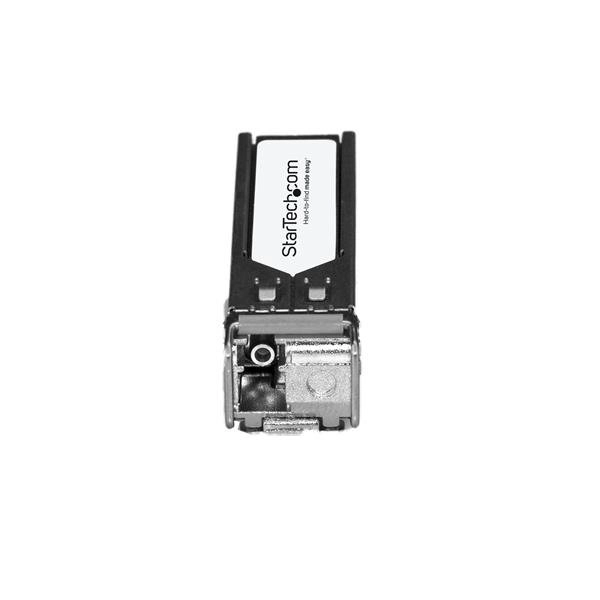

The JD094B-BX-U-ST is an HP JD094B-BX-U compatible upstream fiber SFP+ transceiver which pairs with StarTech. com's JD094B-BX-D-ST. They are designed, programmed and tested to work with 10GBase-BX compatible HP switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1270nmTx/1330nmRx

Maximum Data Transfer Rate: 10Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

Power Consumption: < 1.3W

DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% HPE JD094B-BX-U COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 10GBASE-BX

Specification

Product
Product id	665837
Brand	StarTech.com
Partnr	JD094B-BX-U-ST
EAN/UPC code	065030886253
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Packaging data
Number of products included	1 stuk(s)
Package width	90 mm
Package depth	115 mm
Package height	31 mm
Package weight	50 g
Performance
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Y
Multi-mode fiber (MMF) supported	N
Fiber optic connector	LC
SFP transceiver standard	BX
Maximum transfer distance	10000 m
Tx wavelength (max)	1270 nm
Rx wavelength (max)	1330 nm
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Silver
Hot-swap	Y
Mean time between failures (MTBF)	646156559 uur
Brand compatibility	HP
Compatible products	JD094B
Power
Power consumption (typical)	1.3 W
Weight & dimensions
Width	58.4 mm
Depth	13.9 mm
Height	12.6 mm
Weight	24 g
Logistics data
Master (outer) case width	90 mm
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Quantity per master (outer) case	1 stuk(s)
