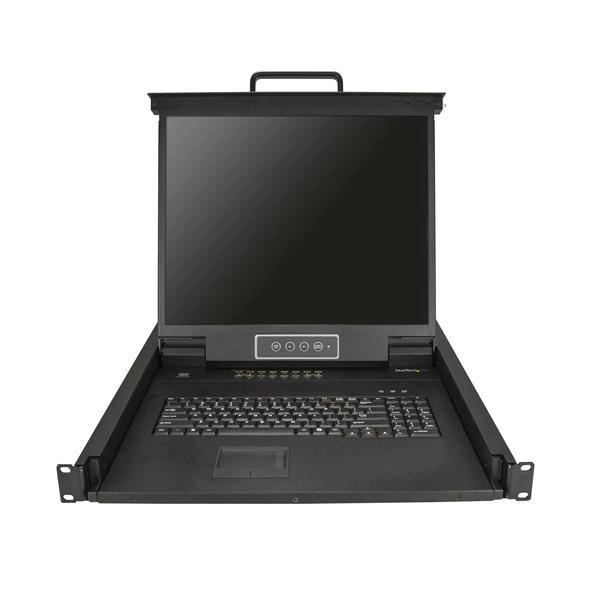

Control your server or KVM switch from a centralized rack-mount KVM console

This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This 16-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

This versatile rack-mount LCD console has a 19 in. screen. The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity.

Clutter-free monitoring

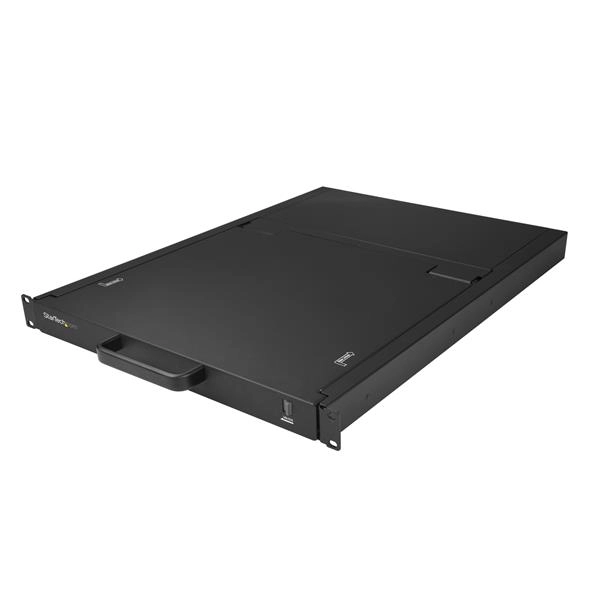

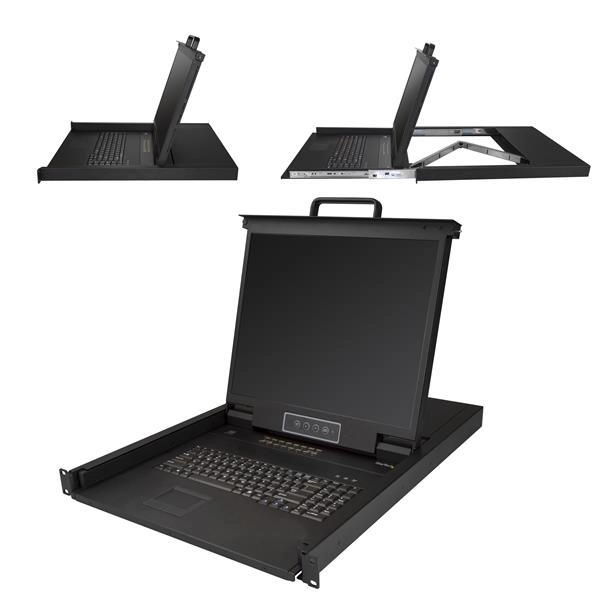

The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. You can also connect to additional servers by connecting to  KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.

The RKCONS1916K is backed by a StarTech. com 2-year warranty and free lifetime technical support.

The StarTech. com Advantage

- TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 16 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8' [60.5 cm] to 35' [89 cm] (incl. mounting hardware)

Specification

Product
Product id	605862
Brand	StarTech.com
Partnr	RKCONS1916K
EAN/UPC code	065030872539
Warranty (months)	2 Years
Display
Display diagonal	19 inch
Display resolution	1280 x 1024 Pixels
Display	TFT LCD
Display number of colours	16.78 million colours
Display type	LCD
Pixel pitch	0.264 x 0.264 mm
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Colour depth	8 Bit
Technical details
Number of computers controlled	16
Key lock	N
Daisy chain	N
Mean time between failures (MTBF)	50000 uur
Product colour	Black
Operating relative humidity (H-H)	10 - 80 procent
Sustainability certificates	RoHS
Rack capacity	1U
Audio support	N

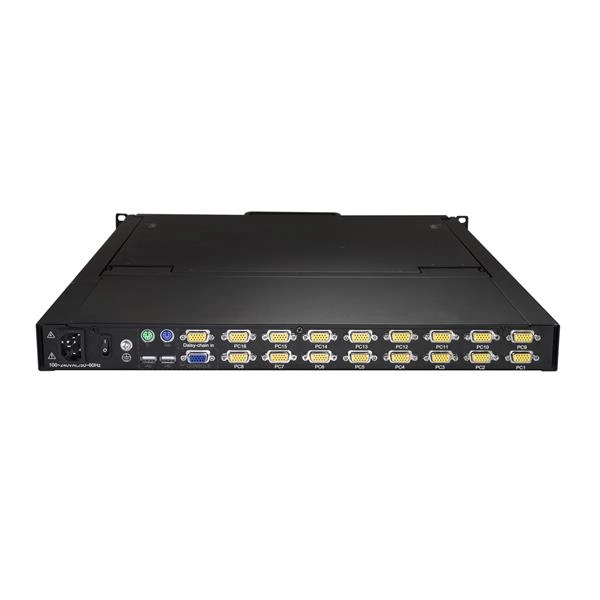

Ports & interfaces
VGA (D-Sub) ports quantity	18
Video port type	VGA
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-A ports quantity	2
Keyboard
Built-in touchpad	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Power
Power consumption (typical)	23 W
AC adapter input voltage	100 - 240 V
Input current	1.5 A
Certificates
Certification	PSE, FCC, UL, CE, REACH
Weight & dimensions
Width	483 mm
Height	43 mm
Depth	643 mm
Weight	13500 g
Mounting depth (min)	605 mm
Mounting depth (max)	890 mm
Packaging data
Package weight	21000 g
Package width	615 mm
Package depth	765 mm
Package height	190 mm

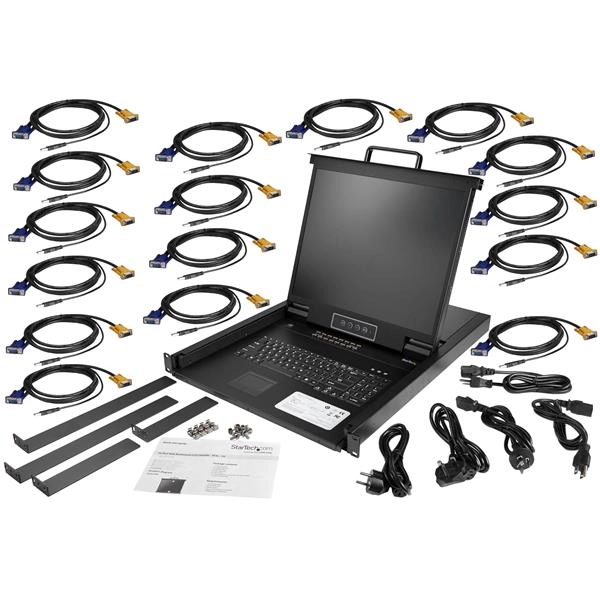

Packaging content
Cables included	KVM
Screws included	Y
Number of screws	8
Mounting brackets included	Y
Number of cage nuts	8
Cage nuts included	Y
Included power plug types	ANZ, EU, JP, NA, UK
Quick installation guide	Y
Logistics data
Master (outer) case width	615 mm
Master (outer) case length	765 mm
Master (outer) case height	190 mm
Quantity per master (outer) case	1 stuk(s)
