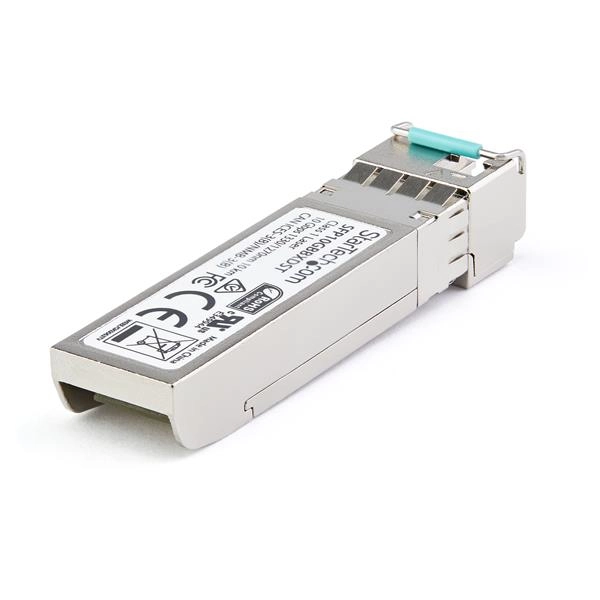

Dell EMC SFP-10G-BX10-U Compatible SFP+ Module - 10GBase-BX10 Fiber Optical Transceiver Upstream (SFP10GBX10US)



StarTech.com
Not in stock
€ 332,34
€ 402,13 incl 21% VAT
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP10GBX10US is a Dell EMC SFP-10G-BX10-U compatible upstream fiber SFP transceiver which pairs with StarTech. com's SFP10GBX10DS. They are designed, programmed and tested to work with 10GBase-BX10 compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1330nmTx/1270nmRx

Maximum Data Transfer Rate: 10Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

MTBF: 3, 736, 187 hours

Power Consumption: < 1.3W

DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% DELL EMC SFP-10G-BX10-U COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 10GBASE-BX-U

Specification

Product
Product id 665869
Brand StarTech.com
Partnr SFP10GBX10US
EAN/UPC code 065030883399
Warranty (months) Lifetime
Network
SFP transceiver type Fiber optic
Technical details
Sustainability certificates RoHS
Packaging data
Number of products included 1 stuk(s)
Package width 90 mm
Package depth 115 mm
Package height 31 mm
Package weight 50 g
Performance
Maximum data transfer rate 10000 Mbit/s
Interface type SFP+
Single-mode fiber (SMF) supported Y
Multi-mode fiber (MMF) supported N
Fiber optic connector LC
Maximum transfer distance 10000 m
Tx wavelength (max) 1330 nm
Rx wavelength (max) 1270 nm
Duplex system Full
Digital Diagnostics Monitoring (DDM) Y
Features
Product colour Silver
Hot-swap Y
Mean time between failures (MTBF) 3736187 uur
Brand compatibility Dell
Compatible products SFP-10G-BX10-U
Certification CE, FCC, UL, REACH
Power
Power consumption (typical) 1.3 W
Weight & dimensions
Width 58.4 mm
Depth 13.9 mm
Height 12.6 mm
Weight 30 g
Logistics data
Master (outer) case width 90 mm
Master (outer) case length 115 mm
Master (outer) case height 31 mm
Quantity per master (outer) case 1 stuk(s)
