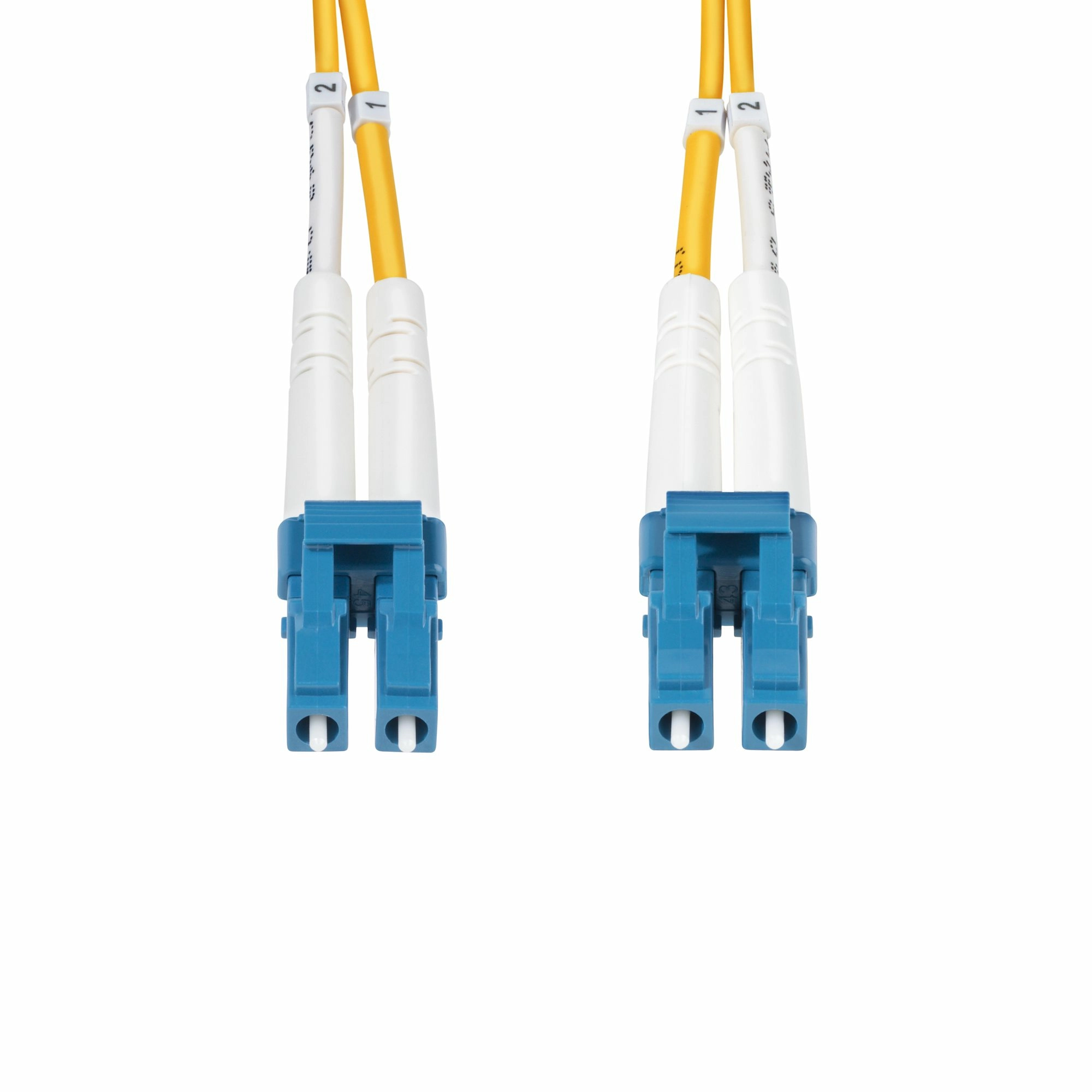

5m LC/LC OS2 Single Mode Fiber Cable



StarTech.com
Limited stock
€ 22,96
€ 27,78 incl 21% VAT
StarTech. com SMDOS2LCLC5M. Cable length: 5 m, Cable type: LC/UPC, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex

Specification

Product
Product id 950215
Brand StarTech.com
Partnr SMDOS2LCLC5M
EAN/UPC code 065030901727
Warranty (months) 24 months
Features
Cable length 5 m
Cable type LC/UPC
Fibre optic type OS2
Connector 1 LC
Connector 2 LC
Connector 1 gender Male connector
Full duplex Y
Connector 2 gender Male connector
Core diameter 9 µm
Connector polish type UPC
Product colour Yellow
Cladding diameter 125 µm
Fiber mode structure Single-mode
Wavelengths supported 1260, 1280, 1300, 1310, 1383, 1490, 1550, 1590, 1600, 1625 nm
Data transfer rate 10 Gbit/s
Jacket material Low smoke zero halogen (LSZH), Polypropylene
Return loss 55 dB
Technical details
Sustainability compliance Y
Sustainability certificates CE
Insertion loss 0.3 dB
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -20 - 60 °C
Packaging data
Quantity per pack 1 stuk(s)
Package width 200 mm
Package depth 220 mm
Package height 5 mm
Package weight 41.6 g
Weight & dimensions
Cable diameter 2 mm
Bending radius 10 mm
Logistics data
Master (outer) case width 380 mm
Master (outer) case length 380 mm
Master (outer) case height 280 mm
Quantity per master (outer) case 200 stuk(s)
Other features
Attenuation (max) 0.35 dB/km
