Product |
Product id
| 663759
|
Brand
| TP-Link
|
Partnr
| TL-SG1218MPE
|
EAN/UPC code
| 6935364086923
|
Warranty (months)
| 3 year limited warranty for normal product and 5 year warranty for managed switch
|
Data transmission |
MAC address table
| 8000 entries
|
Switching capacity
| 36 Gbit/s
|
Forwarding rate
| 23.8 Mpps
|
Store-and-forward
| Y
|
Number of queues
| 4
|
Jumbo frames support
| Y
|
Jumbo frames
| 9000
|
Packet buffer memory
| 4.1 MB
|
Network |
Networking standards
| IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
|
10G support
| N
|
Copper ethernet cabling technology
| 10BASE-T, 100BASE-TX, 1000BASE-T
|
Cable types supported
| Cat3, Cat4, Cat5, Cat5e, Cat6
|
Port mirroring
| Y
|
Auto-negotiation
| Y
|
Auto MDI/MDI-X
| Y
|
Rate limiting
| Y
|
Broadcast storm control
| Y
|
Link aggregation
| Y
|

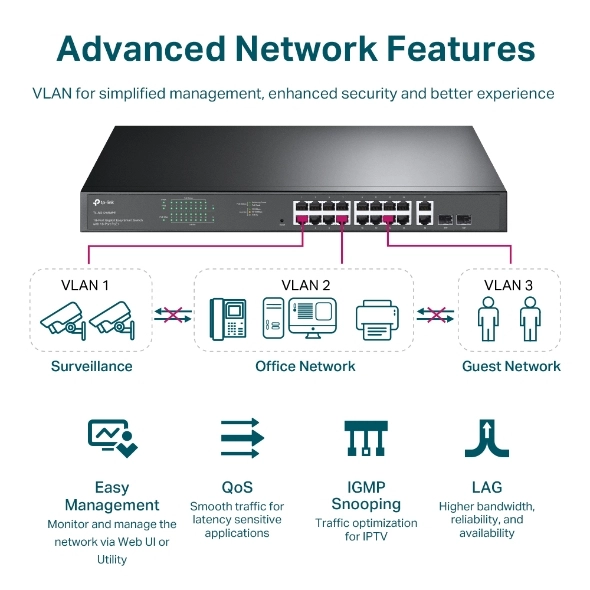

VLAN support
| Y
|
Number of VLANs
| 32
|
Management features |
Switch type
| Managed
|
Web-based management
| Y
|
Ports & interfaces |
Basic switching RJ-45 Ethernet ports quantity
| 16
|
Basic switching RJ-45 Ethernet ports type
| Gigabit Ethernet (10/100/1000)
|
SFP module slots quantity
| 2
|
Security |
IGMP snooping
| Y
|
Weight & dimensions |
Width
| 440 mm
|
Depth
| 180 mm
|
Height
| 44 mm
|
Packaging data |
Cables included
| AC
|
Rack mount kit
| Y
|
Package weight
| 2910 g
|
User guide
| Y
|
Package width
| 528 mm
|
Package depth
| 250 mm
|
Package height
| 80 mm
|
Power |
Power supply included
| Y
|
AC input voltage
| 100 - 240 V
|
AC input frequency
| 50/60 Hz
|
Power consumption (max)
| 217.22 W
|
Optical fiber |
Fiber ethernet cabling technology
| 1000BASE-X
|
Design |
Rack mounting
| Y
|
Product colour
| Black
|
Number of fans
| 2 ventilator(en)
|
Certification
| CE, FCC, RoHS
|
Operational conditions |
Heat dissipation
| 741.15 BTU/h
|
Storage temperature (T-T)
| -40 - 70 °C
|
Storage relative humidity (H-H)
| 5 - 90 procent
|
Operating temperature (T-T)
| 0 - 50 °C
|
Operating relative humidity (H-H)
| 10 - 90 procent
|

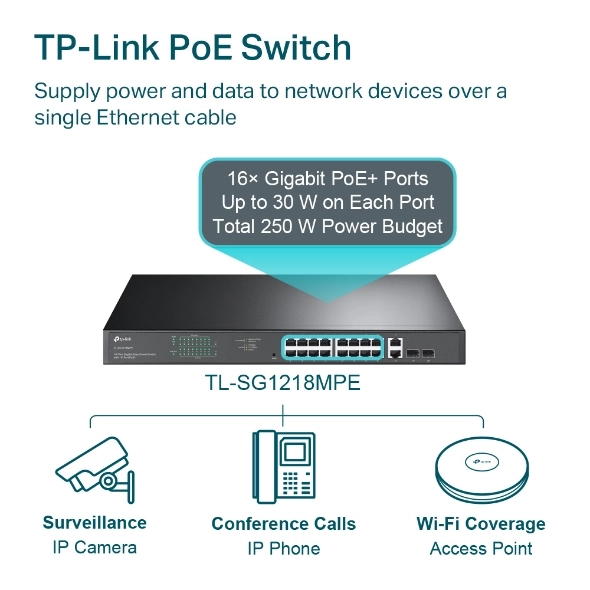

Power over Ethernet (PoE) |
Power over Ethernet (PoE)
| Y
|
Power over Ethernet plus (PoE+) ports quantity
| 16
|
Total Power over Ethernet (PoE) budget
| 192 W
|
