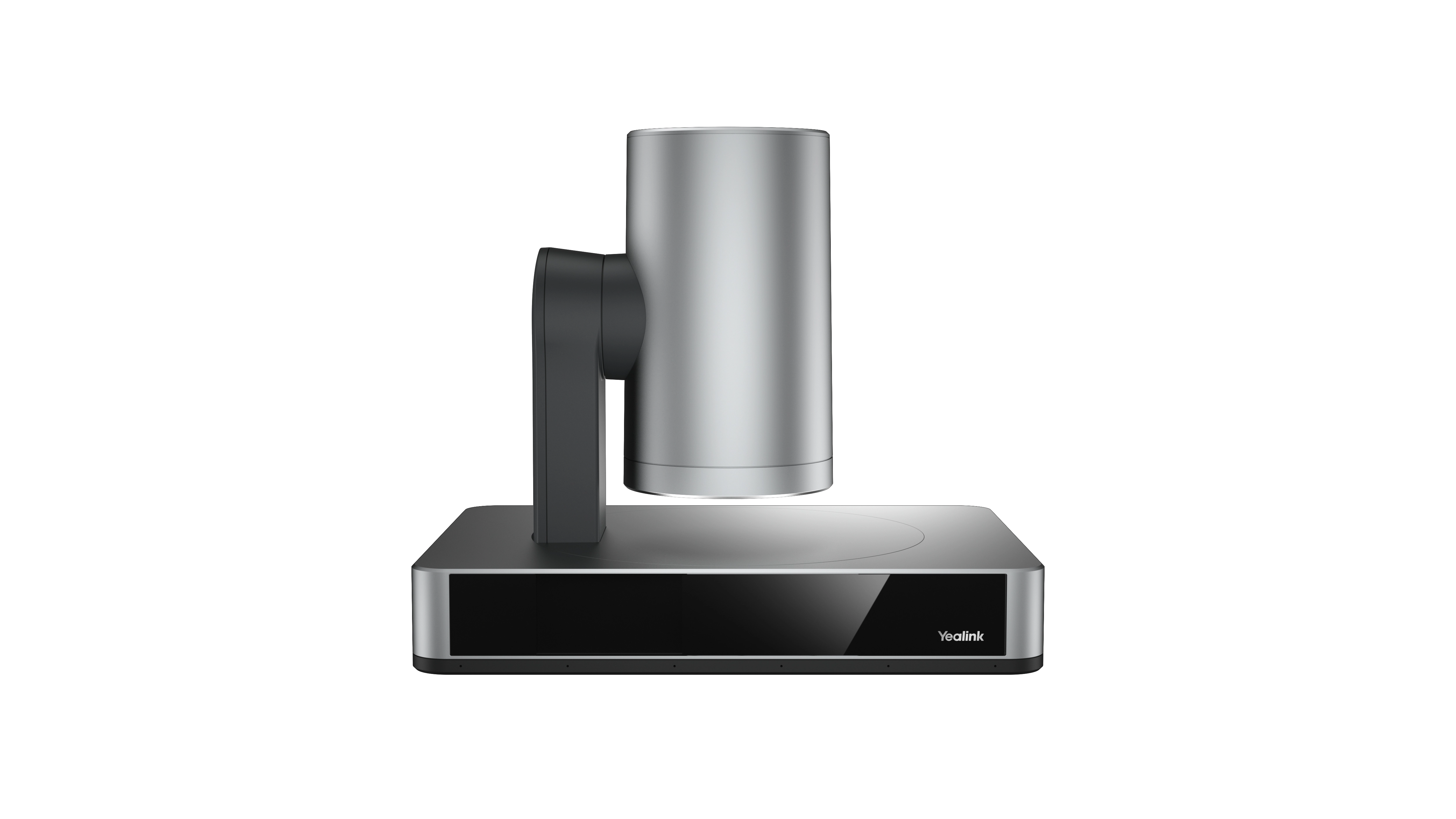

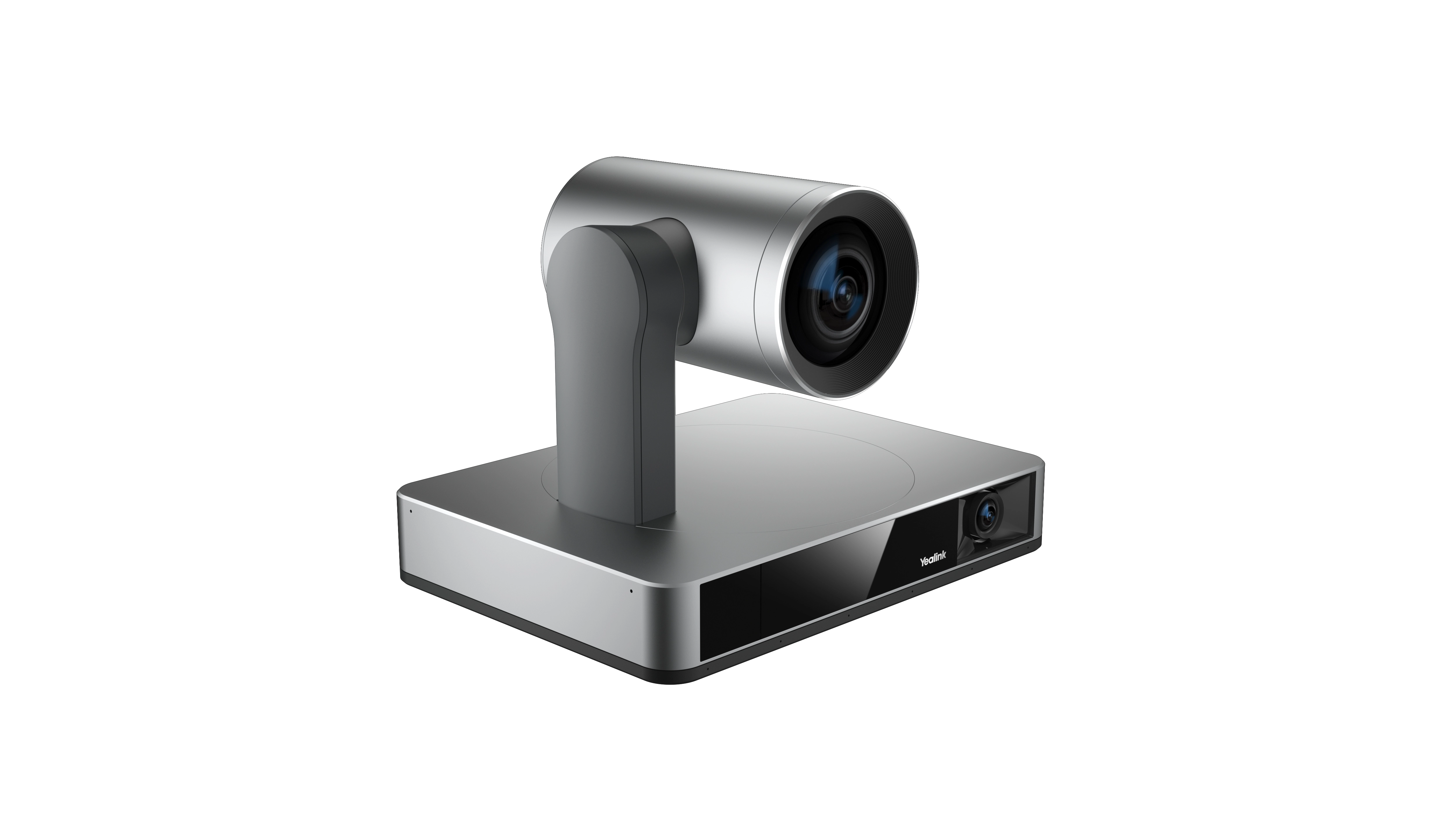

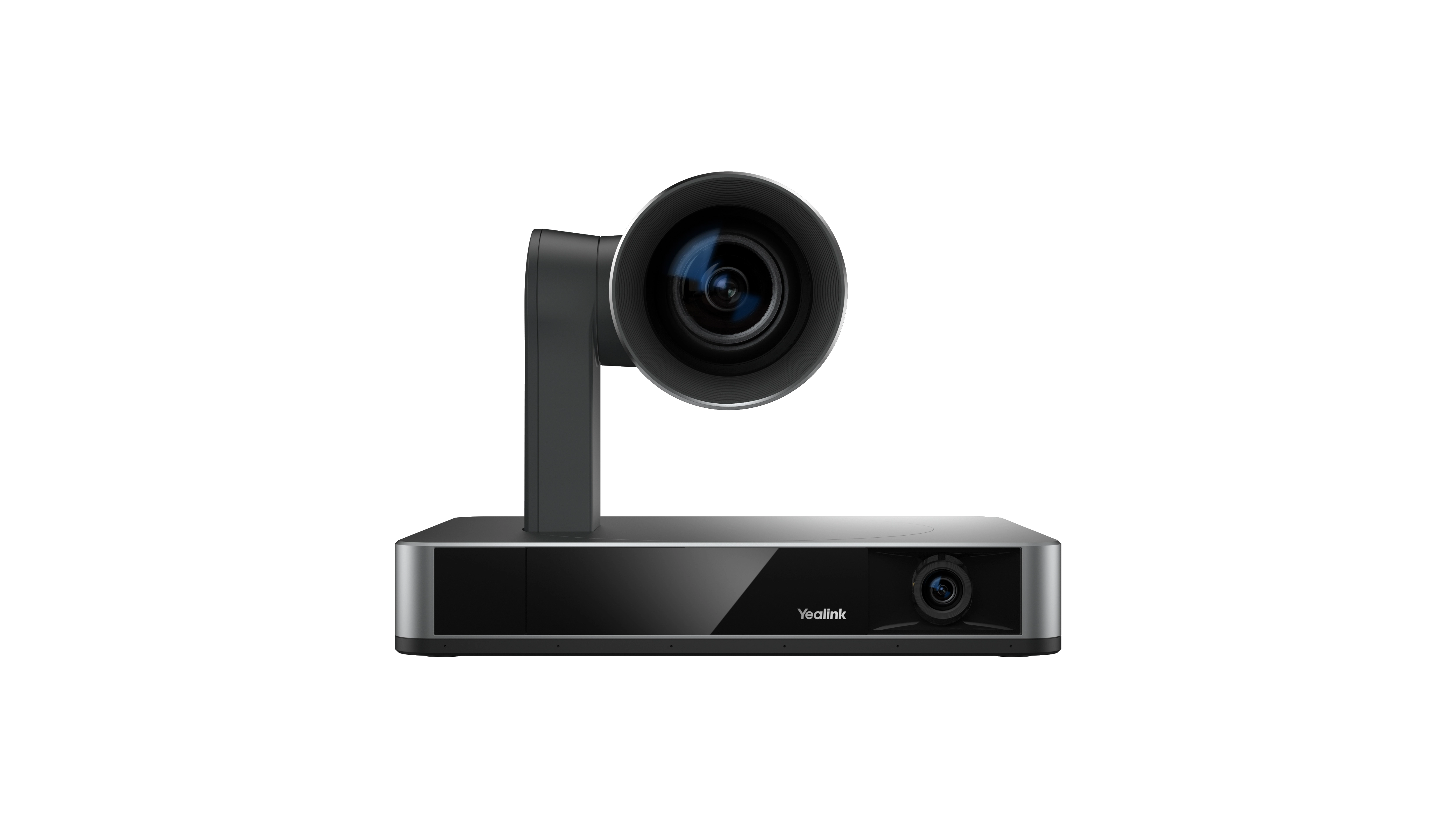

A 4K dual-eye intellegient camera for medium and large rooms with for display of everyperson and every detail. With auto-framing, speaker tracking and presenter trackingfeatures, the UVC86 delivers face to face, intelligent and smooth video experience byprecisely reproducing every moment and detail, always showing the best picture of yourroom. The UVC86 camera has a built-in PTZ camera with 90° and panoramic lens with120°. It allows you to tilt up and down easily via remote control or Yealink camera controlplug-in software to collaborate more efficiently.


Dual-eye 4K Camera Clearly Showing Every Participant

UVC86 is a built-in dual-eye 4K camera with a panoramic camera to detect participantsin real-time and a PTZ camera to capture the best picture of participants, supporting a 4Kvideo stream and capturing every detail of the meeting.

Precise and Smooth Tracking Experience

UVC86 camera supports both Auto Framing, Speaker Tracking and Presenter Trackingfeatures. The dual-eye design solution greatly ensures the stability and smoothness of thetracking effect.

12x Optical Zoom, 90° Wide FoV

With 12X optical zoom and 90° field of view, UVC86 can easily cover a medium or largemeeting space. Everyone sitting in the meeting room can be clearly seen by the remoteparty.

Integrated with Audio

UVC86 camera integrates the audio feature in it as well. Perfectly working with the UVC86camera, VCM34 array microphone or VCM38 ceiling microphone combined with MSpeakerII soundbar is capable of providing a wonderful audio experience.

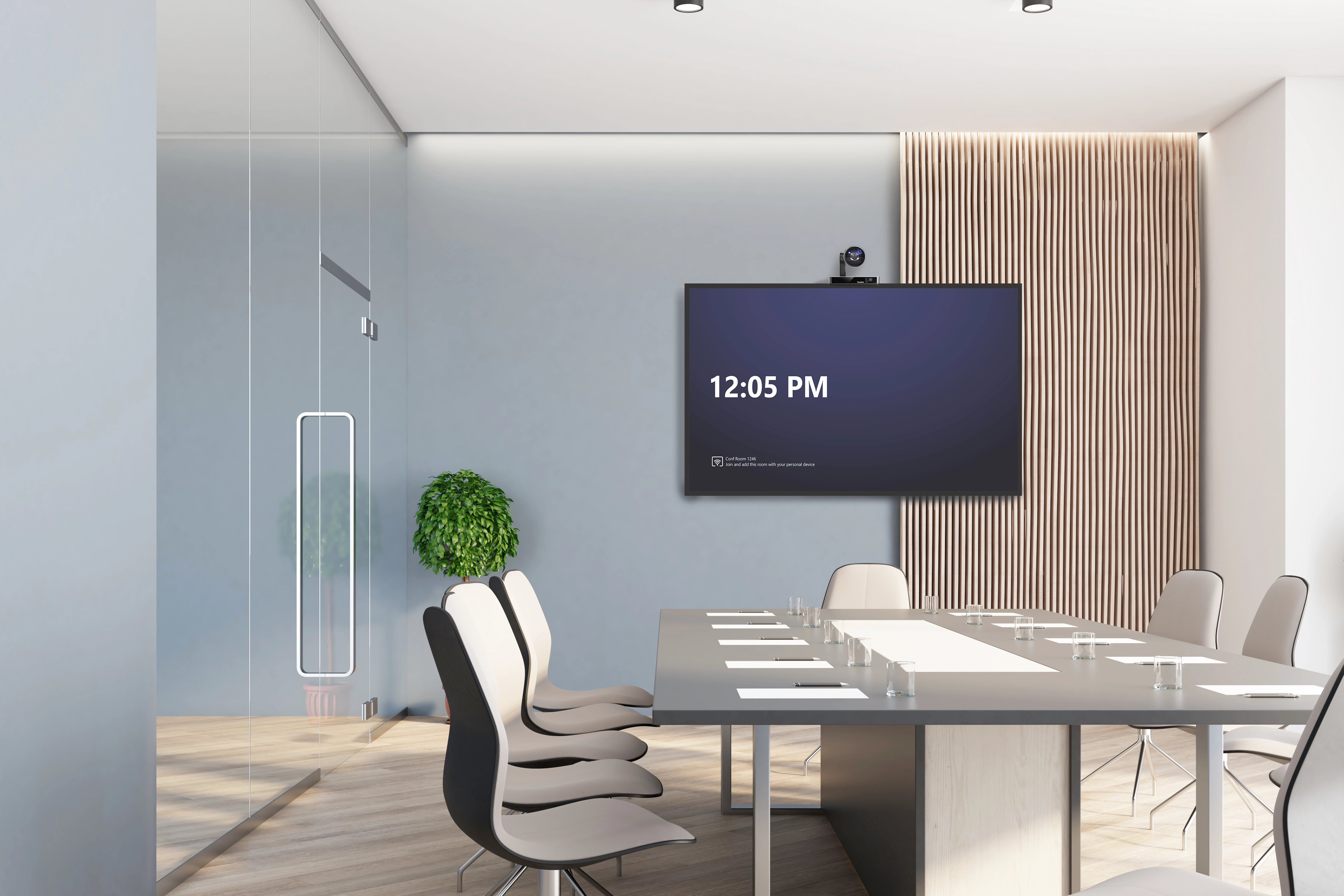

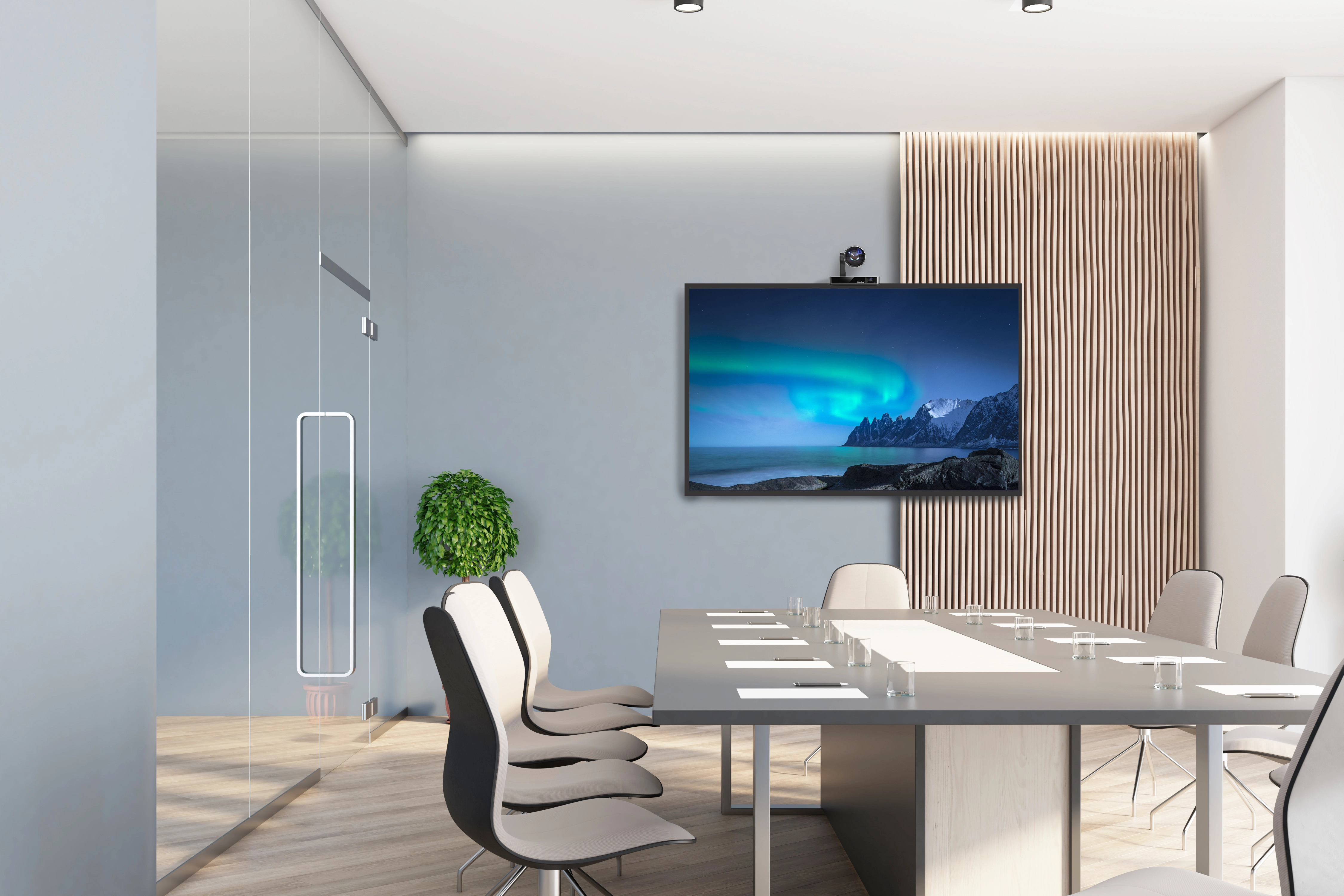

Multiple Installation Options

The complete mounting kits allow you to either put UVC86 on the conference table, ormount it on the top of TV, on the wall, on the ceiling, onto a TV stand or a tripod with greatflexibility according to your needs.

Secure Conference with Electric Lens Cap and Automatically Flip

When you start a video conference, the panoramic camera electric lens cap of the UVC86automatically opens, and the PTZ camera awakes up. At this time, the UVC86 is aiming atthe participants. If you are not in a video conference, the panoramic camera electric lens cap of the UVC86remains closed, and the PTZ camera automatically flips down to secure your conferenceprivacy.

Specification

Product
Product id	823813
Brand	Yealink Network Technology
Partnr	UVC86
EAN/UPC code	6938818318038
Camera
Megapixel	8 MP
Camera type	Dual camera
Second camera resolution	8 MP
Optical zoom	12 x
Digital zoom	1.7 x
Field of view (FOV) angle	90 °
Number of camera presets	9
PTZ control	Y
Video
Maximum frame rate	30 fps
HD type	4K Ultra HD
Design
Product colour	Black, Grey
Pan range	-100 - 100 °

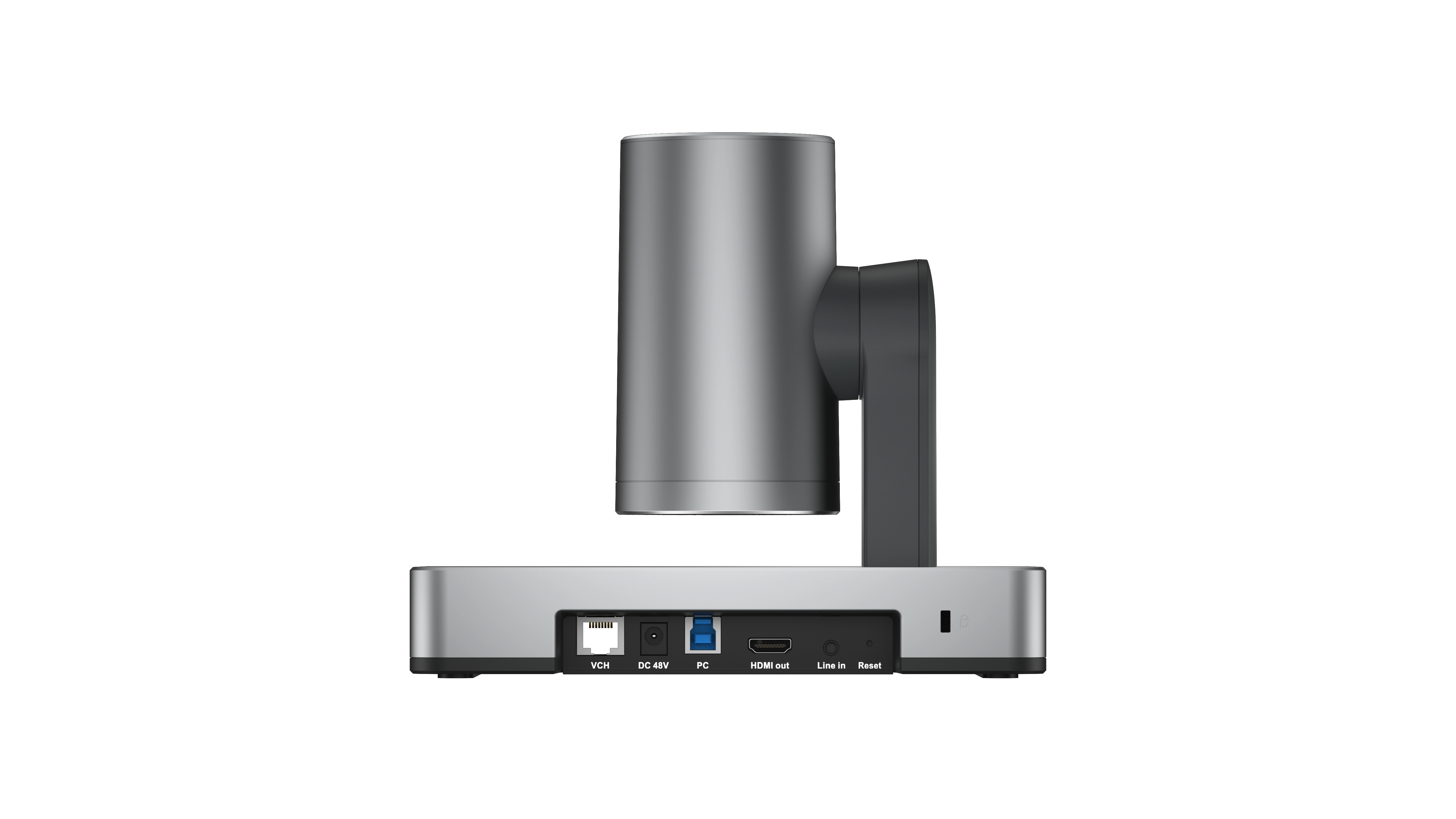

Ports & interfaces
HDMI ports quantity	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power source type	AC
AC input frequency	100 - 240 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 procent
Technical details
Harmonized System (HS) code	85258900
Performance
Auto framing	Y
Cable lock slot	Y
Auto-tracking	Y
Tracking modes	Presenter mode
Packaging content
Handheld remote control	Y
Power supply included	Y
Cables included	USB
USB cable length	7 m
Weight & dimensions
Width	210 mm
Depth	155.6 mm
Height	157.6 mm
Weight	3270 g
