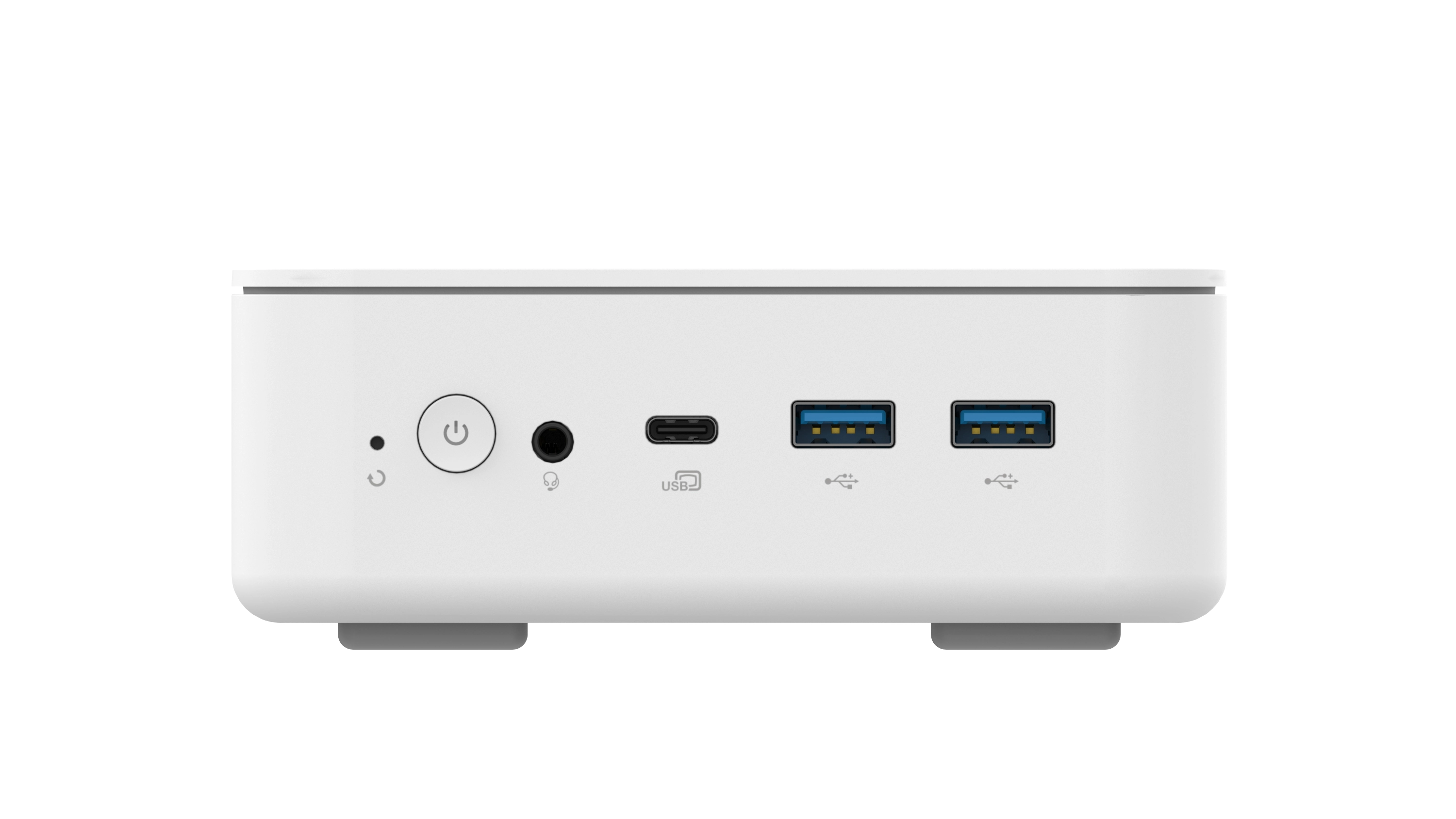

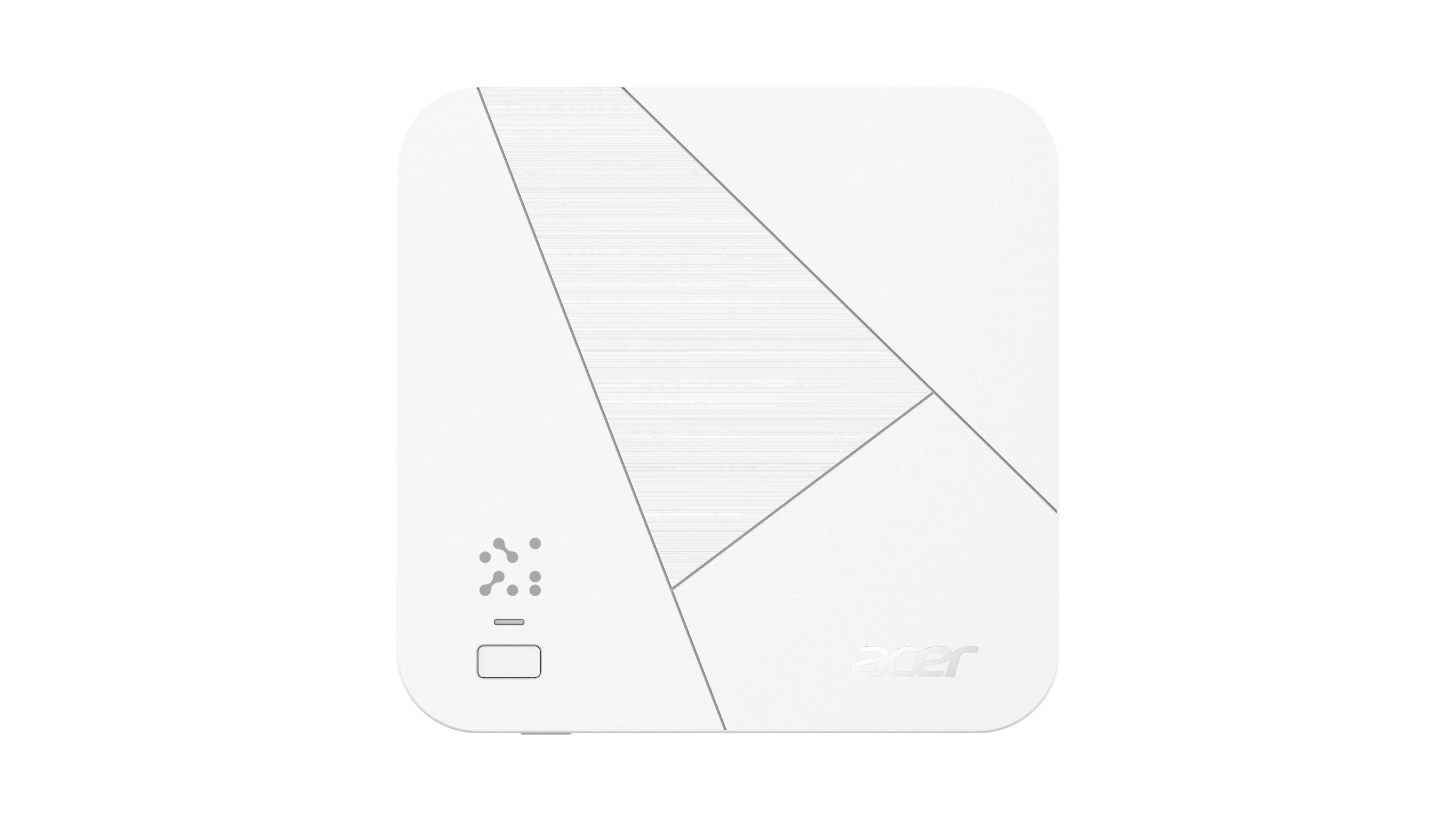

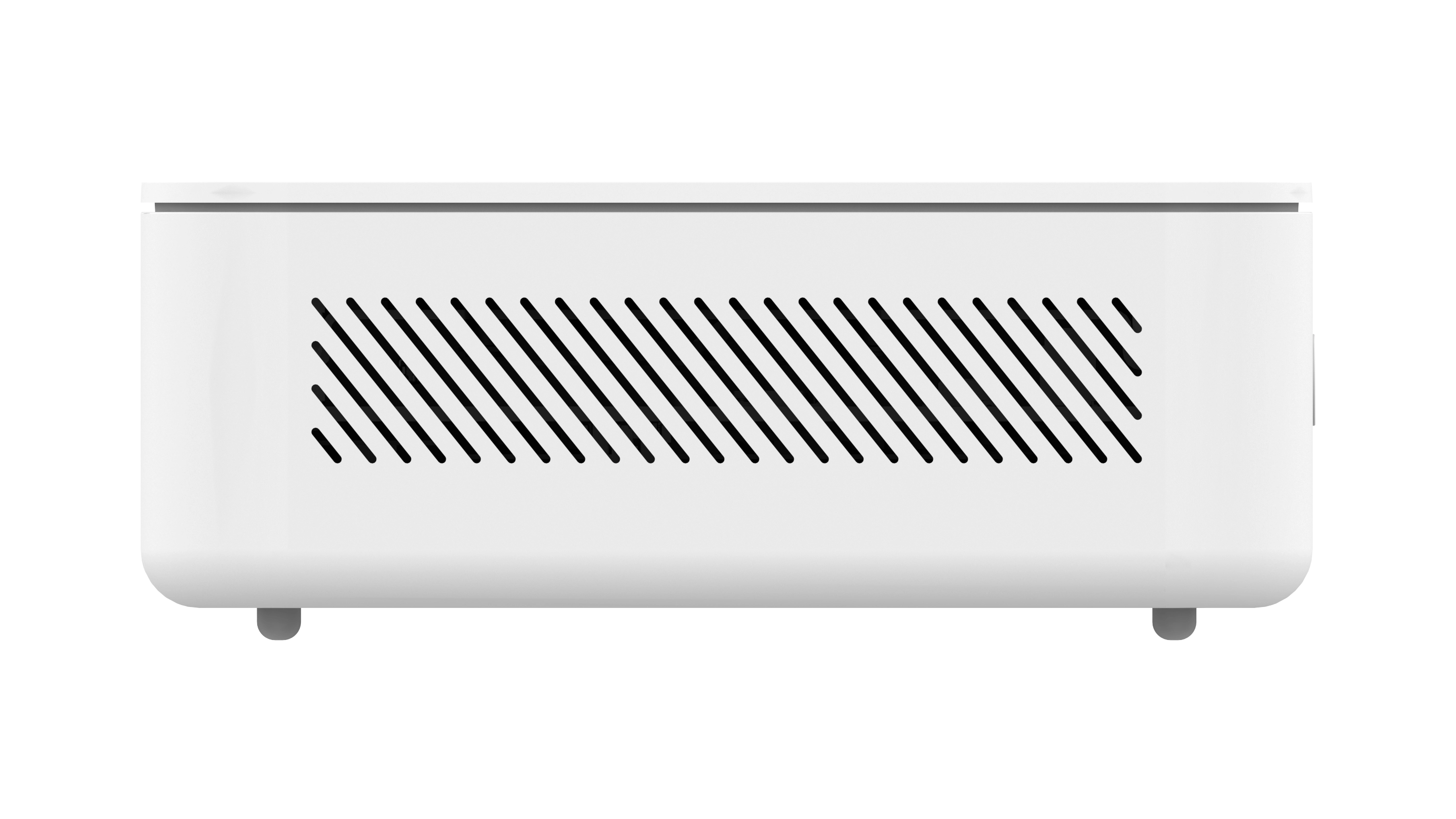

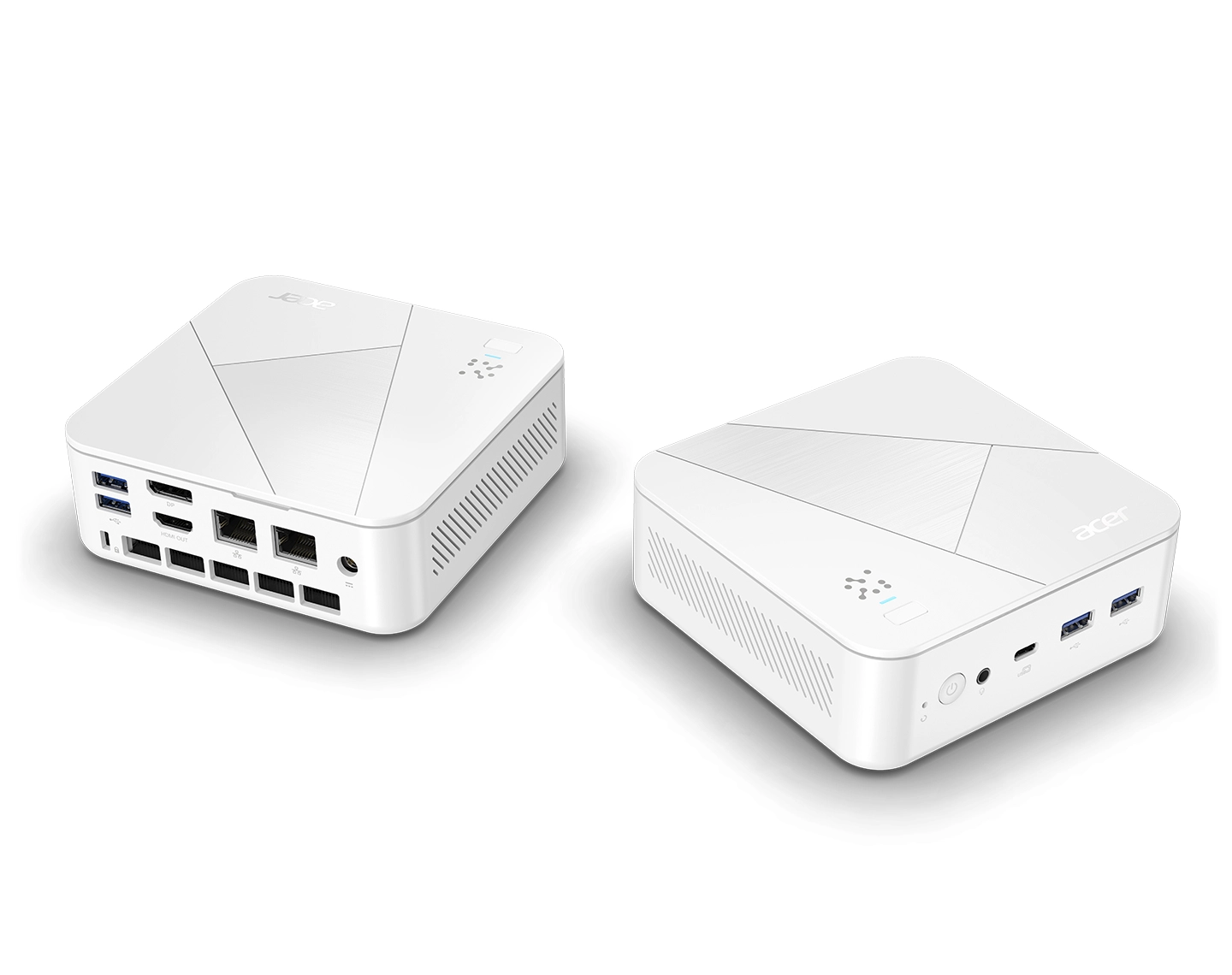

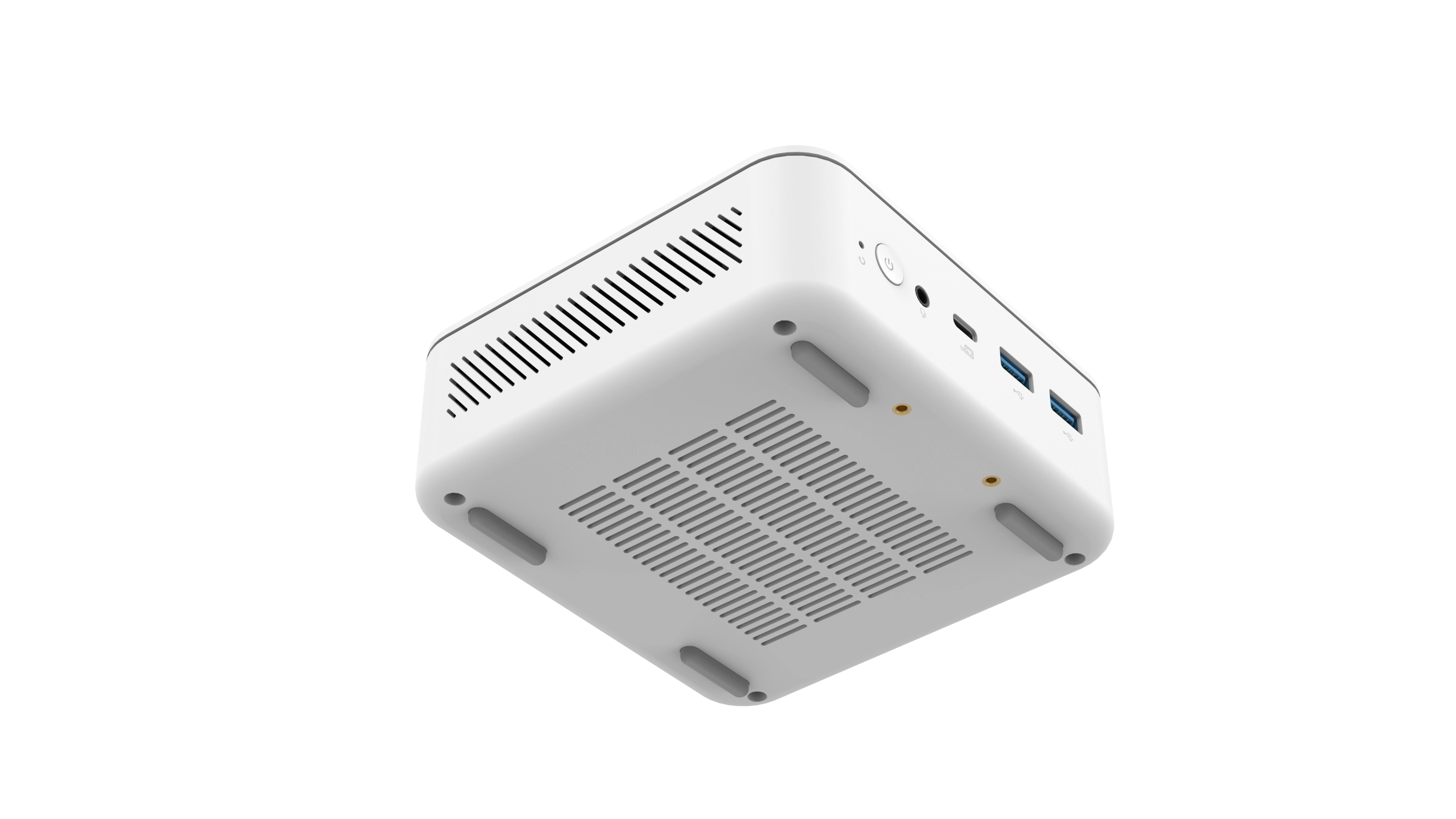

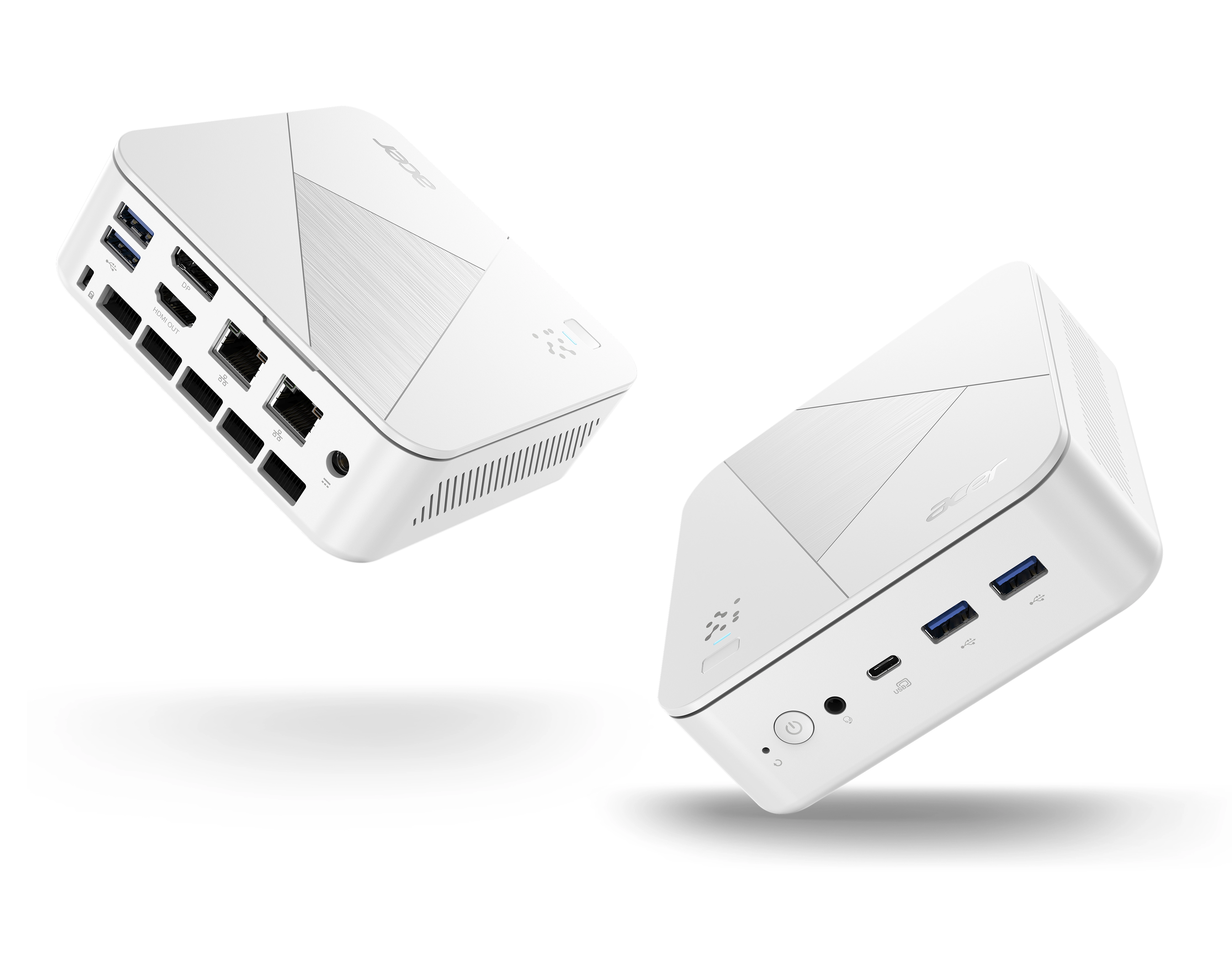

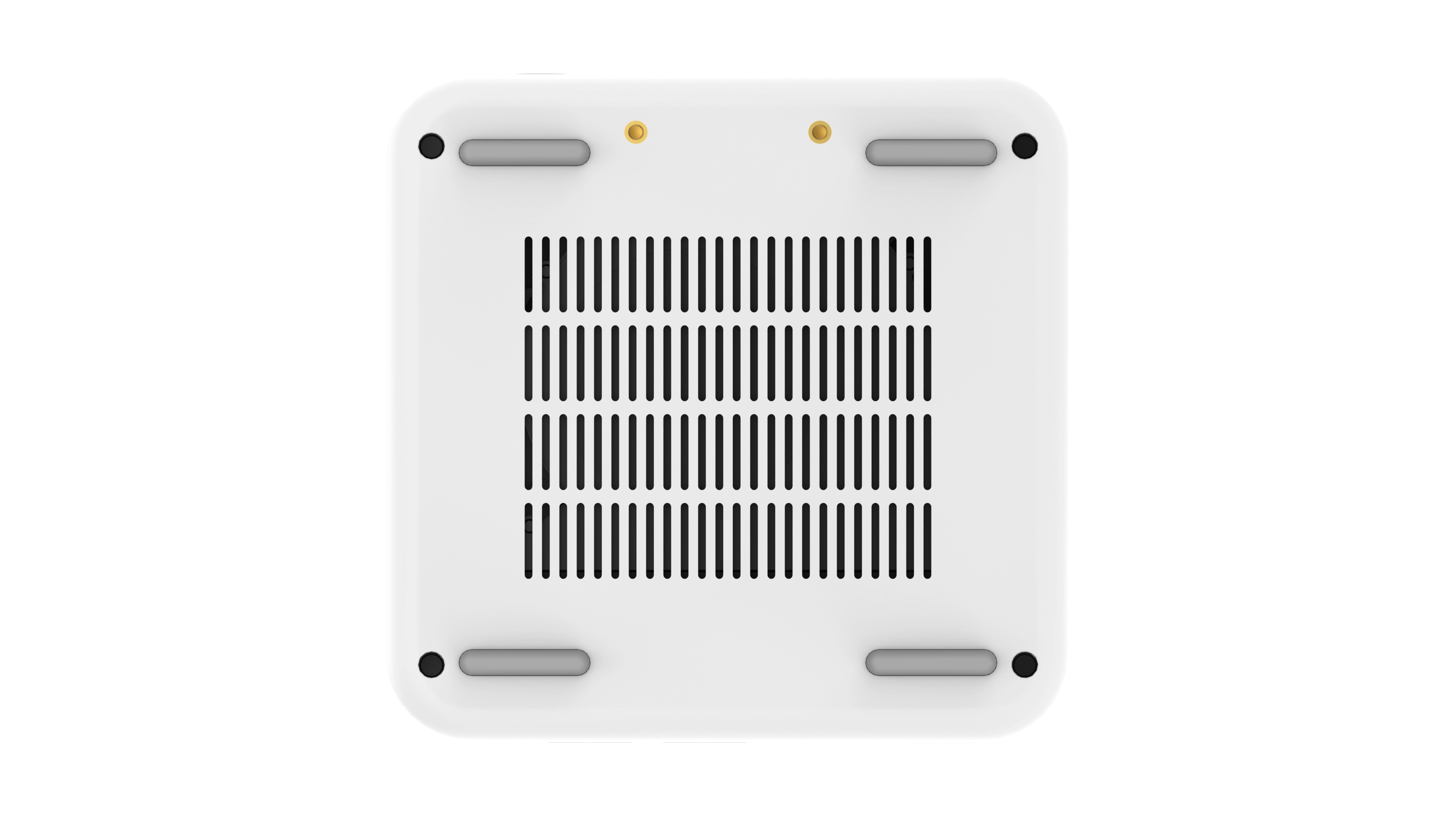

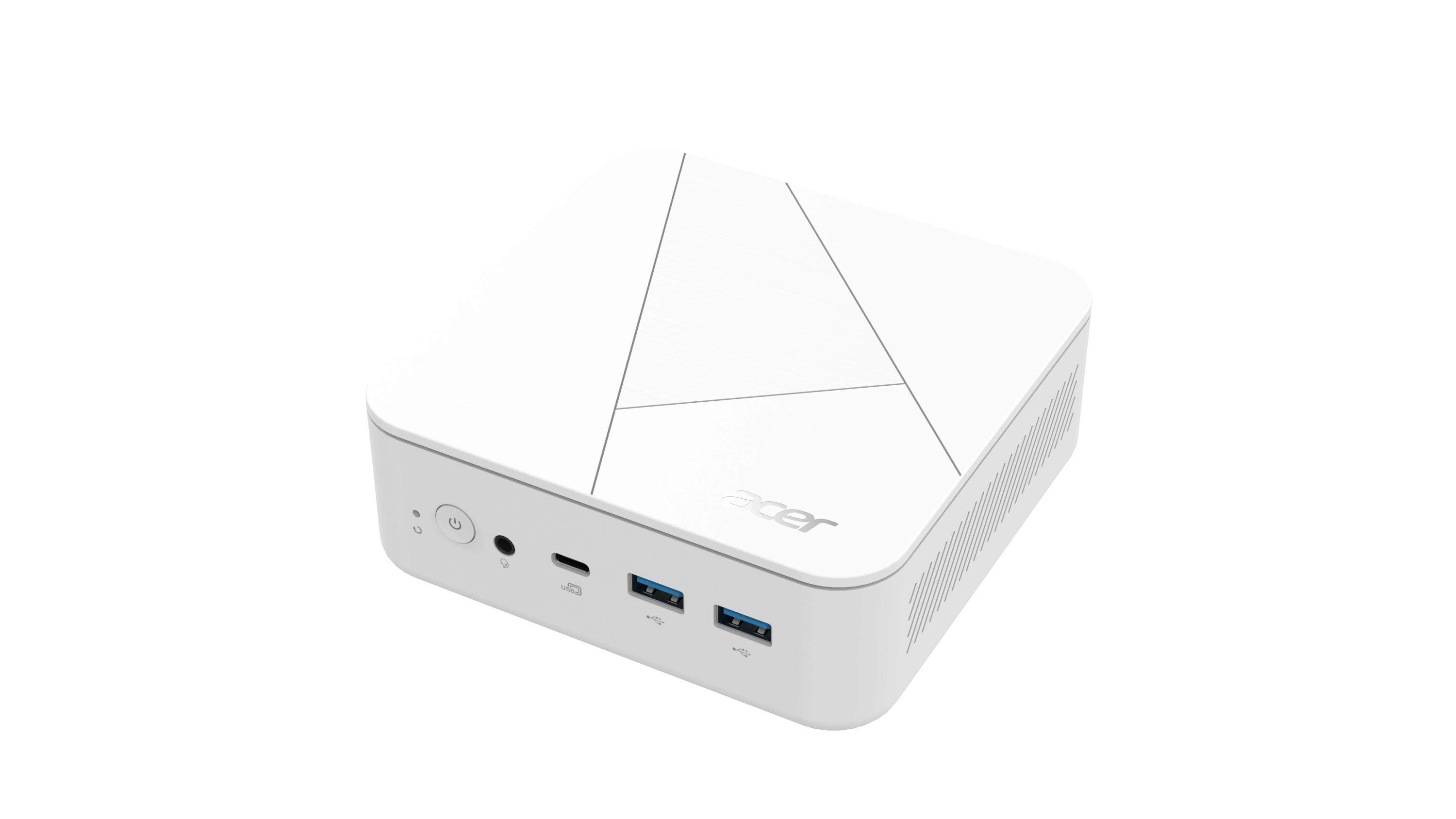

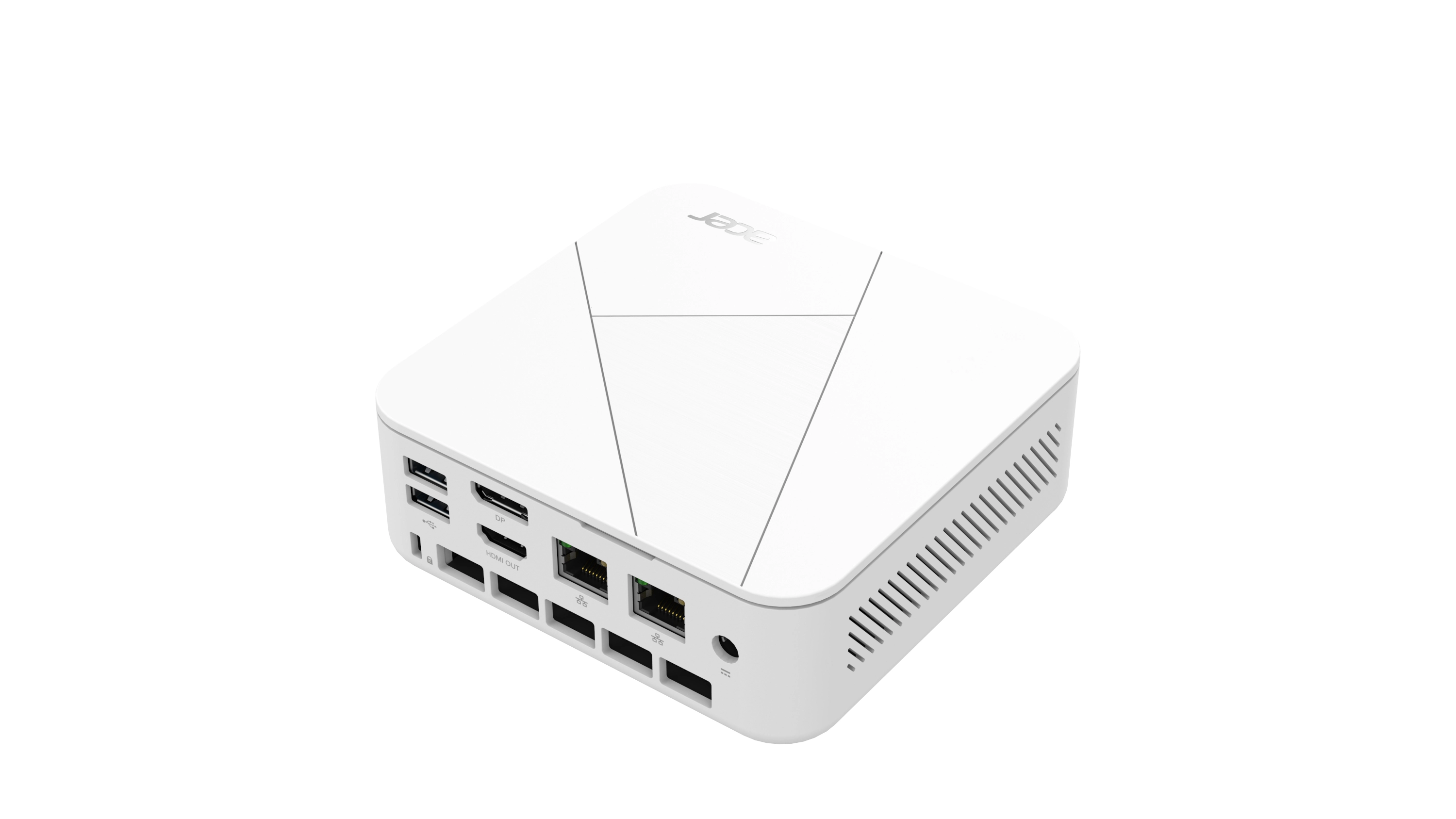

Acer Revo Box RB102-20CPW Mini. Processor frequency: 2.1 GHz, Processor family: Intel Core Ultra 5, Processor model: 226V. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM, Memory clock speed: 8533 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: White

Specification

Product
Product id	978853
Brand	Acer Computers
Partnr	DT.BPLEH.002
EAN/UPC code	4711474376091
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	226V
Processor cores	8
Processor frequency	2.1 GHz
Processor boost frequency	4.5 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor threads	8
Memory
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Memory slots	1x SO-DIMM
Memory clock speed	8533 MHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to	40 TOPs
Storage
Total storage capacity	1000 GB
Optical drive type	N
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter model	Intel Arc Graphics 130V
Network
Ethernet LAN	Y
Ethernet LAN data rates	100, 1000, 2500 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Y
Bluetooth version	5.3
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB4 Gen 2x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	2
Combo headphone/mic port	Y
DC-in jack	Y
Design
Chassis type	Mini PC
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	White
Performance
Product type	Mini PC (<= 3L)
Audio system	High Definition Audio
Software
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Copilot+ PC	Y
Power
Power supply	90 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width	131 mm
Depth	131 mm
Height	43 mm
Weight	1000 g
Package width	173 mm
Package depth	265 mm
Package height	75 mm
Packaging content
Display included	N
VESA mount included	Y
