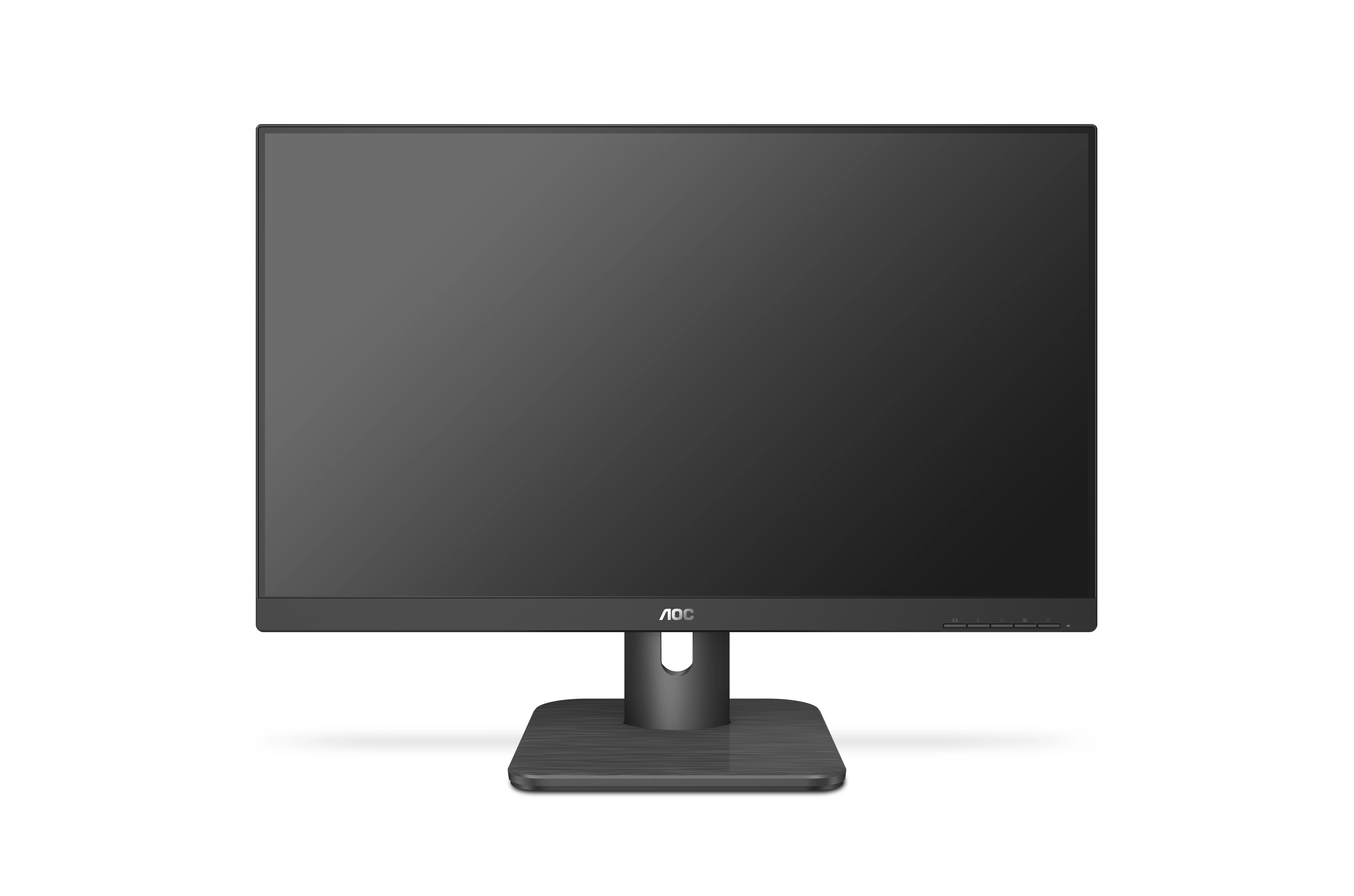

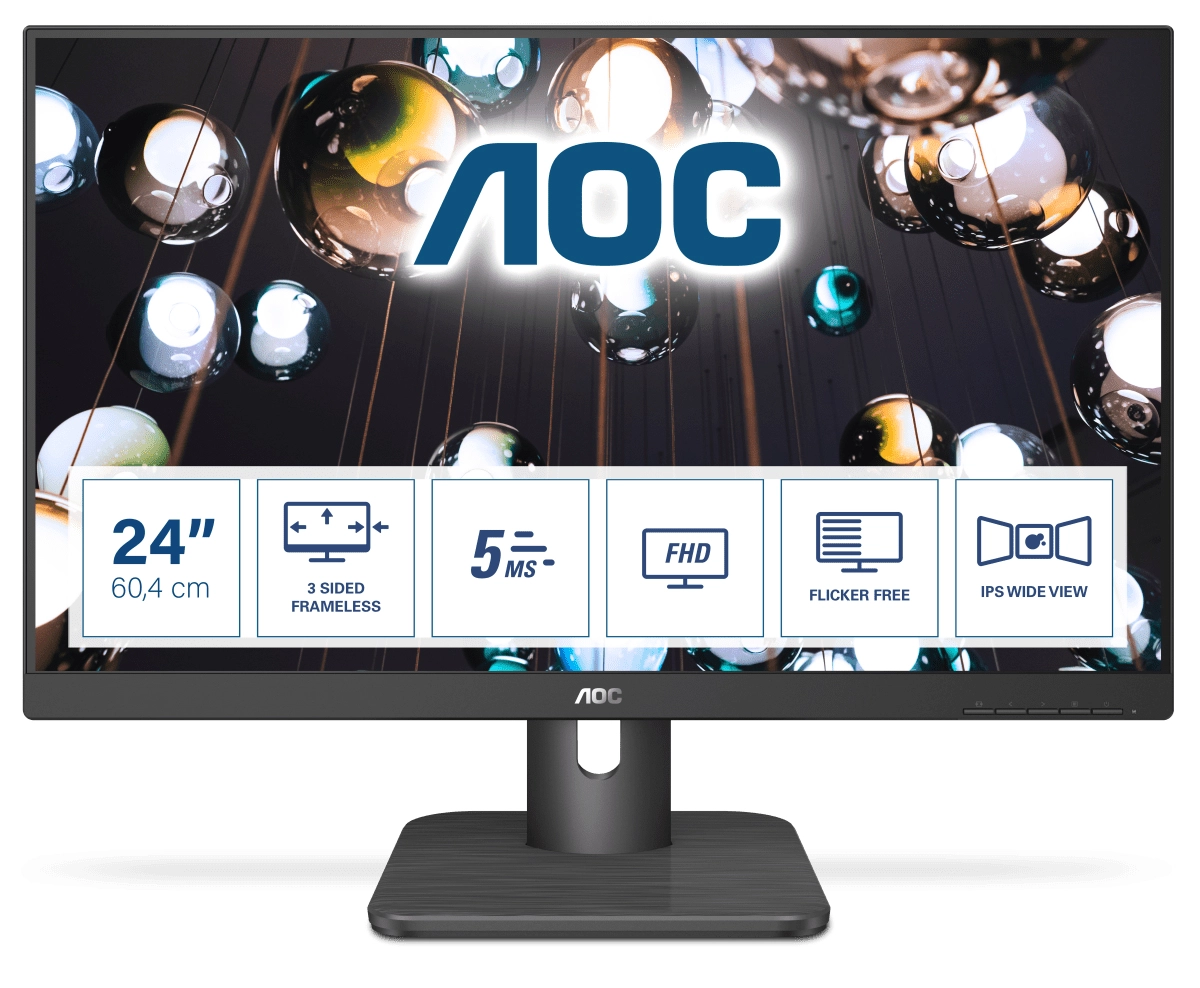

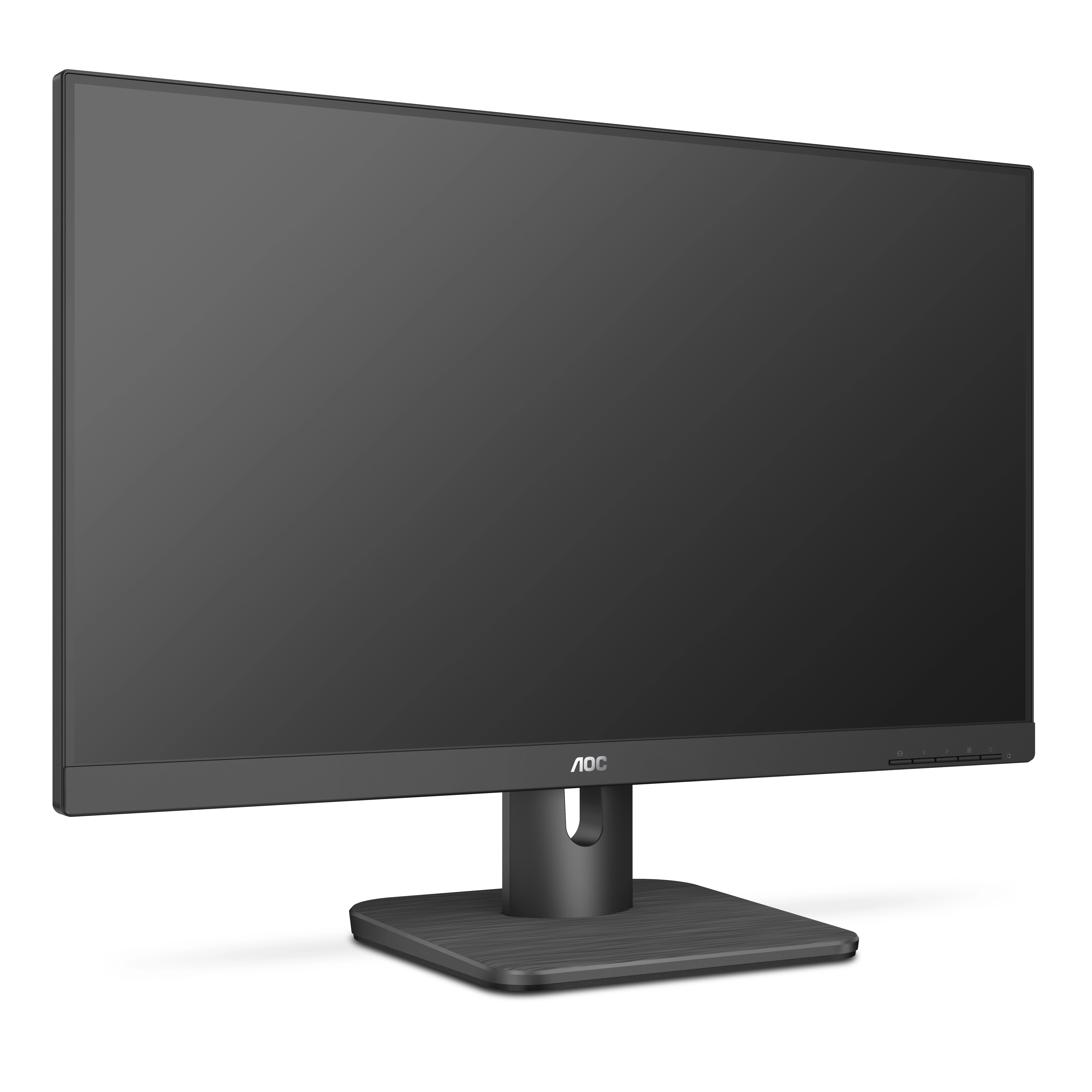

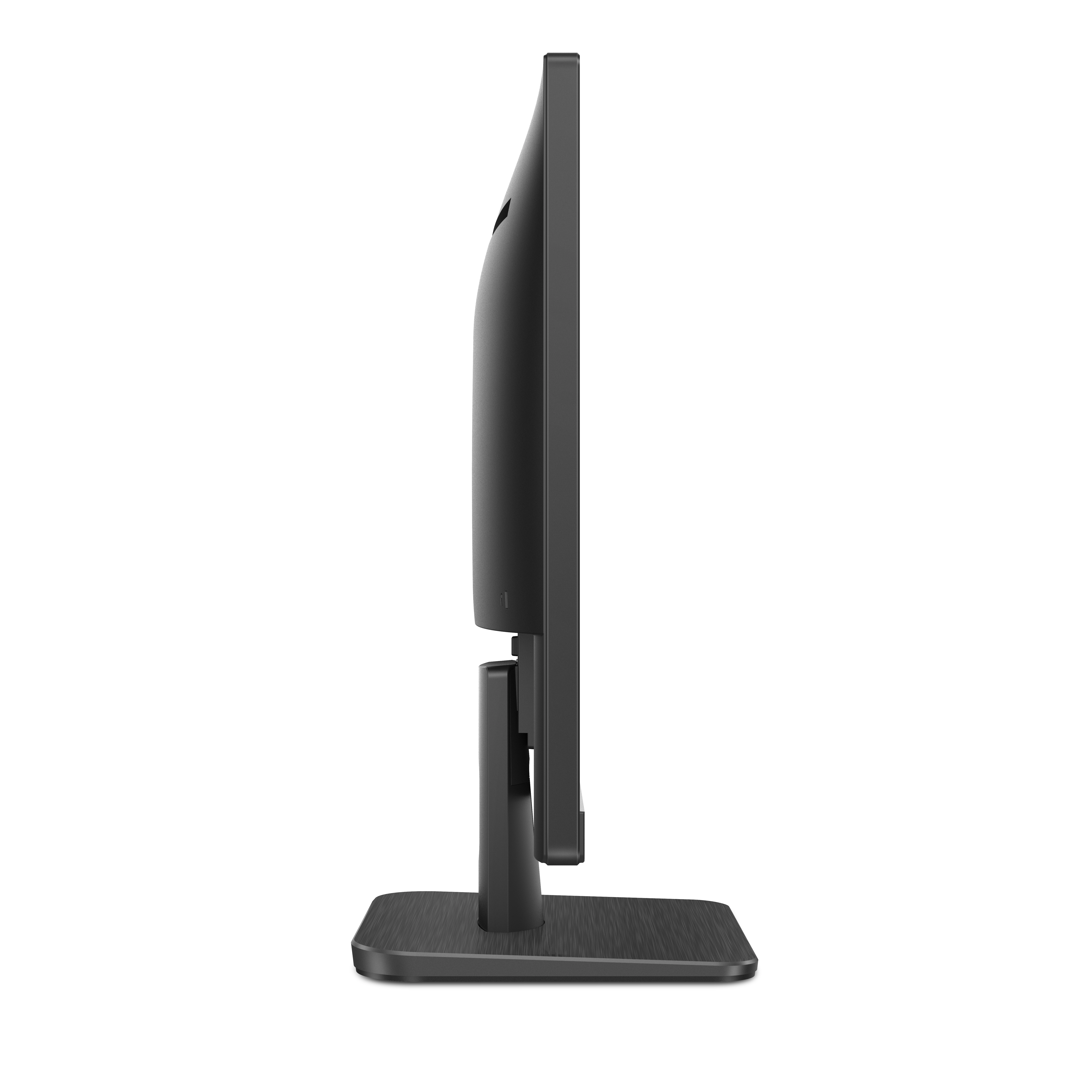

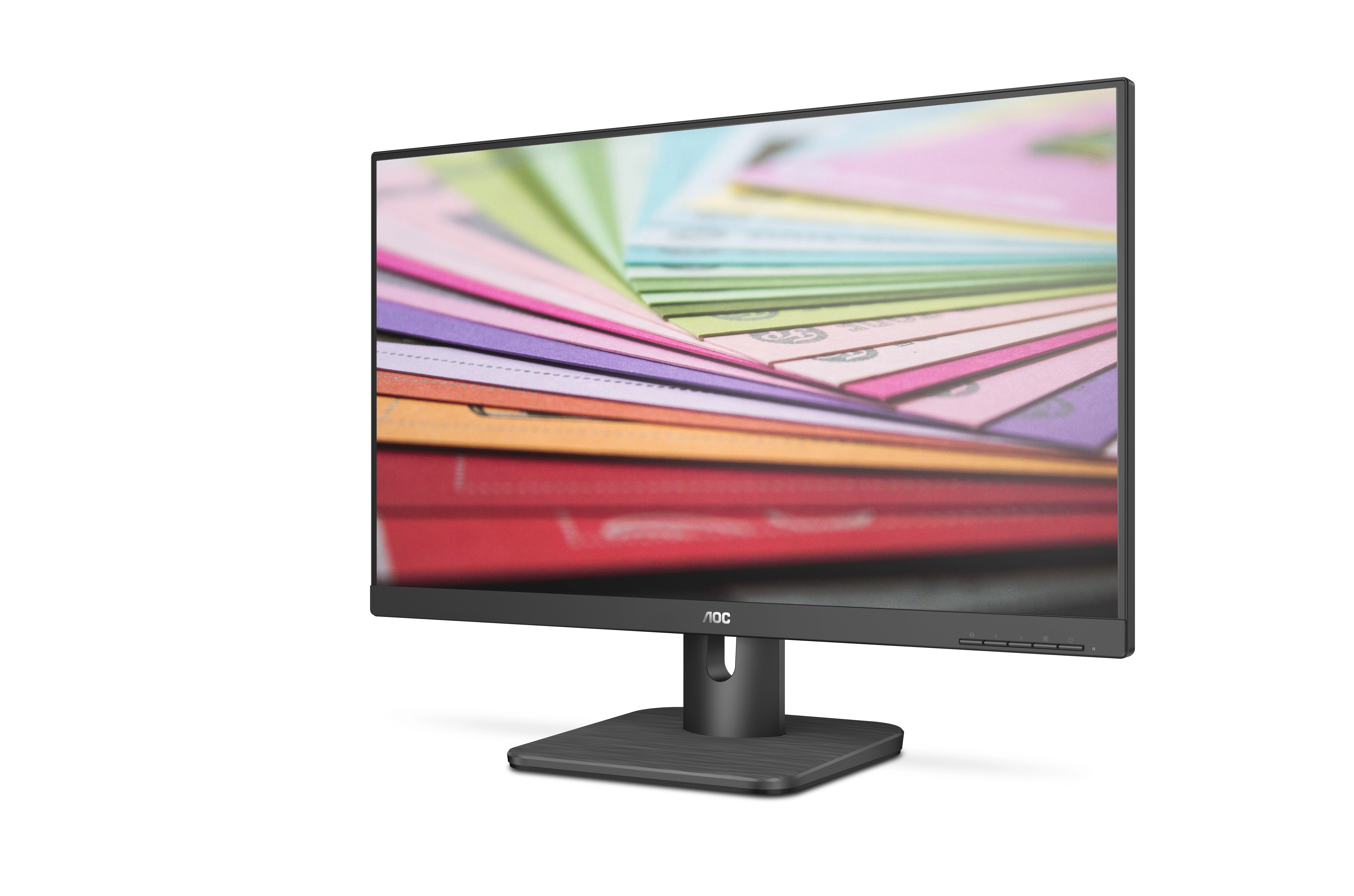

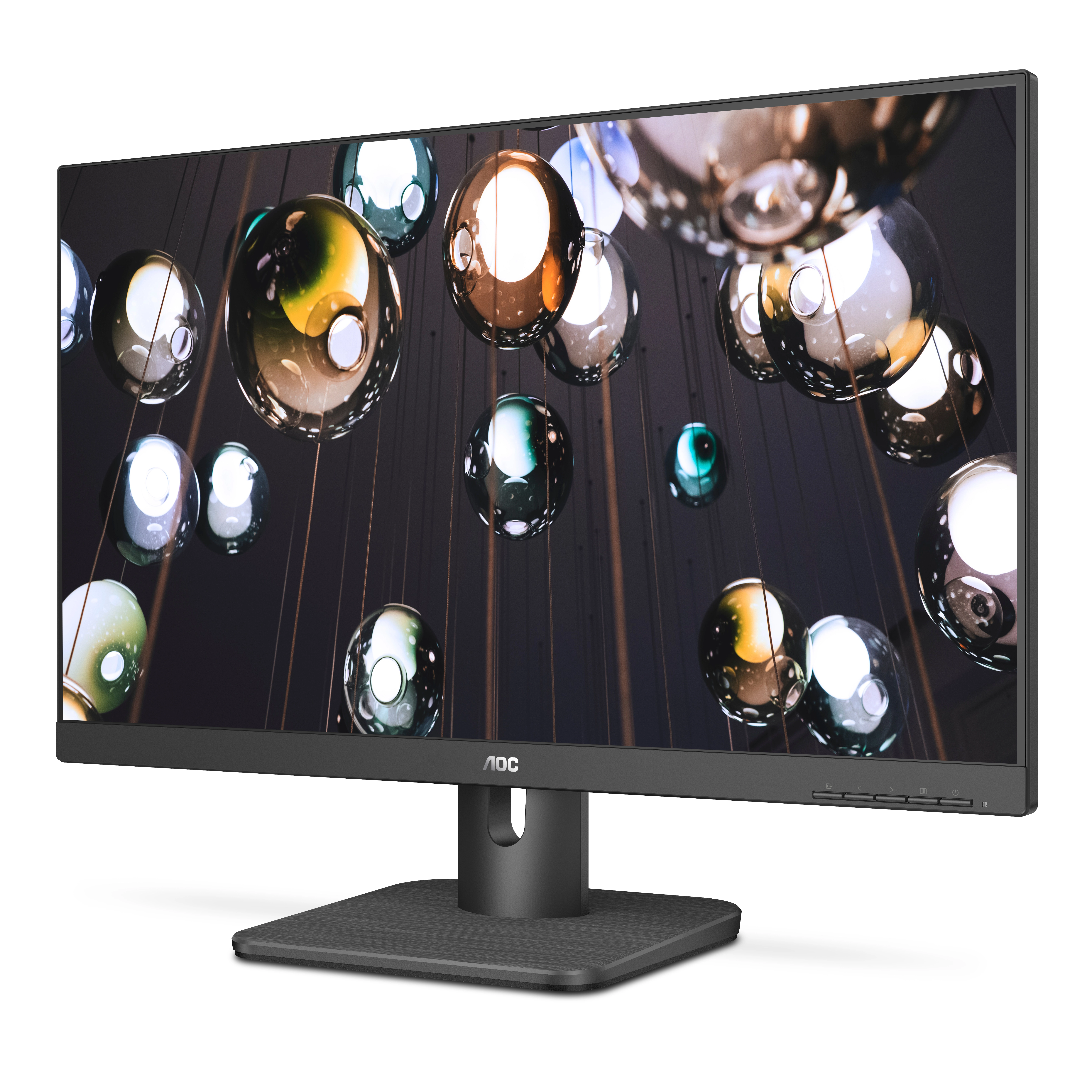

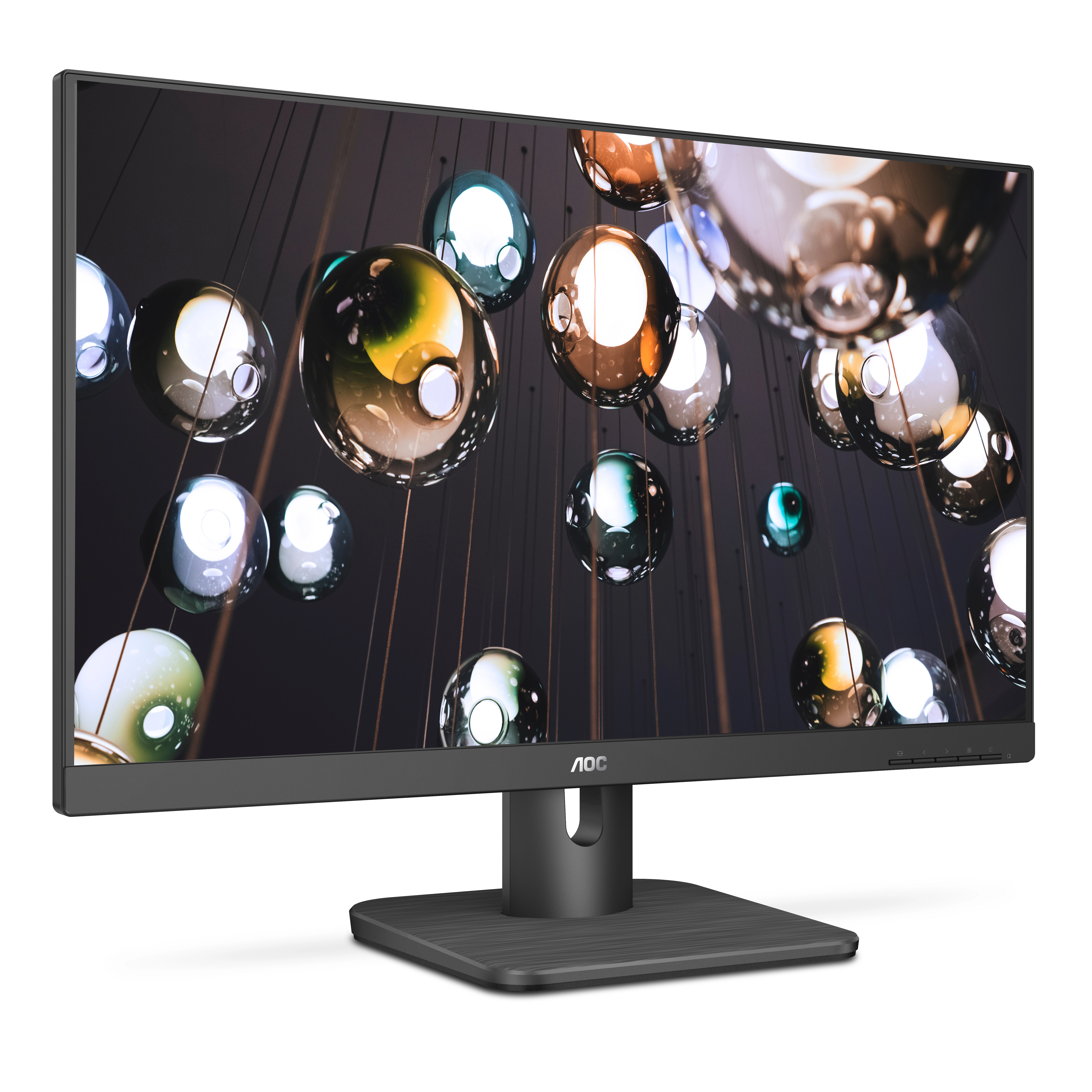

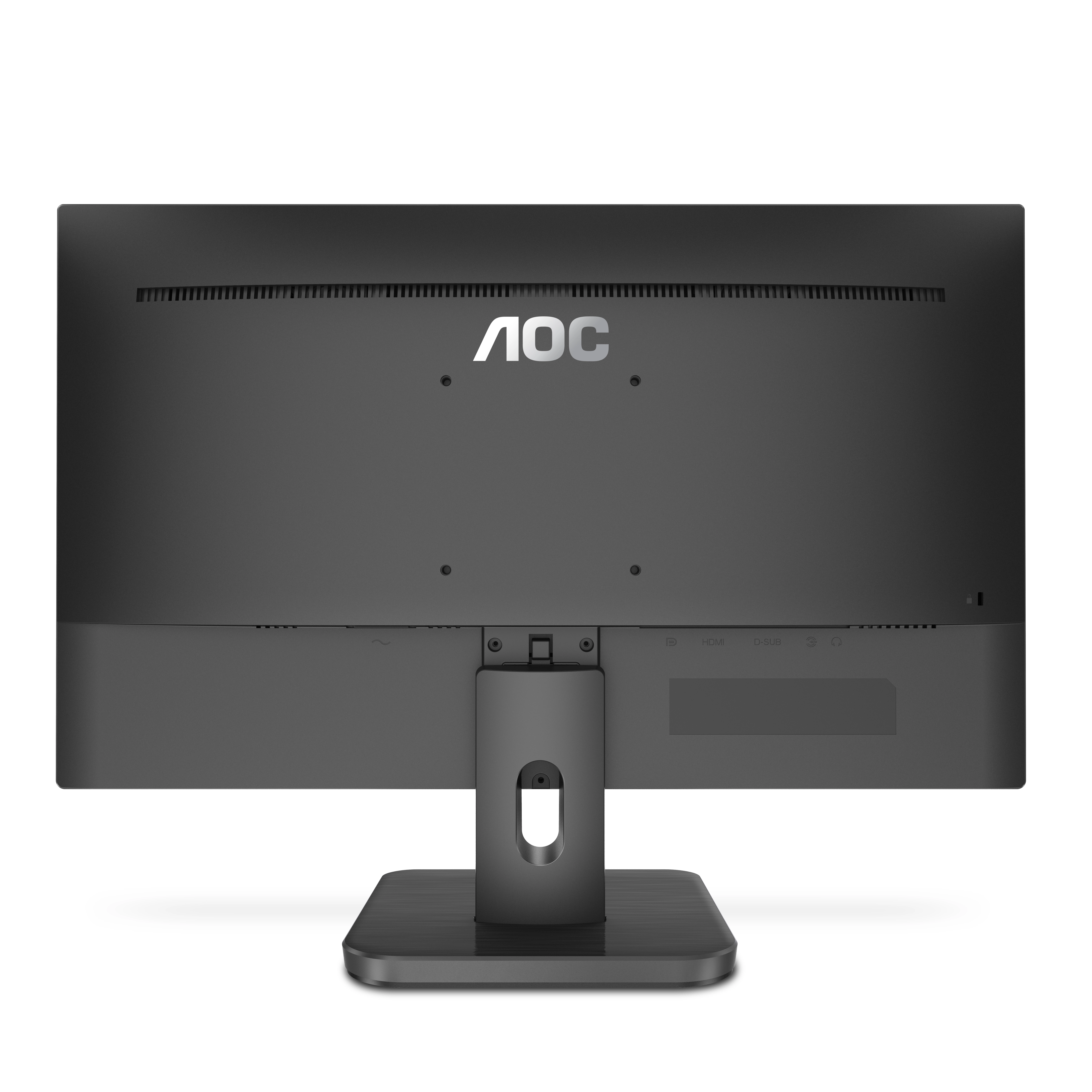

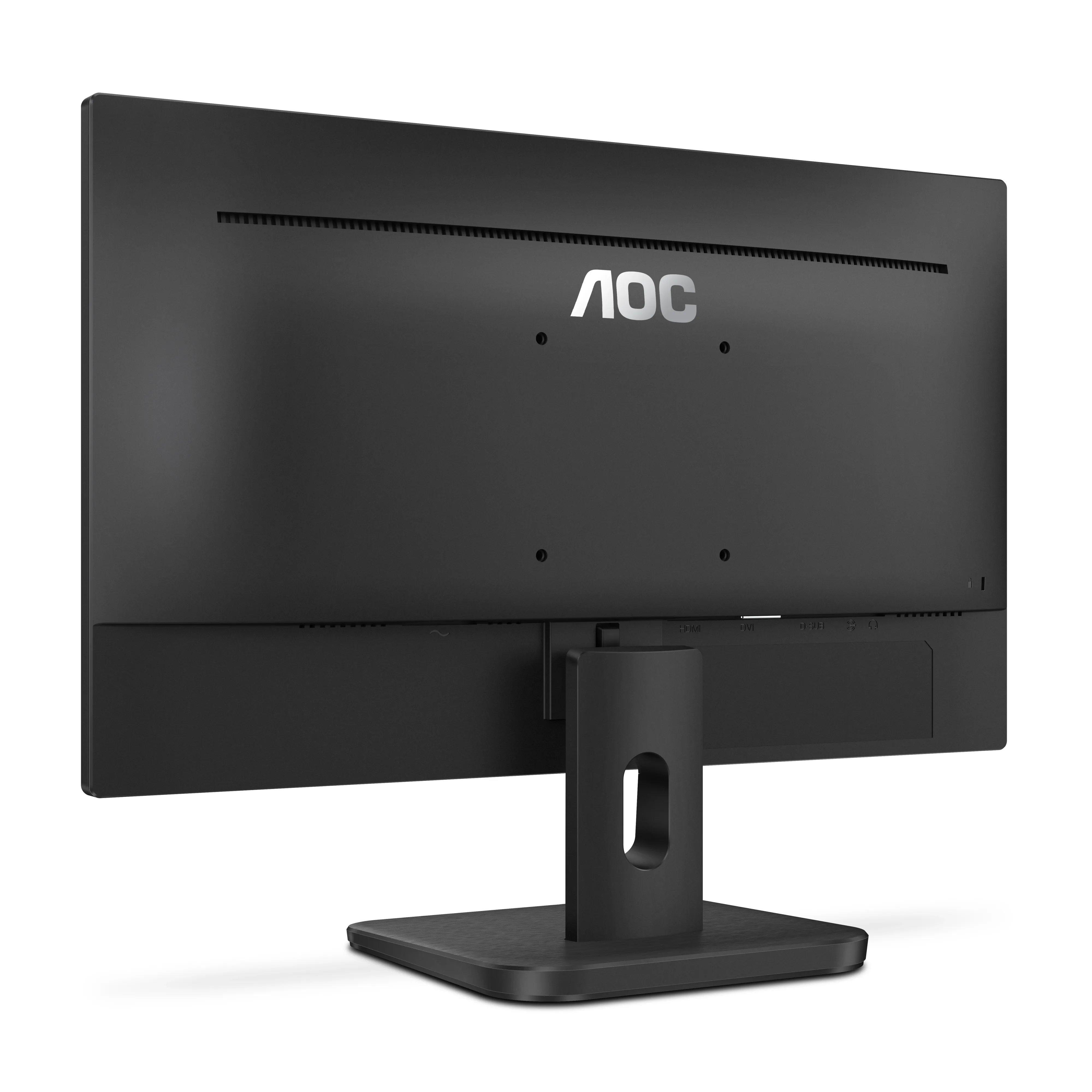

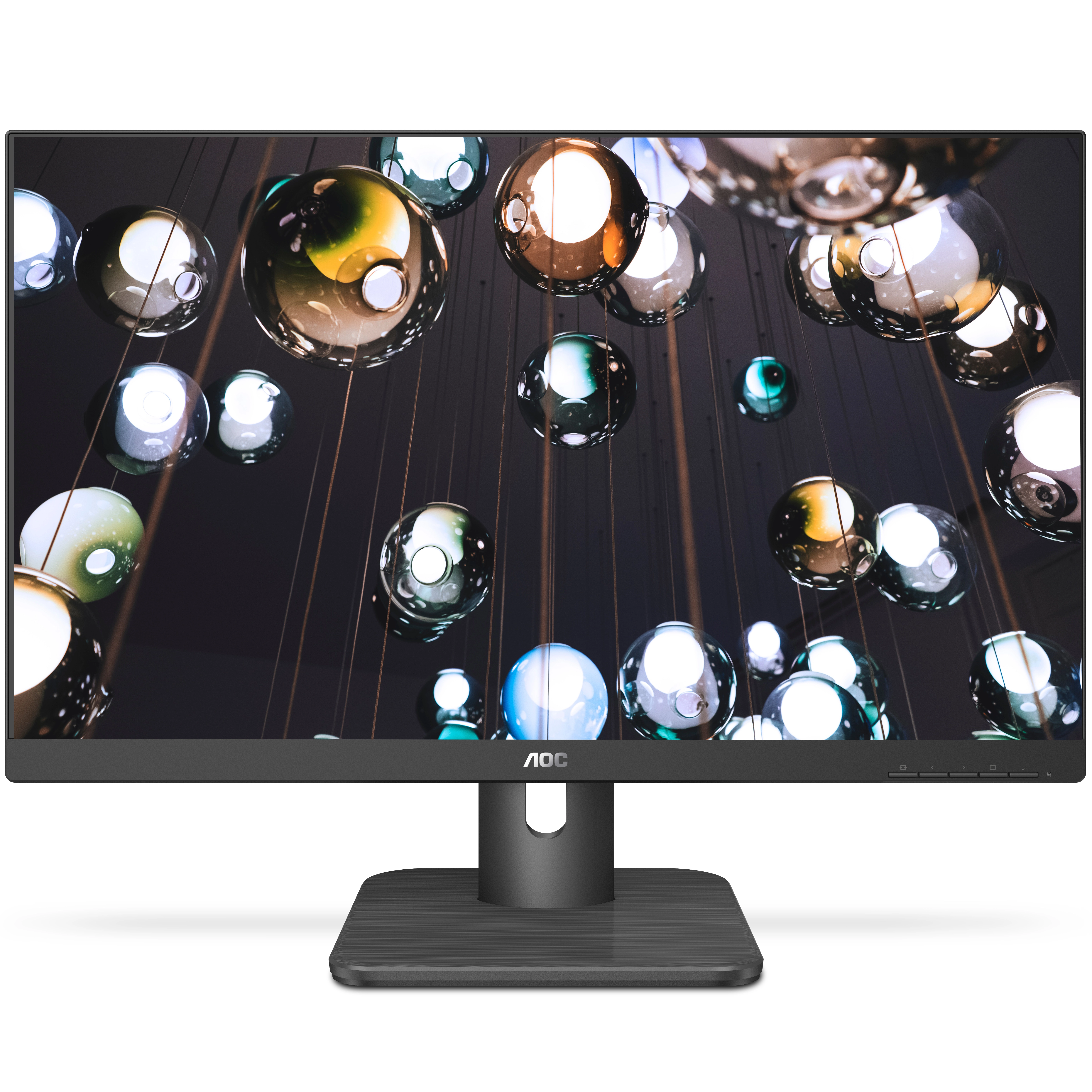

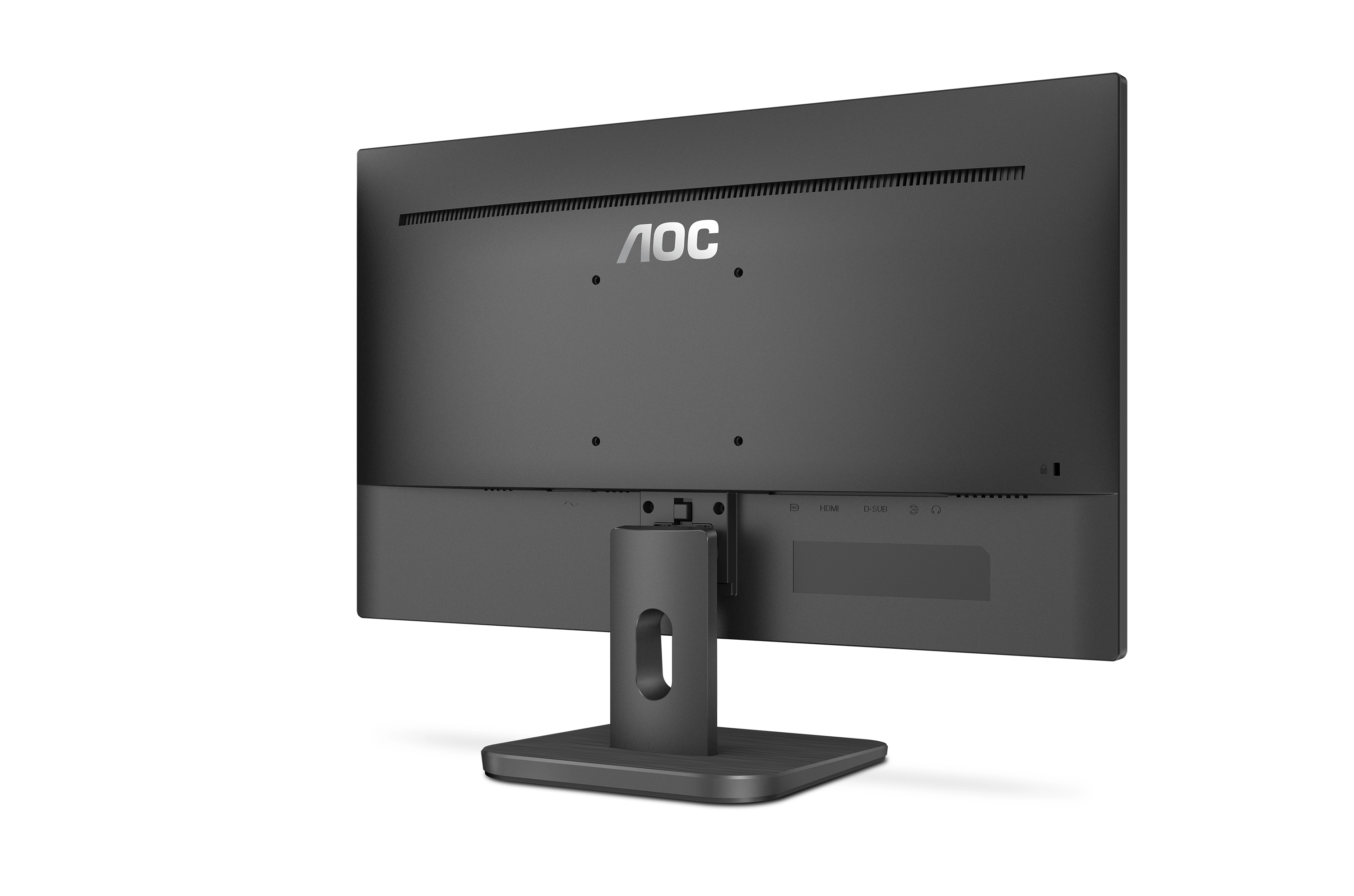

Stylish 23.8” IPS monitor with Full HD
The sleek, 3-sided frameless design of the 24E1Q allows seamless multi-monitor setups. . Accurate, rich colours with IPS panel in Full HD. Versatile features including speakers & rich connectivity (VGA, HDMI and DP). Certified green.

Specification

Product
Product id	605252
Brand	AOC
Partnr	24E1Q
EAN/UPC code	4038986146234
Technical details
Sustainability certificates	TCO
Doesn't contain	PVC/BFR
Display
Display diagonal	23.8 inch
Display resolution	1920 x 1080 Pixels
Native aspect ratio	16:9
Panel type	IPS
Display brightness (typical)	250 cd/m²
Response time	5 ms
HD type	Full HD
Display technology	LED
Backlight type	W-LED
Display surface	Matt
Screen shape	Flat screen
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Display diagonal (metric)	64.7 cm
Pixel pitch	0.2745 x 0.2745 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	527.04 mm
Viewable size, vertical	296.46 mm
Colour depth	6 Bit
sRGB coverage (typical)	106 procent
Adobe RGB coverage	78 procent
Performance
Flicker-free technology	Y
Low Blue Light technology	Y
Multimedia
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	4 W
Design
Market positioning	Business
Product colour	Black
Detachable stand	Y
Heavy metals free	Hg (mercury)
Certification	TCO 7

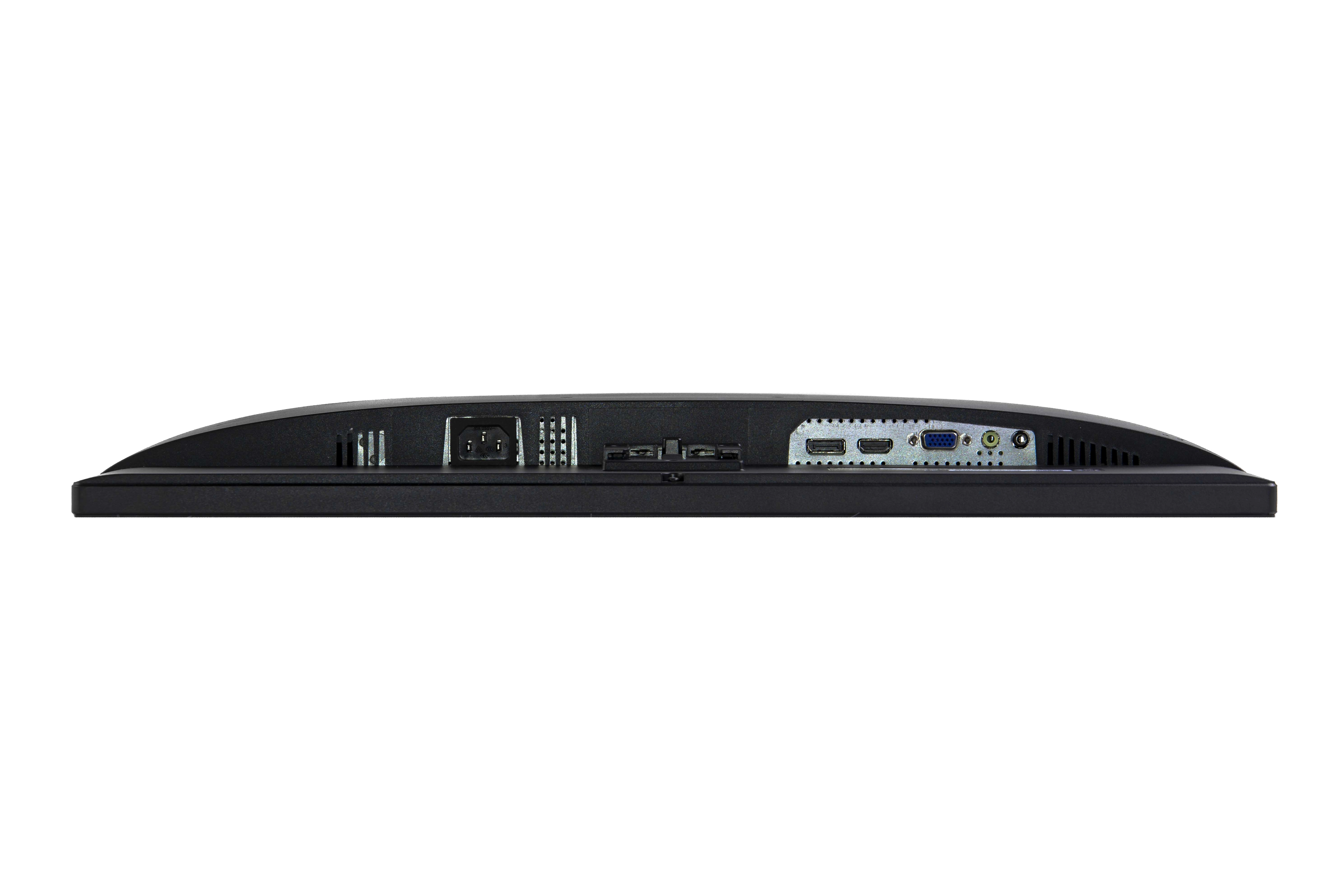

Ports & interfaces
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone out	Y
Headphone outputs	1
Headphone connectivity	3.5 mm
Microphone in	Y
Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	N
Height adjustment	N
Tiltable	Y
Tilt angle range	-3.5 - 21.5 °
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Number of OSD languages	16
Packaging data
Cables included	AC, VGA
Power cable length	1.8 m
Audio cable length	1.8 m
DisplayPort cable length	1.8 m
VGA cable length	1.8 m
HDMI cable length	1.8 m
Package width	609 mm
Package depth	137 mm
Package height	421 mm
Package weight	4700 g
Package type	Box
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	19 kWu
Power consumption (typical)	20 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
External power adapter	N
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85 procent
Storage relative humidity (H-H)	5 - 93 procent
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m
Weight & dimensions
Width (with stand)	539.1 mm
Depth (with stand)	199.4 mm
Height (with stand)	404.9 mm
Weight (with stand)	3100 g
Width (without stand)	325.6 mm
Depth (without stand)	49.6 mm
Height (without stand)	539.1 mm
Weight (without stand)	2700 g
Recycling data
Post-consumer recycled plastic	85 procent
Other features
Bezel thickness type	Frameless
Recyclable packaging material	100 procent
Mean time between failures (MTBF)	50000 uur
