USB connection

Use your PC to access additional power protection and management features for your UPS via a USB Port.

Telephone dataline surge protection

Provides protection of connected equipment from power surges traveling on telephone lines.

Automatic Voltage Regulation (AVR)

Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Specification

Product
Product id	487418
Brand	American Power Conversion
Partnr	BX1400U-GR
EAN/UPC code	731304315933
Warranty (months)	2 years repair or replace
Power
Input frequency	50/60 Hz
Technical details
Sustainability certificates	RoHS
Features
UPS topology	Line-Interactive
Output power capacity	1.4 VA
Output power	700 W
Waveform	Sine
Input operation voltage (min)	150 V
Input operation voltage (max)	280 V
Output frequency regulation	50/60 Hz
Automatic Voltage Regulation (AVR)	Y
Maximum current	6 A
Surge energy rating	273 J
Hold time (min)	8 ms
Hold time (max)	10 ms
Efficiency	97.4 procent
Noise level	45 dB
Surge protection	Y
Surge protection features	Fax, Modem
Audible alarm(s)	Y
Audible alarm modes	Low battery alarm, Overload alarm
Auto-restart	Y

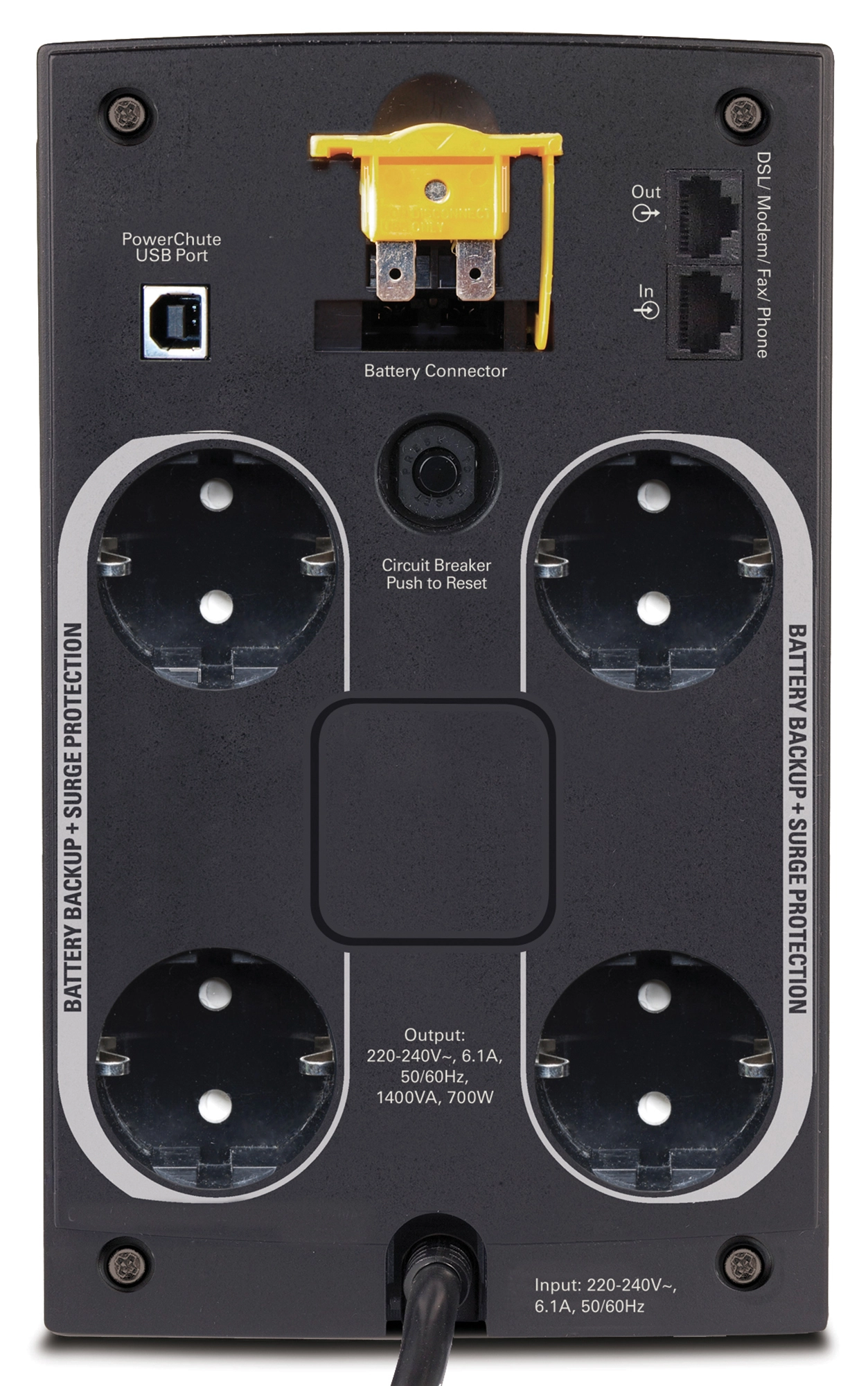

Ports & interfaces
AC outlet types	Type F
Number of type F outputs	4
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	7.2 Ah
Battery capacity	165 VAh
Battery voltage	12 V
Number of batteries supported	2

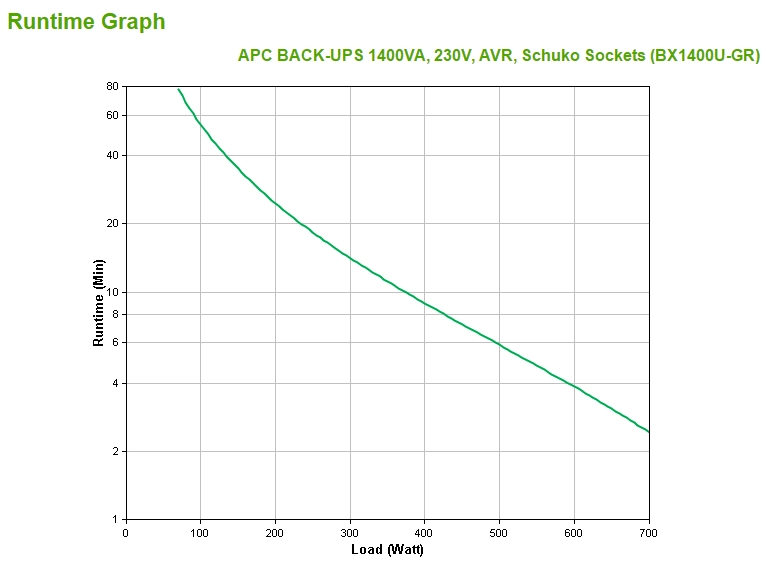

Typical backup time at full load	2.4 min
Typical backup time at half load	11.2 min
Battery life (max)	5 jaar
Battery recharge time	8 uur
Automatic battery test	Y
Design
Form factor	Tower
Product colour	Black
Cable length	1.22 m
LED indicators	Y
Display	LED
Certification	CE, REACH
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95 procent
Storage relative humidity (H-H)	0 - 95 procent
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 9000 m
Packaging data
Manual	Y
Bundled software	PowerChute Personal Edition
Package width	245 mm
Package depth	440 mm
Package height	295 mm
Package weight	12940 g
Weight & dimensions
Width	130 mm
Depth	336 mm
Height	215 mm
Weight	12000 g
Other features
Filtering	Y
Type of input protection required	3-pole circuit breaker
Nominal input voltage	230 V
Nominal output voltage	230 V
