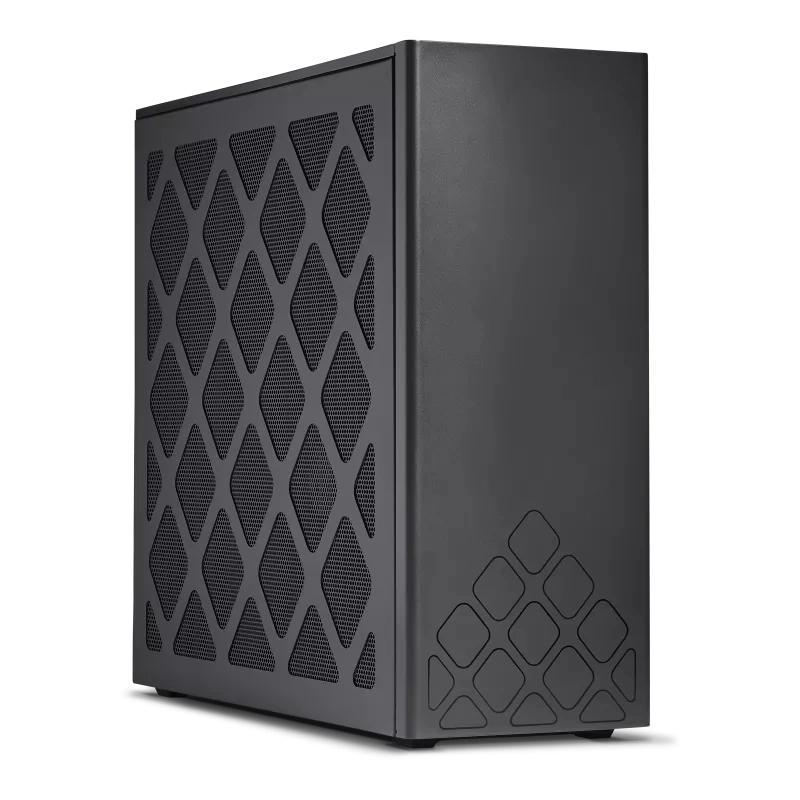

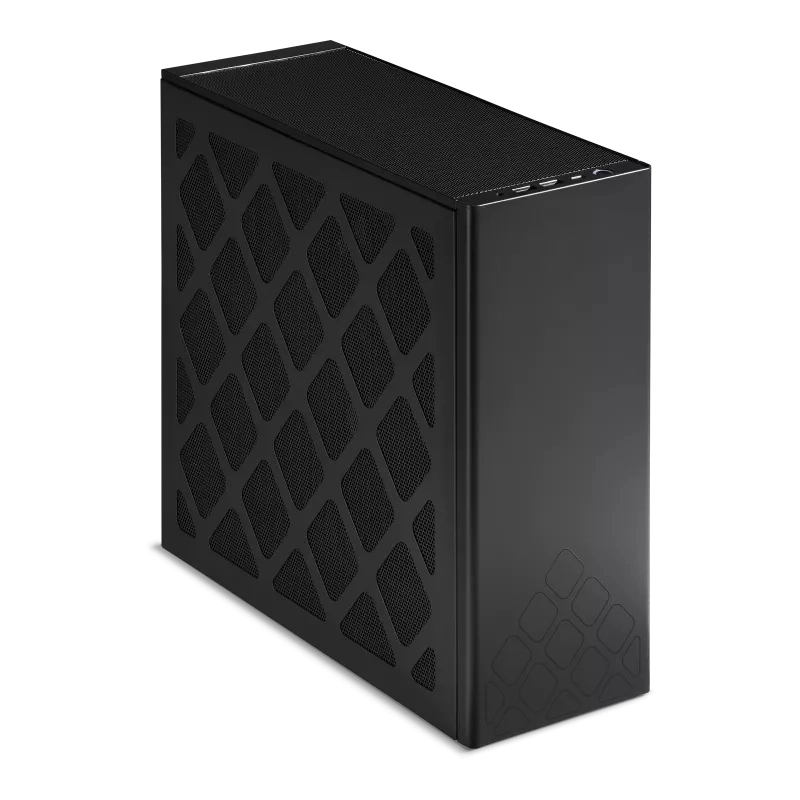

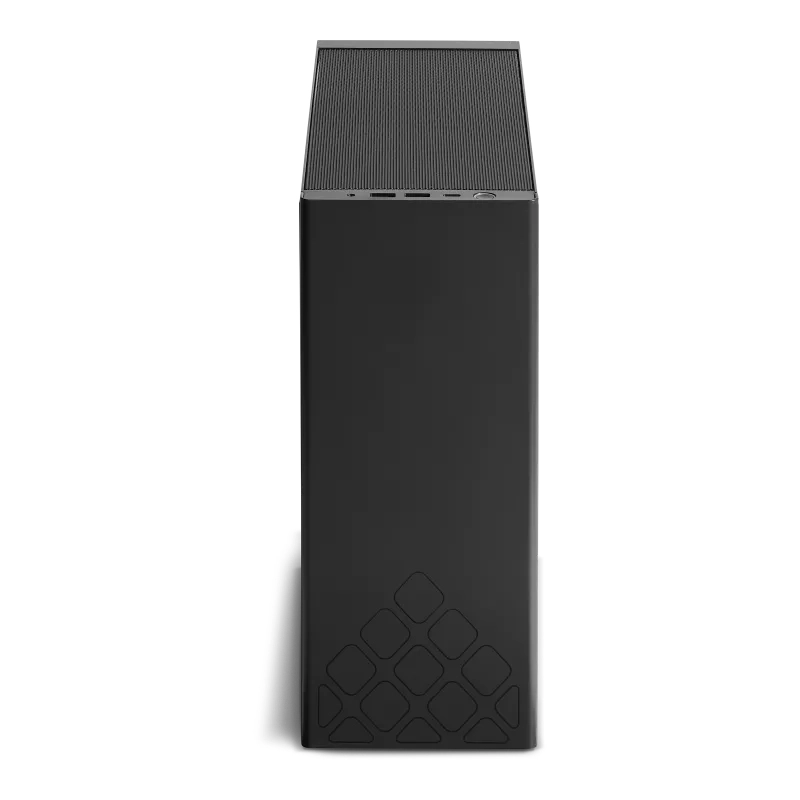

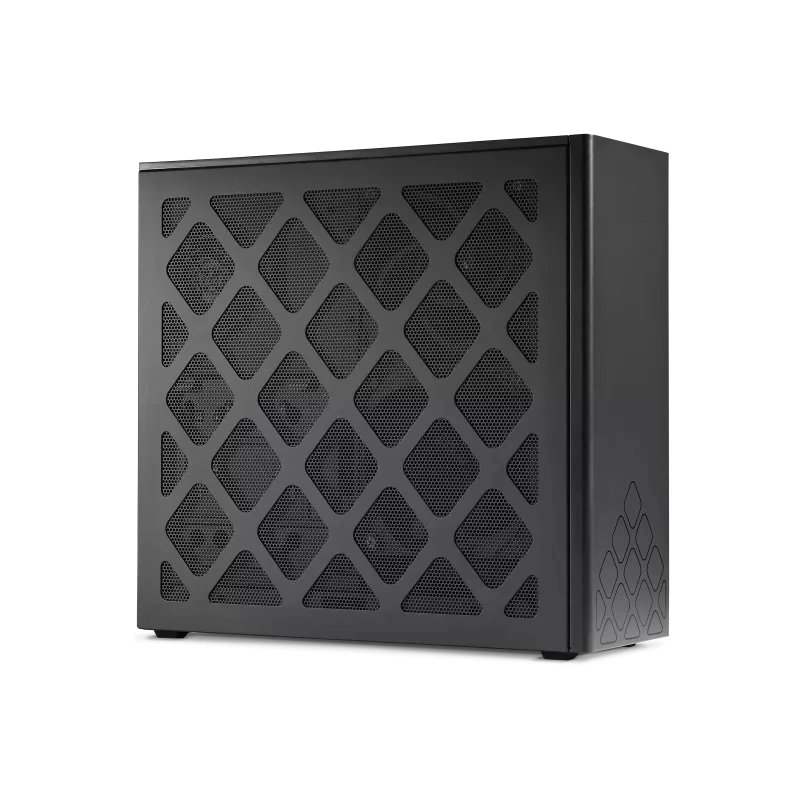

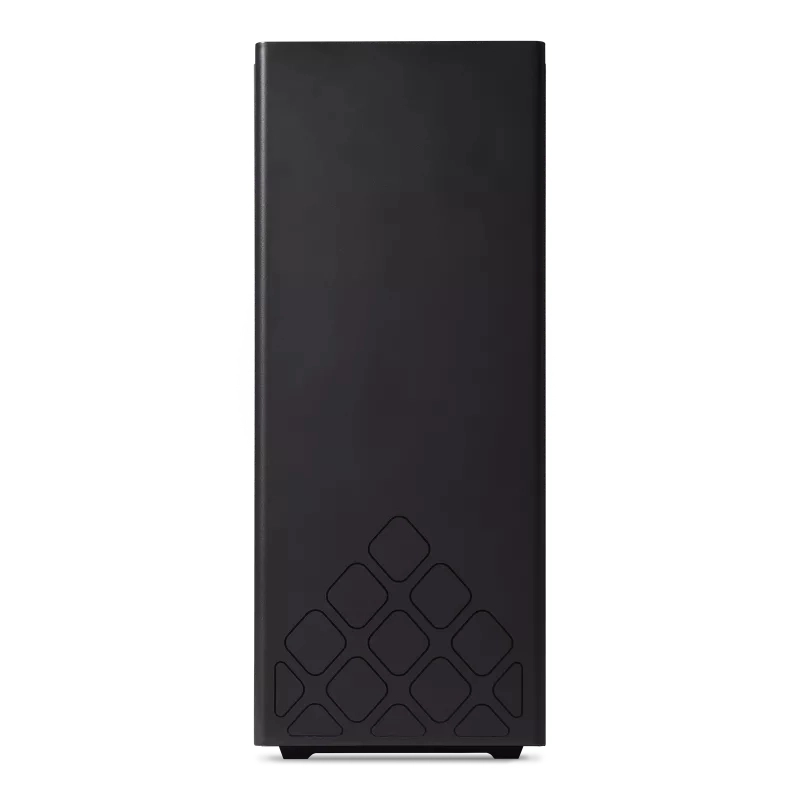

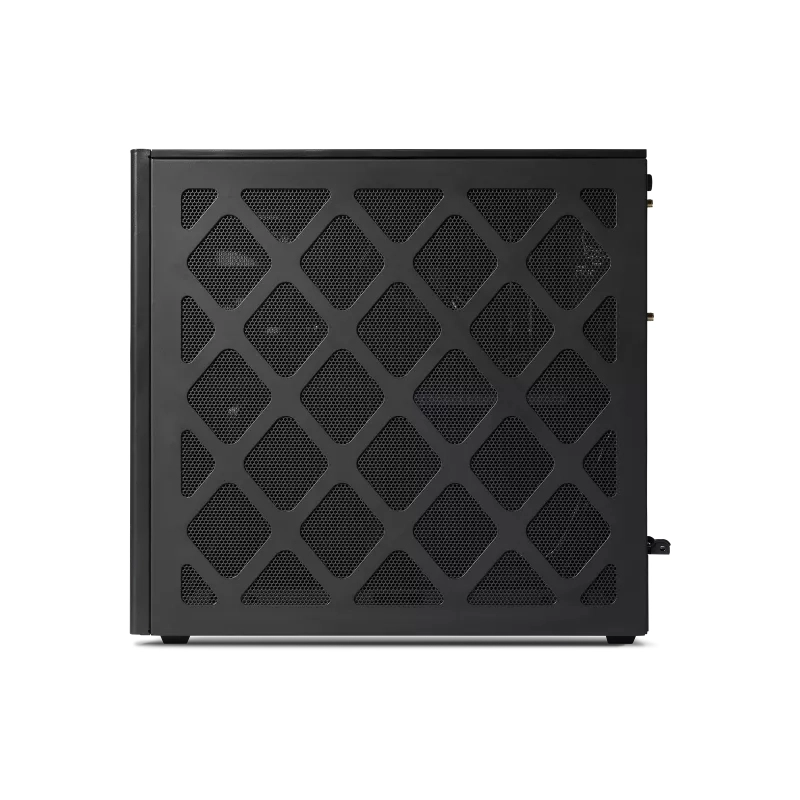

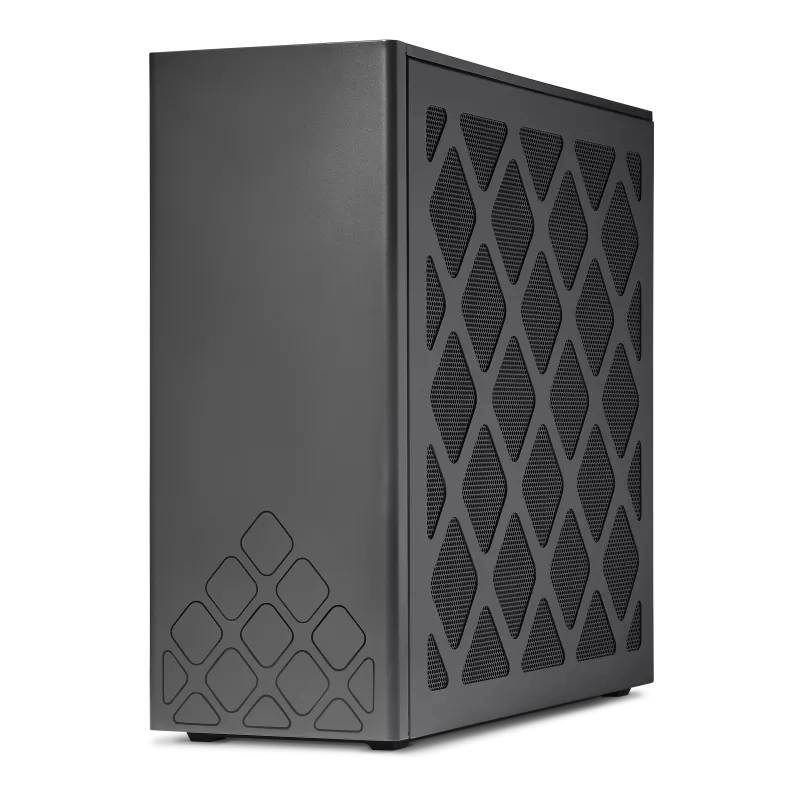

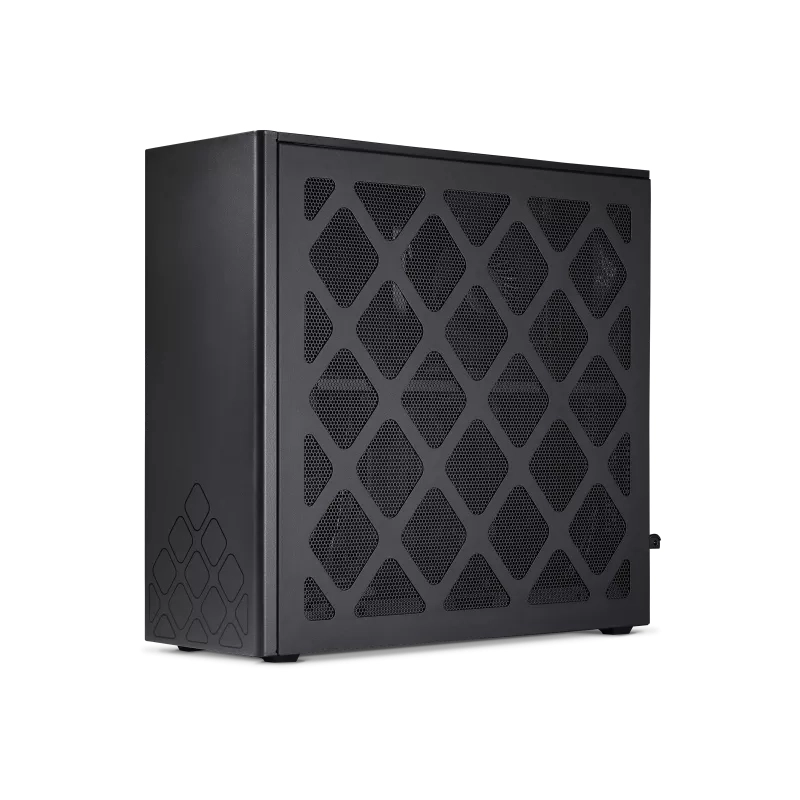

NUC 13 Extreme pairs off-the-charts performance and never-before-seen features with an updated thermal design.

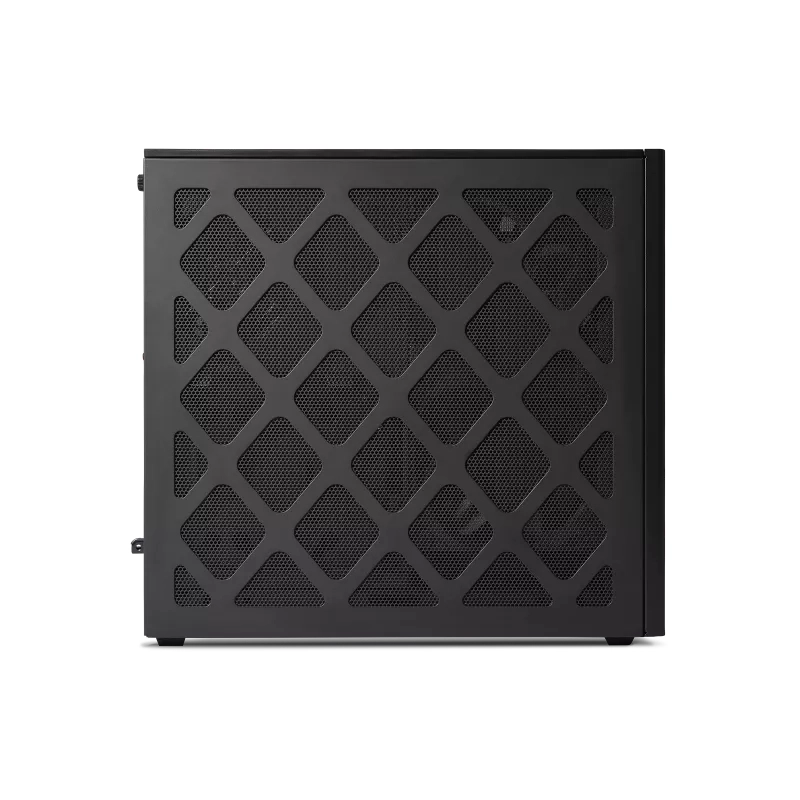

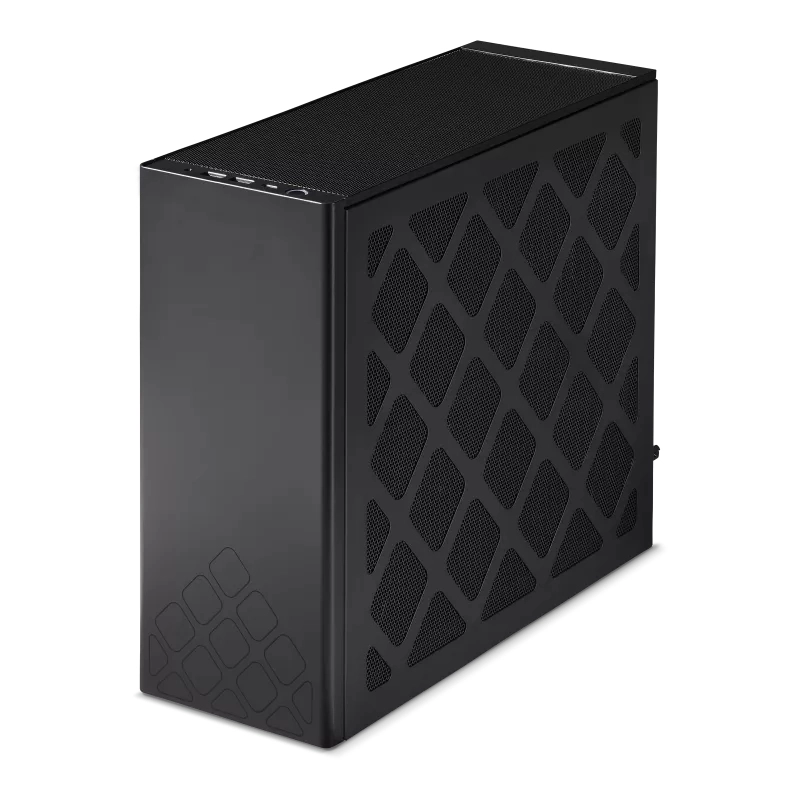

NUC 13 Extreme
Prey on the Competition.

Innovation in PC gaming
NUC 13 Extreme features all-new, unlocked 13th Gen Intel® Core™ i9/i7/i5 processors to deliver the extreme performance that hardcore gamers want.

Specification

Product
Product id	949070
Brand	AsusTek
Partnr	90AB3RNG-MR8120
EAN/UPC code	5032037257077
Warranty (months)	36 months
Processor
Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel Core i7
Processor model	i7-13700K
Processor generation	Intel Core i7-13xxx
Processor cores	16
Processor threads	24
Processor boost frequency	5.4 GHz
Processor cache	30 MB
Performance cores	8
Efficient cores	8
Performance-core boost frequency	5.3 GHz
Thermal Design Power (TDP)	125 W
Efficient-core boost frequency	4.2 GHz
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
ECC	N
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2 "
SSD form factor	M.2
Storage drive interface	PCI Express
Number of storage drives supported	3
NVMe	Y
Graphics
On-board graphics adapter	Y
Graphics adapter family	Intel
On-board graphics adapter model	Intel UHD Graphics 770
Number of displays supported	4
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX1690i
Bluetooth version	5.3
Bluetooth	Y
LAN controller	Intel I226-V
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Y
Ethernet LAN (RJ-45) ports	1
Serial port via internal header	N
DC-in jack	Y
Thunderbolt 4 ports quantity	2
Expansion slots
PCI Express slots version	4.0, 5.0
Design
Product colour	Black
Cooling type	Active
Product type	PC barebone
Performance
Motherboard chipset	Intel Z690
Number of processors supported	1
Windows operating systems supported	Windows 11 x64
Processor special features
Intel Virtualization Technology (VT-x)	Y
Intel® Platform Trust Technology (Intel® PTT)	Y
Intel® Optane™ Memory Ready	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Rapid Storage Technology	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Power
Power supply type	Internal power supply unit
Power supply	750 W
Number of power supply units	1
Weight & dimensions
Width	129 mm
Depth	337 mm
Height	318 mm
