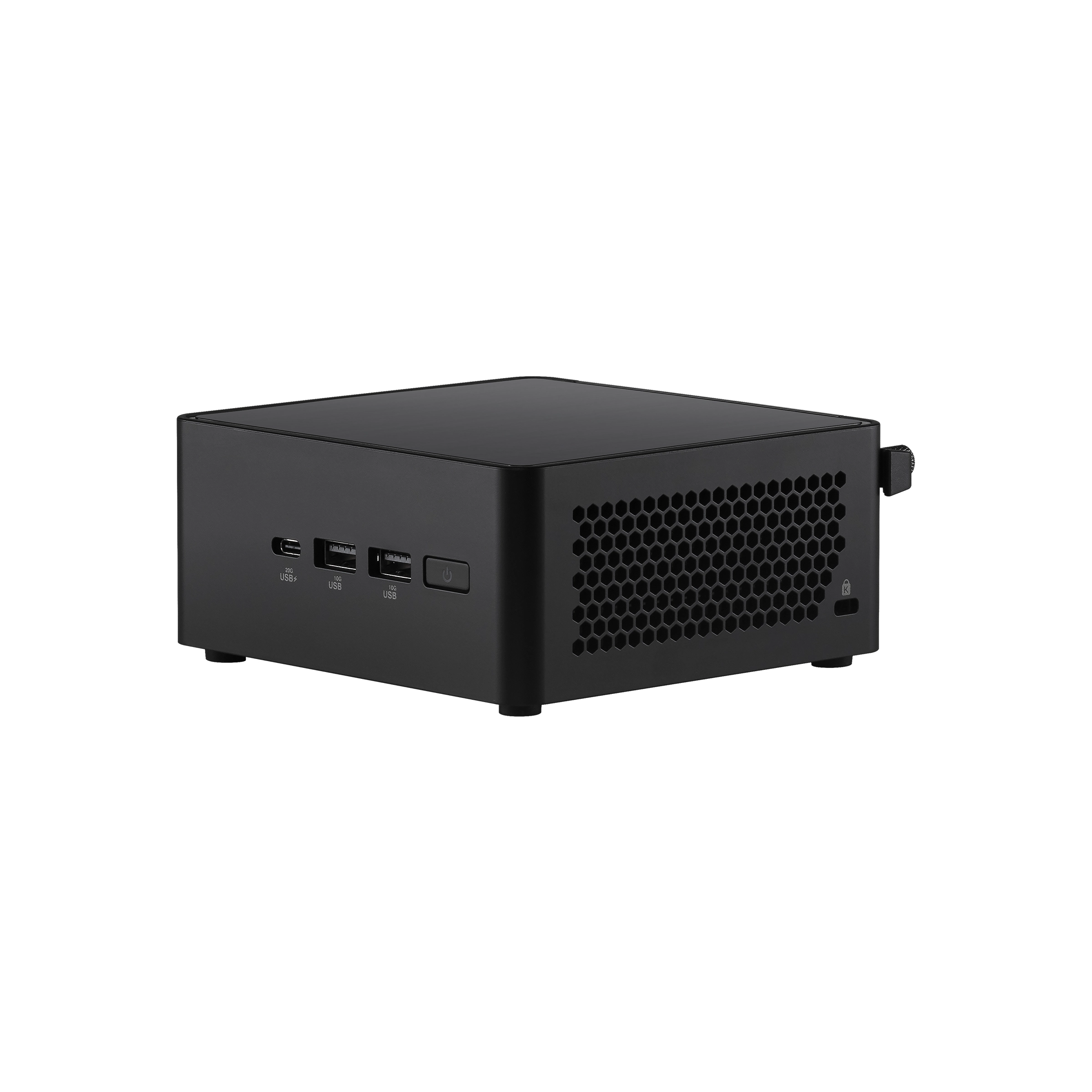

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.

With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Specification

Product
Product id	952993
Brand	AsusTek
Partnr	90AR0072-M001L0
EAN/UPC code	4711387491874
Warranty (months)	12 months
Processor
Built-in processor	Y
Processor manufacturer	Intel
Low Power Efficient-cores	2
Processor family	Intel Core Ultra 7
Performance-core Max Turbo Frequency	4.8 GHz
Processor model	155H
Processor generation	Intel Core Ultra (Series 1)
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Processor cores	16
Performance-core base frequency	1.4 GHz
Processor threads	8
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor boost frequency	4.8 GHz
Processor cache	24 MB
Performance cores	6
Efficient cores	8
ECC supported by processor	N
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2, 2.5 "
SSD form factor	M.2
NVMe	Y
Graphics
On-board graphics adapter	Y
Graphics adapter family	Intel
On-board graphics adapter model	Intel Arc Graphics
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth version	5.3
Bluetooth	Y

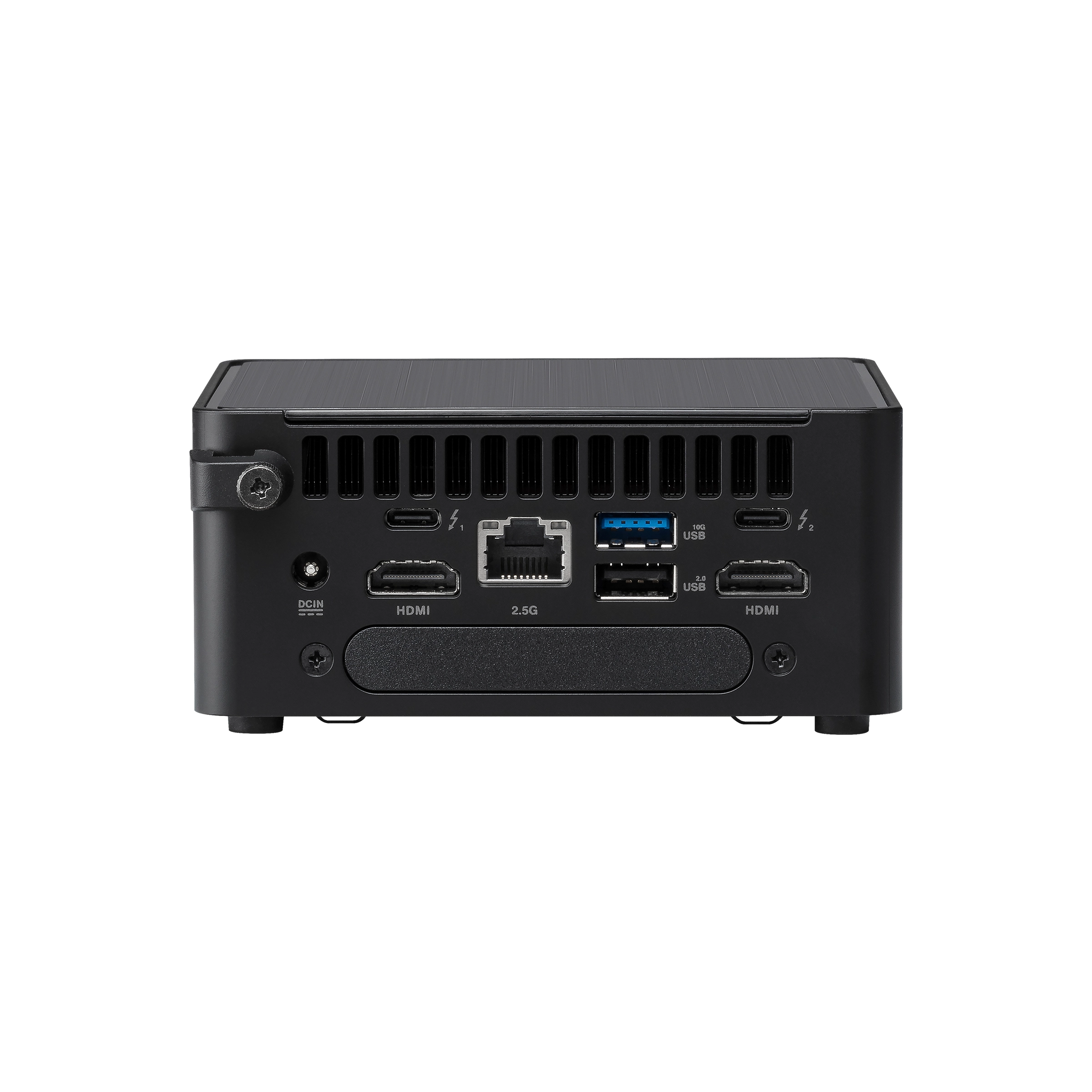

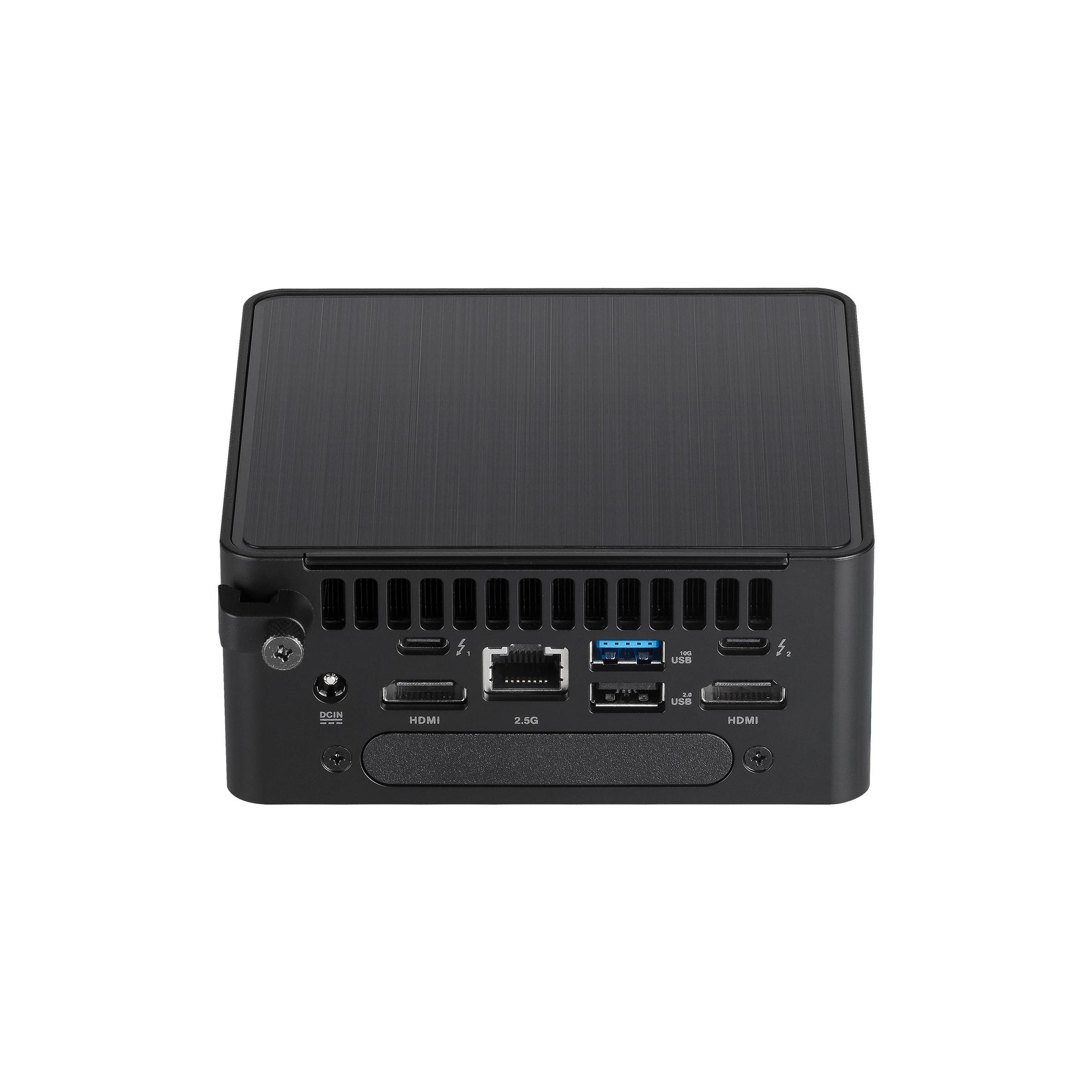

Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
HDMI ports quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Thunderbolt 4 ports quantity	2
Design
Product colour	Black
Cooling type	Active
On/off switch	Y
Product type	Mini PC (<= 3L) barebone
Performance
Windows operating systems supported	Windows 11
Linux operating systems supported	Y
Power
Power supply type	External AC adapter
Weight & dimensions
Width	144 mm
Depth	112 mm
Height	54 mm
Weight	570 g
