Discover Hidden Potential

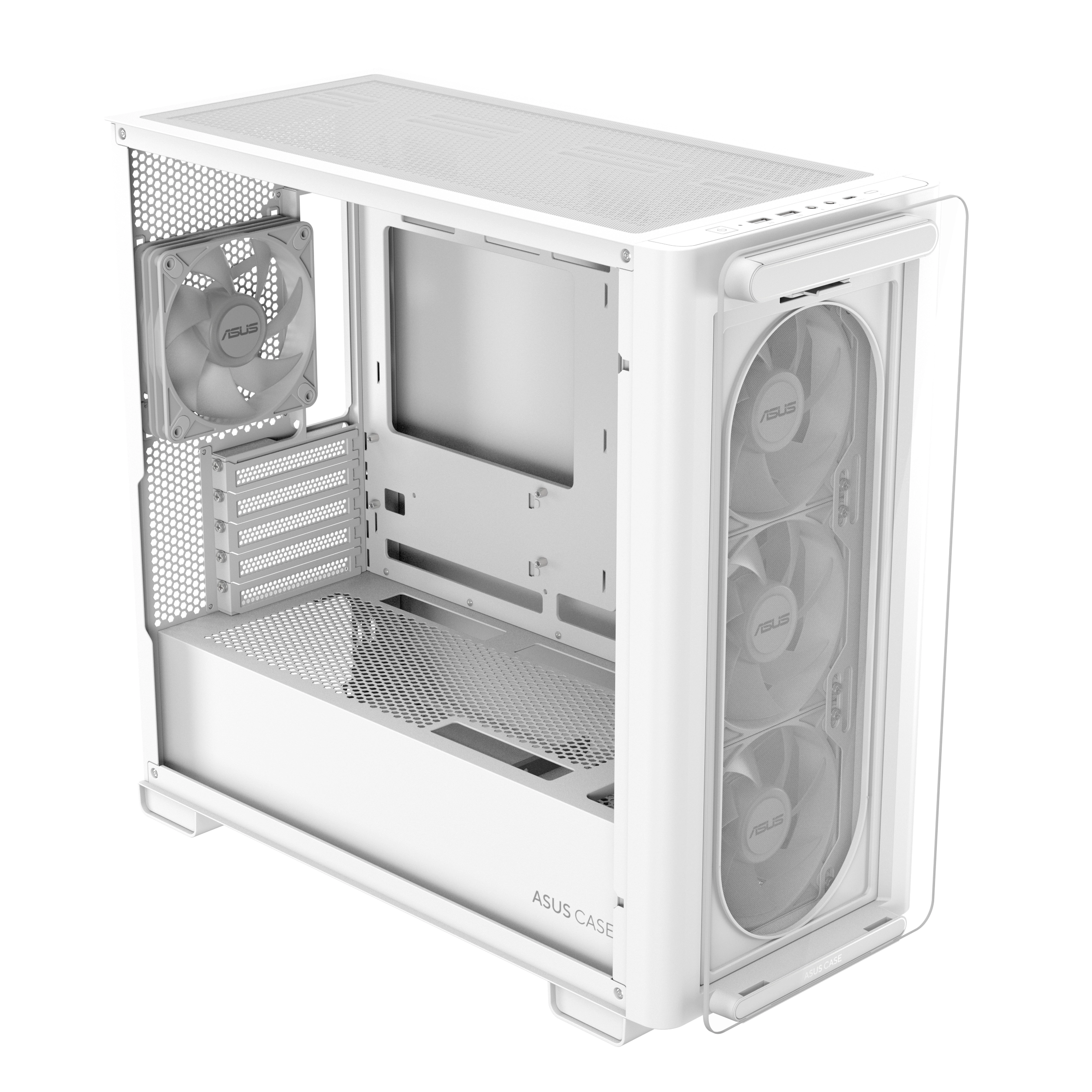

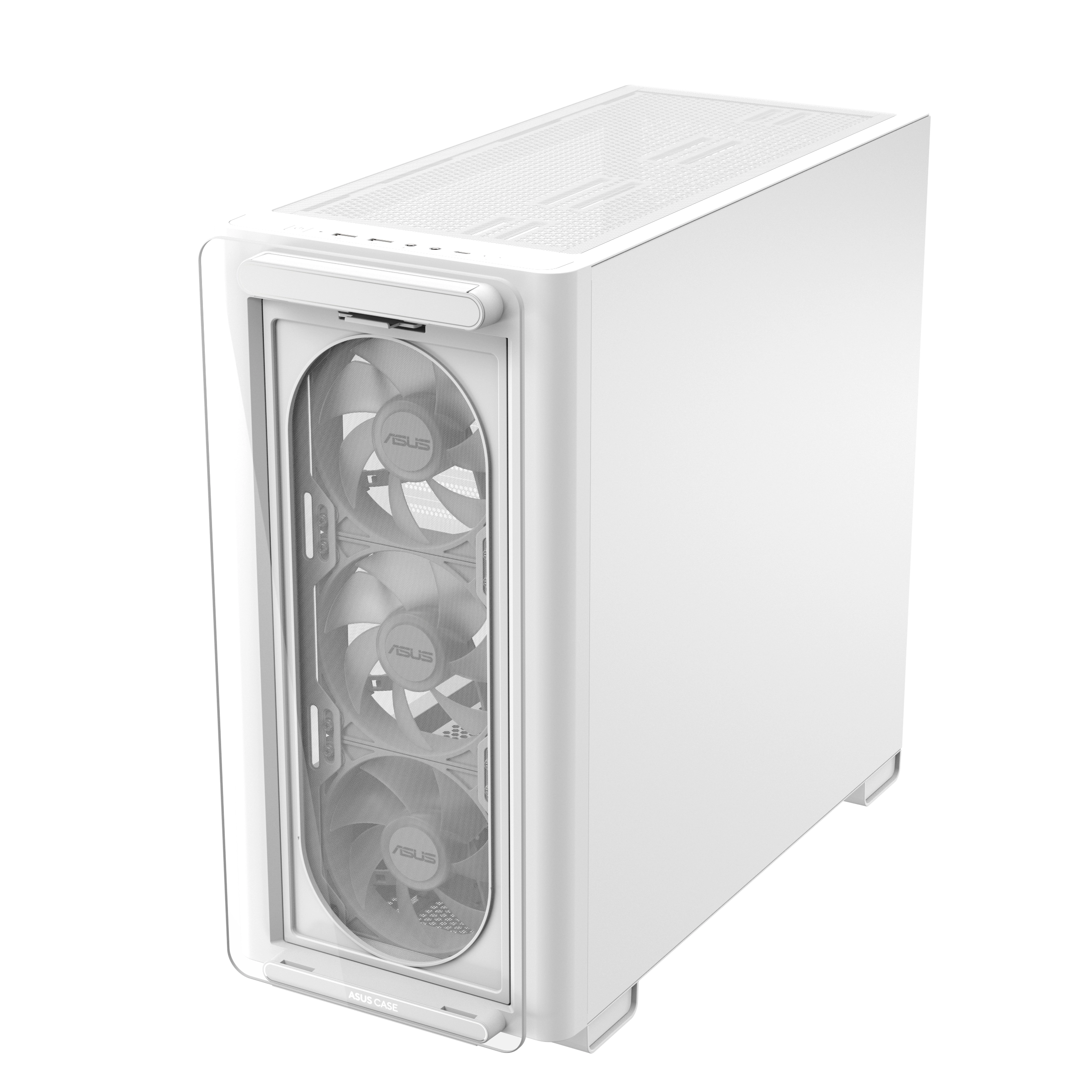

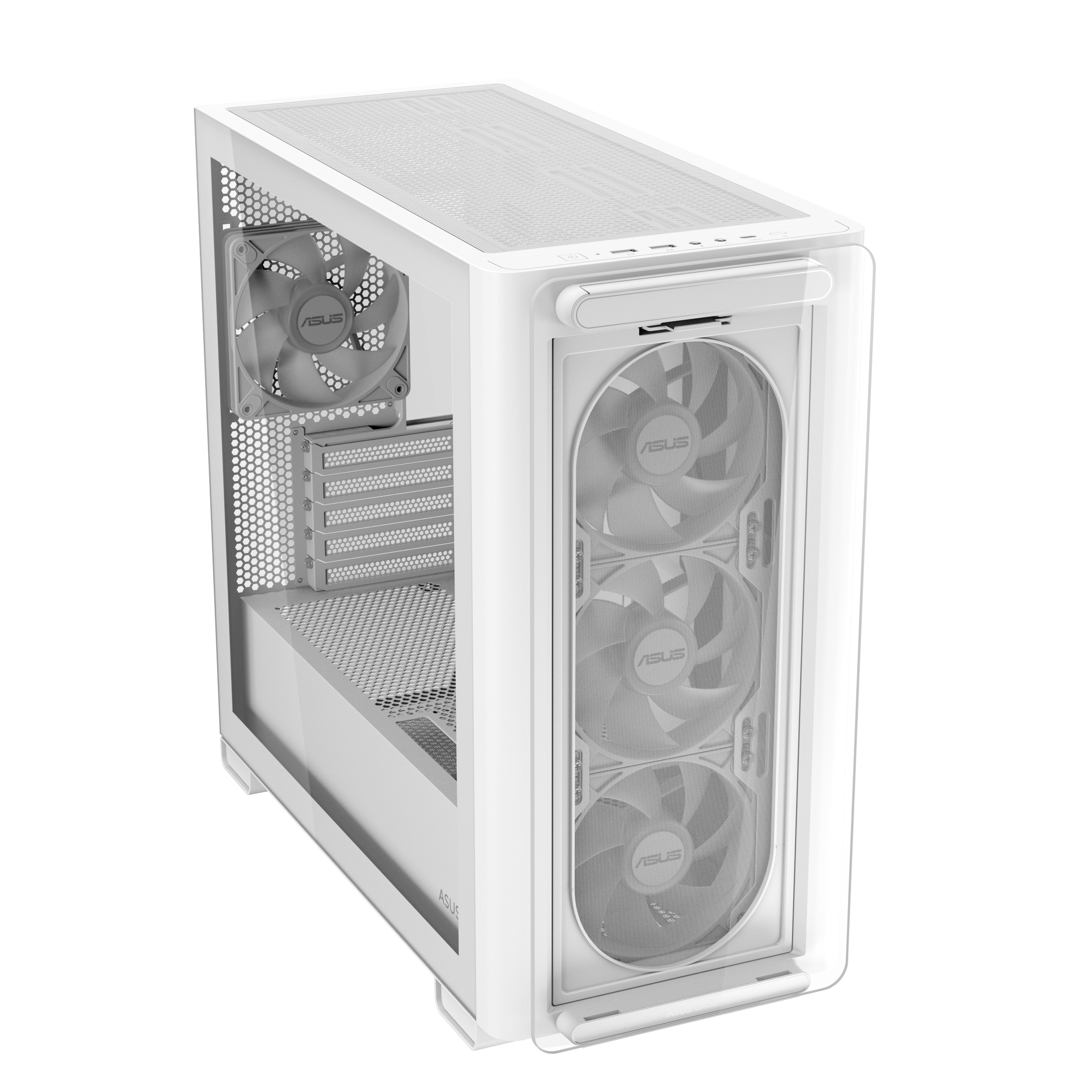

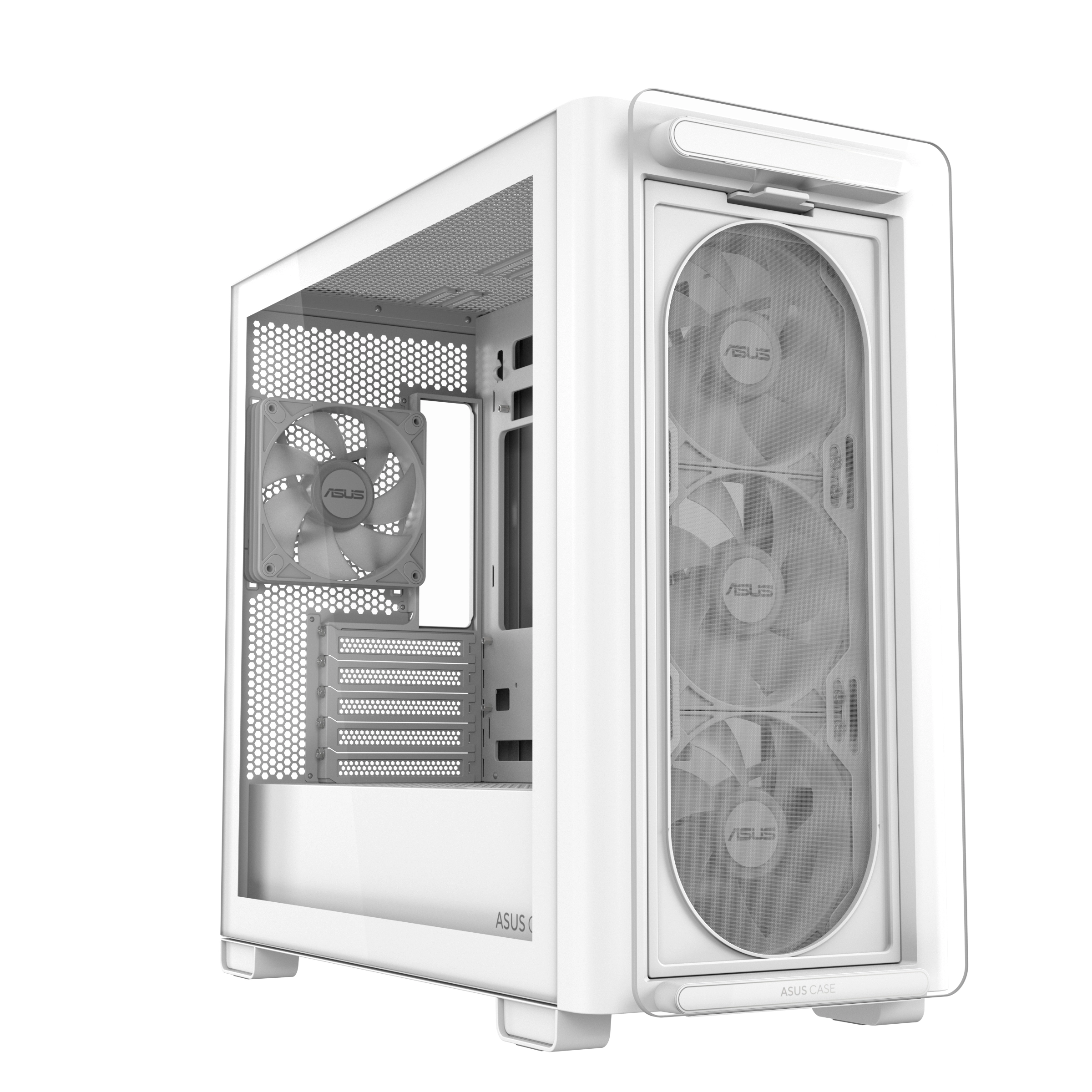

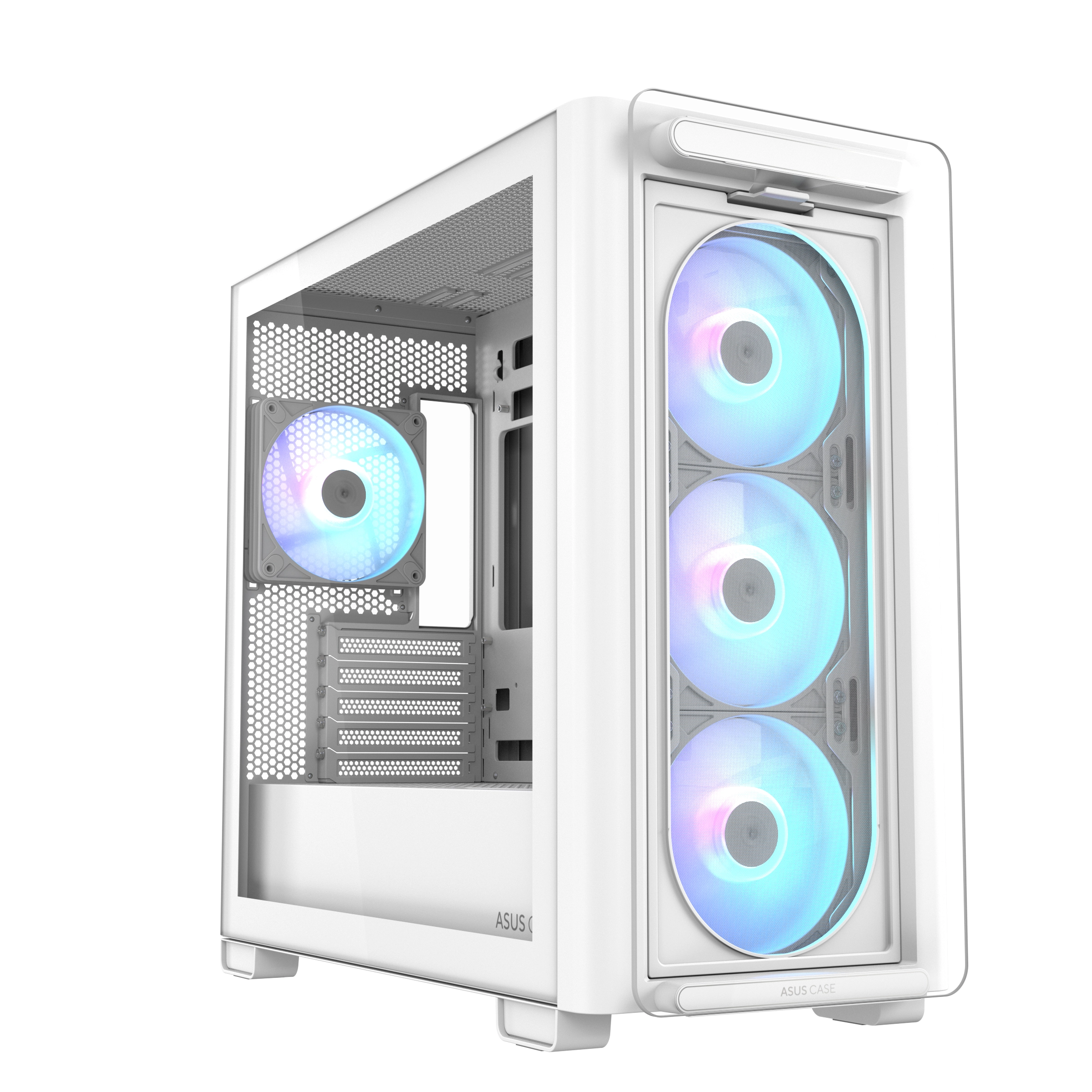

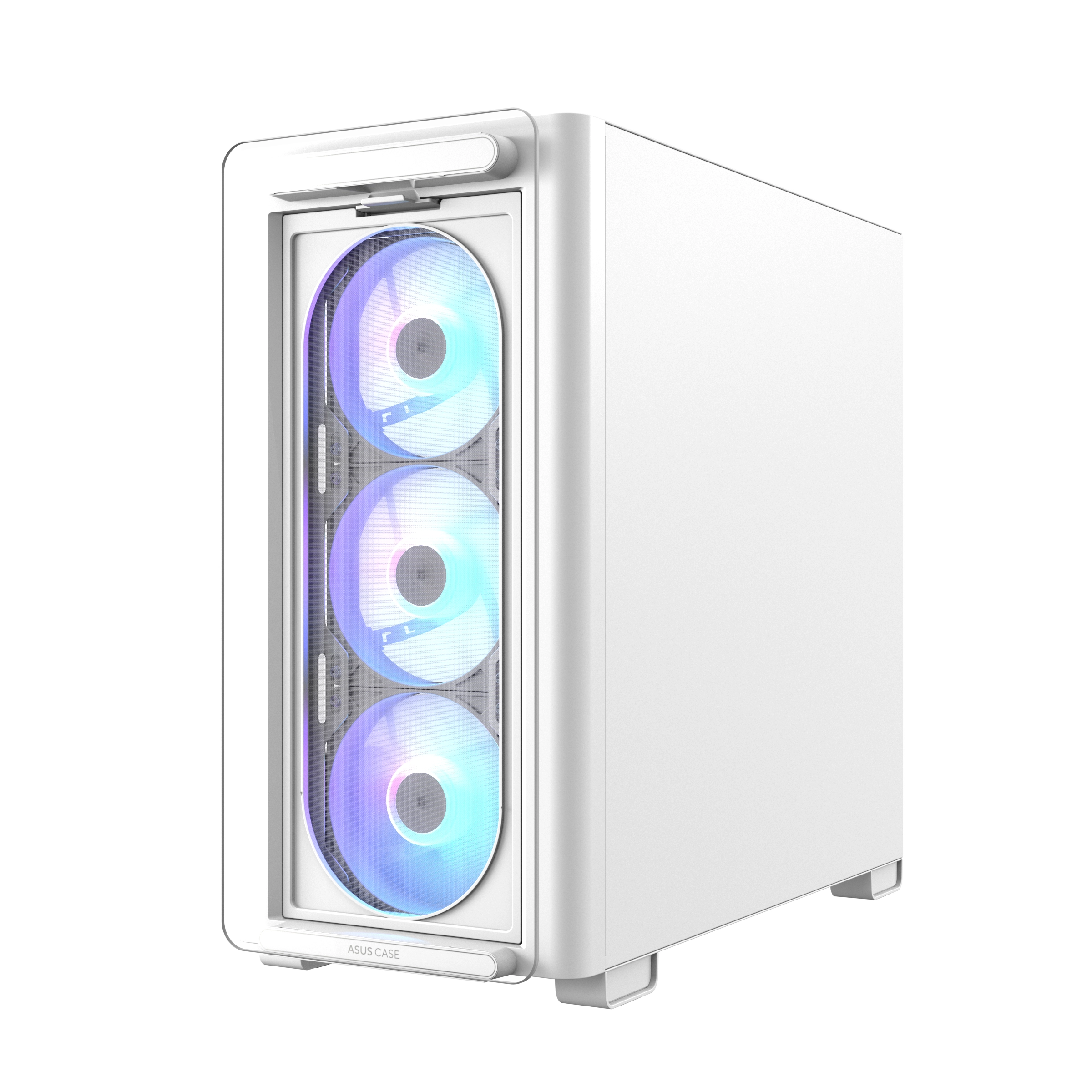

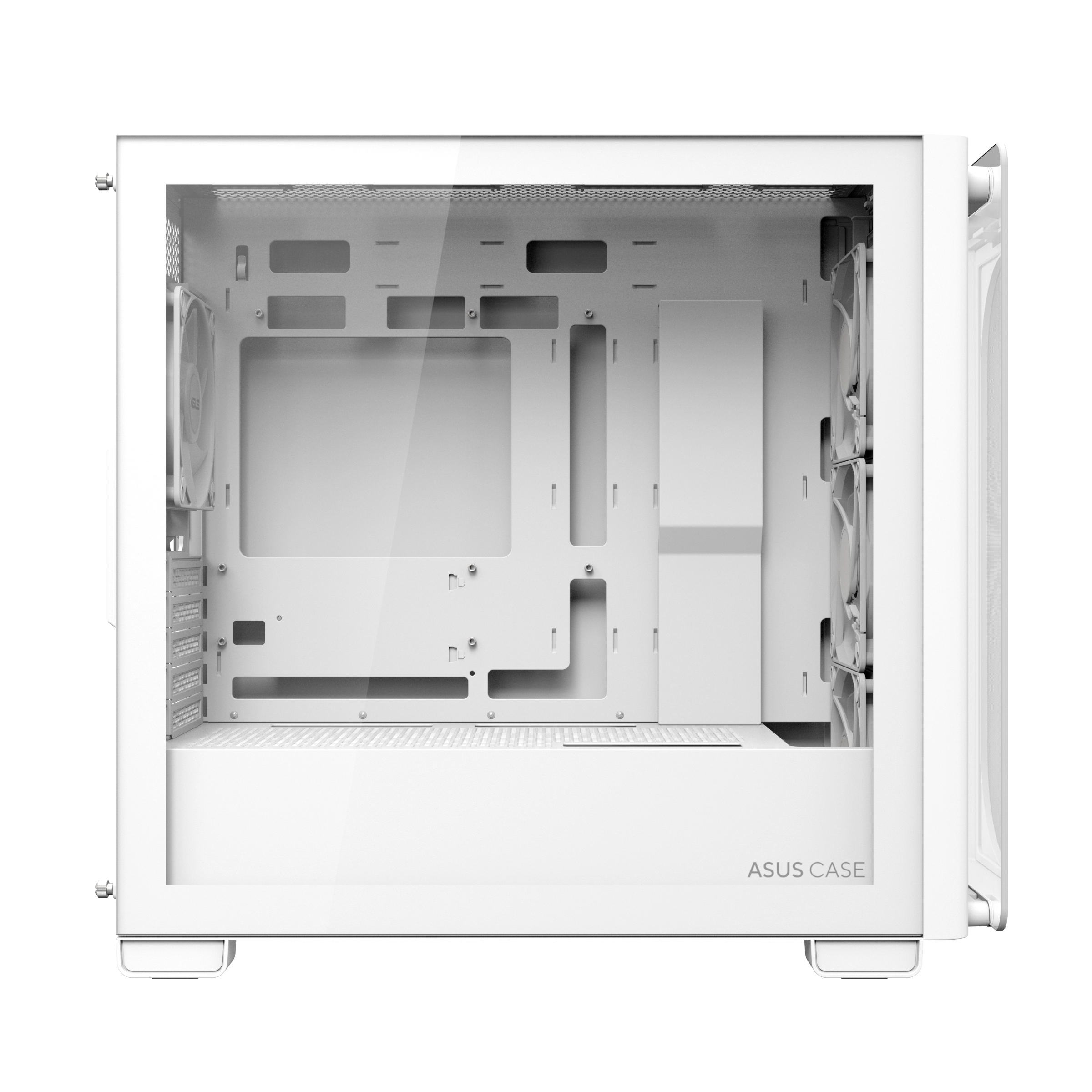

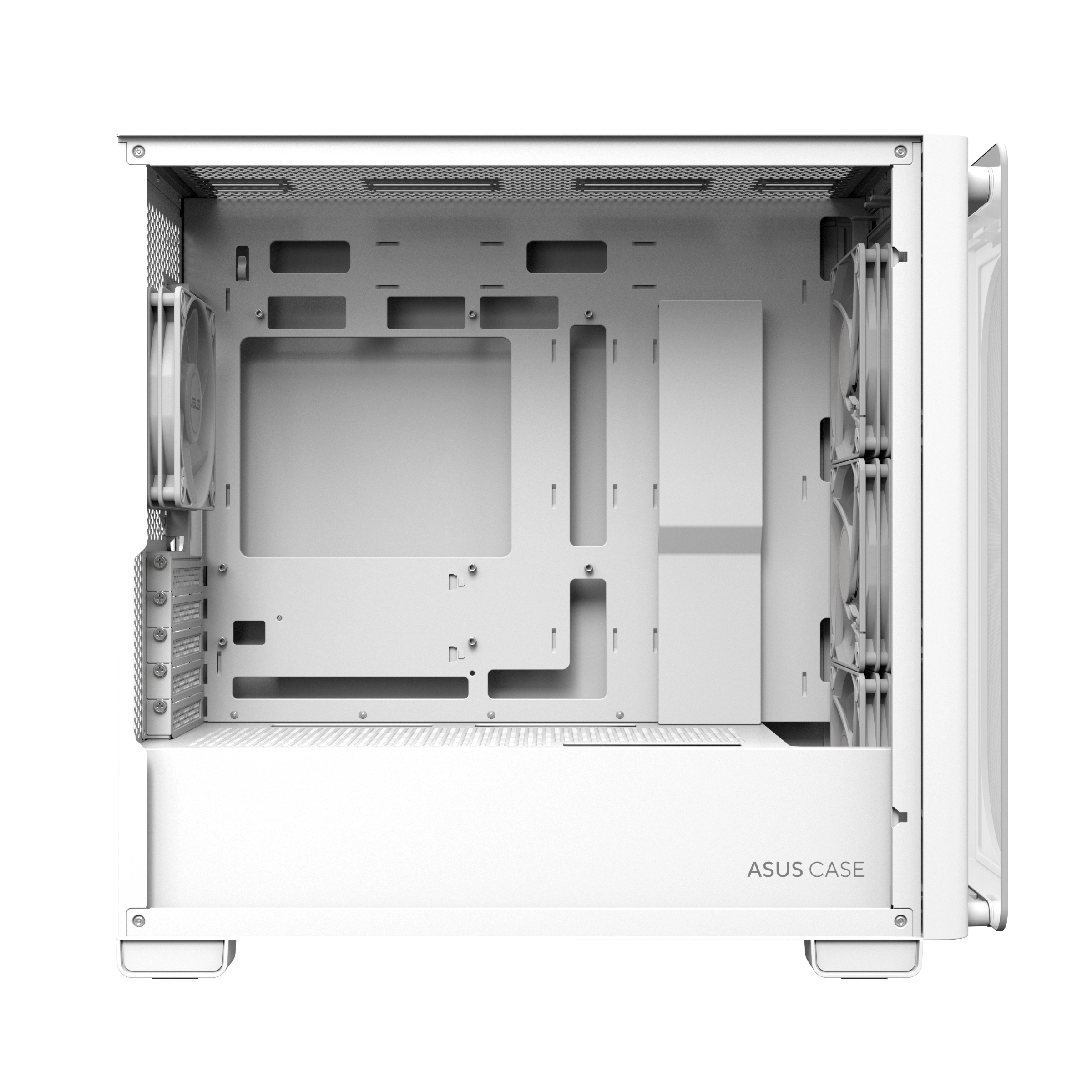

The ASUS A23 PLUS is a PC case crafted for minimalist mainstream DIY PC builders, with support for a variety of AIO coolers and graphics cards, and the four pre-installed ARGB fans provide plenty of airflow potential to keep things running smoothly.

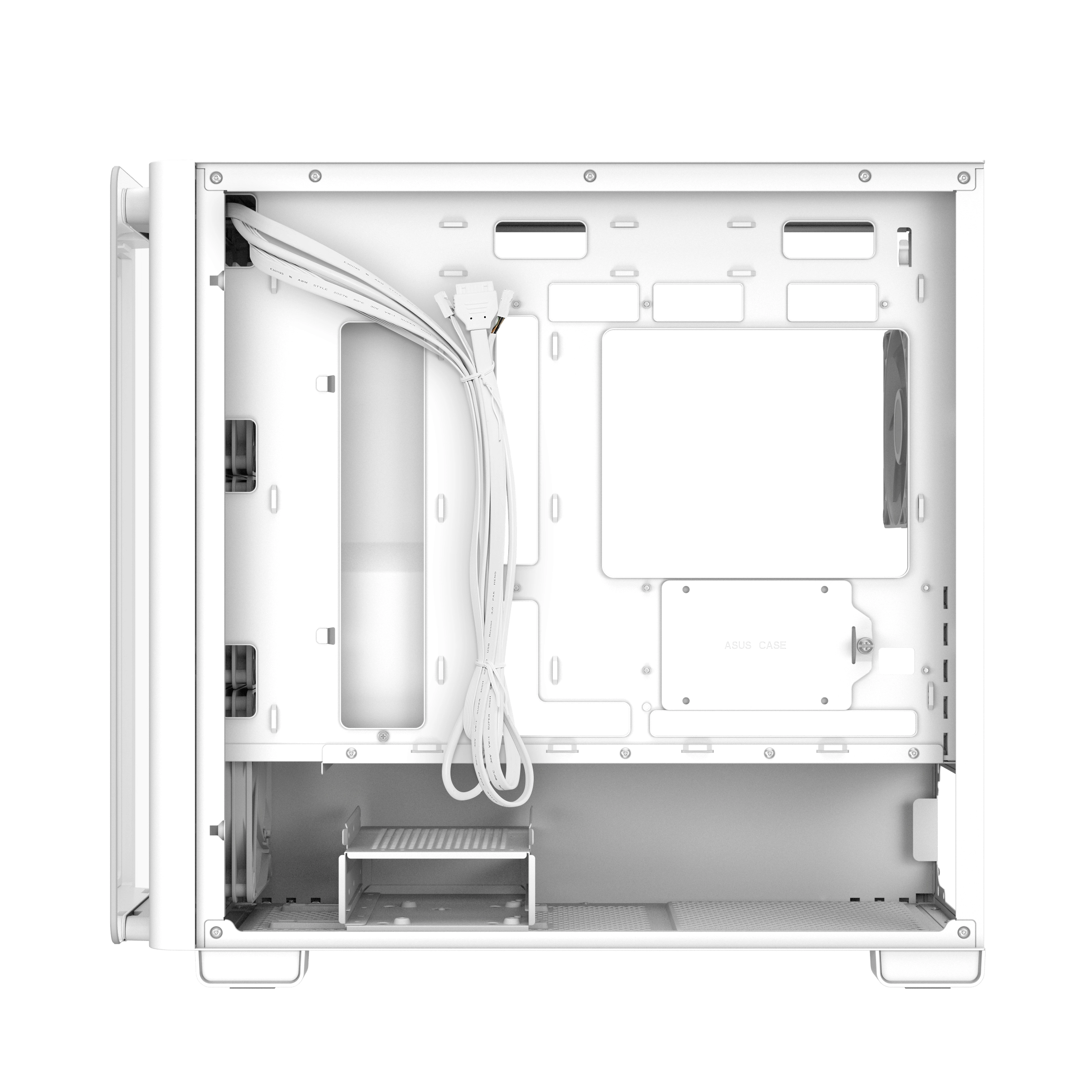

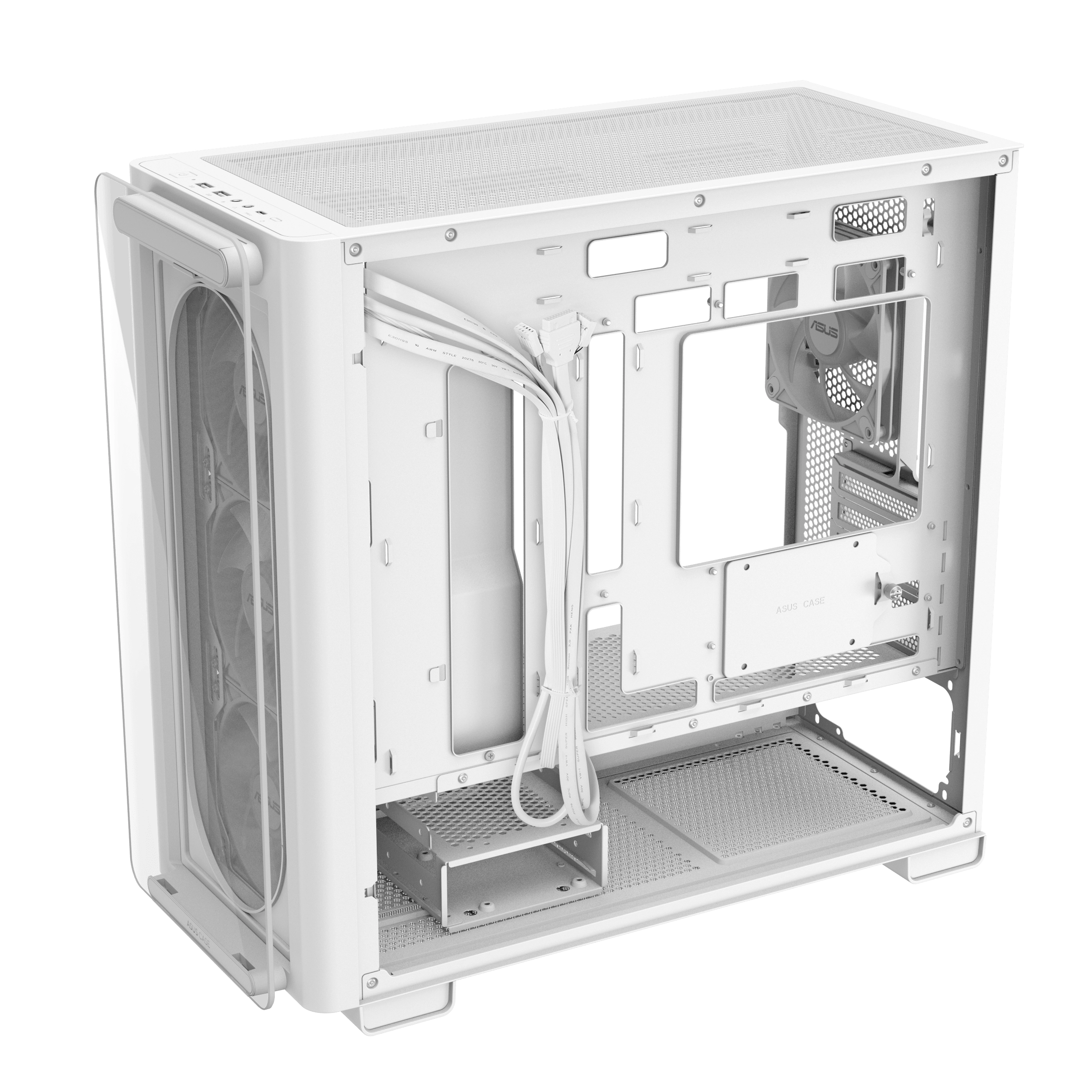

Hidden Connectors
In addition to supporting conventional mini-ITX and micro-ATX motherboards, the A23 PLUS is also compatible with the TUF GAMING B760M-BTF WIFI, whose innovative connectors and headers are located on the underside to maximize clean cable management.

Specification

Product
Product id	969938
Brand	AsusTek
Partnr	90DC00K3-B19010
EAN/UPC code
Warranty (months)	24 months
Design
Type	PC
Product colour	White
Supported motherboard form factors	Micro ATX, Mini-ITX
Number of 3.5" bays	2
Number of 2.5" bays	3
Number of expansion slots	5
Illumination	Y
Illumination colour	Multi
Tempered glass panel(s)	Y
Cable management	Y
On/off button	Y
Maximum CPU cooler height	165 mm
Maximum graphics card length	380 mm
Maximum PSU length	210 mm
Power supply
Power supply included	N

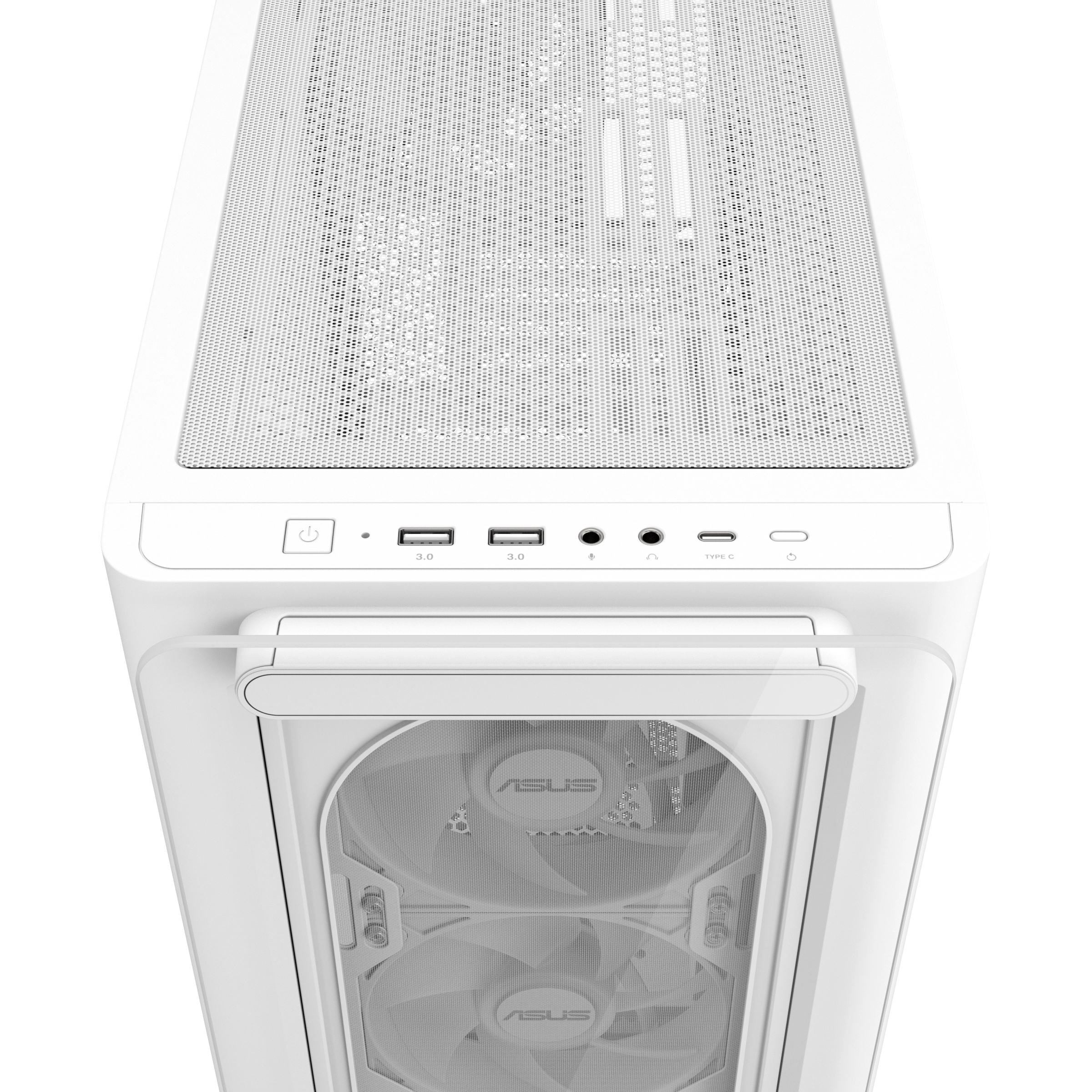

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Audio input	Y
Audio output	Y
Cooling
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120, 140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120, 140 mm
Front radiator fan sizes supported	120, 140, 240, 280, 360 mm
Rear radiator fan sizes supported	120 mm
Top radiator fan sizes supported	140, 240, 360, 120, 280 mm
Storage
Supported HDD sizes	2.5, 3.5 "
Weight & dimensions
Width	220 mm
Depth	450 mm
Height	479 mm
Weight	8900 g
Packaging data
Package width	290 mm
Package depth	566 mm
Package height	493 mm
Package weight	10100 g
