ProArt PA401 - Mesh Panel
Modern Aesthetics, Optimal Airflow
Engineered for optimal airflow and offering an organized and efficient design, the ProArt PA401 is ideal for home office setups. With two pre-installed 160mm front fans and one 120mm rear fan, it also delivers reliable thermal performance. And this case is constructed for easy PC building, including a left-side panel lock, detachable PSU bracket and integrated rear cable clips.

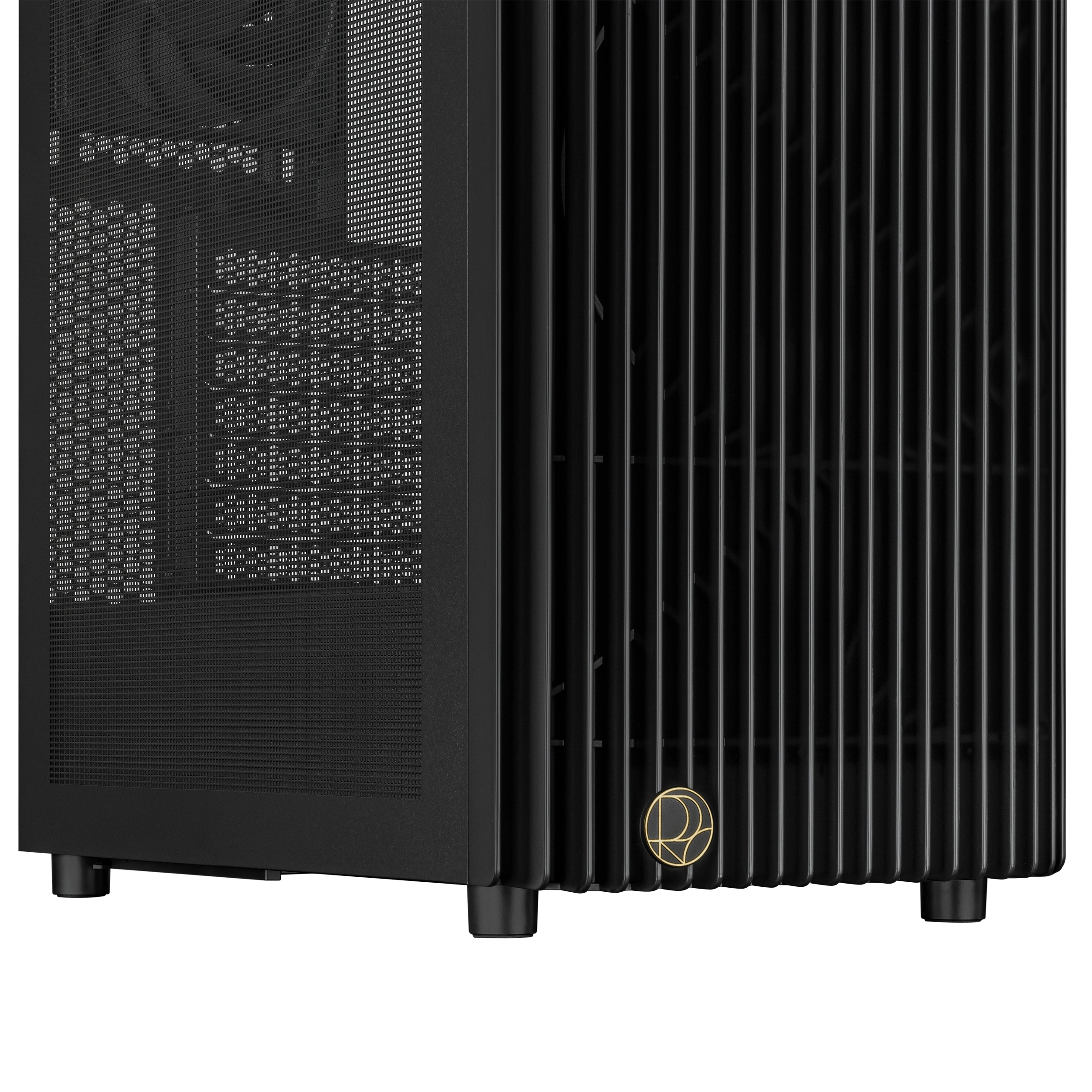

Graphic depicting open grille on the front panel of PA401 case
Open grille for maximum air intake

Specification

Product
Product id	1009564
Brand	AsusTek
Partnr	90DC00M0-B39050
EAN/UPC code	4711387994030
Warranty (months)	24 months
Design
Type	PC
Product colour	Black
Supported motherboard form factors	ATX
Number of 3.5" bays	2
Number of 2.5" bays	2
Number of expansion slots	7
Anti-dust filter	Y
Cable management	Y
Reset button	Y
On/off button	Y
Maximum CPU cooler height	160 mm
Maximum graphics card length	315 mm
Maximum PSU length	170 mm
Power supply
Power supply included	N
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
Combo headphone/mic port	Y
Cooling
Front fans installed	2x 160 mm
Number of front fans supported (max)	2
Front fans diameters supported	140, 160 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120, 140 mm
Top radiator fan sizes supported	120, 140, 240 mm
Pulse-width modulation (PWM) support	Y
Storage
Supported HDD sizes	2.5, 3.5 "
Weight & dimensions
Width	225 mm
Depth	412 mm
Height	503 mm
Weight	8610 g
