ROG Strix Helios II Hatsune Miku Edition EATX mid-tower case with glass panels, support for graphics cards up to 450mm long and 420mm radiators, graphics card brace, aluminum frame

Feel the Beat,
In-Game Feats
ROG continues its collaboration with virtual pop star Hatsune Miku with a complete gaming system centered around ROG's sci-fi aesthetics and Miku's signature blue-green, pink-color scheme. The collection combines Hatsune Miku’s signature style with superior ROG performance, premium quality, and versatile functionality for competitive gameplay or daily tasks. Products include a motherboard, graphics card, PC case, all-in-one cooler, SSD enclosure, power supply, monitor, and apparels, enabling gamers to create an entire gaming setup that exudes the vibrant Miku aesthetic.

ROG Strix Helios II
HATSUNE MIKU EDITION

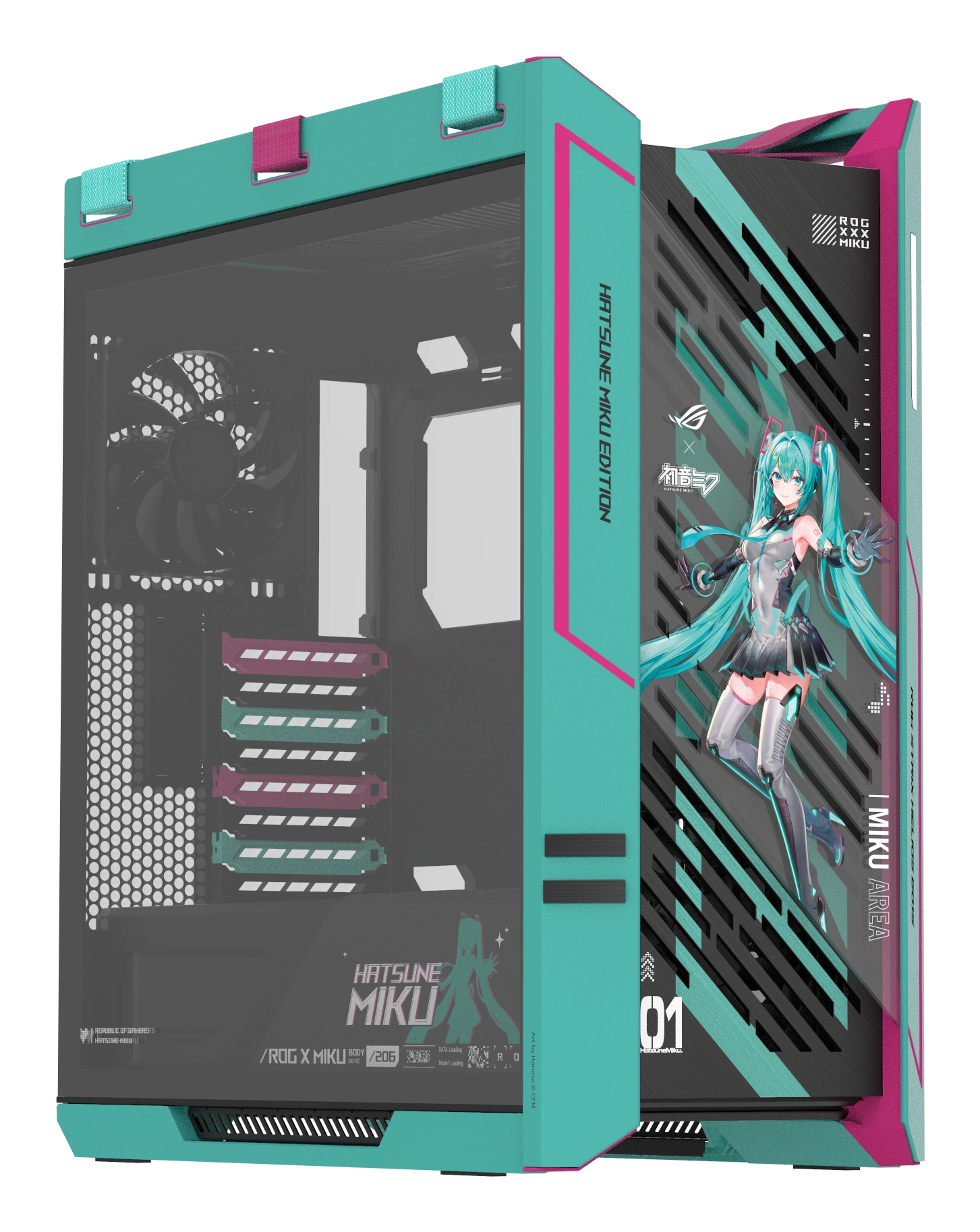

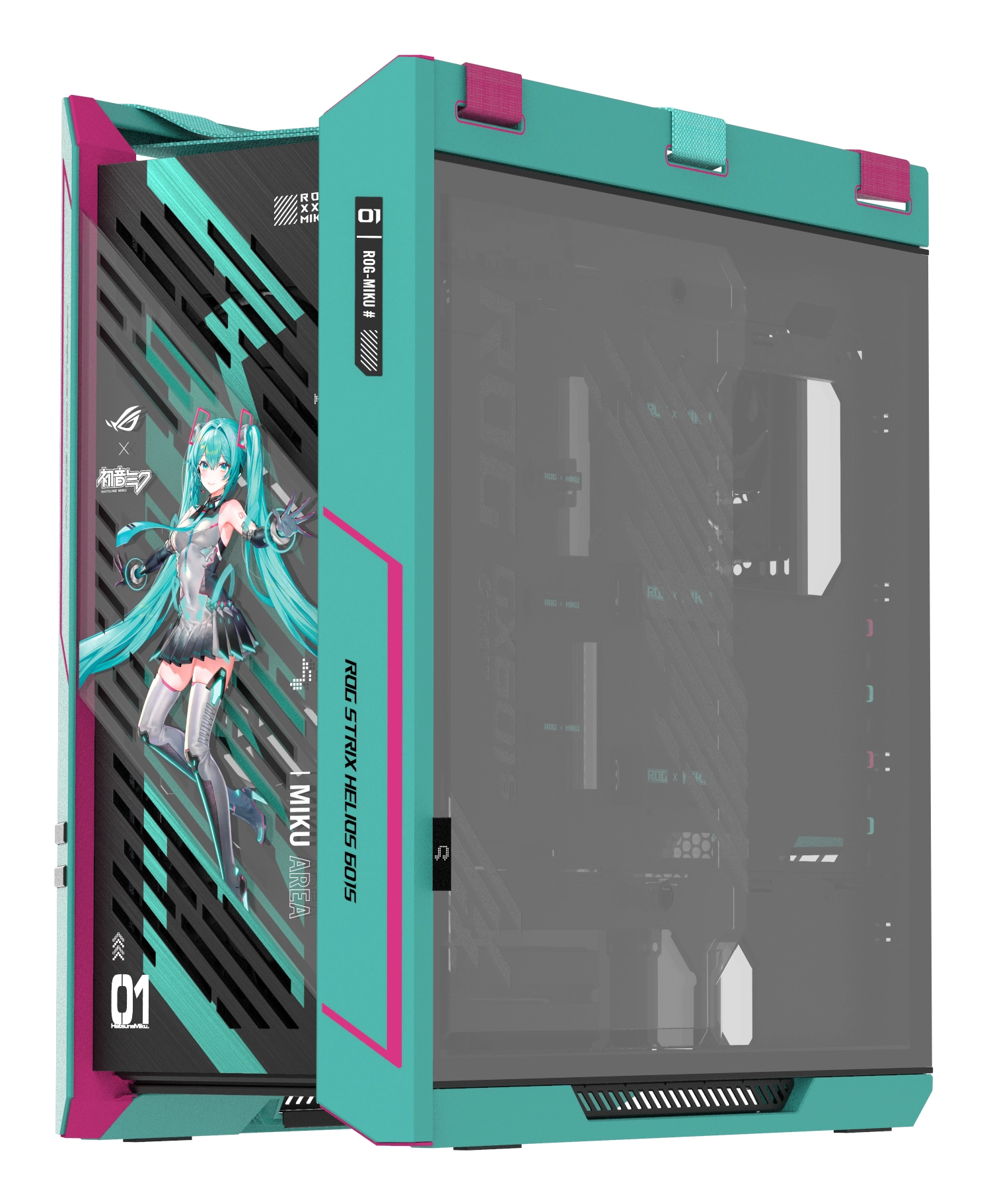

ROG Strix Helios II Hatsune Miku Edition is a premium mid-tower gaming case featuring dual tempered glass side panels, a refined aluminum frame, and a diamond grille front panel with a 3D-structured front filter. It comes pre-installed with four 140 x 28 mm fans, delivering optimized airflow and enhanced thermal performance for demanding gaming setups. Engineered for expandability and performance, it’s ready for motherboards ranging from ITX to EATX and serious water-cooling setups as well – making it the perfect choice for a classic ROG showcase build.

Premium Design & Aesthetics

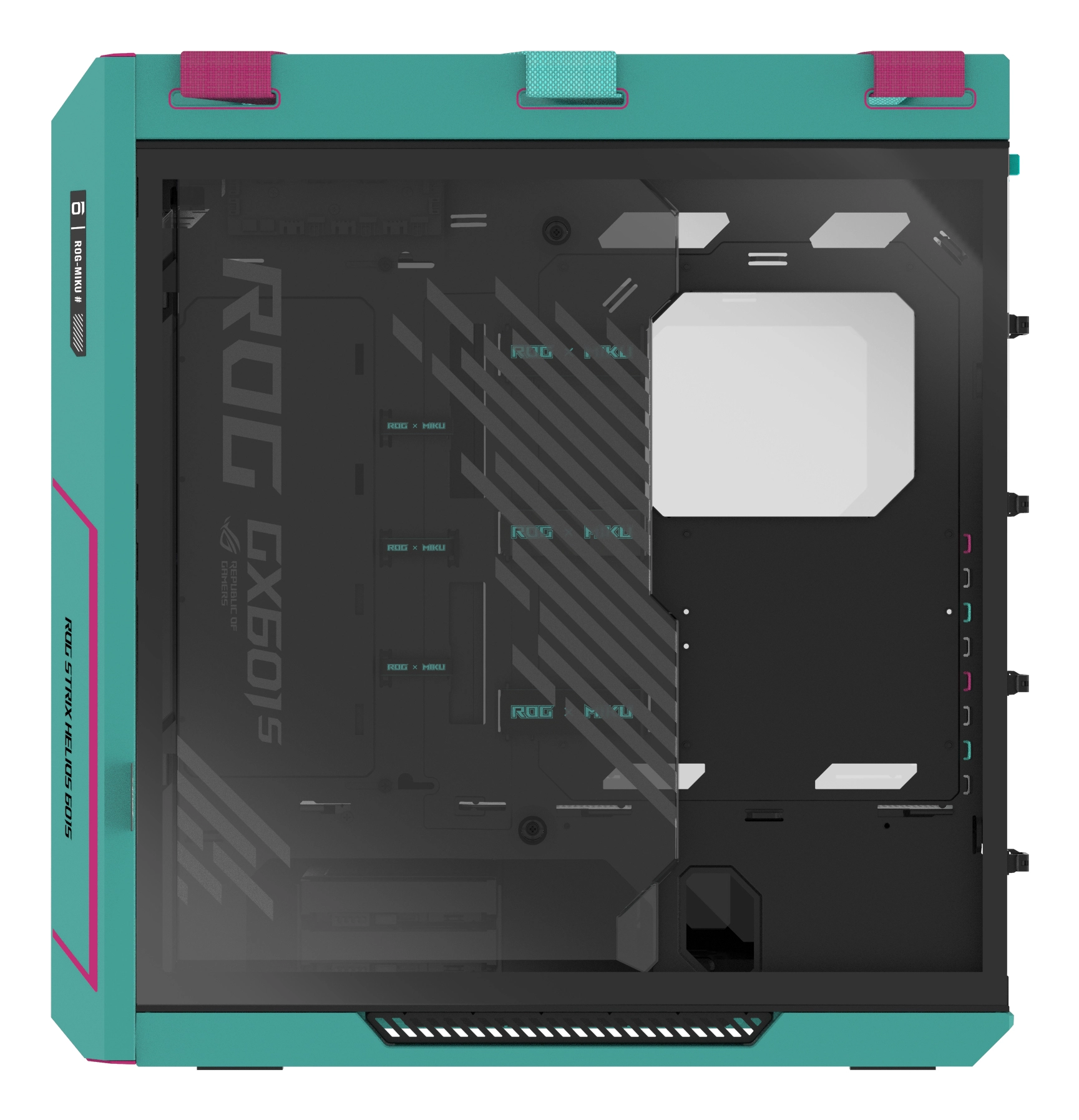

ROG Strix Helios II Hatsune Miku Edition is made for showcase builds with dual 4mm-thick tempered glass side panels fitted in a refined brushed-aluminum frame. The aluminum front panel, featuring a diamond grille design, is manufactured using high-precision CNC milling technology and an anodizing process.

Multifunction Cover

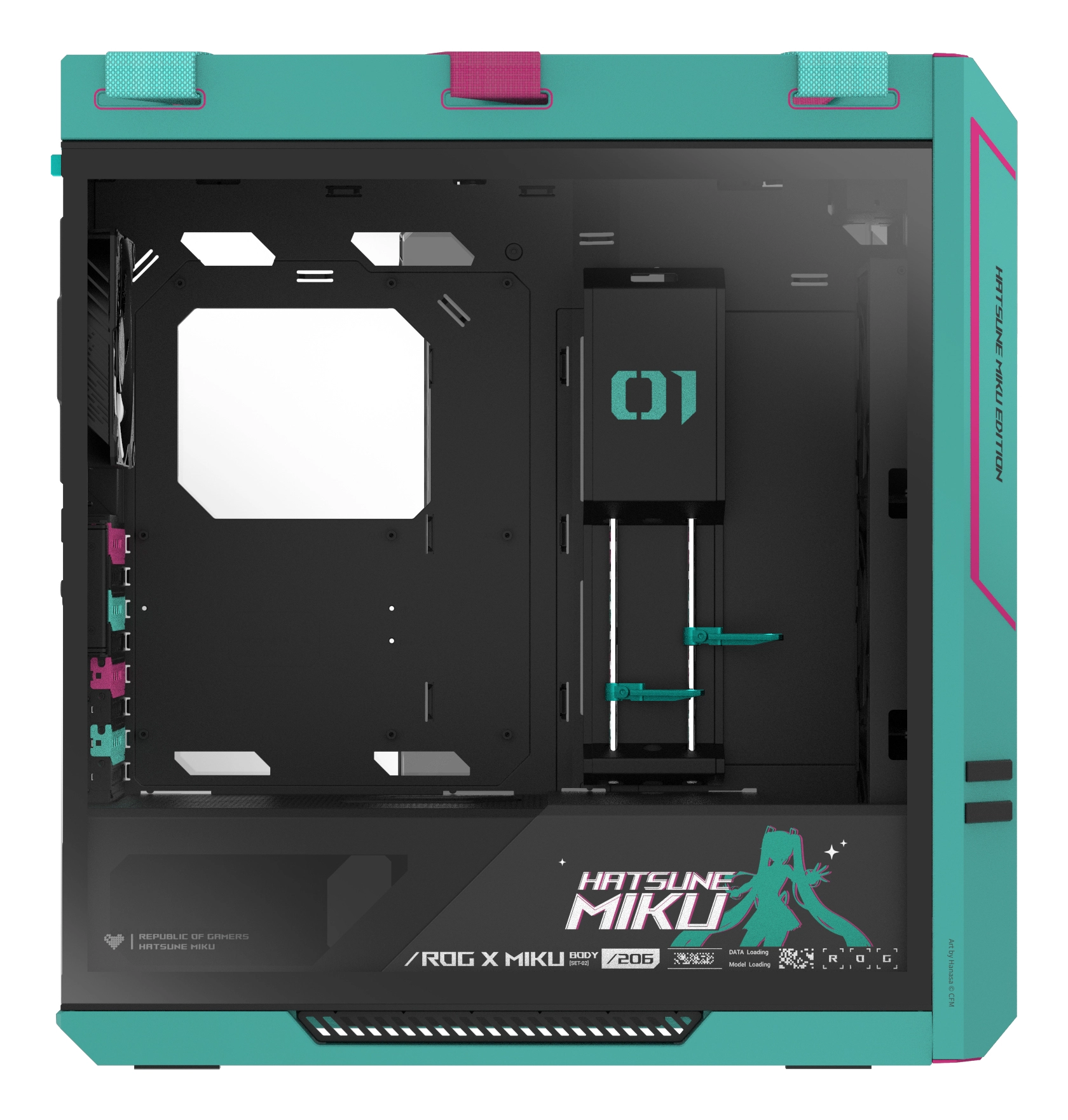

A multifunction cover with graphics card braces cleverly hides cabling, while providing sturdy support to graphics cards. Its position can be adjusted to accommodate an ATX or EATX motherboard.

Ergonomic Case Straps

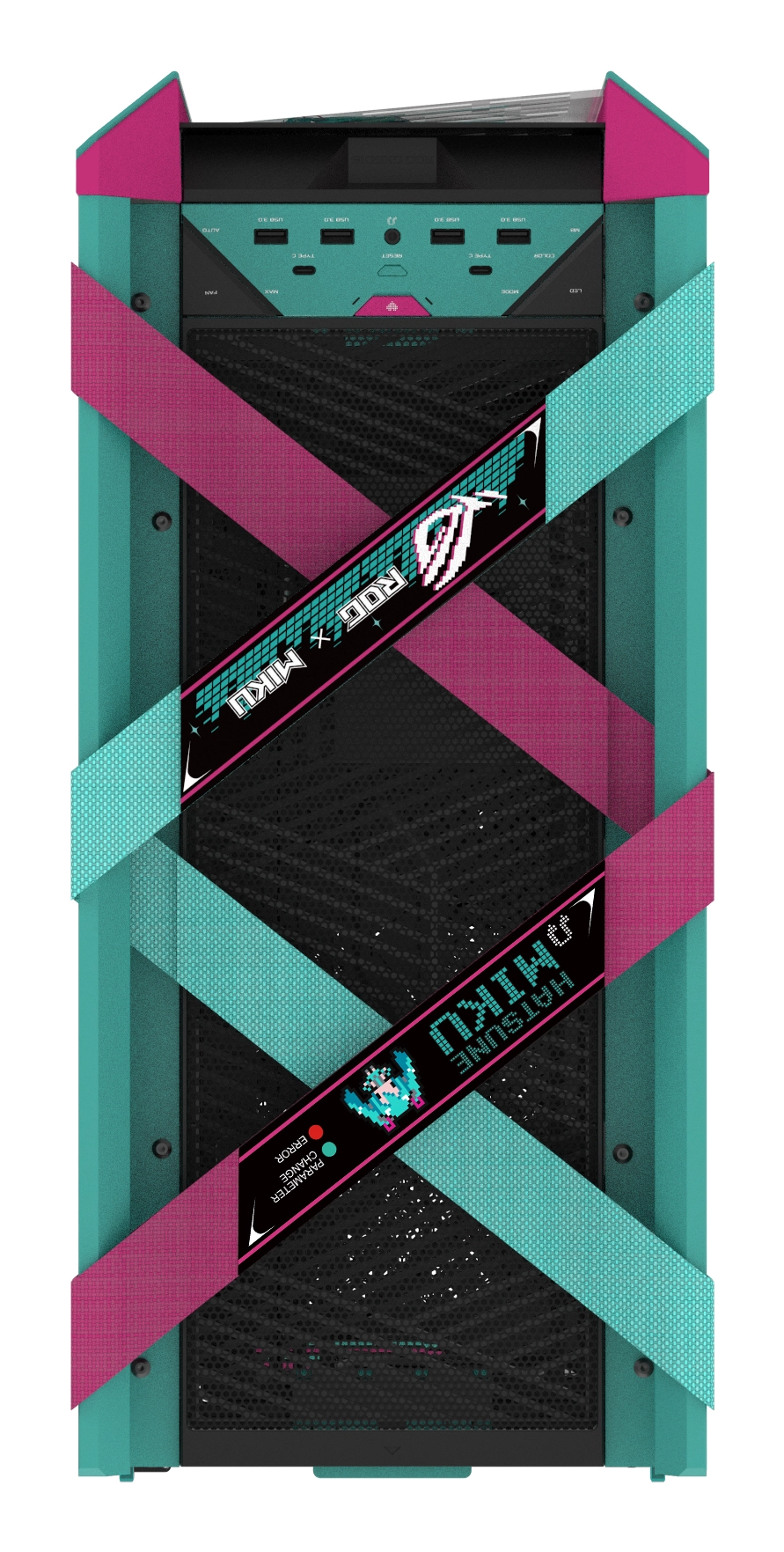

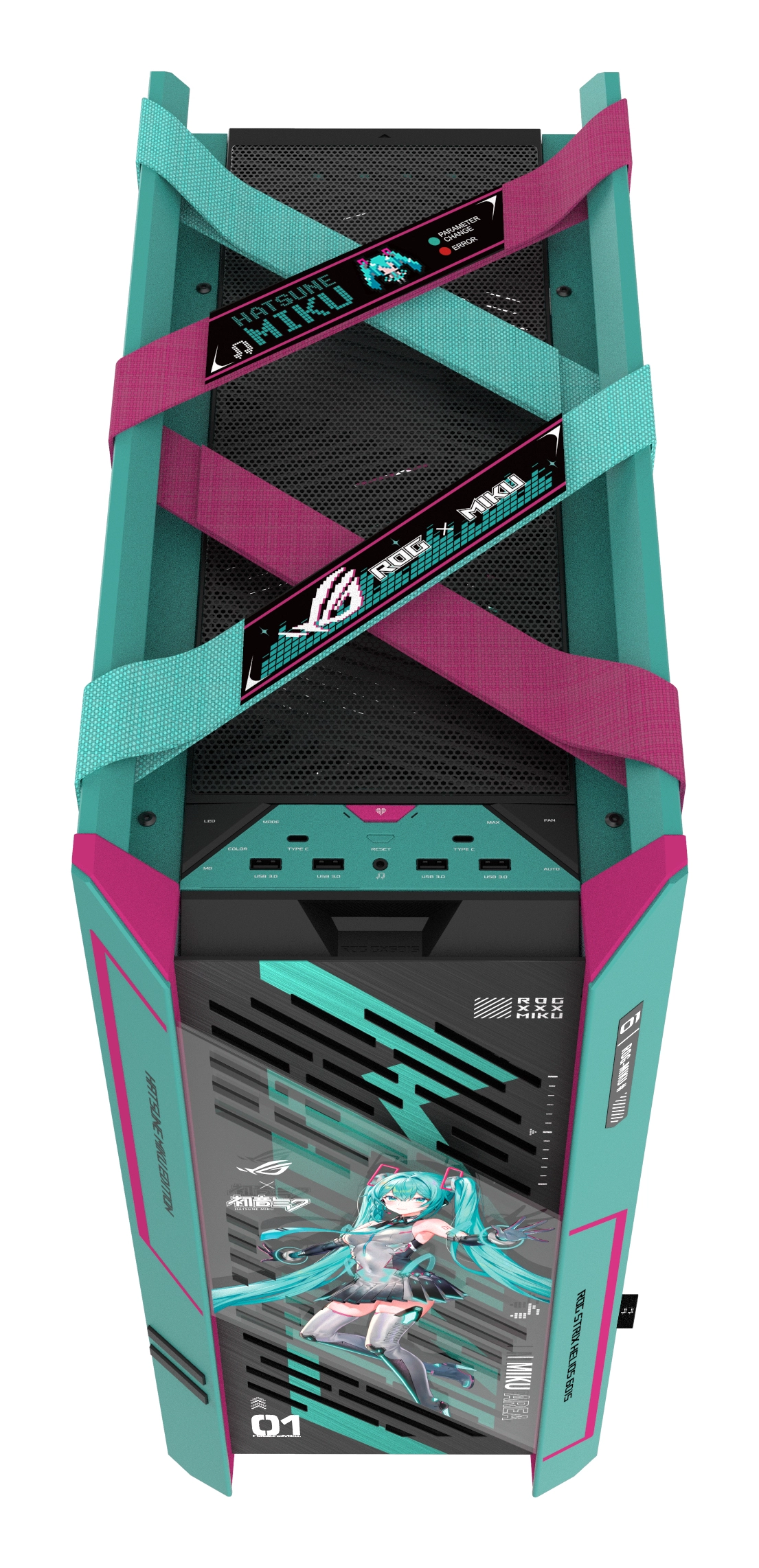

Easily carry your prized build to LAN parties with ergonomically X shape woven fabric straps that combine style and comfort, rigorously tested to support up to 50kg for reliable transport.

Specification

Product
Product id	1006214
Brand	AsusTek
Partnr	90DC00W0-B39010
EAN/UPC code	4711636061285
Warranty (months)	24 months
Design
Form factor	Midi Tower
Type	PC
Material	Aluminium, Tempered glass
Product colour	Multicolour
Supported motherboard form factors	ATX, EATX, Micro ATX, Mini-ITX
Number of 3.5" bays	2
Number of 2.5" bays	4
Number of expansion slots	8
Side window	Y
Suitable for	Gaming
Illumination	Y
Illumination colour	Multi
Tempered glass panel(s)	Y
Anti-dust filter	Y
Cable management	Y
Reset button	Y
RGB control button	Y
On/off button	Y
Maximum CPU cooler height	190 mm
Maximum graphics card length	450 mm
Maximum PSU length	220 mm
Power supply
Power supply included	N
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2x2 Type-C ports quantity	2
Cooling
Front fans installed	3x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120, 140 mm
Rear fans installed	1x 140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120, 140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120, 140 mm
Front radiator fan sizes supported	120, 140, 240, 280, 360, 420 mm
Rear radiator fan sizes supported	120, 140 mm
Top radiator fan sizes supported	120, 140, 240, 280, 360 mm
Liquid cooling installed	Y
Storage
Supported HDD sizes	2.5, 3.5 "
HDD/SSD combo cage	Y
Number of HDDs supported	6
Weight & dimensions
Width	250 mm
Depth	565 mm
Height	591 mm
Weight	18000 g
Packaging data
Package width	705 mm
Package depth	390 mm
Package height	740 mm
