AX3000 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Pro network security powered by Trend Micro™, compatible with ASUS AiMesh WiFi system

Get Your Home Ready for WiFi 6 (802.11ax)
The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current Wi-Fi standard. The latest 802.11ax standard provides future-proof technologies, higher network efficiency, faster Wi-Fi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.

Next-Gen WiFi Speed
RT-AX58U is a 2x2 dual-band Wi-Fi router that provides 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band — RT-AX58U is 2.5X faster than 802.11ac 2x2 dual-band routers.

Built for Multi-device Households
With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac Wi-Fi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the 802.11ax Wi-Fi standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive Wi-Fi experience.

Commercial-grade Security for your Home Network
RT-AX58U has lifetime free AiProtection Pro, powered by Trend Micro™ with automatic, regularly updated security signatures to protect your devices and personal data from internet threats. This strong security offers advanced parental controls, including the ability to block specific websites and mobile app types.

The Latest WPA3 Network Security
The next generation of Wi-Fi security, bringing new capabilities to enhance Wi-Fi protections in personal and enterprise networks. Building on the widespread adoption of WPA2 over more than a decade, WPA3 adds new features to simplify Wi-Fi security, enable more robust authentication, and deliver increased cryptographic strength for highly sensitive data markets.

Powerful Whole-home Wi-Fi System.
The Way You Want.
In most cases, your RT-AX58U can deliver smooth, reliable Wi-Fi to every part of your home. But Wi-Fi coverage can be affected by many factors — room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home Wi-Fi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models — protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is Wi-Fi you can rely on — for all your devices, all the time!

Specification

Product
Product id	671284
Brand	AsusTek
Partnr	90IG04Q0-MO3R10
EAN/UPC code	5715063213537
WAN connection
Ethernet WAN	Y
DSL WAN	N
SIM card slot	N
3G/4G USB modem compatibility	N
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
VPN support	IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client
Mobile network
3G	N
4G	N

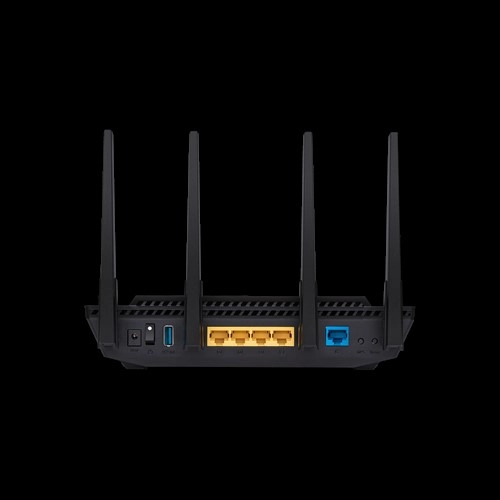

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB port	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Memory card slot(s)	N
Management features
Web-based management	Y
Reset button	Y
WPS push button	Y
Security
Security algorithms	WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPS
Firewall	Y
Firewall security	SPI intrusion detection, DoS protection
Protocols
Management protocols	UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
Design
LED indicators	LAN, Power, WAN
On/off switch	Y
Antenna
Antenna design	External
Antennas quantity	4
Detachable antenna(s)	Y
Features
Built-in processor	Y
Processor frequency	1500 MHz
Internal memory	512 MB
Flash memory	256 MB
Harmonized System (HS) code	85176990
Power
Power source type	AC, DC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	19 V
Output current	1.75 A
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Weight & dimensions
Width	154 mm
Depth	224 mm
Height	160 mm
Weight	538 g
Packaging data
Cables included	AC
AC adapter included	Y
Other features
Frequency range	2.4 - 5 GHz
Transmission encryption	Y
