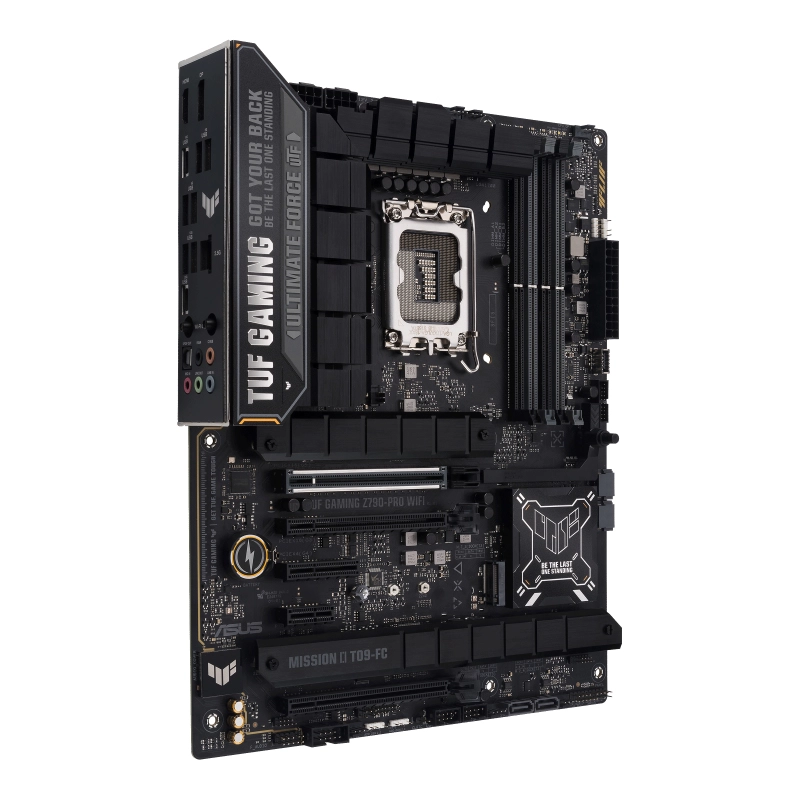

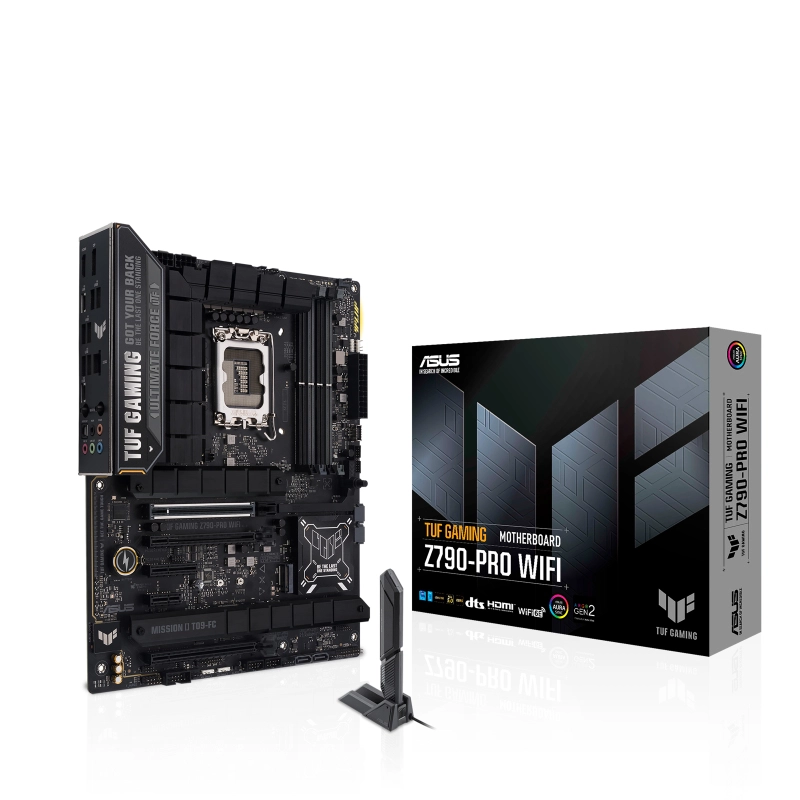

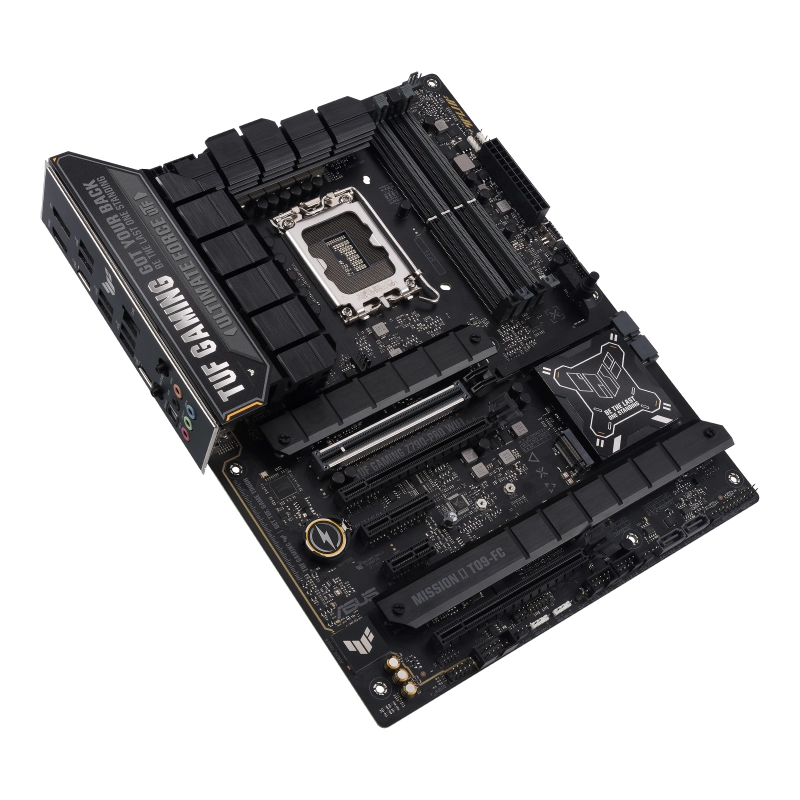

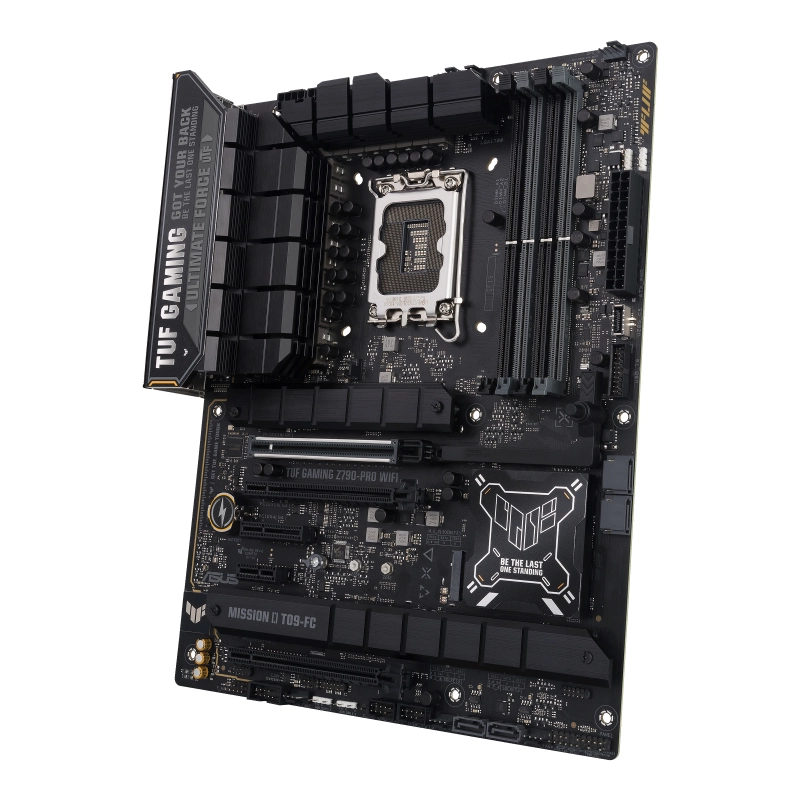

ASUS TUF GAMING Z790-PRO WIFI LGA 1700 4DDR5 ATX 4xSATA MB 1xHDMI 1xDP 4xM.2



AsusTek
Not in stock
€ 230,13
€ 278,45 incl 21% VAT
ASUS TUF Gaming Z790-PRO. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,. . . . Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E. . . . Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Specification

Product
Product id 967399
Brand AsusTek
Partnr 90MB1FJ0-M0EAY0
EAN/UPC code 4711387340844
Warranty (months) 36 months
Processor
Processor manufacturer AMD
Processor socket LGA 1700
Compatible processor series Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Supported processor sockets LGA 1700
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Y
Supported memory clock speeds 5333, 5133, 5066, 5000, 4800, 4700, 4600, 4500, 4400, 4266, 4133, 4000, 3866, 3733, 3600, 3466, 3400, 3333, 3200, 3000, 2933, 2800, 2666, 2400, 2133 MHz
Maximum internal memory 192 GB
Supported memory clock speed (max) 7800 MHz
Unbuffered memory Y
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
RAID levels 0, 1, 5, 10
RAID support Y
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
Number of chassis fan connectors 4
EPS power connector (8-pin) Y
Thunderbolt headers 1
12V power connector Y
RGB LED pin header Y

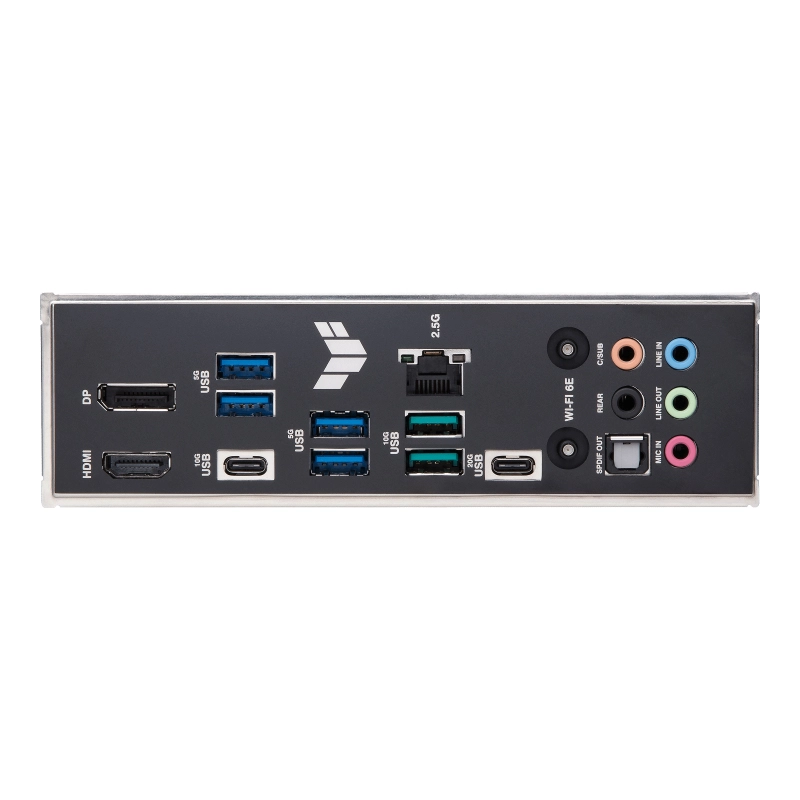

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone outputs 1
Microphone in Y
S/PDIF out port Y
Line-in Y
WiFi-AP antenna jack 2
Network
Ethernet LAN Y
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Y
Bluetooth version 5.2
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family Intel
Motherboard chipset Intel Z790
Audio chip Realtek S1220A
Audio output channels 7.1 kanalen
Power source type ATX
Windows operating systems supported Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3. x) slots 2
PCI Express x4 (Gen 4. x) slots 1
PCI Express x16 (Gen 4. x) slots 1
PCI Express x16 (Gen 5. x) slots 1
Number of M.2 (M) slots 4
BIOS
BIOS type UEFI AMI
BIOS memory size 192 Mbit
Clear CMOS button Y
Packaging data
Package width 340 mm
Package depth 275 mm
Package height 70 mm
Weight & dimensions
Width 305 mm
Depth 244 mm
Packaging content
Cables included SATA
User guide Y
Drivers included Y
Other features
Package weight 2137 g
