ASUS TUF GAMING B760M-PLUS II LGA 1700 4xDDR5 microATX 4xSATA MB 1xHDMI 1xDP 3xM.2



AsusTek
Limited stock
€ 171,40
€ 207,39 incl 21% VAT
TUF GAMING B760M-PLUS II
TUF GAMING B760M-PLUS II takes all the essential elements of the latest IntelĀ® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

INTELLIGENT CONTROL
The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.

All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Specification

Product
Product id 948748
Brand AsusTek
Partnr 90MB1HD0-M0EAY0
EAN/UPC code 4711387469798
Warranty (months) 36 months
Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel Celeron, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Supported processor sockets LGA 1700
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Y
Supported memory clock speeds 7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Maximum internal memory 192 GB
Supported memory clock speed (max) 7800 MHz
Unbuffered memory Y
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of HDDs supported 4
Number of storage drives supported 7
RAID levels 0, 1, 5, 10
RAID support Y
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
Number of chassis fan connectors 3
EPS power connector (8-pin) Y
Thunderbolt headers 1
12V power connector Y

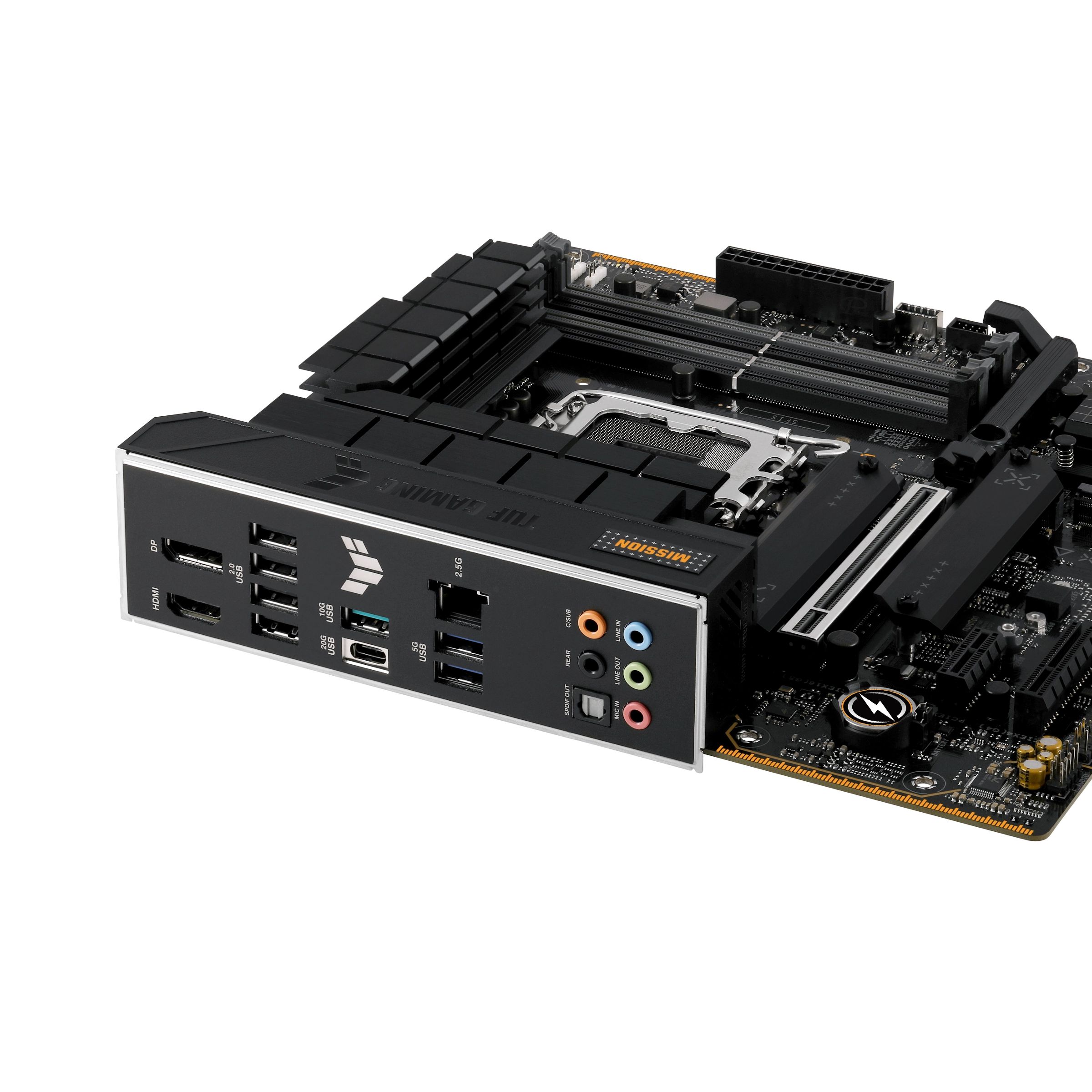

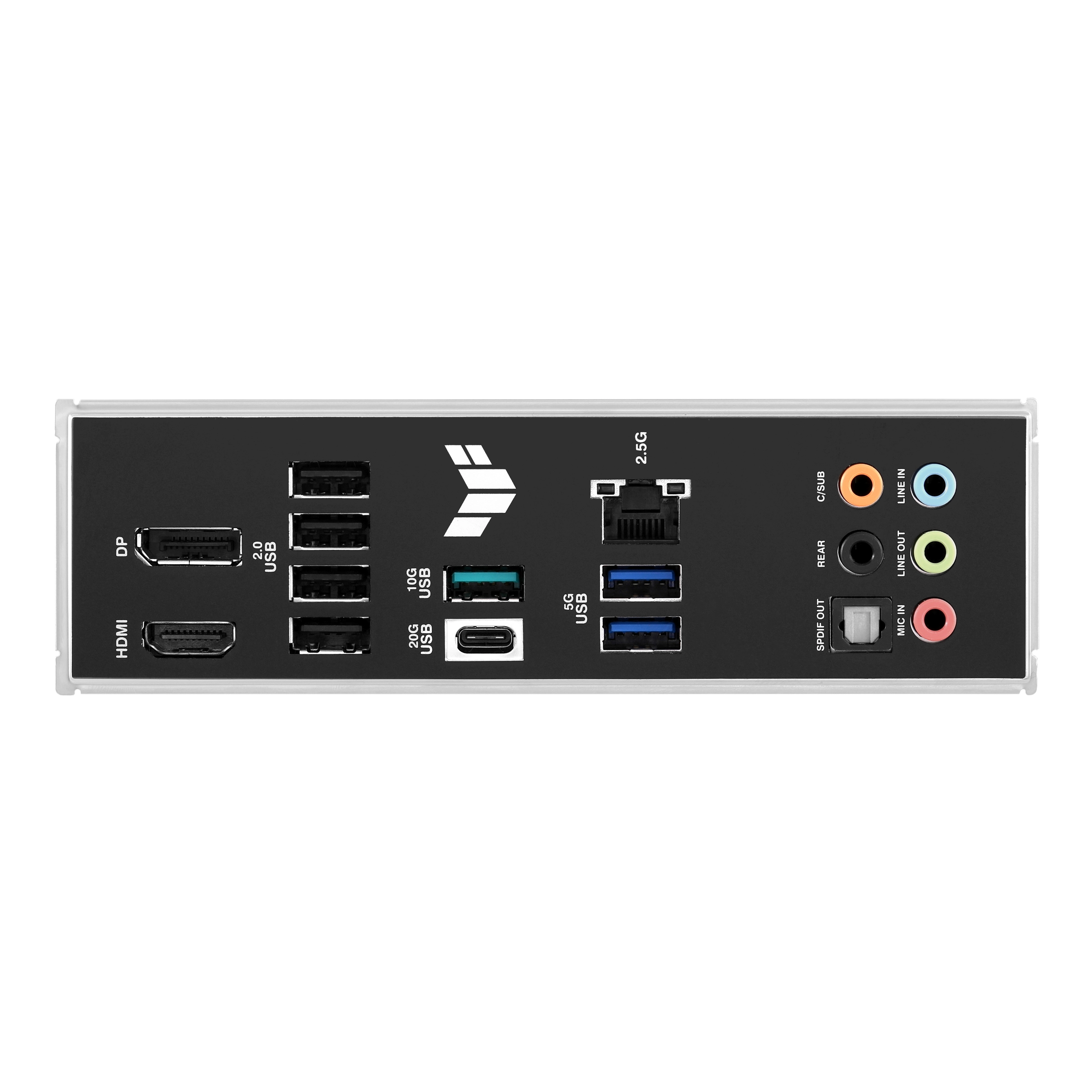

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
HDMI ports quantity 1
DisplayPorts quantity 1
Headphone outputs 1
Microphone in Y
S/PDIF out port Y
Network
Ethernet LAN Y
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi N
Features
Component for PC
Motherboard form factor Micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel B760
Audio output channels 7.1 kanalen
Windows operating systems supported Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 3. x) slots 1
PCI Express x4 (Gen 4. x) slots 1
PCI Express x16 (Gen 5. x) slots 1
Number of M.2 (M) slots 3
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Packaging data
Package width 280 mm
Package depth 265 mm
Package height 71 mm
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 50 mm
Packaging content
Cables included SATA
Screws included Y
Other features
Weight 982 g
Package weight 1652 g
