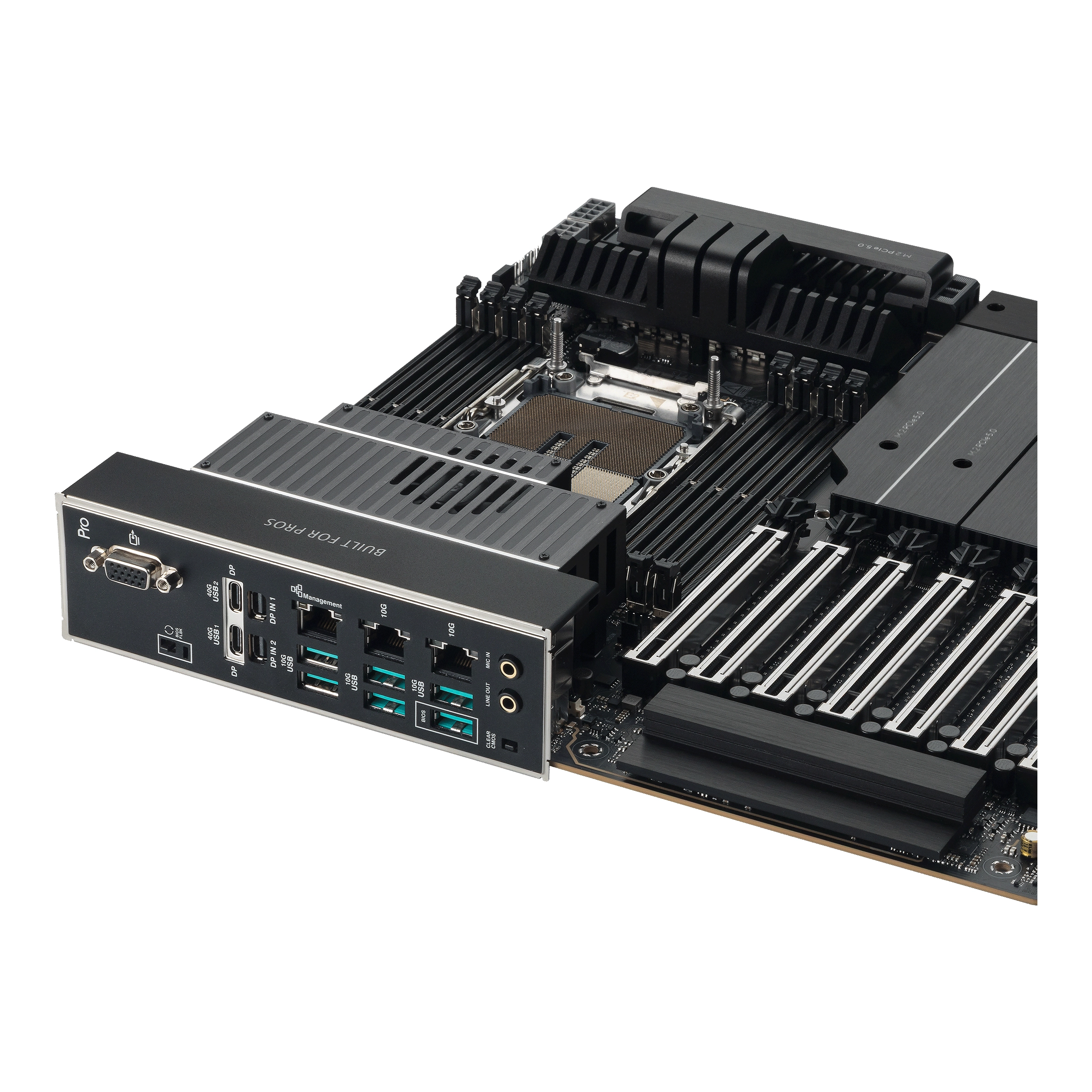

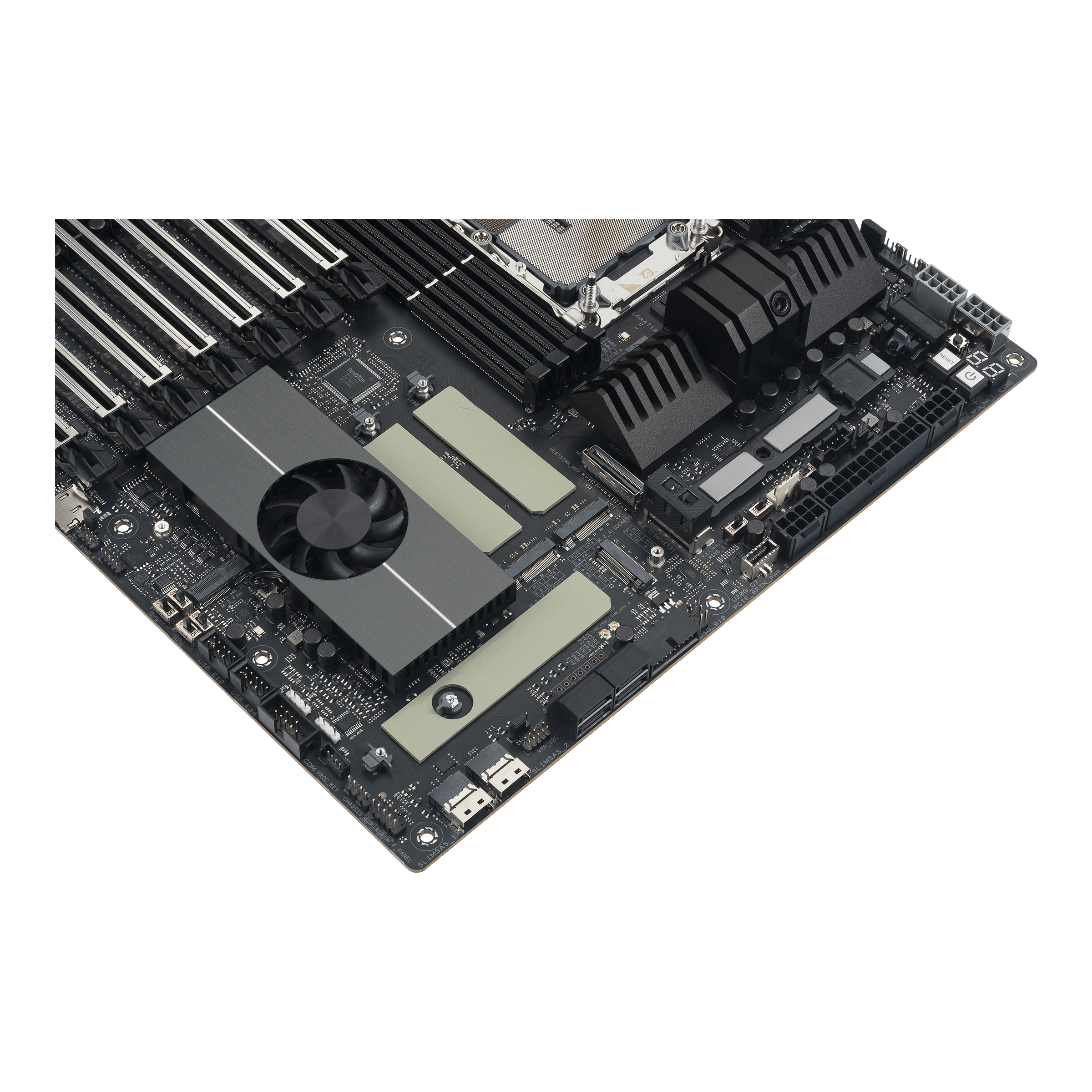

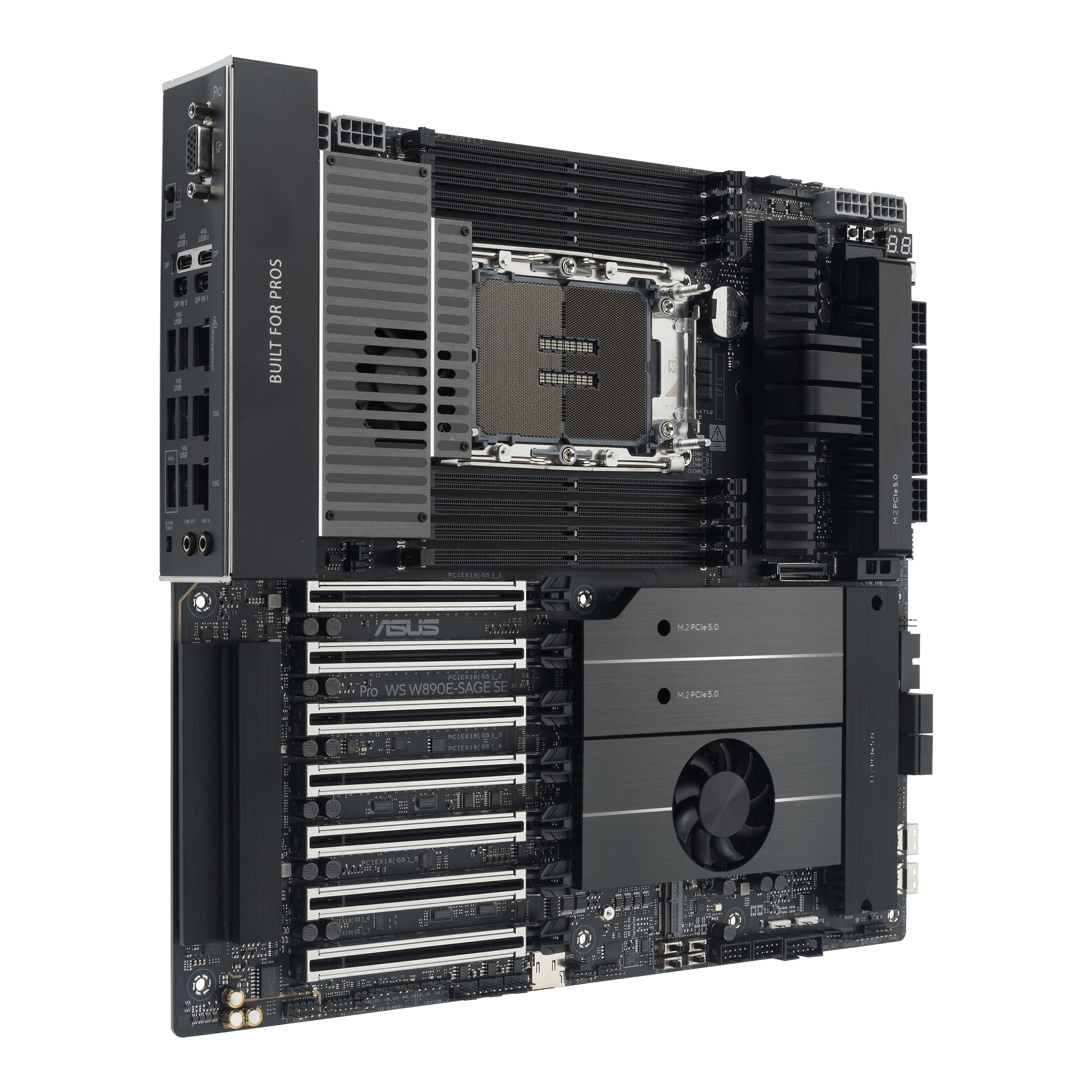

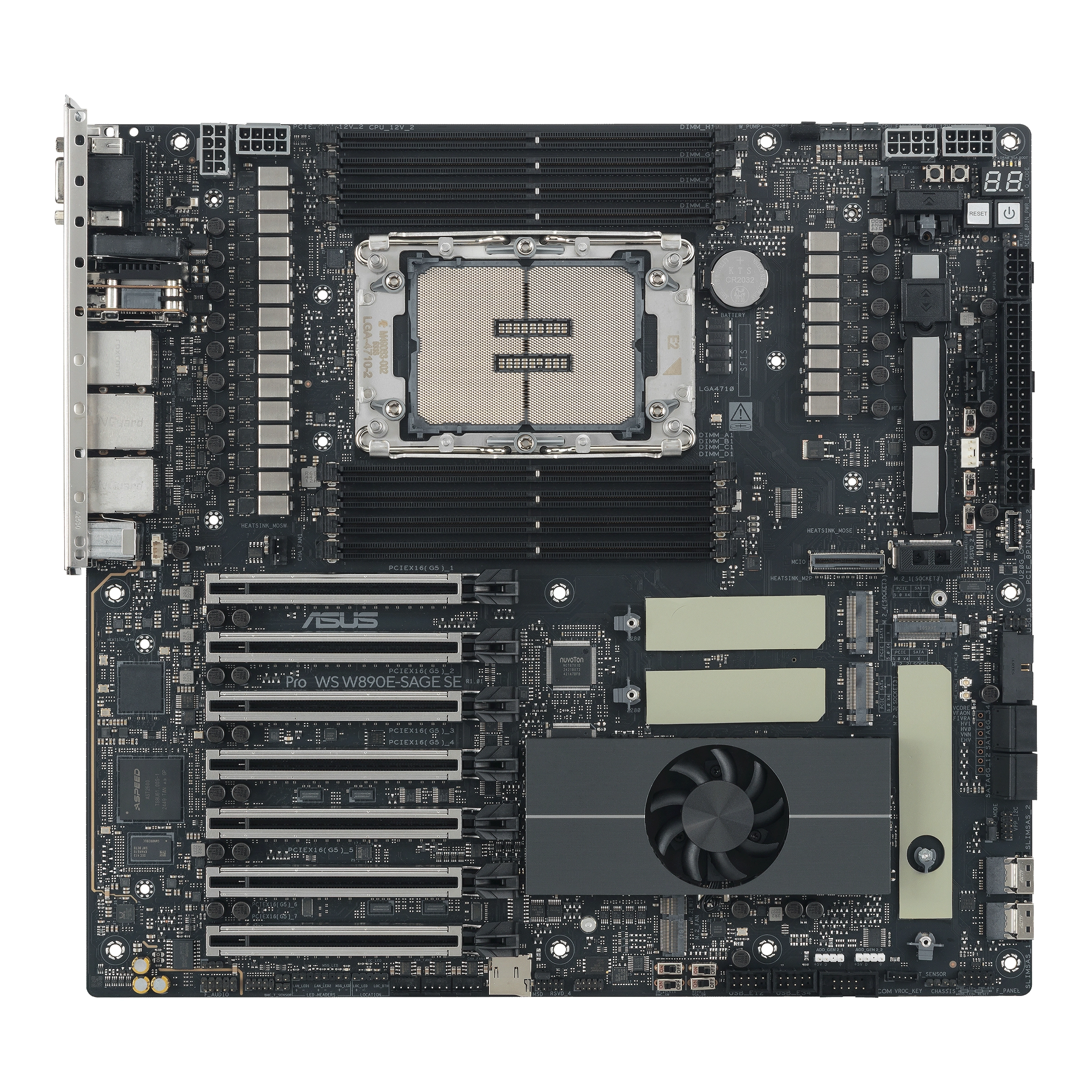

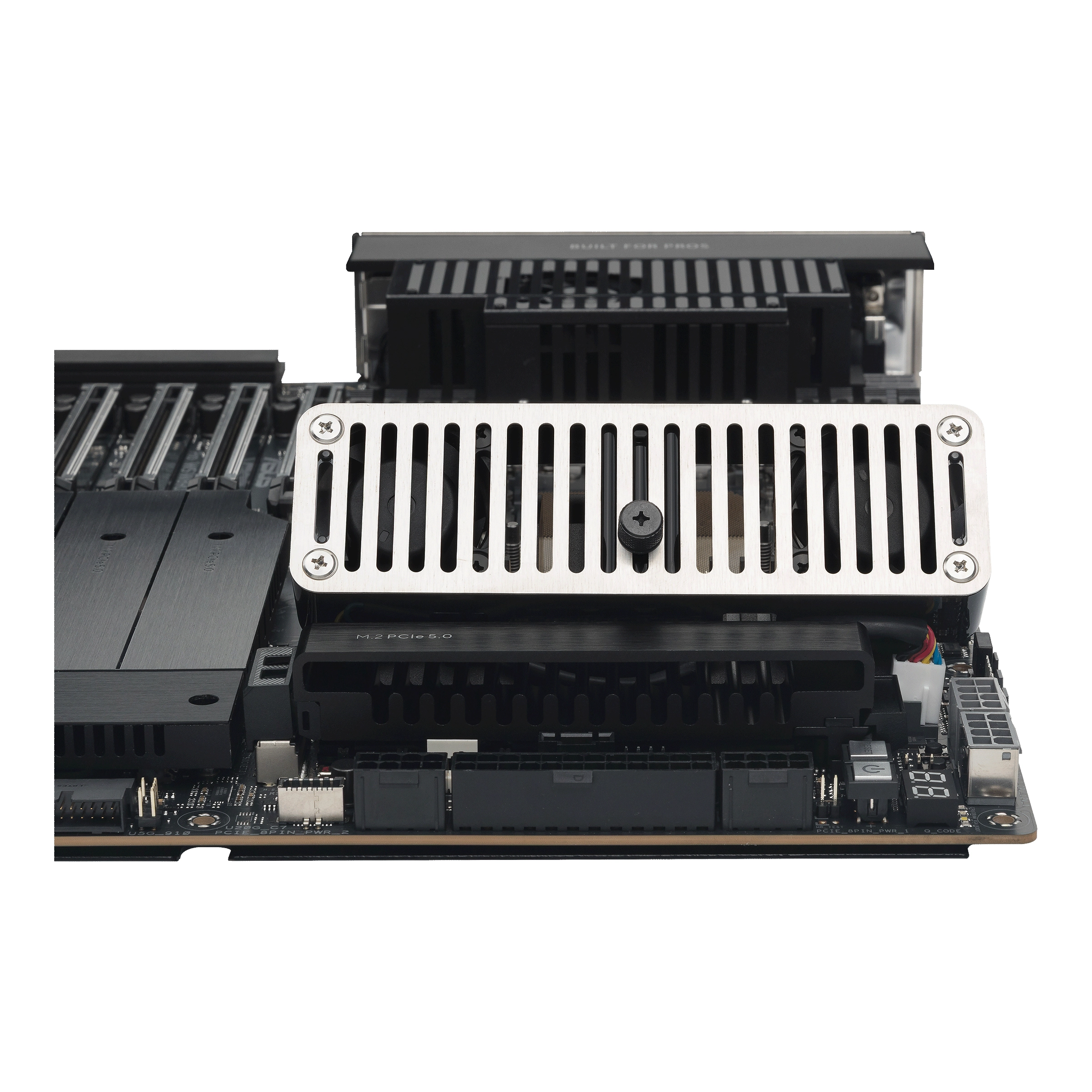

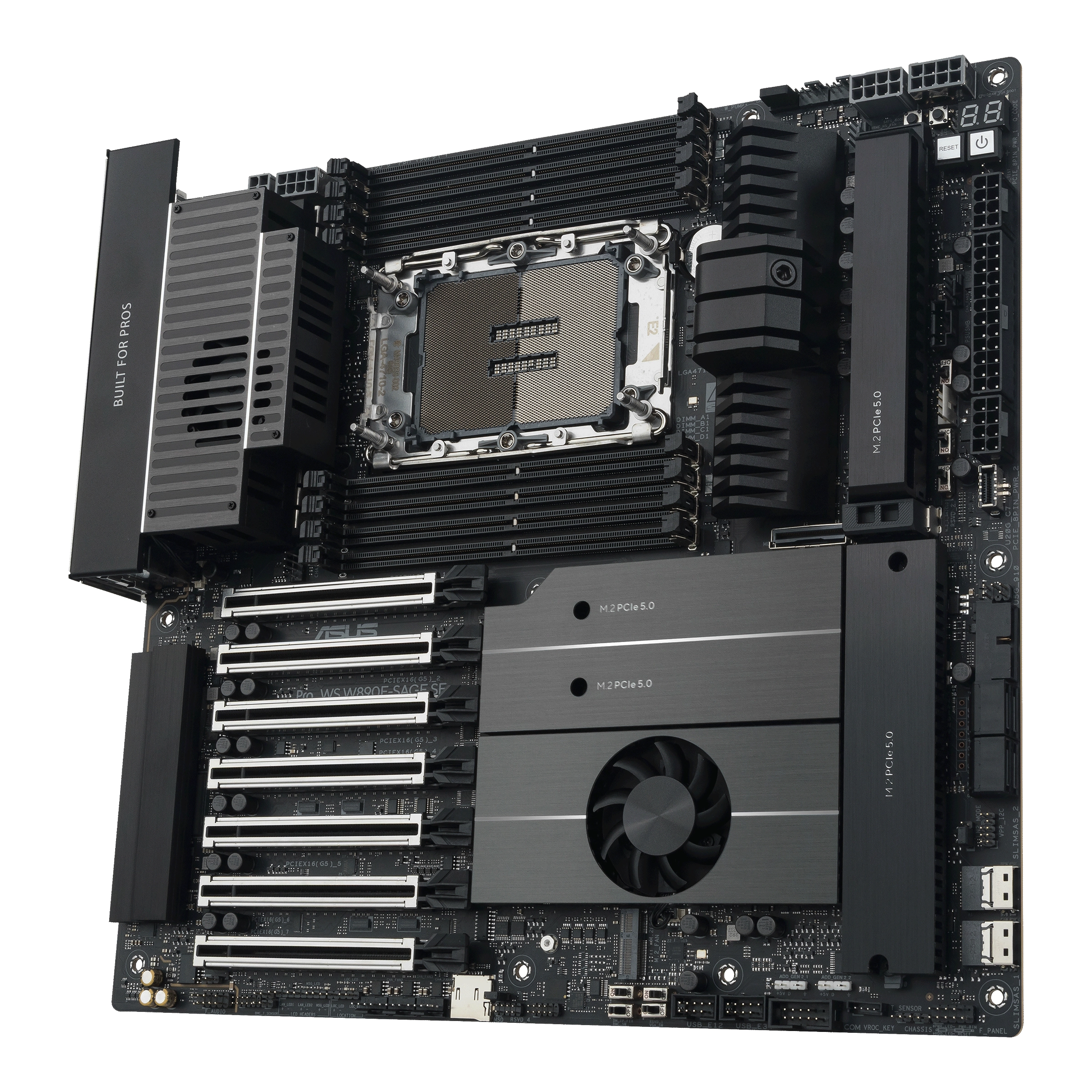

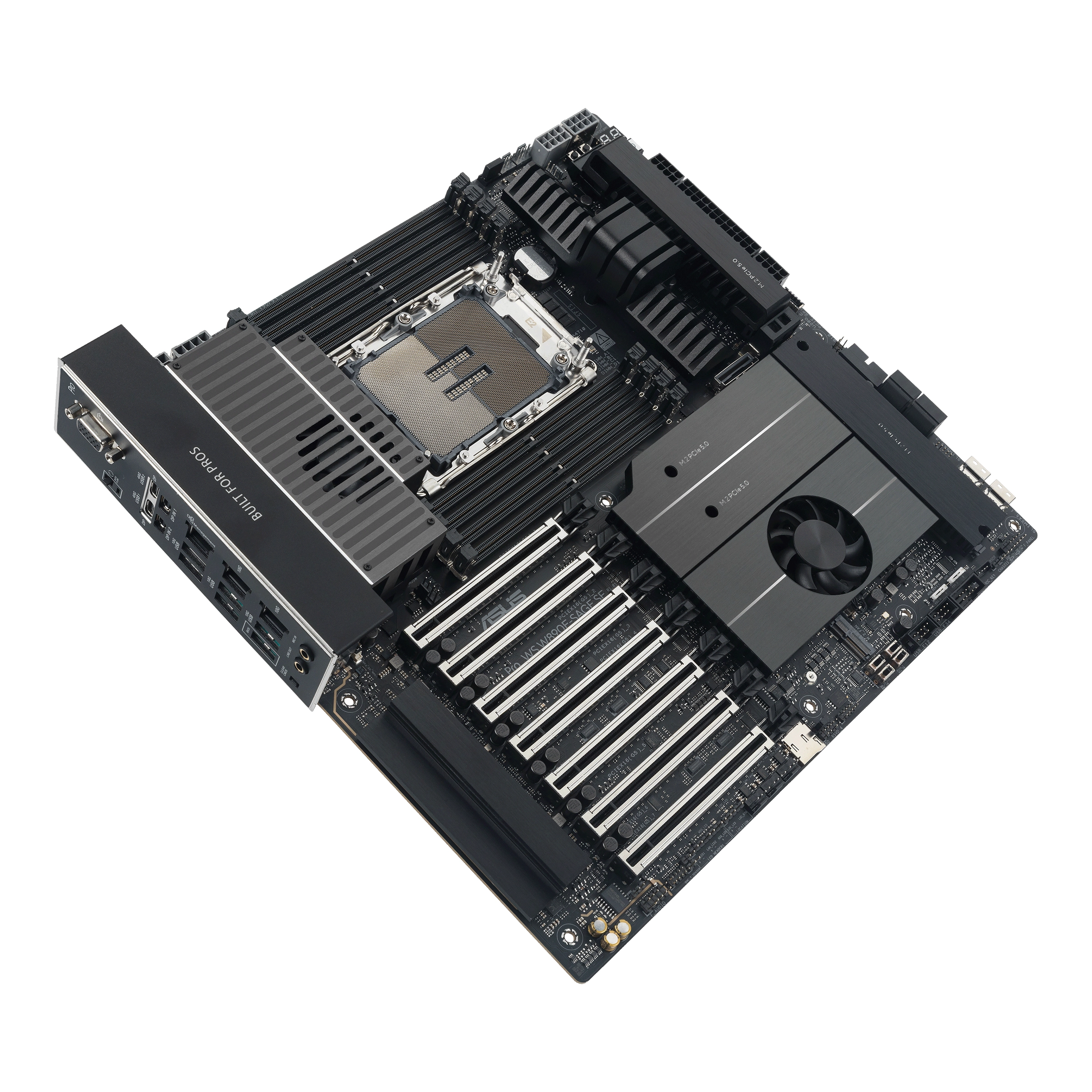

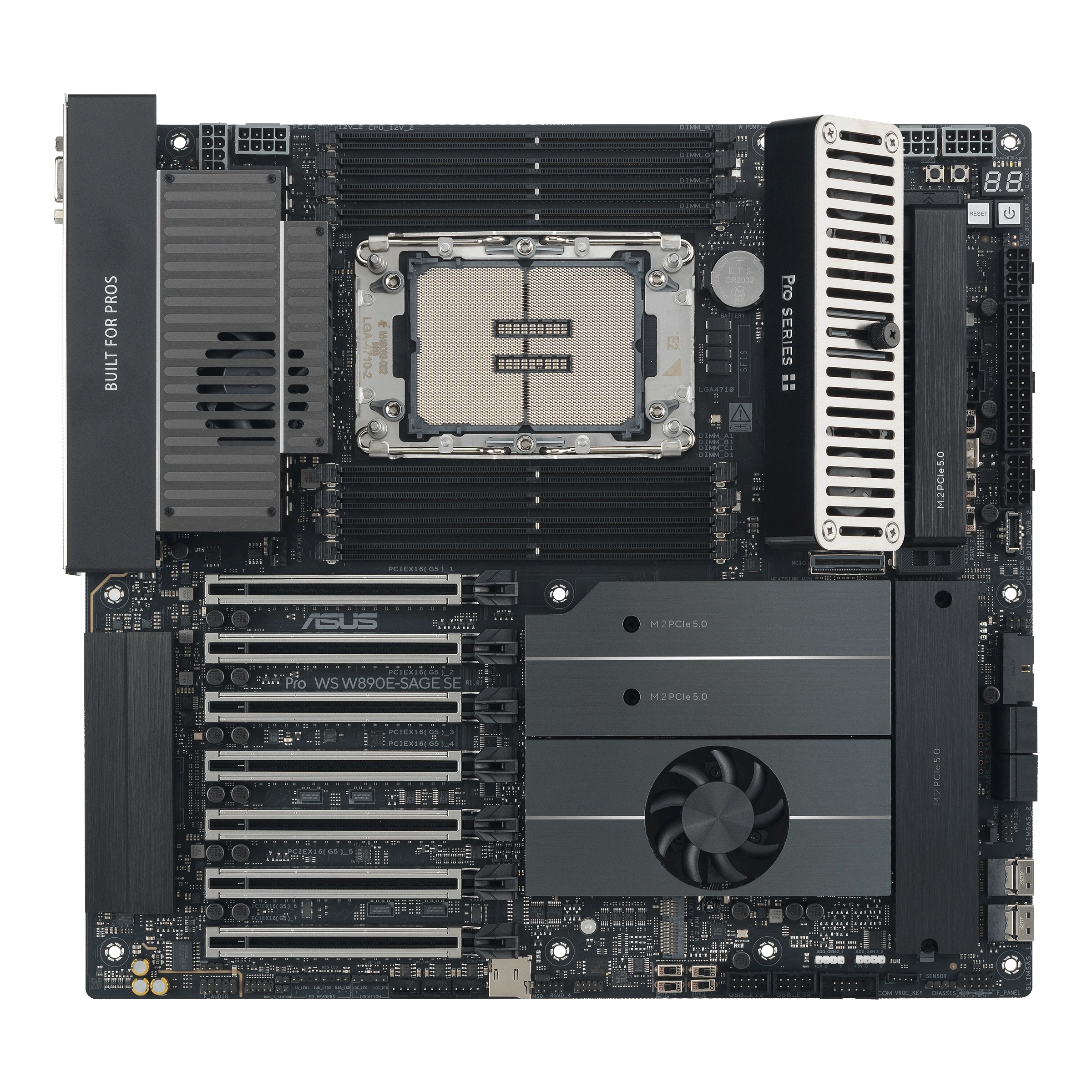

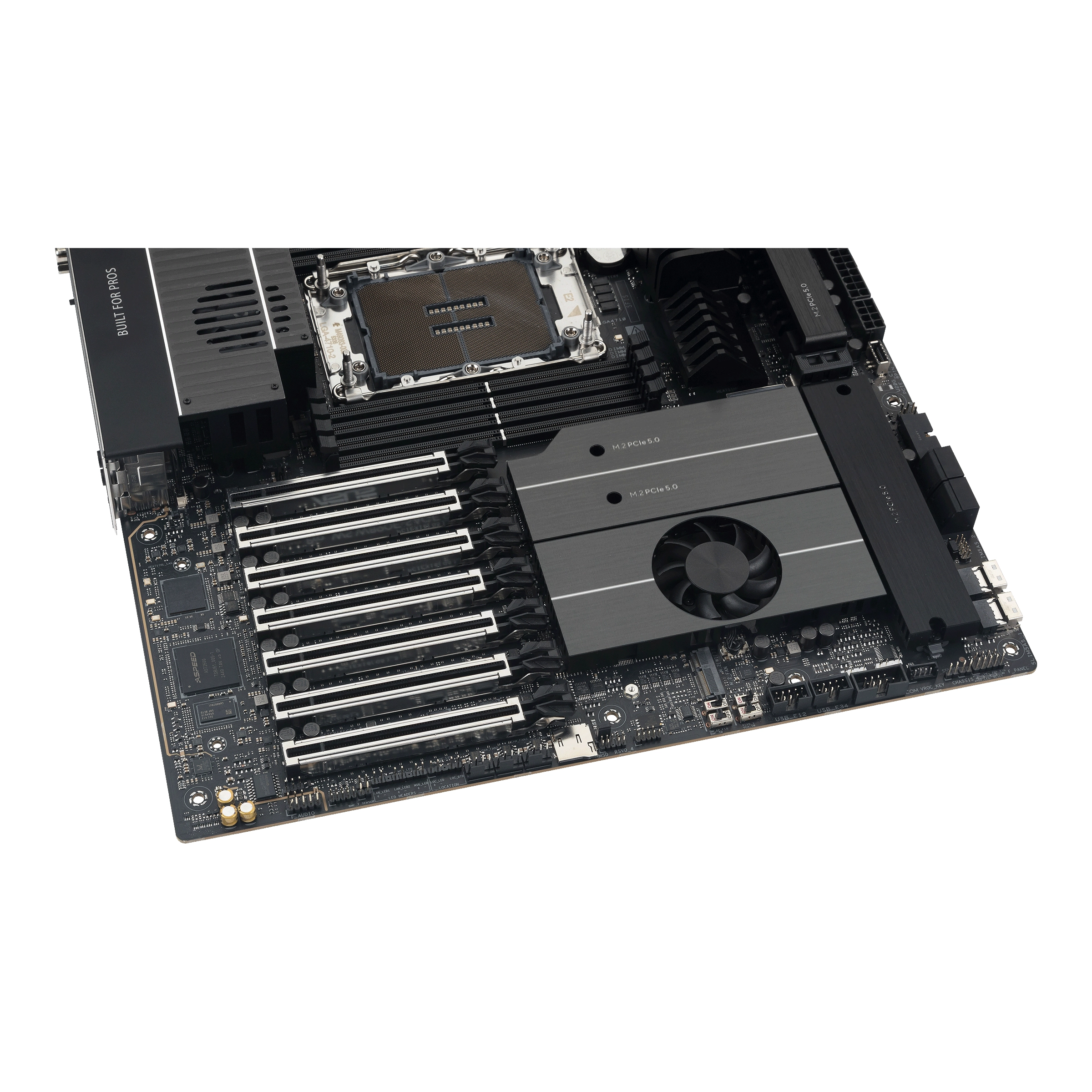

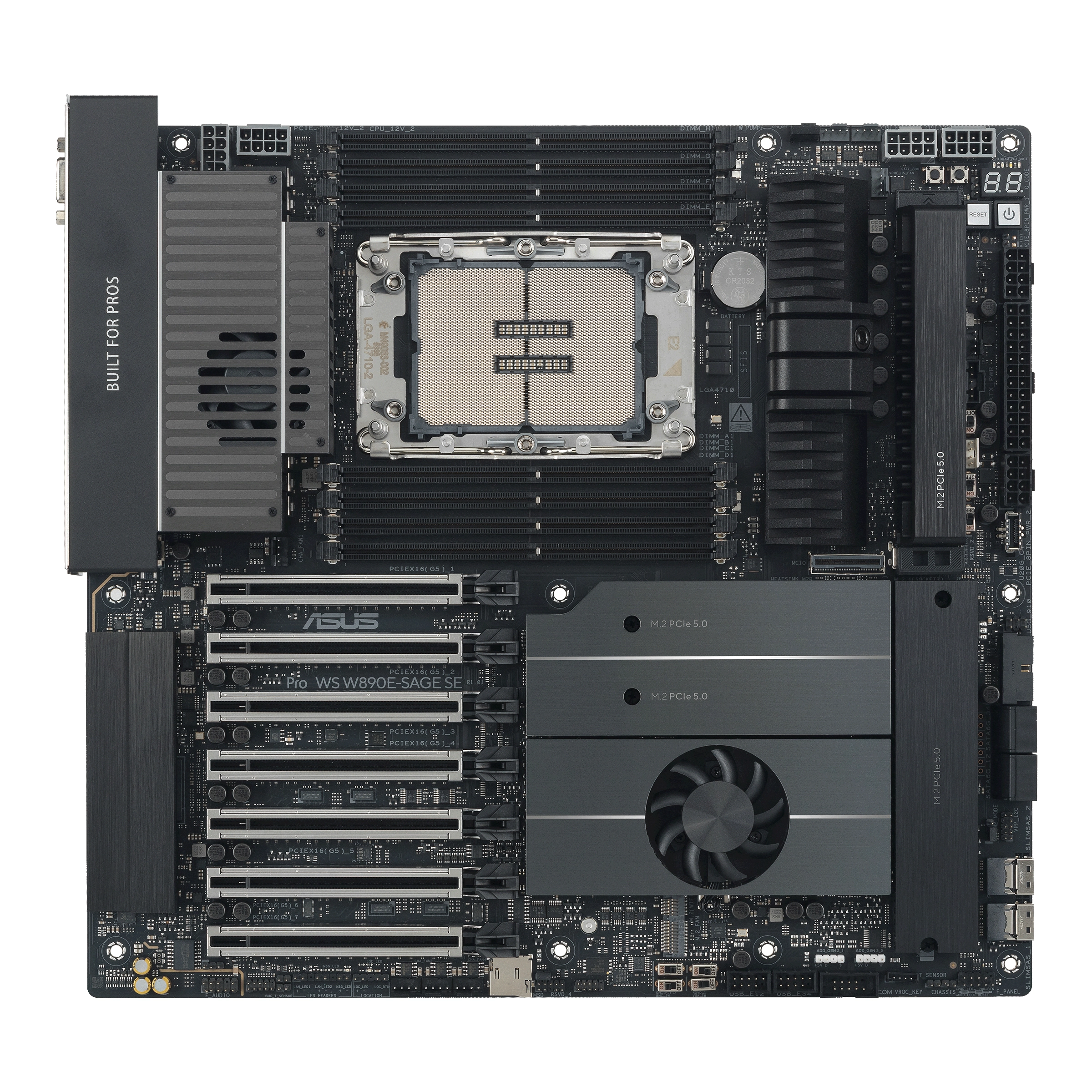

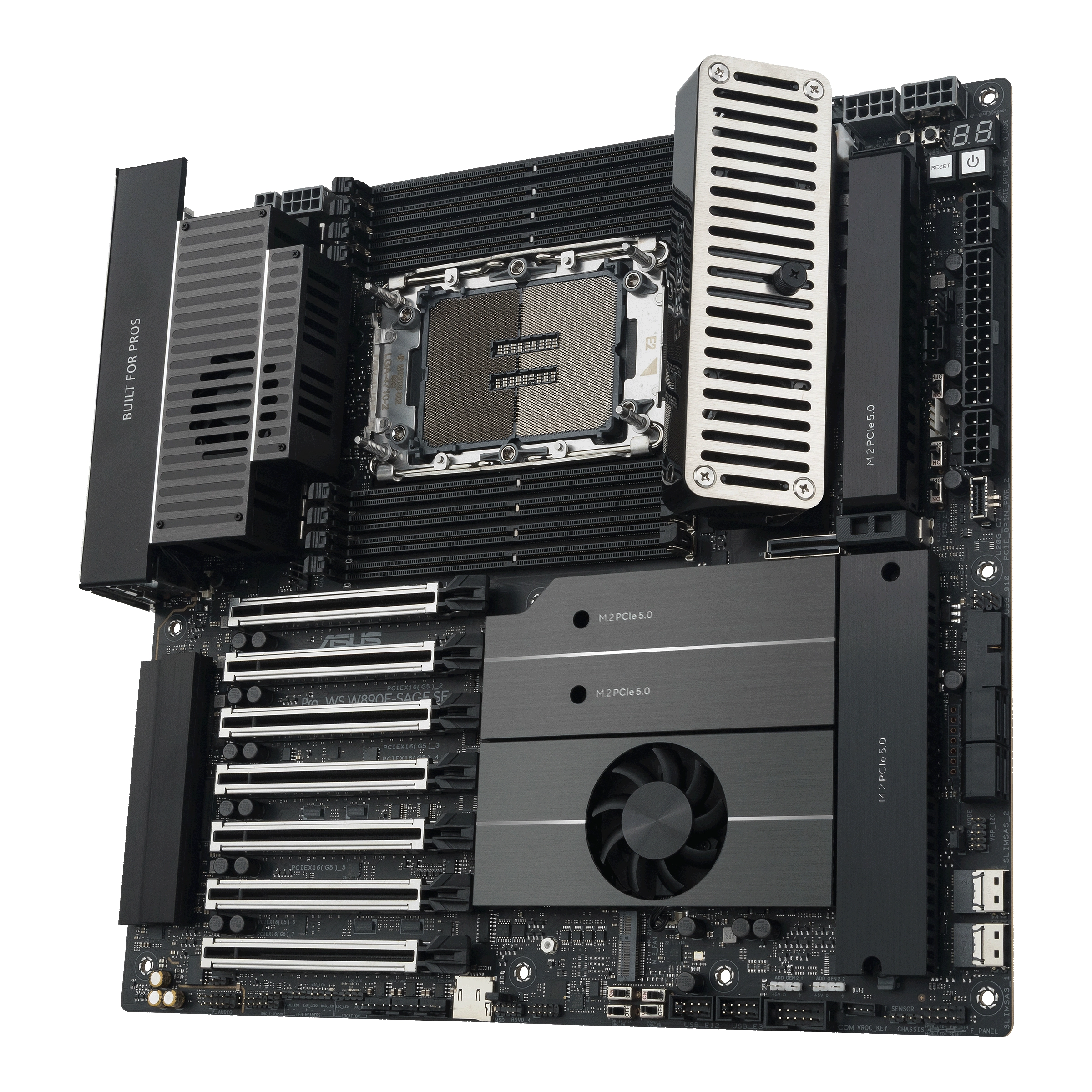

The Pro WS W890E-SAGE SE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890E-SAGE SE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890E-SAGE SE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.

Specification

Product
Product id	1017004
Brand	AsusTek
Partnr	90MB1LH0-M0EAY0
EAN/UPC code	4711636389372
Processor
Processor manufacturer	Intel
Processor socket	LGA 4710-2
Compatible processor series	Intel Xeon
Supported processor sockets	LGA 4710-2
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	8
Memory slots type	DIMM
Memory channels	Octa-channel
ECC сompatibility	ECC
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III, SlimSAS
Number of HDDs supported	4
Number of storage drives supported	10
RAID levels	0, 5, 1, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
Maximum resolution	7680 x 4320 Pixels
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	5
Chassis intrusion connector	Y
Number of CPU fan connectors	1
EPS power connector (8-pin)	Y
Number of EPS power connectors (8-pin)	5
12V power connector	Y
Number of water pump connectors	1
Number of COM connectors	1
Integrated SAS ports	2
RGB LED pin header	Y
Number of temperature sensor headers	1
Number of RGB LED pin headers	2

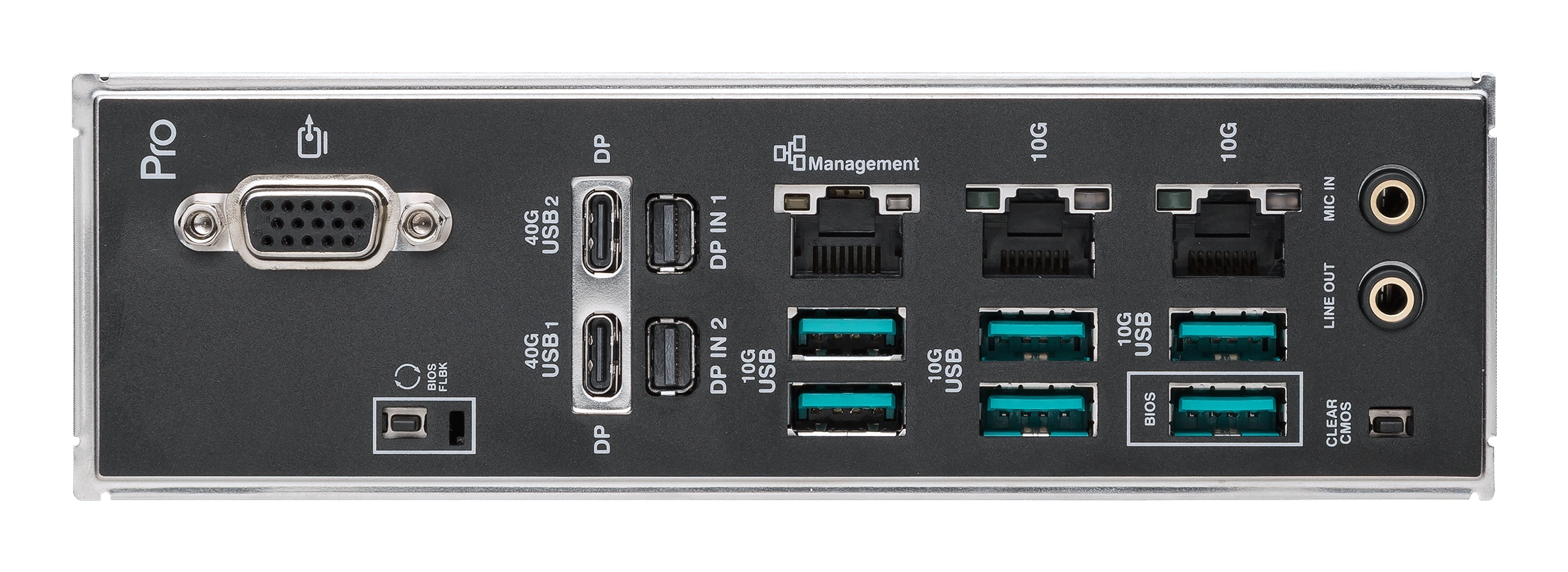

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
Ethernet LAN (RJ-45) ports	3
VGA (D-Sub) ports quantity	1
USB4 Gen 3x2 ports quantity	2
IPMI LAN (RJ-45) port	Y
DisplayPort version	1.4
Headphone outputs	1
Line-in	Y
Network
Ethernet LAN	Y
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi	N
Features
Component for	Workstation
Motherboard form factor	EEB
Motherboard chipset family	Intel
Motherboard chipset	Intel W890
Audio chip	Realtek ALC1220P
Audio output channels	7.1 kanalen
Product colour	Black
Power source type	ATX
Cooling type	Passive
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	1
PCI Express x16 (Gen 5. x) slots	7
Number of M.2 (M) slots	4
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	5.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Y
BIOS flashback button	Y
Packaging data
Package width	362 mm
Package depth	377 mm
Package height	103 mm
Weight & dimensions
Width	305 mm
Depth	330 mm
Height	50 mm

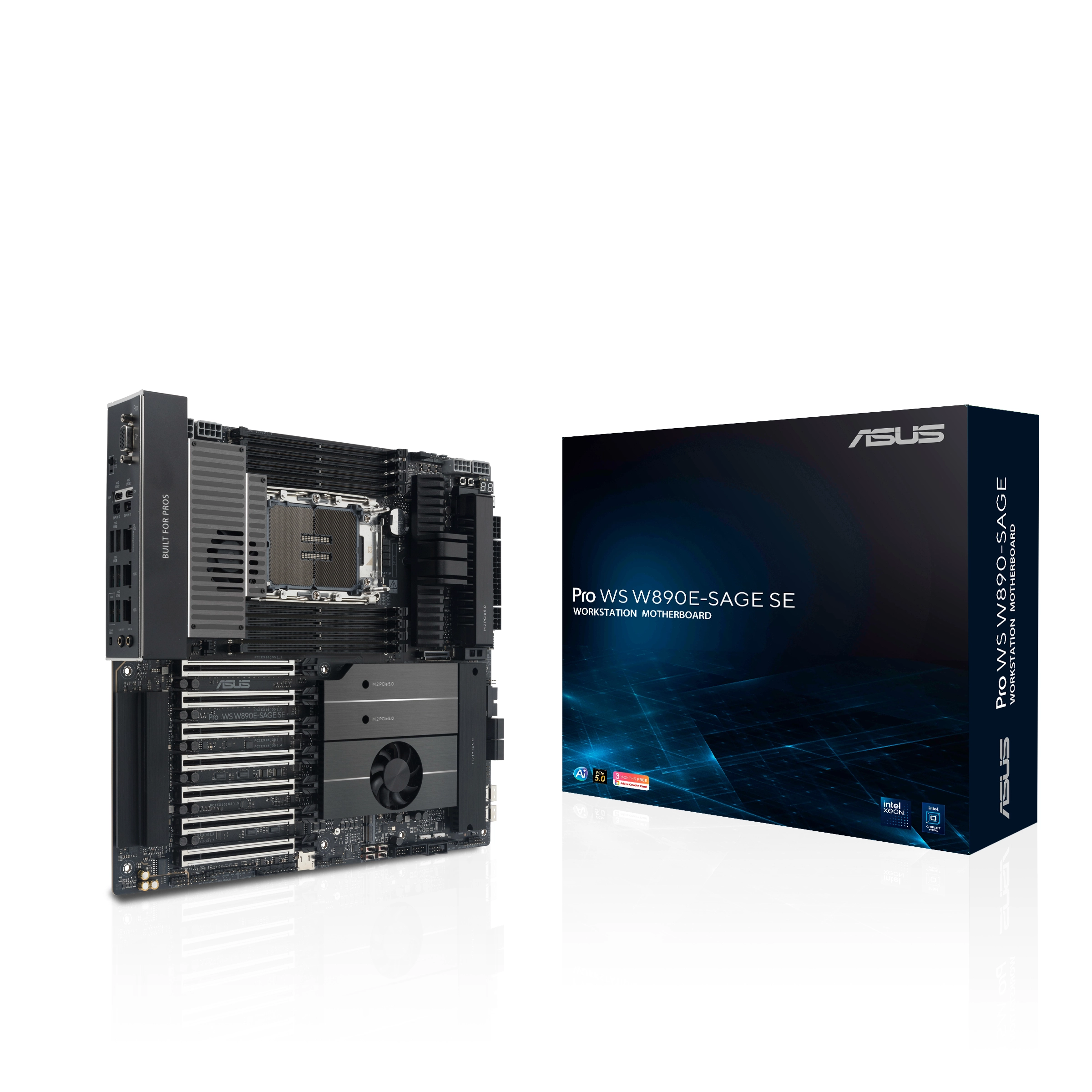

Packaging content
Cables included	SATA, DisplayPort
Screws included	Y
Other features
Mini DisplayPorts quantity	2
Weight	3400 g
Package weight	3700 g
Number of M.2 (E) slots	1
