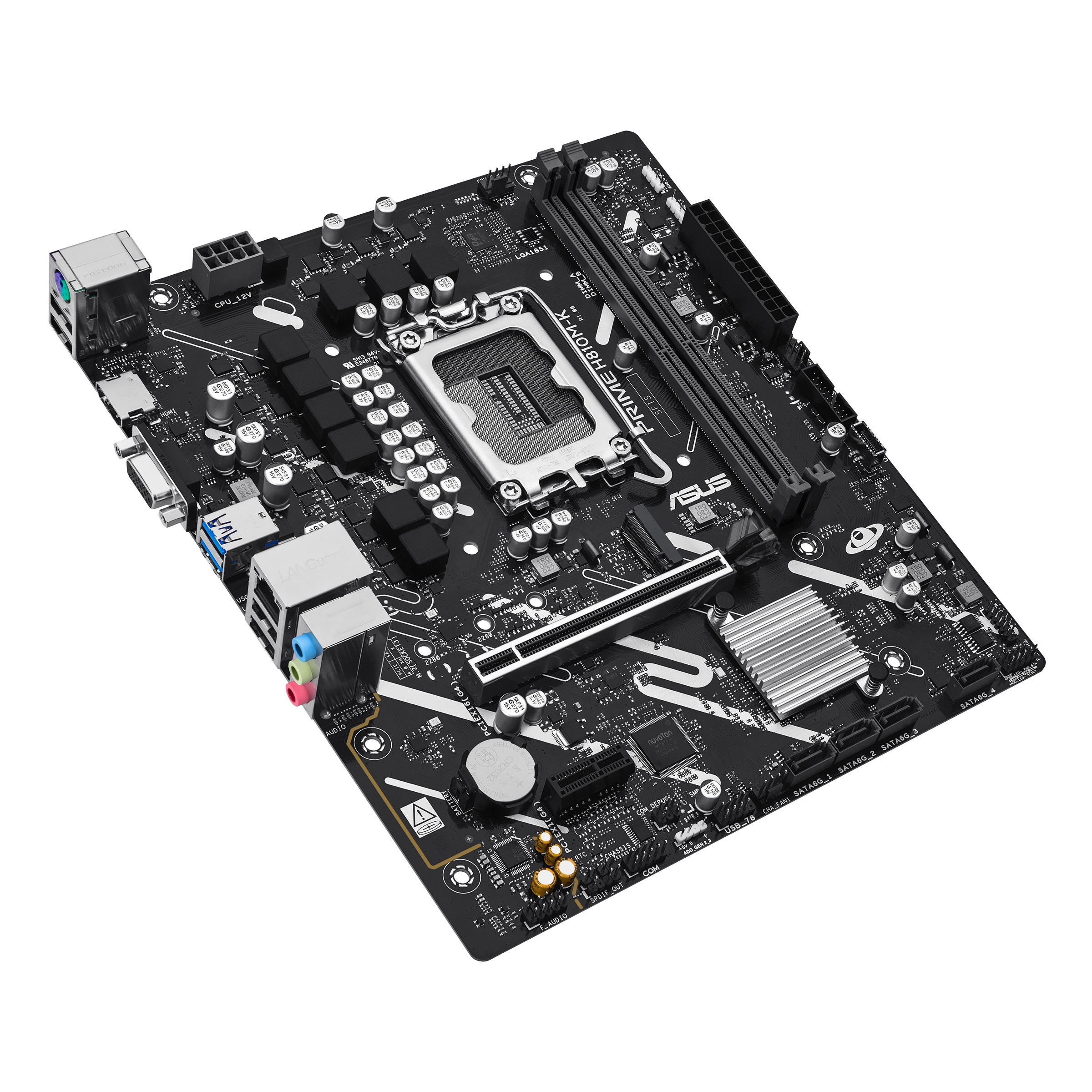

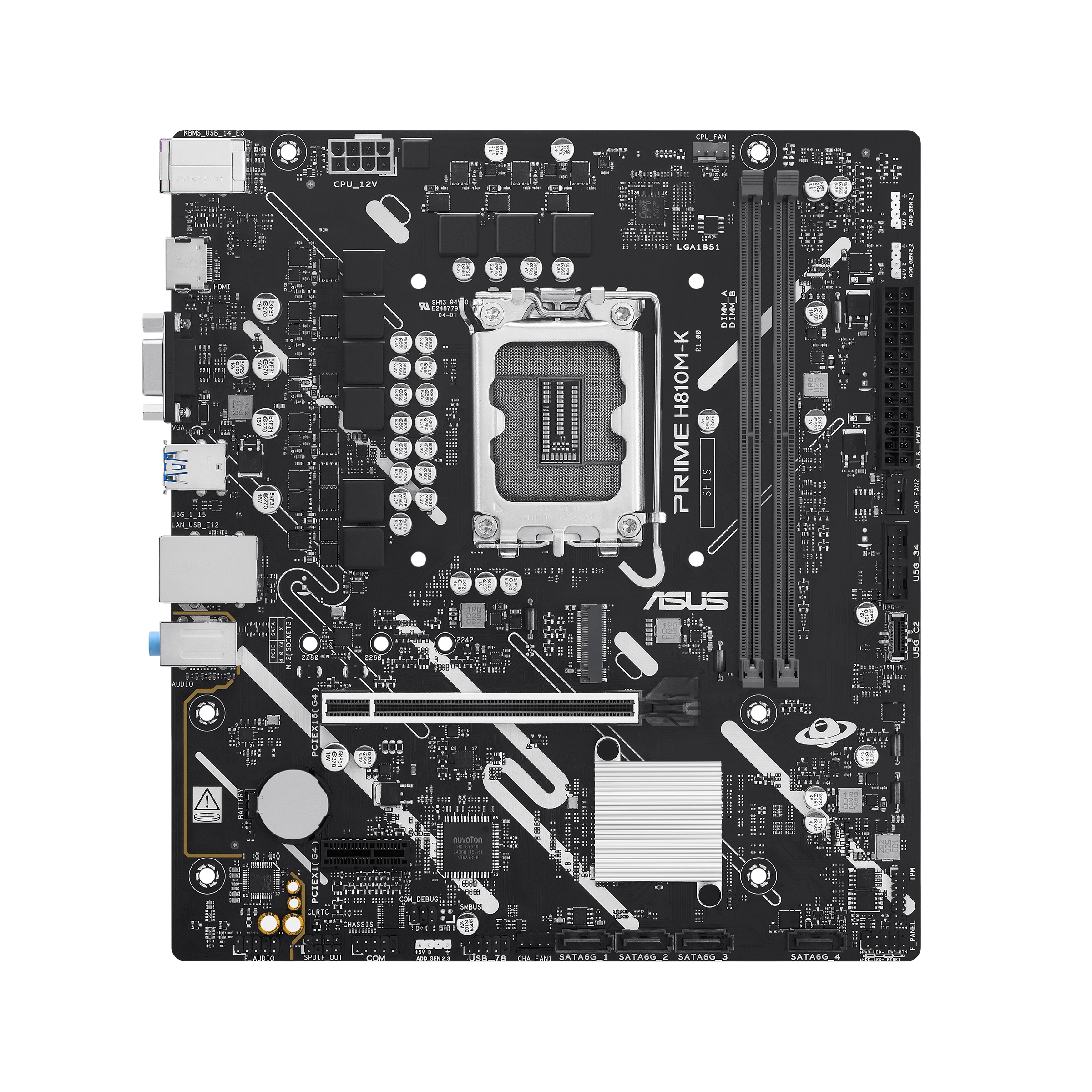

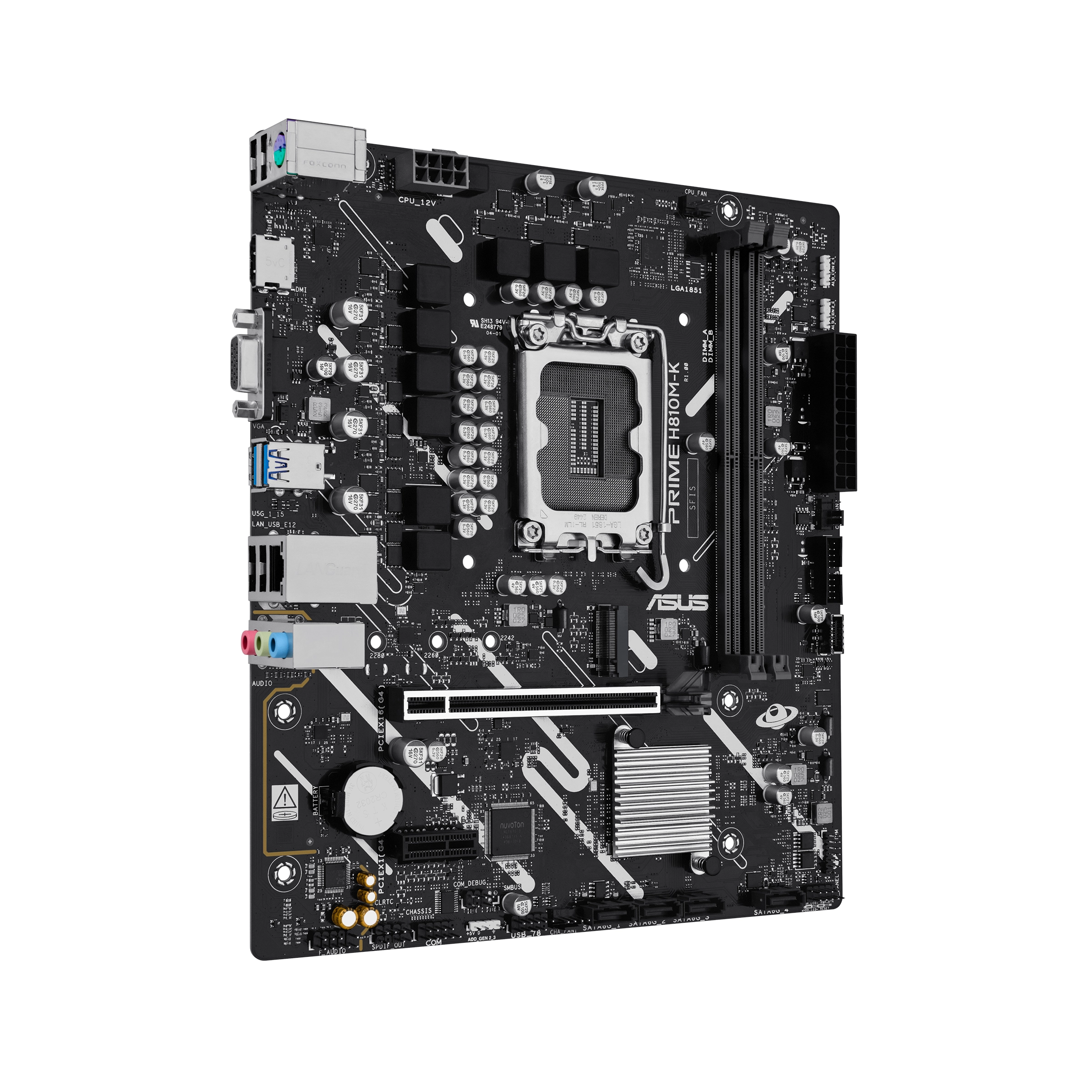

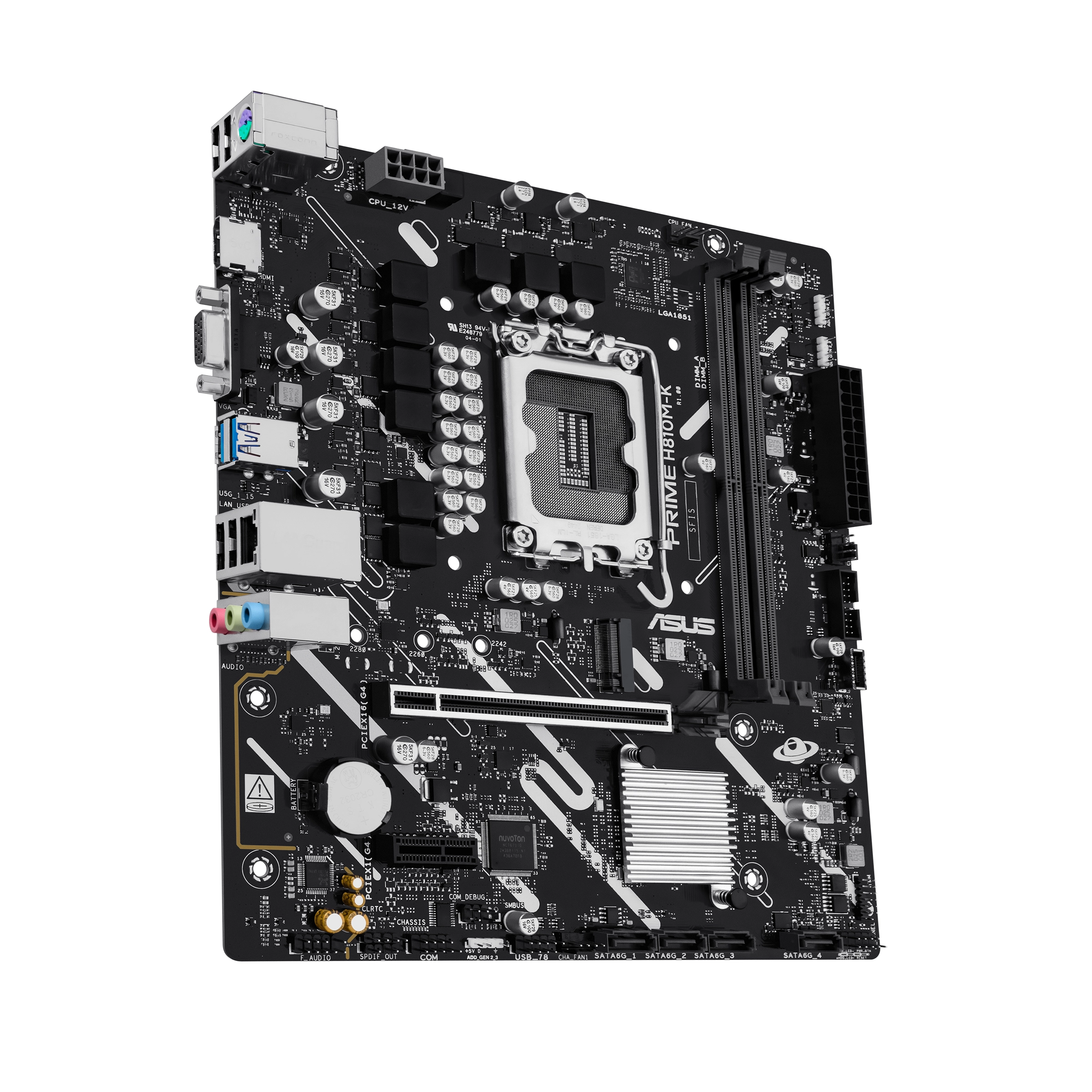

PRIME H810M-K
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance
Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME H810M-K features an 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.

Specification

Product
Product id	1013005
Brand	AsusTek
Partnr	90MB1N10-M0EAY0
EAN/UPC code	4711636292290
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	non-ECC
Maximum internal memory	128 GB
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	5
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
S/PDIF out connector	Y
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	2
Chassis intrusion connector	Y
Number of CPU fan connectors	1
EPS power connector (8-pin)	Y
TPM connector	Y
12V power connector	Y
Number of COM connectors	1
RGB LED pin header	Y
Number of RGB LED pin headers	3

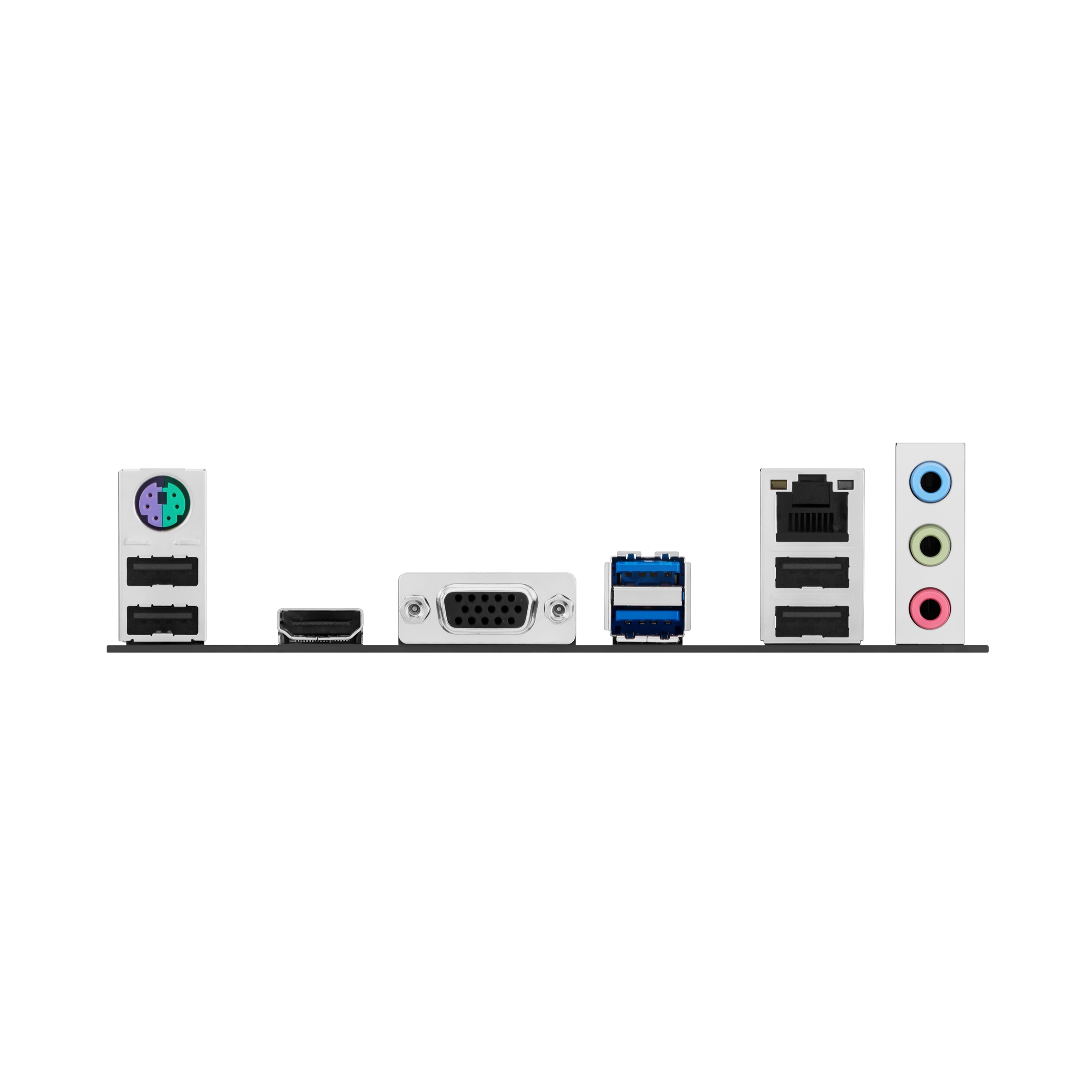

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
Network
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Wi-Fi	N
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Audio output channels	7.1 kanalen
Windows operating systems supported	Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4. x) slots	1
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Packaging data
Package width	270 mm
Package depth	263 mm
Package height	51.5 mm
Weight & dimensions
Width	234 mm
Depth	211 mm
Packaging content
Cables included	SATA
Other features
Package weight	828 g
