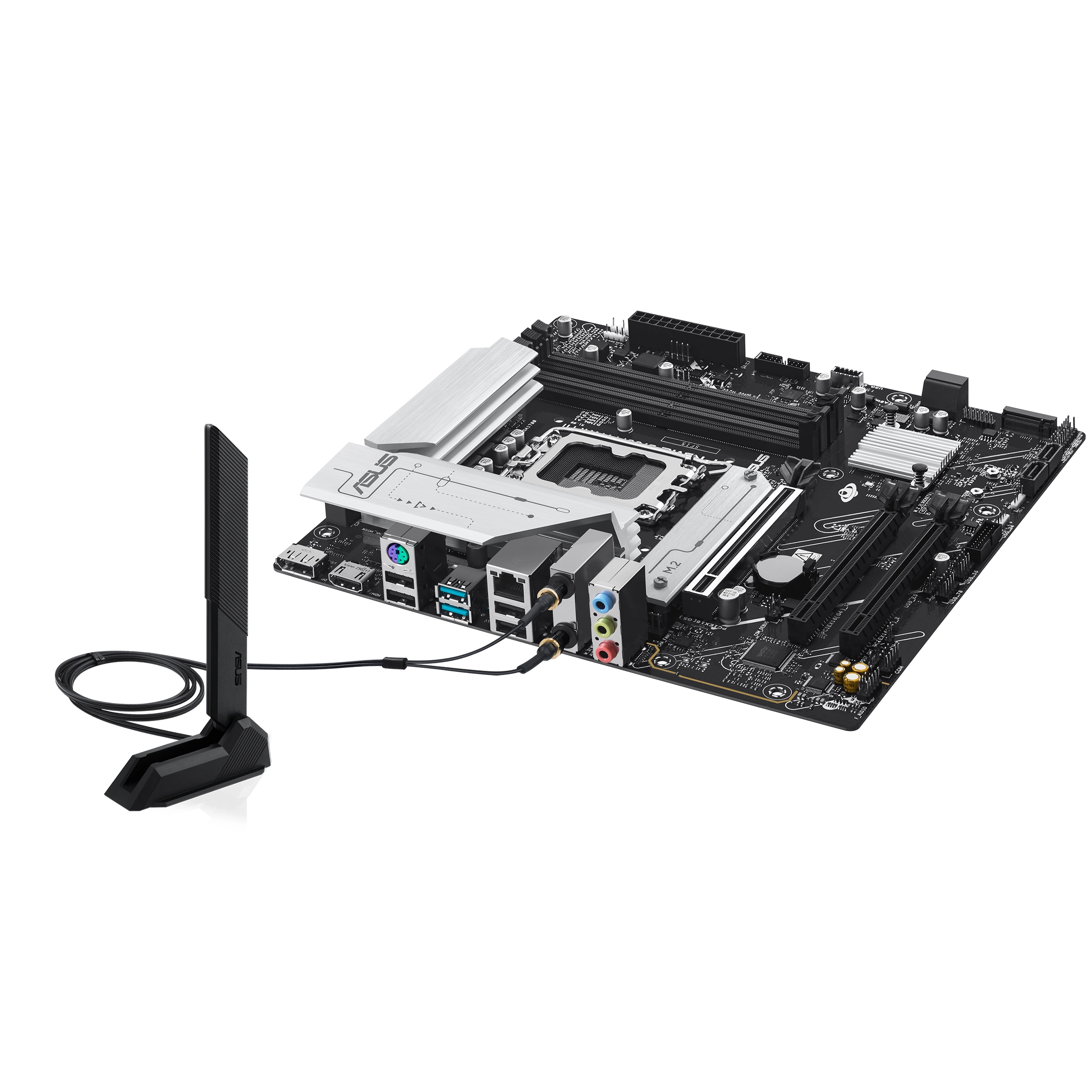

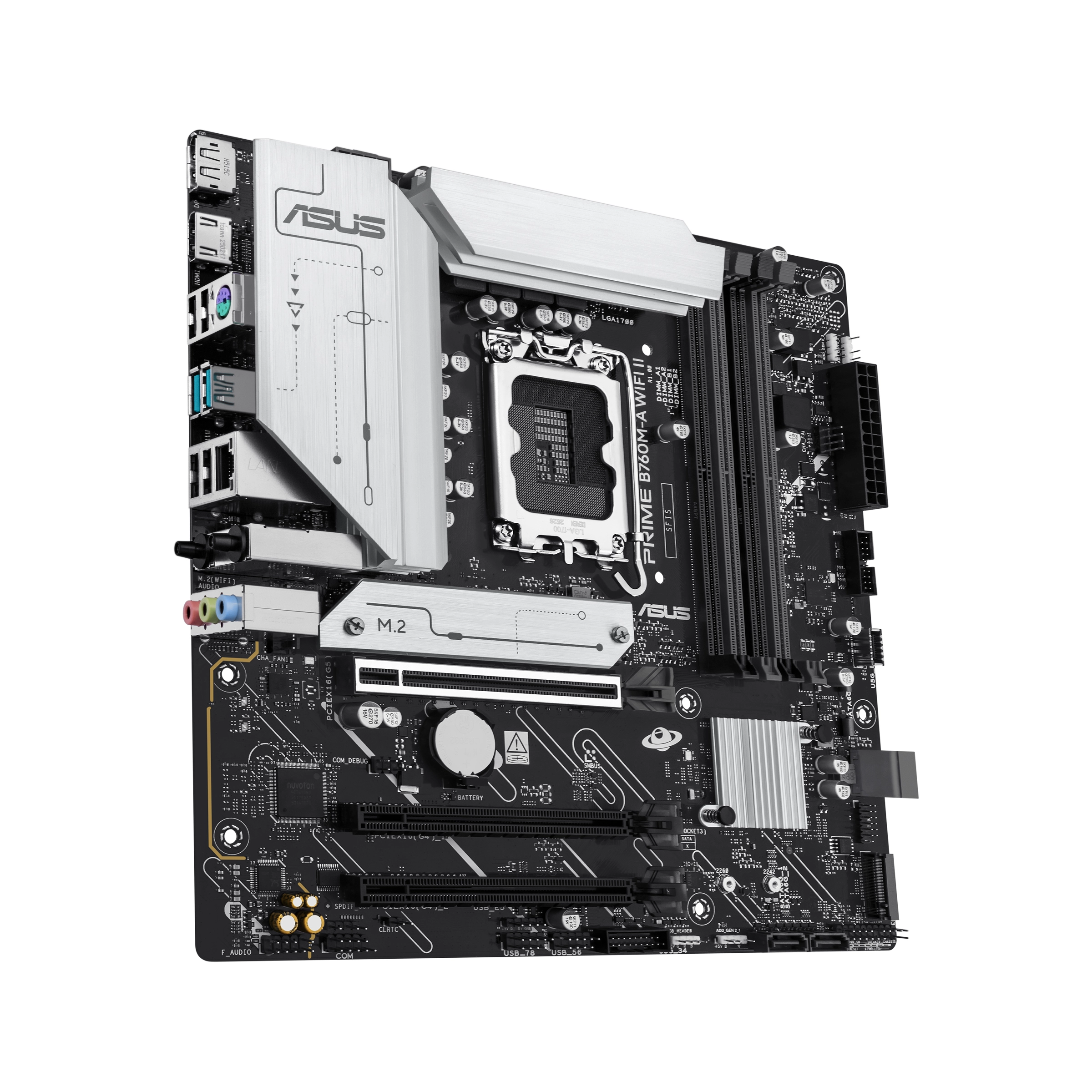

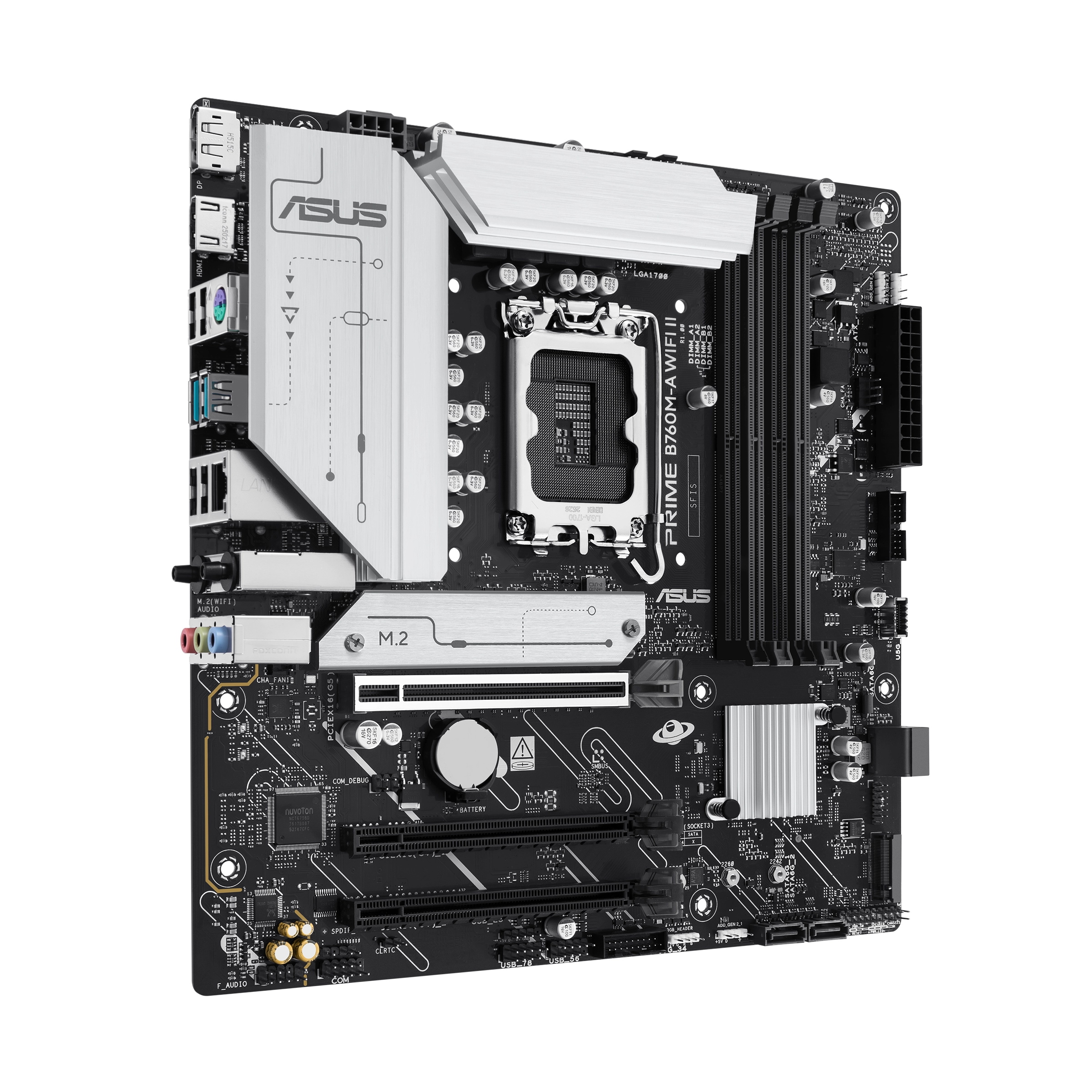

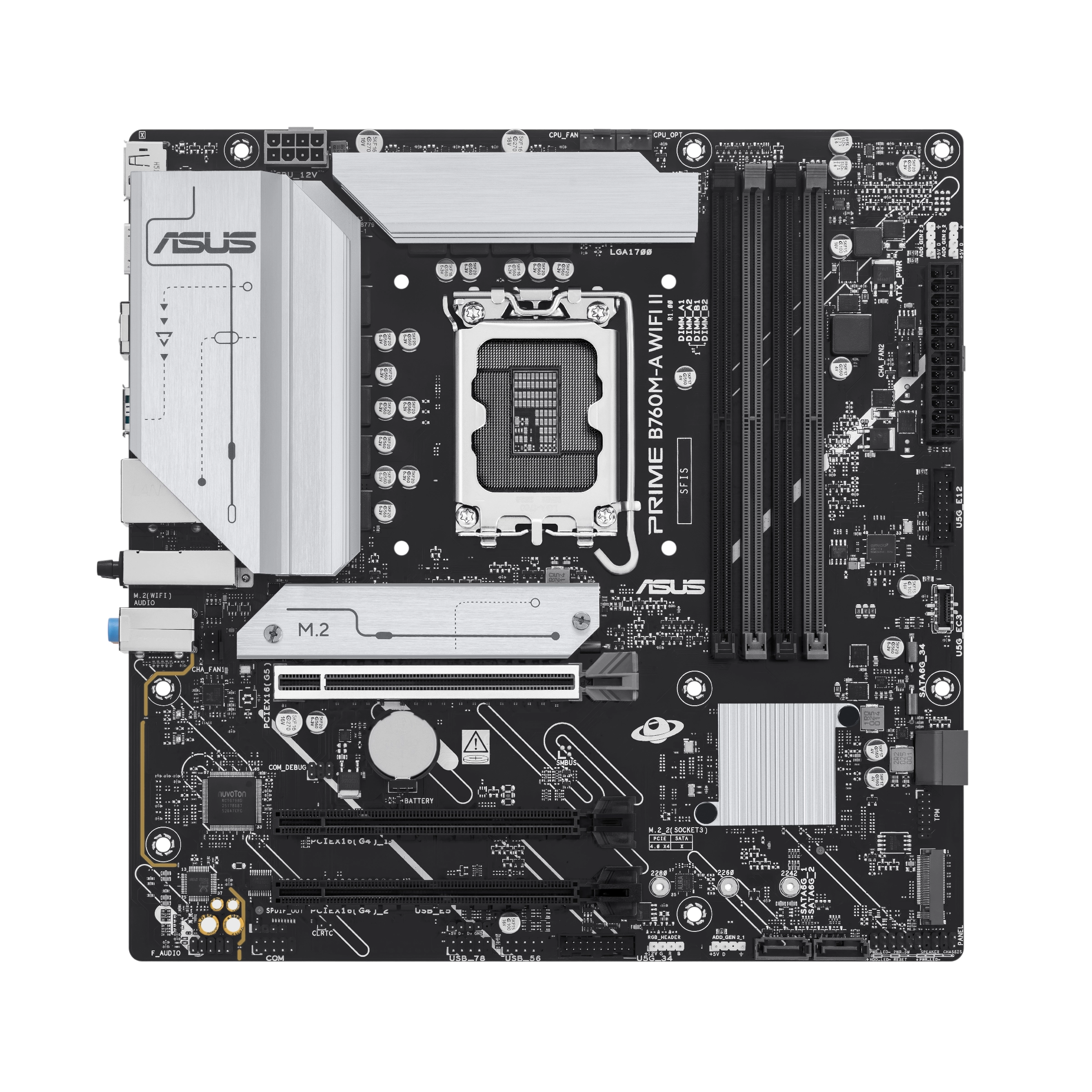

PRIME B760M-A WIFI II
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specification

Product
Product id	1007527
Brand	AsusTek
Partnr	90MB1NF0-M0EAY0
EAN/UPC code	4711636275439
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Celeron, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel Pentium Gold
Supported processor sockets	LGA 1700
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	non-ECC
Supported memory clock speeds	7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Maximum internal memory	256 GB
Supported memory clock speed (max)	7200 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	6
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Number of SATA III connectors	4
S/PDIF out connector	Y
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	2
EPS power connector (8-pin)	Y
TPM connector	Y
12V power connector	Y
Number of COM connectors	1
RGB LED pin header	Y

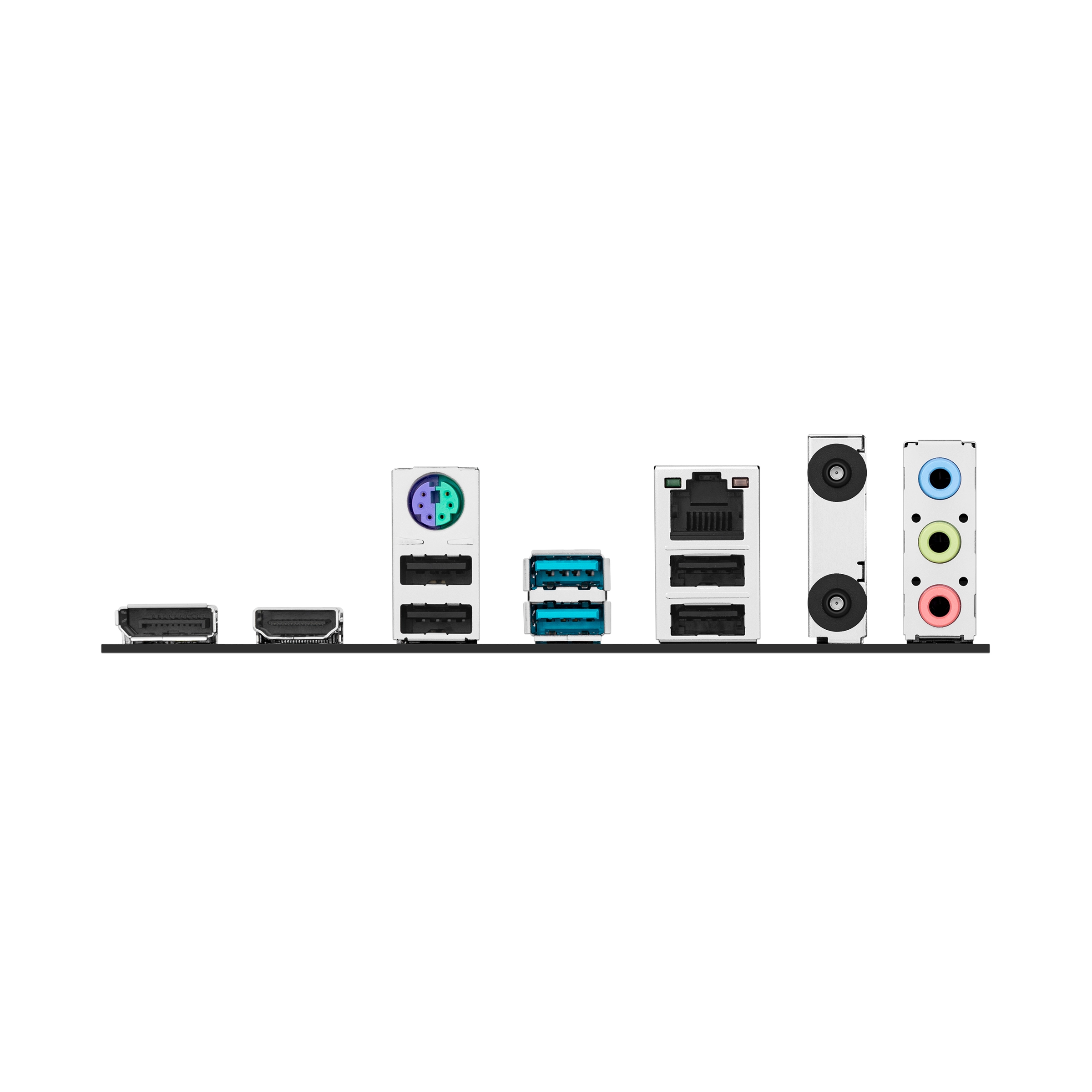

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
WiFi-AP antenna jack	1
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth	Y
Bluetooth version	5.4
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
Audio output channels	7.1 kanalen
Windows operating systems supported	Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	2
PCI Express x16 (Gen 5. x) slots	1
Number of M.2 (M) slots	2
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	3.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Packaging data
Package width	275 mm
Package depth	275 mm
Package height	67.5 mm
Weight & dimensions
Width	244 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Y
Antenna included	Y
Other features
Package weight	1402 g
