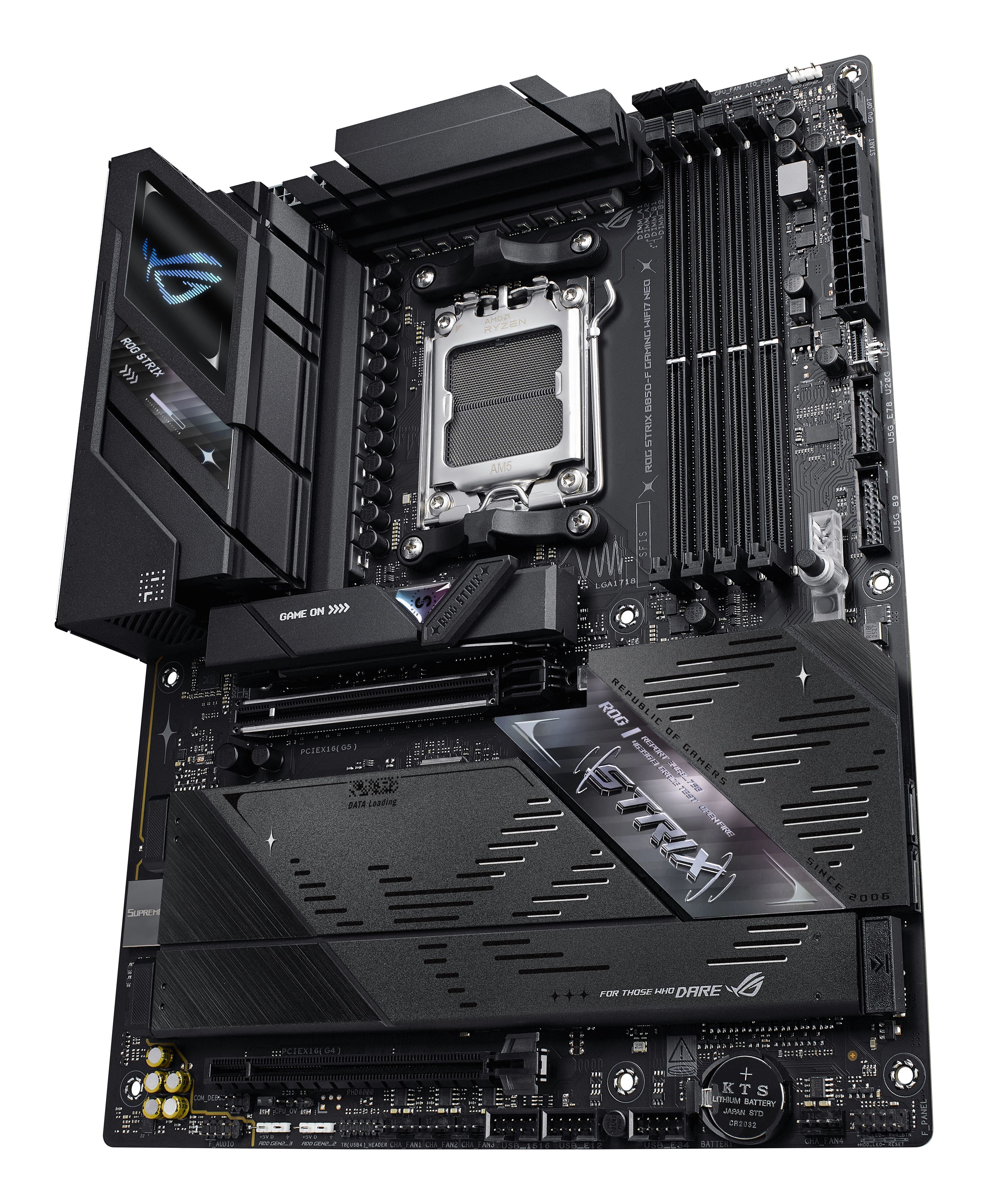

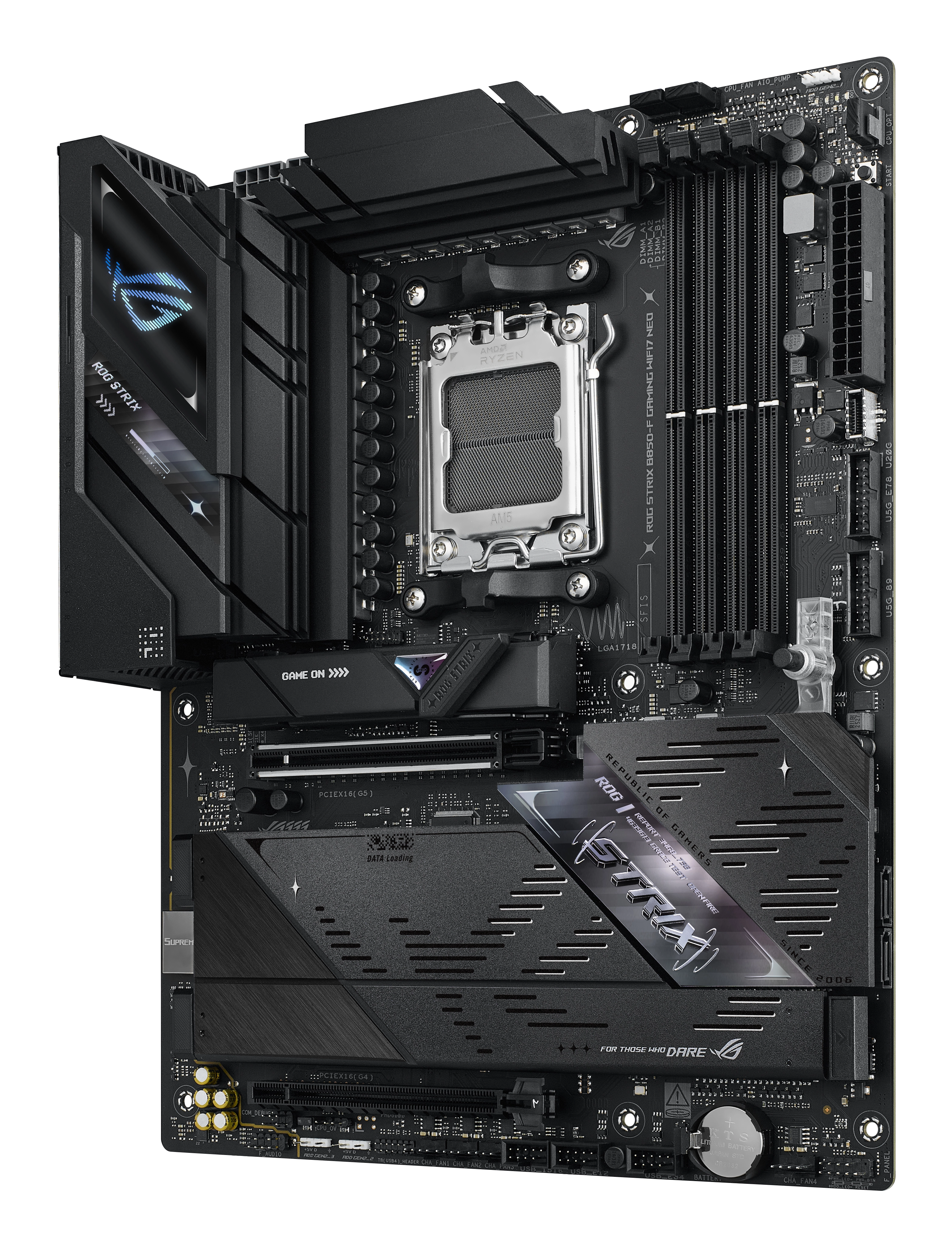

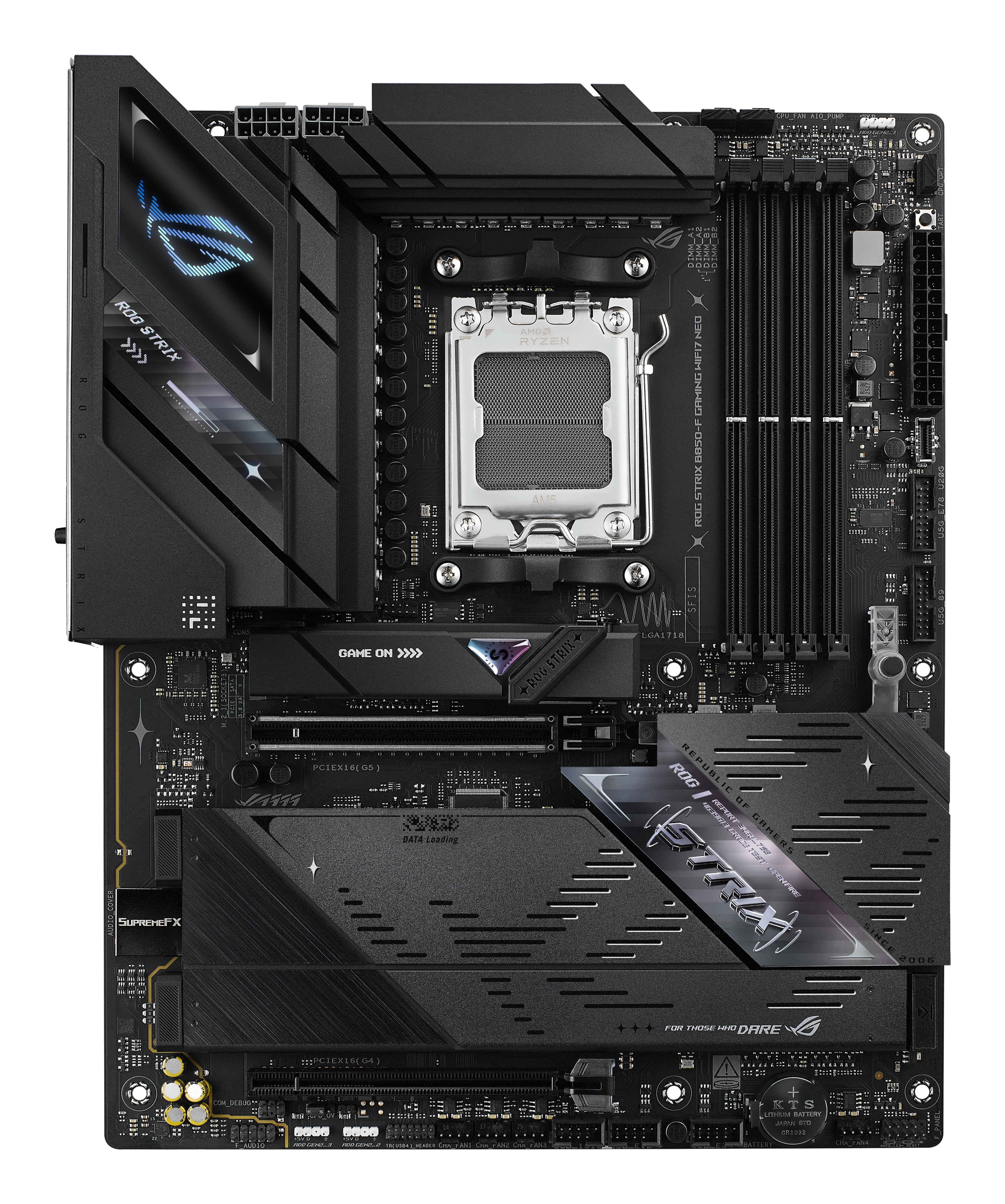

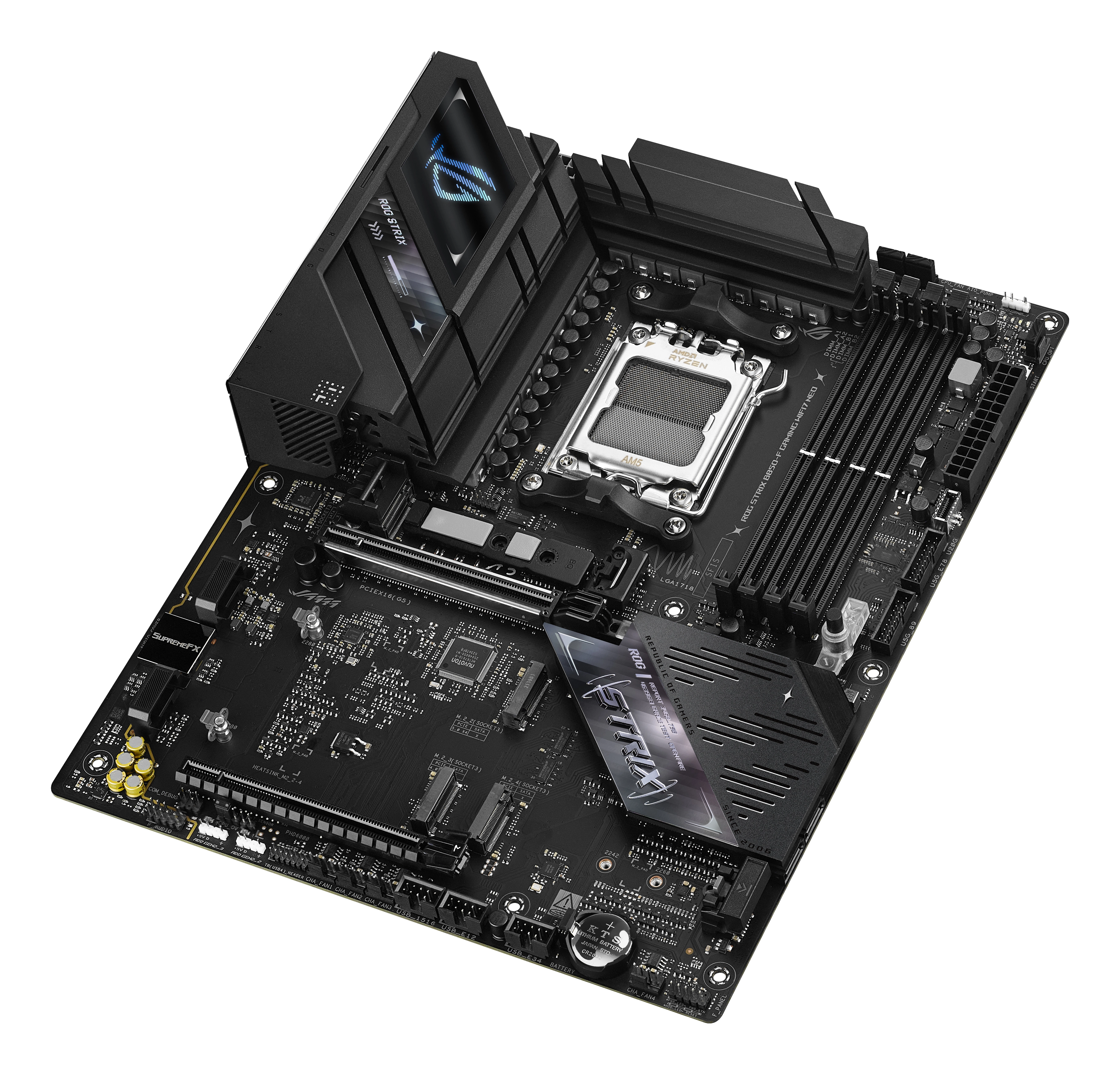

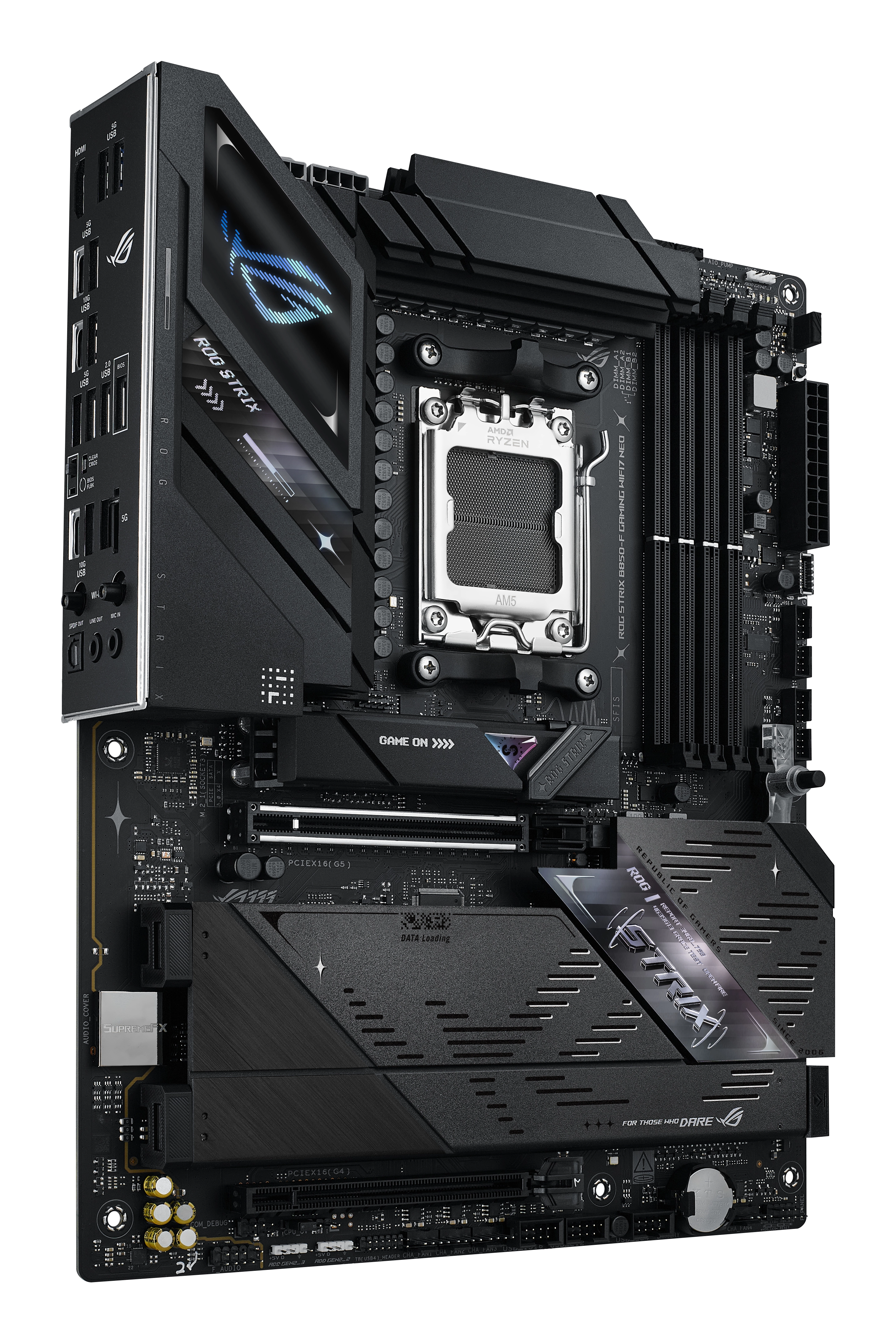

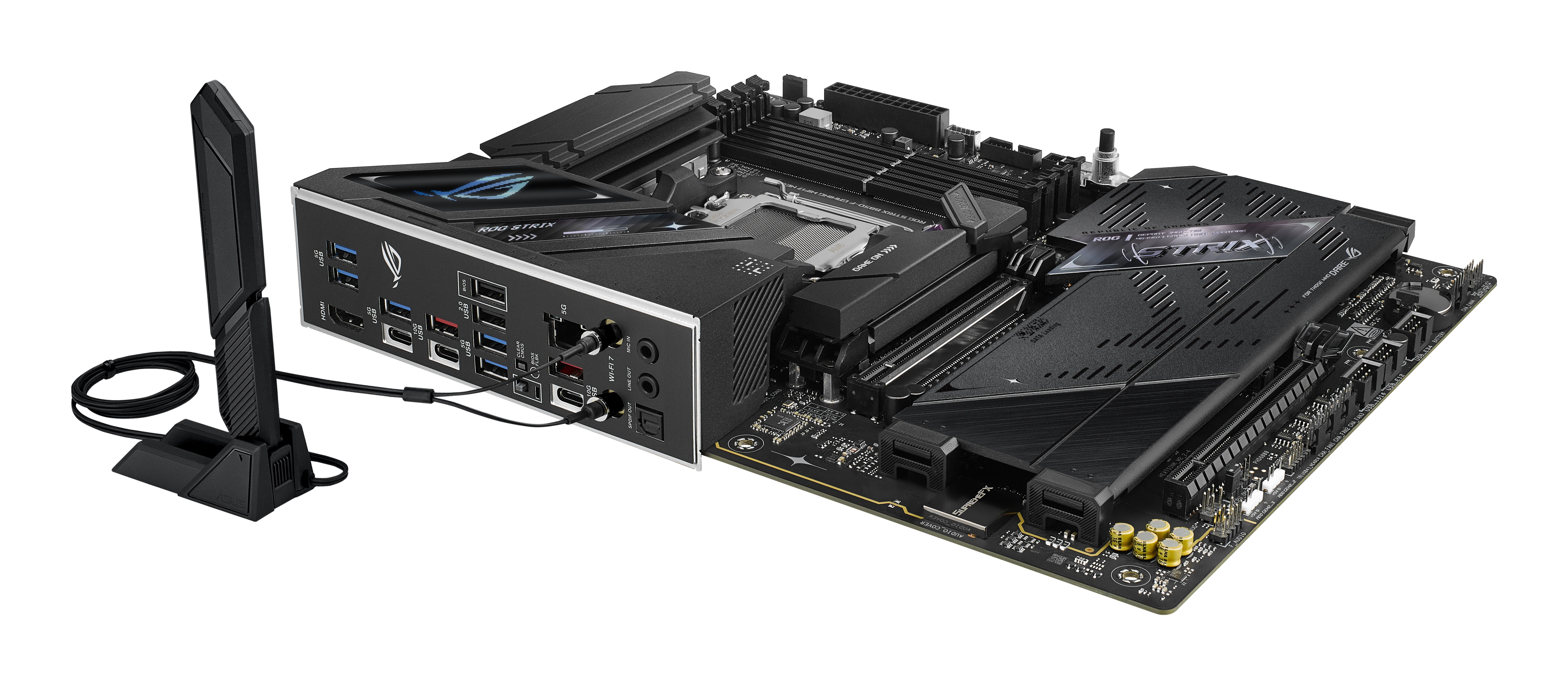

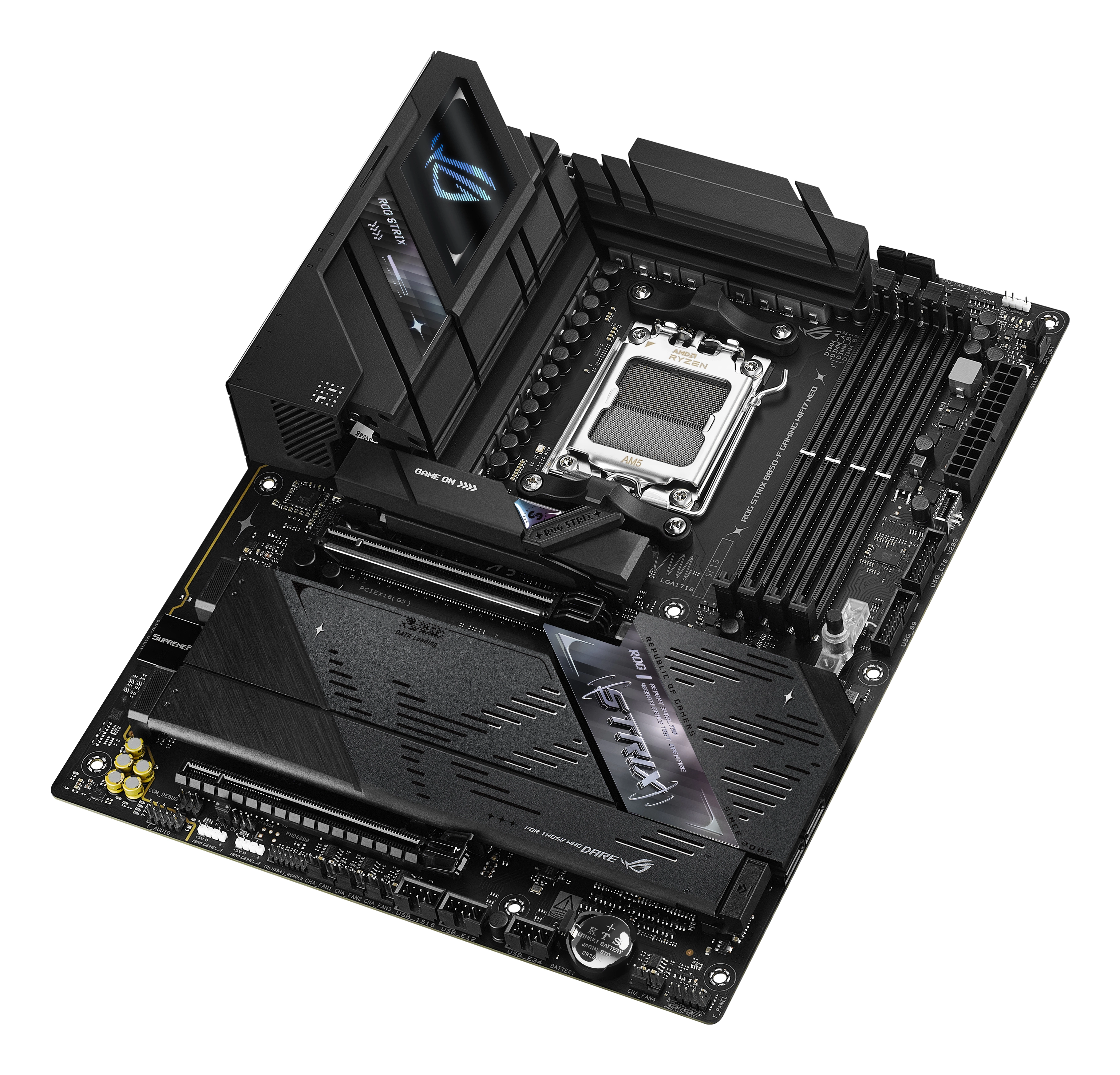

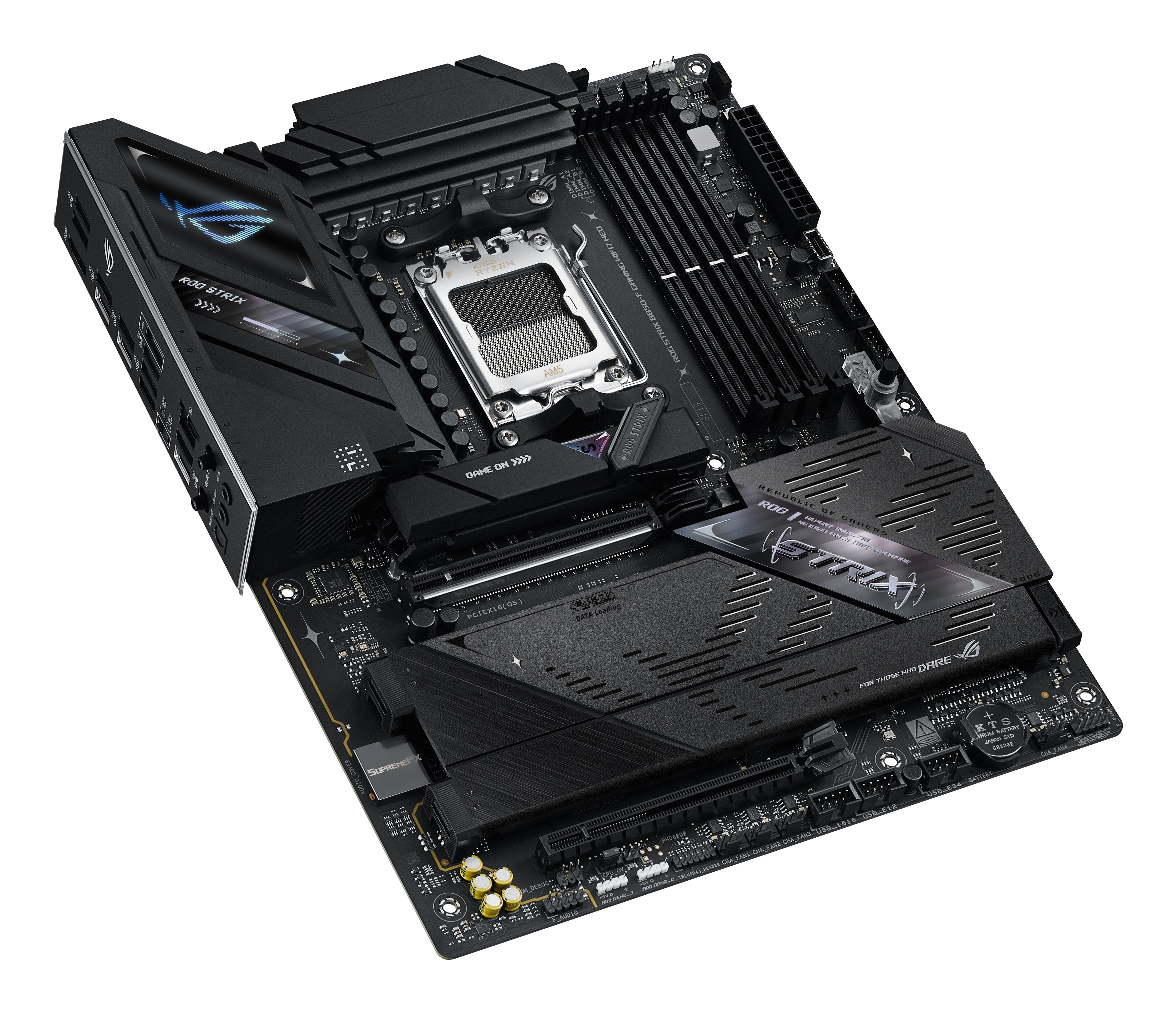

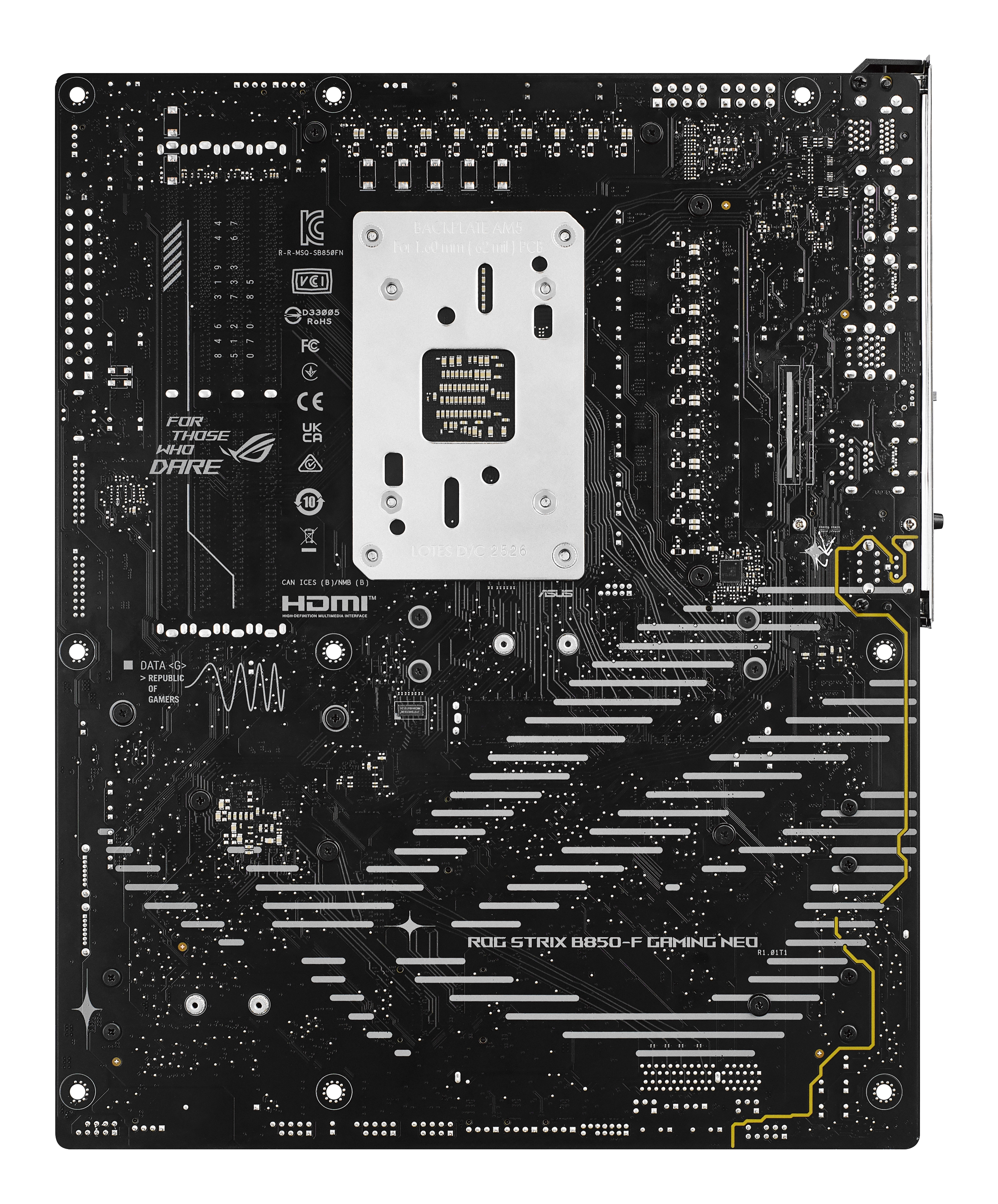

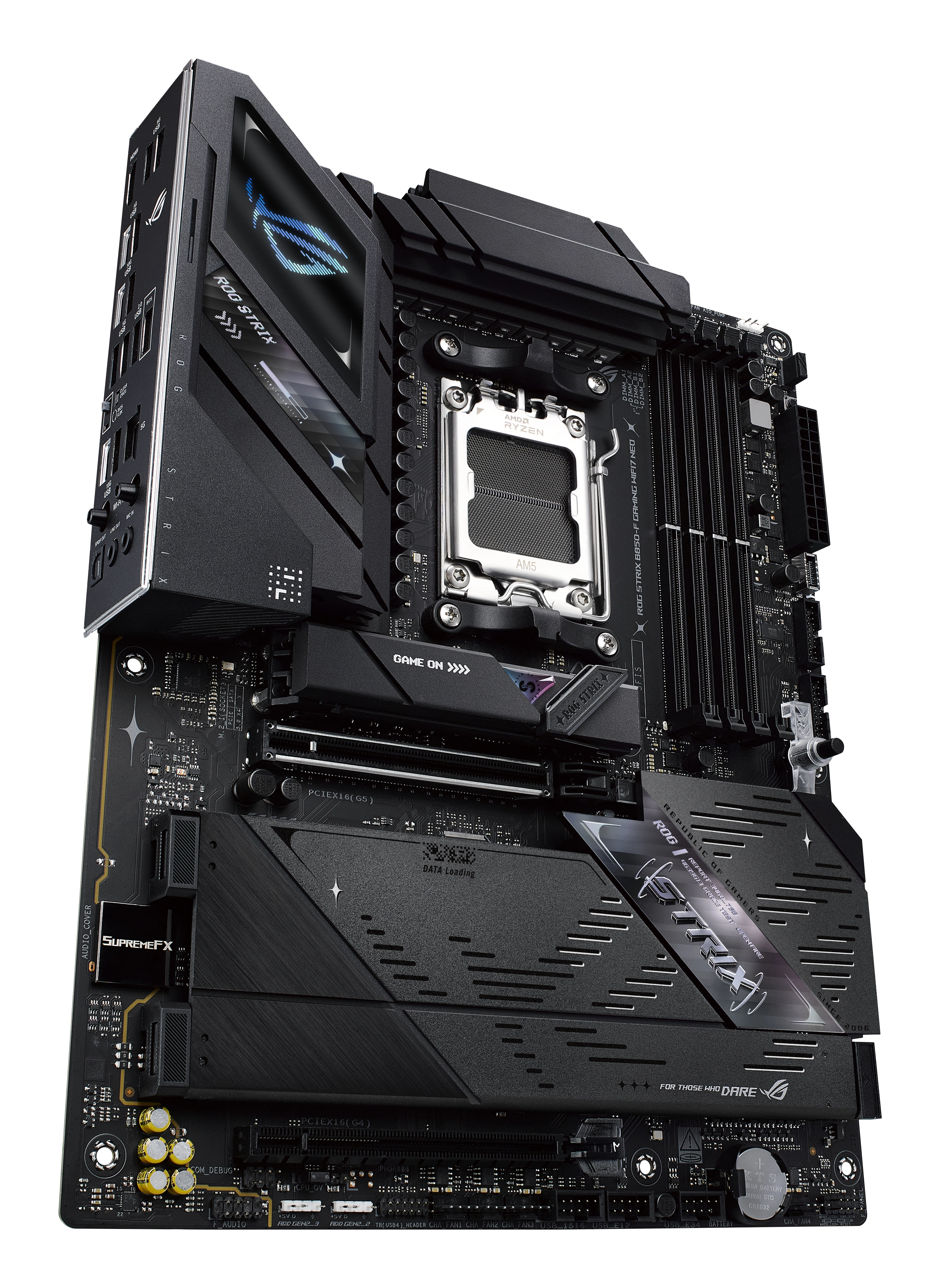

ROG STRIX B850-F gaming wifi7 neo
The ROG STRIX B850-F GAMING WIFI7 Neo is engineered to dominate. Built to unleash the full potential of AMD Ryzen™ 9000, 8000, and 7000 Series processors, this motherboard combines advanced power design with AI technologies to ensure peak performance. It delivers the uncompromised speed and stability essential for elite gaming and the demands of next-gen AI PC applications.

Specification

Product
Product id	1013015
Brand	AsusTek
Partnr	90MB1NX0-M0EAY0
EAN/UPC code	4711636434904
Warranty (months)	36 months
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Maximum internal memory	256 GB
Supported memory clock speed (max)	8000 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	2
Number of storage drives supported	6
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	2
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	4
Number of CPU fan connectors	1
EPS power connector (8-pin)	Y
Thunderbolt headers	1
12V power connector	Y

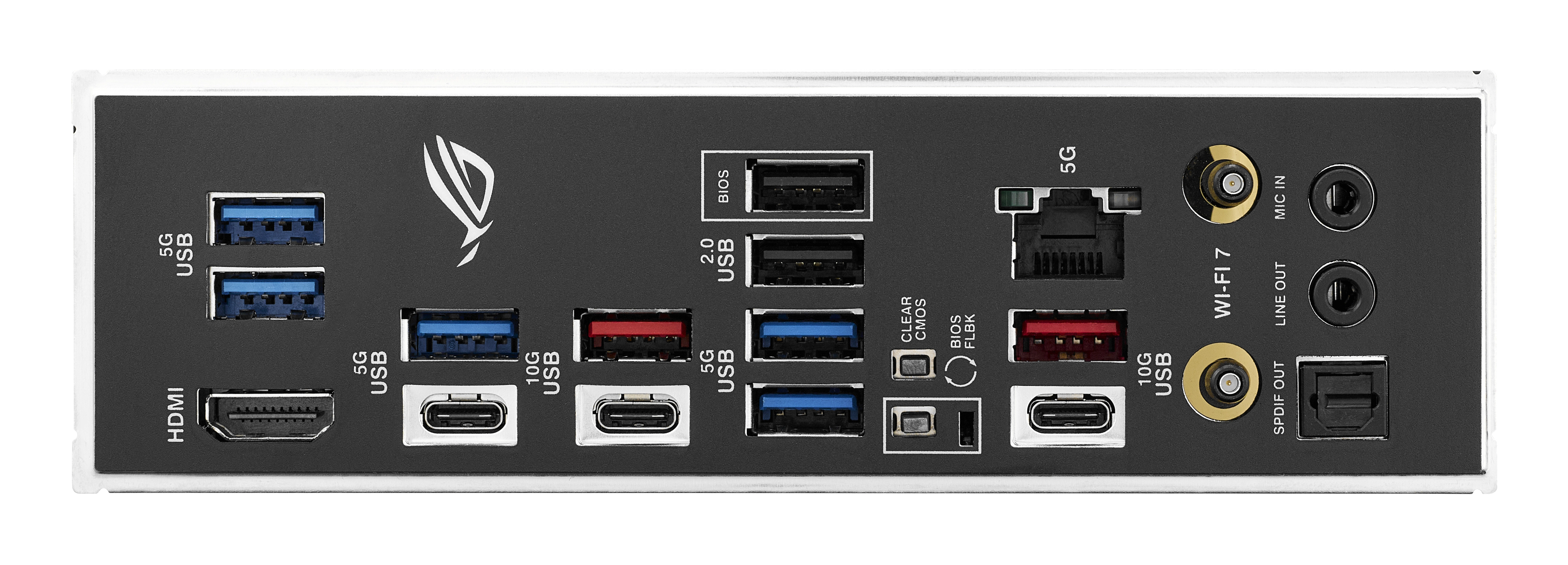

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
S/PDIF out port	Y
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Y
Bluetooth version	5.4
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Audio chip	Realtek ALC4080
Audio output channels	7.1 kanalen
Product colour	Multicolour
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	4
1st M.2 largest key size	2280
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Y
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Weight & dimensions
Width	305 mm
Depth	244 mm
Other features
Weight	1626 g
Package weight	2177 g
