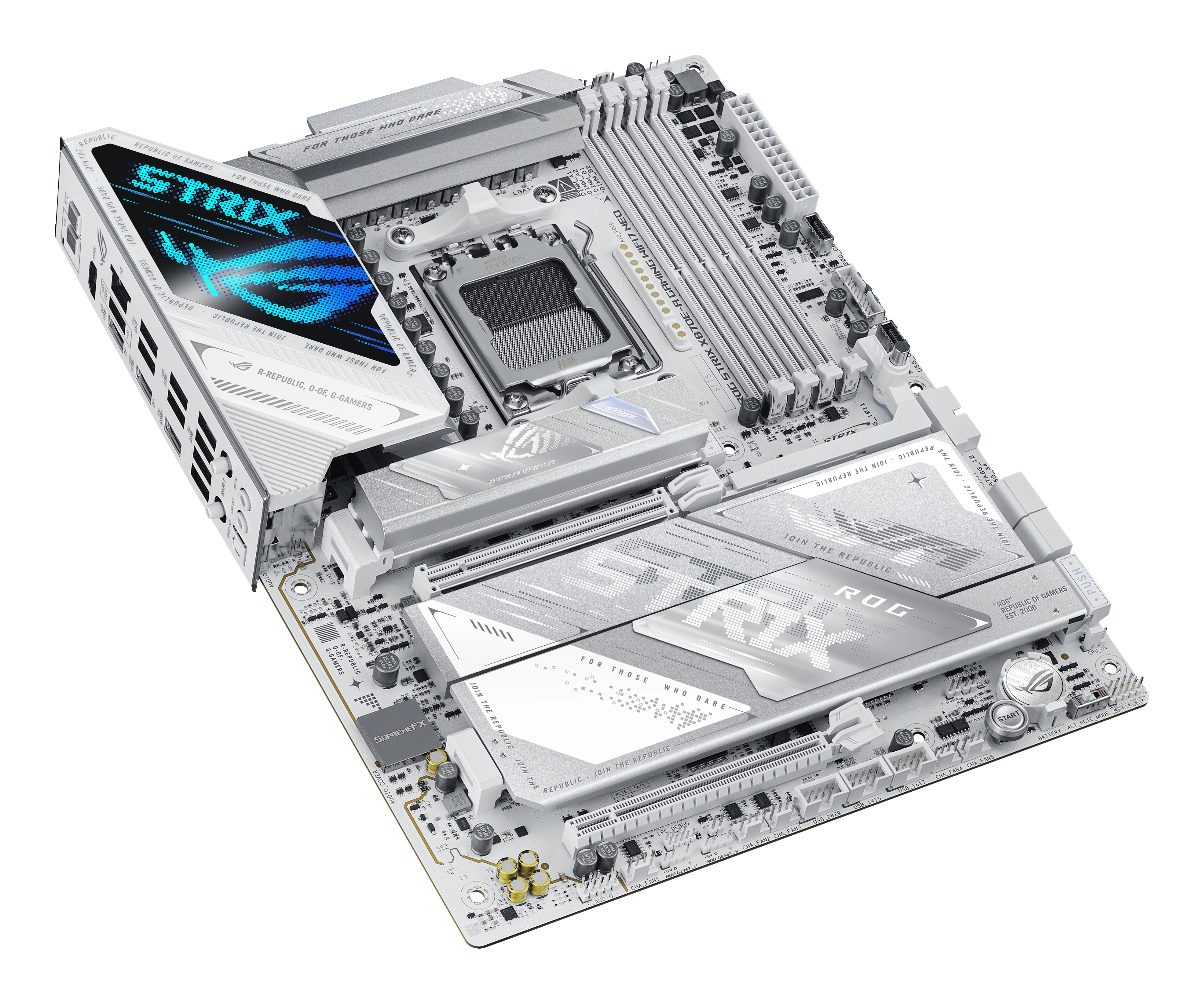

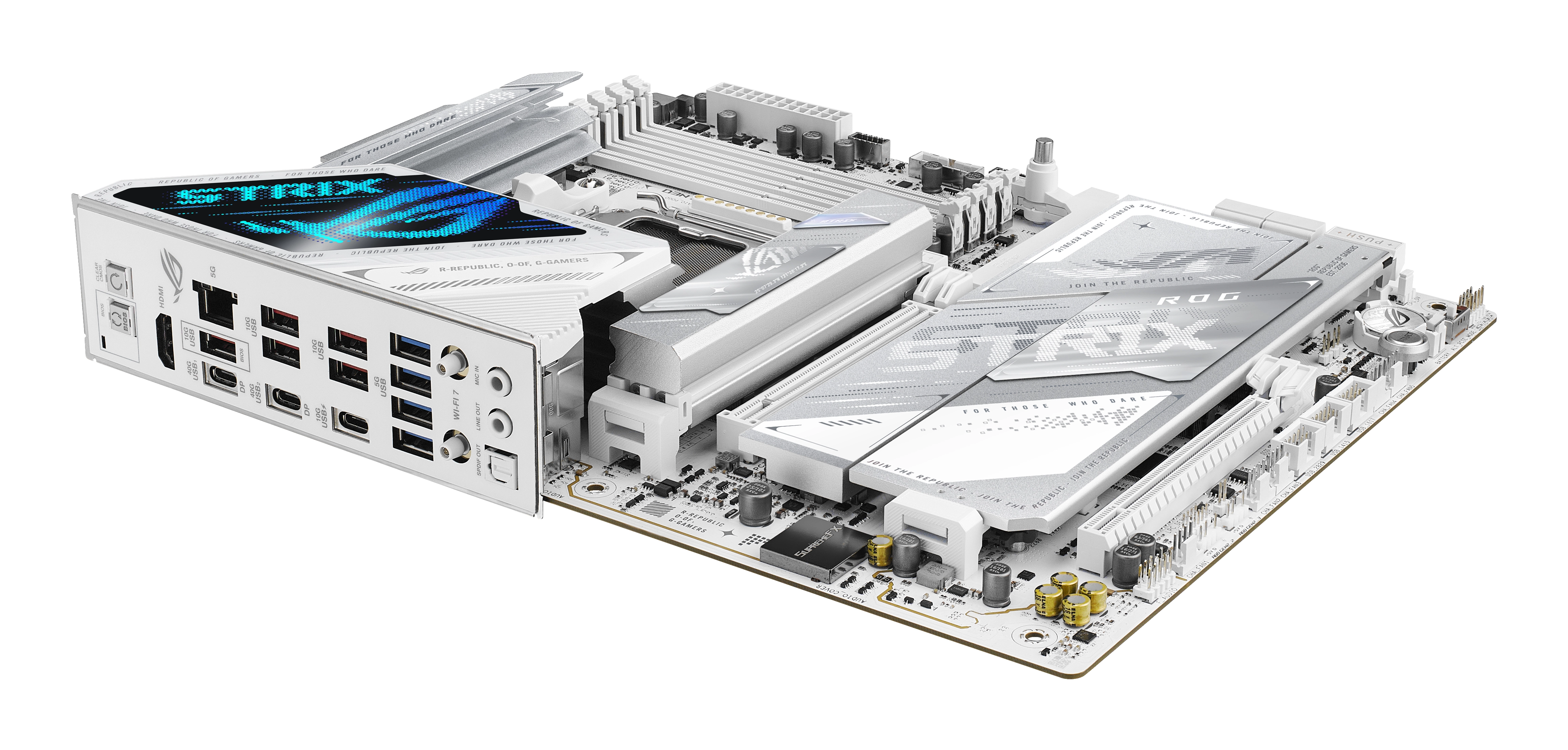

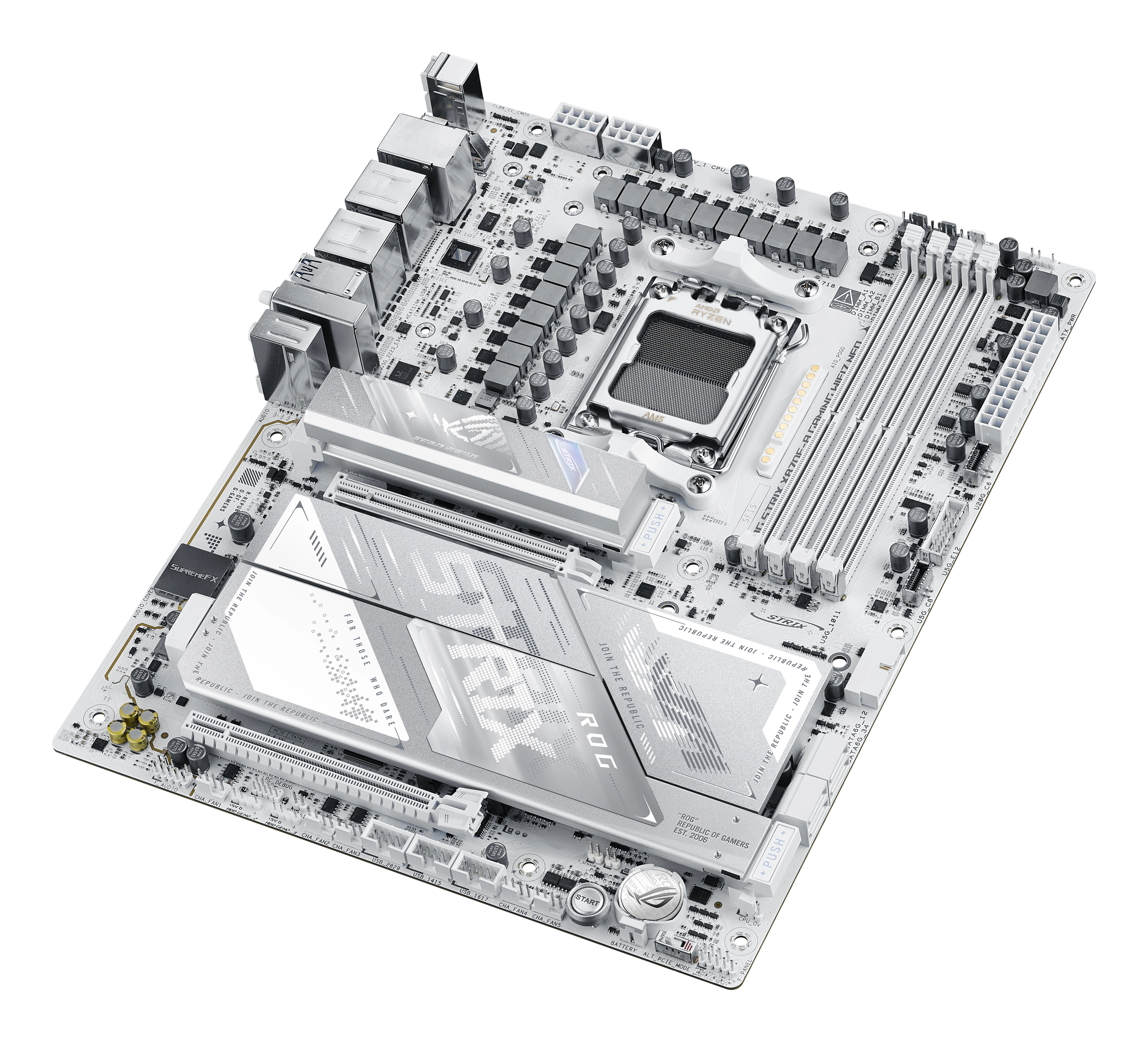

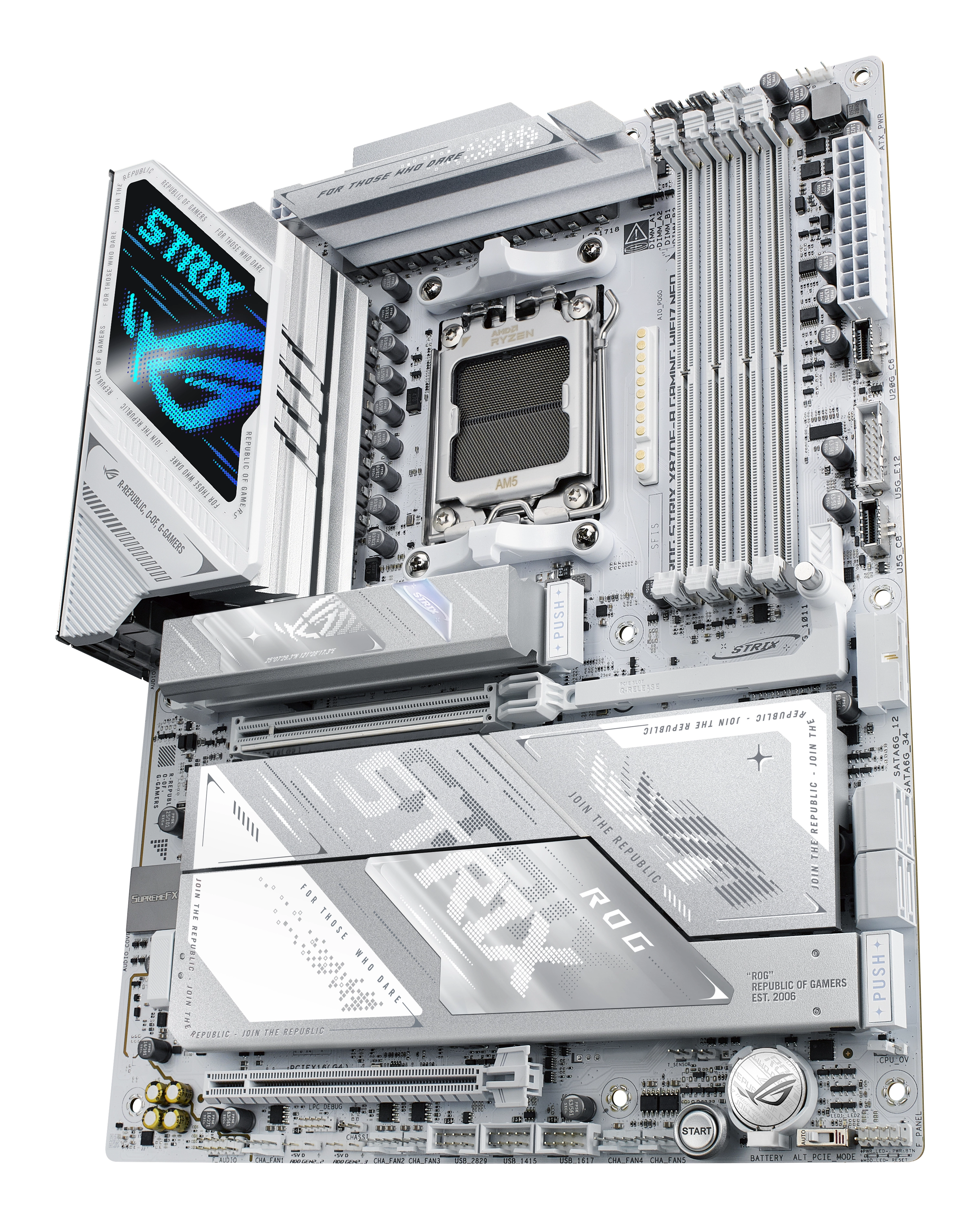

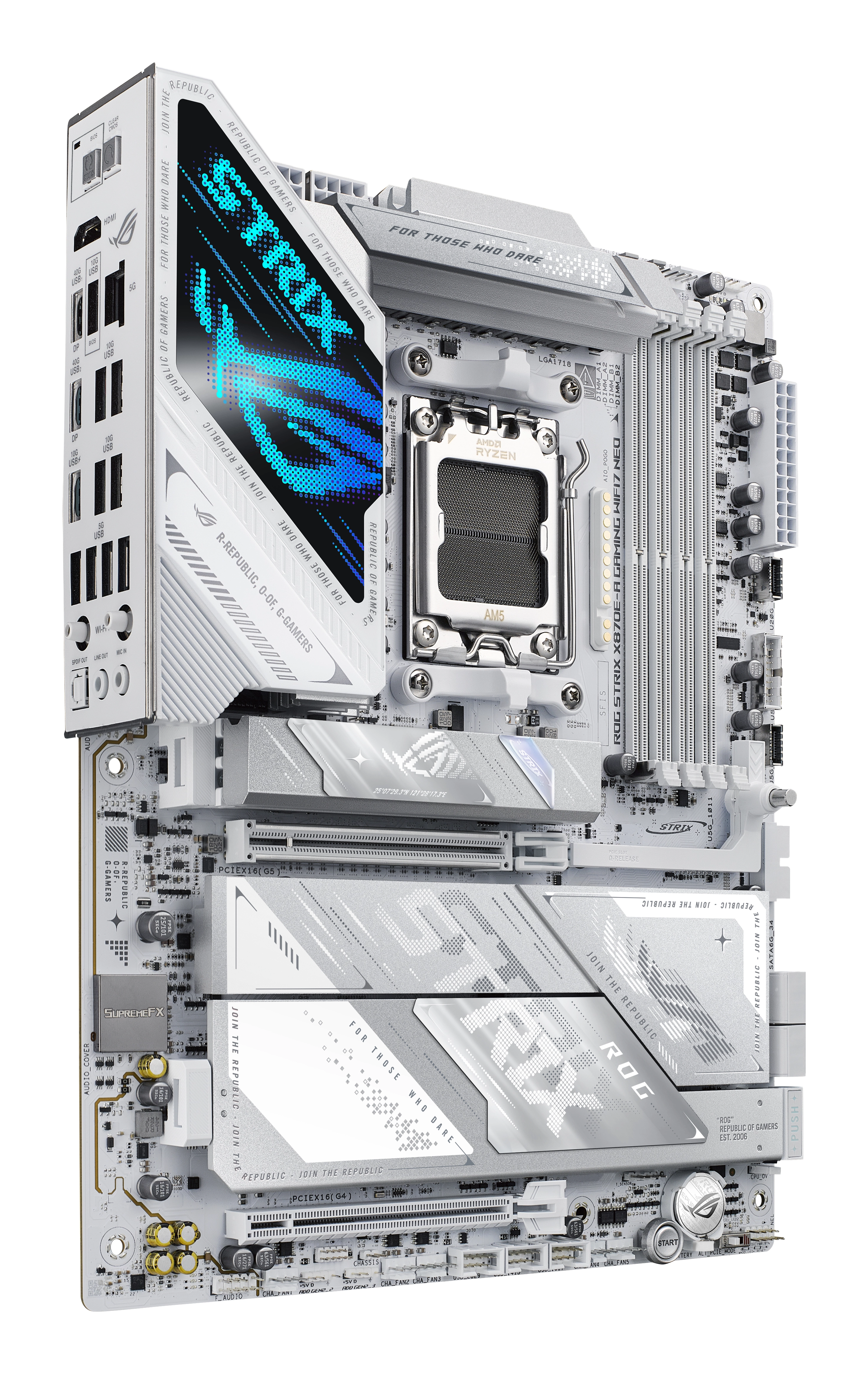

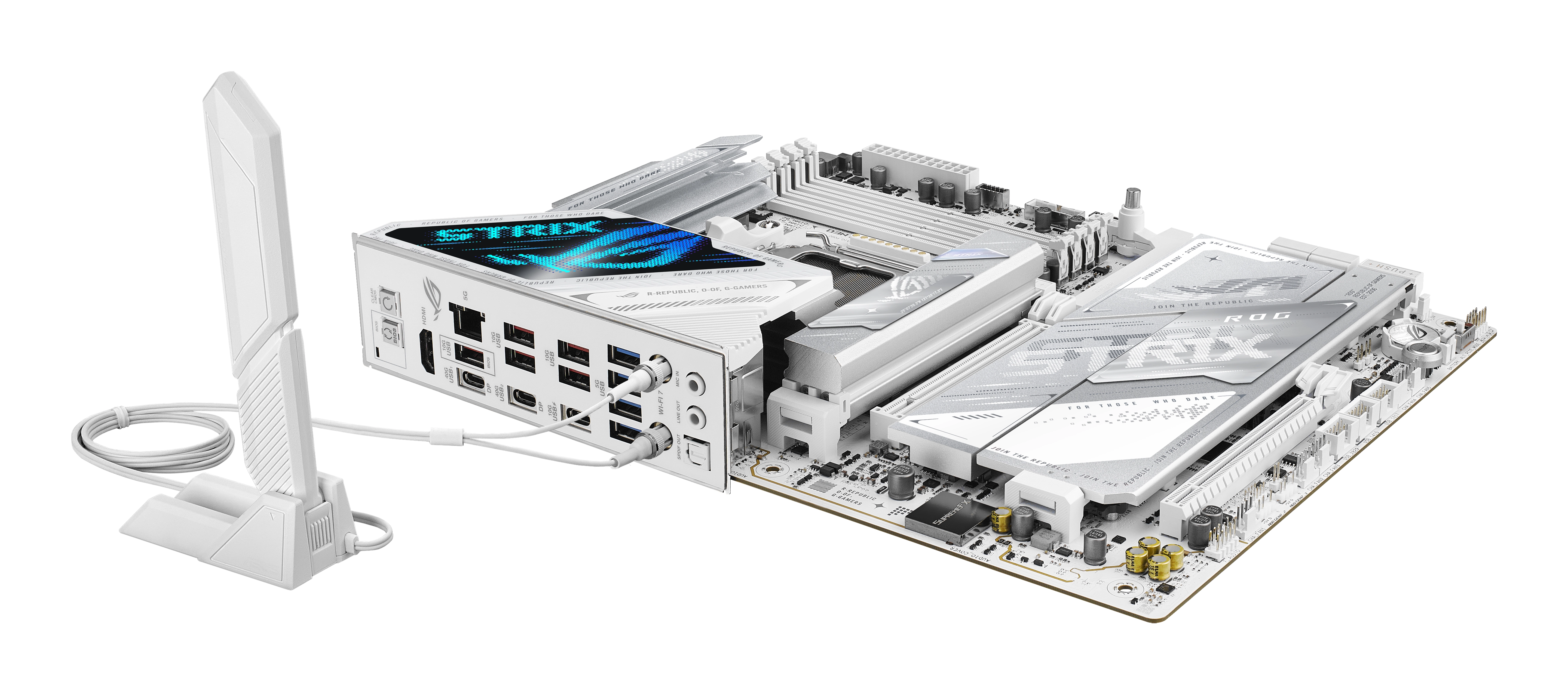

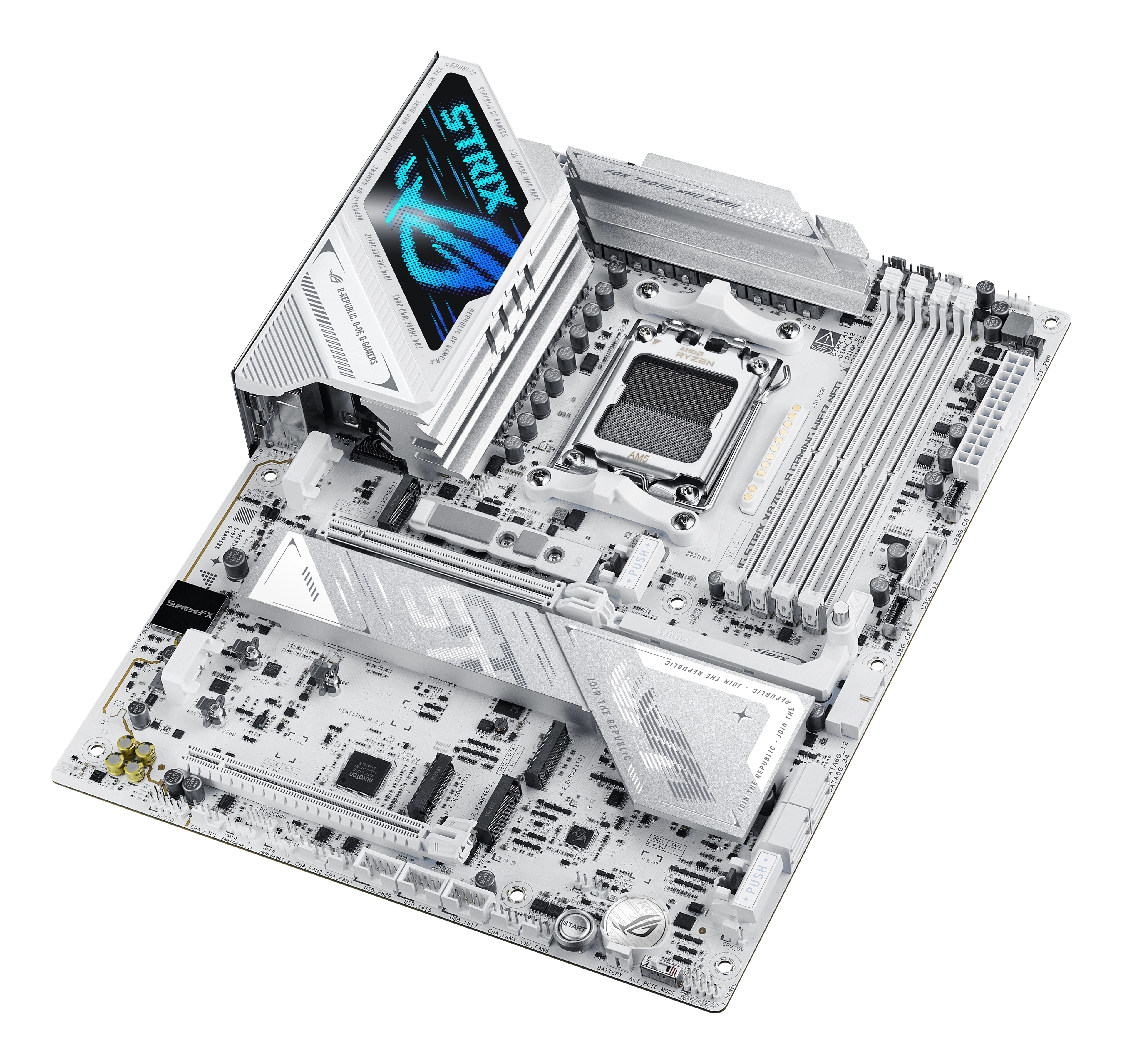

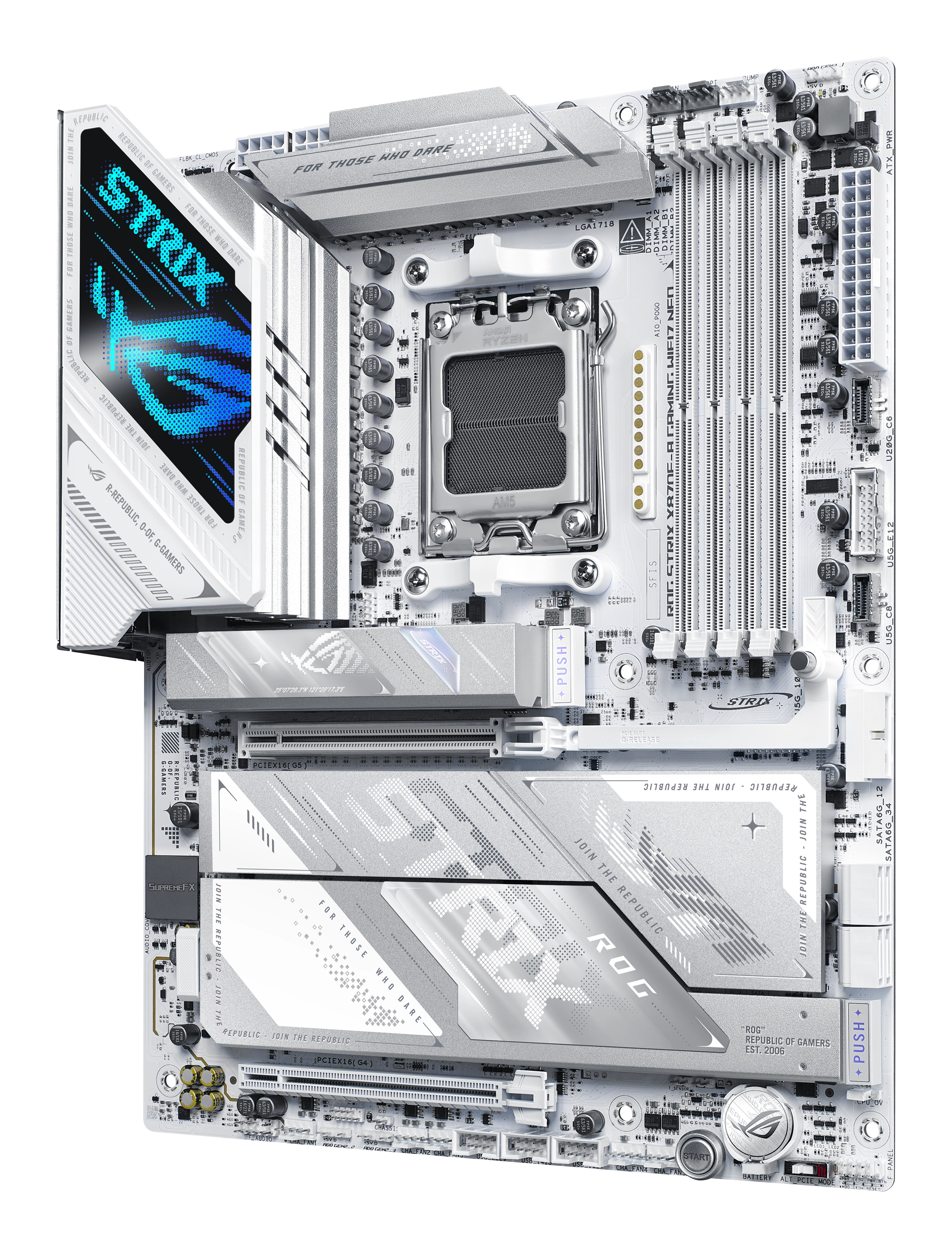

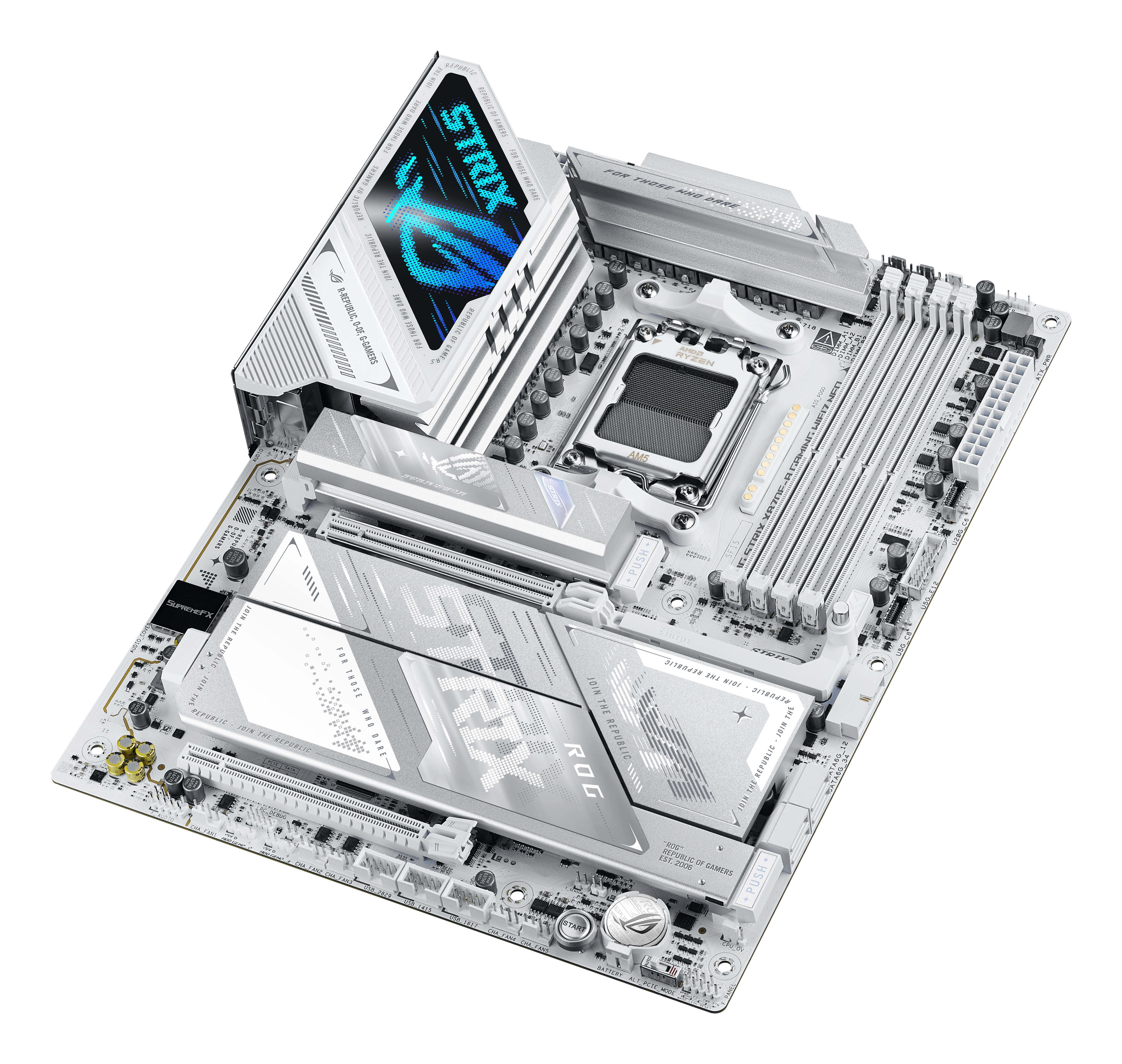

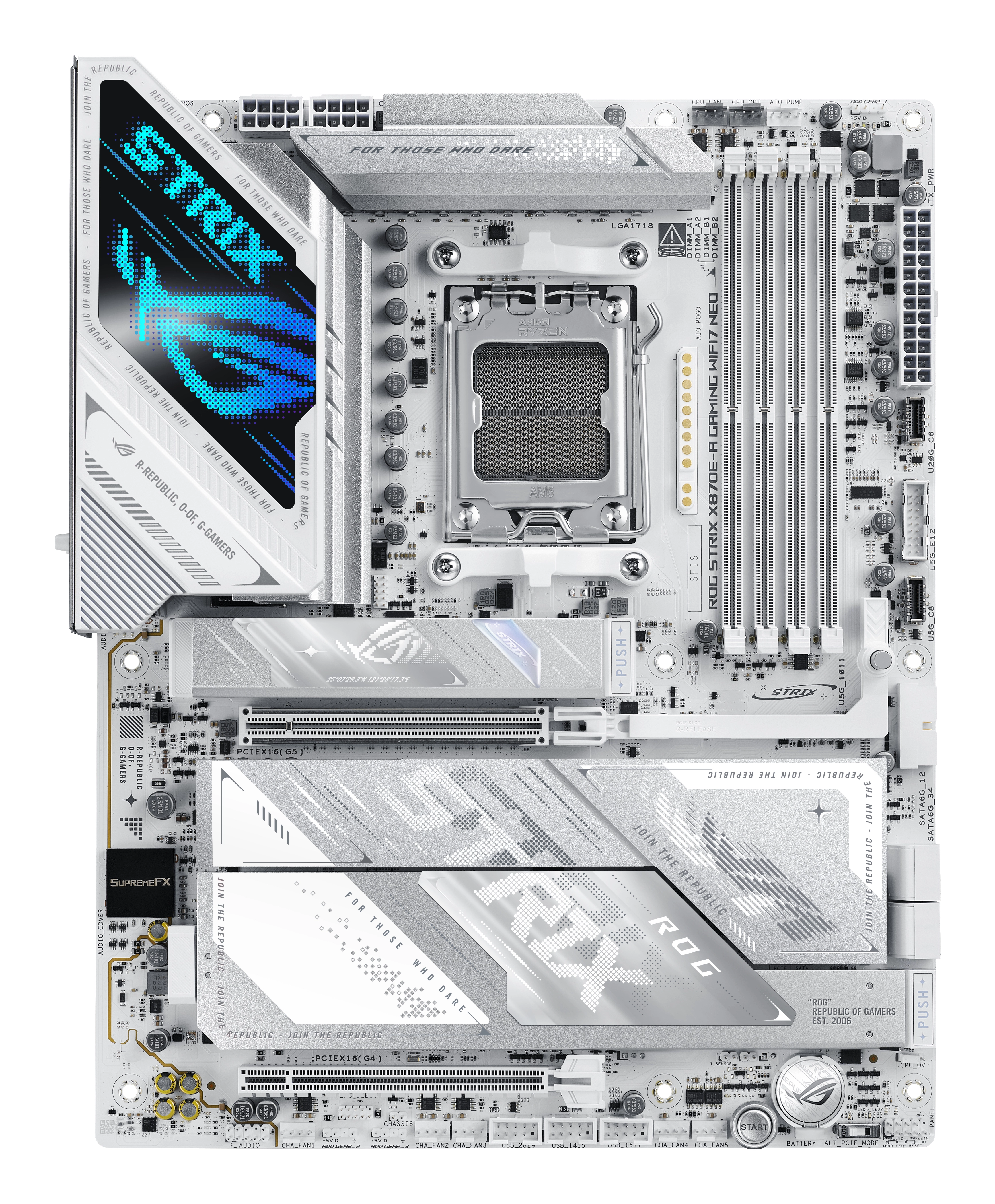

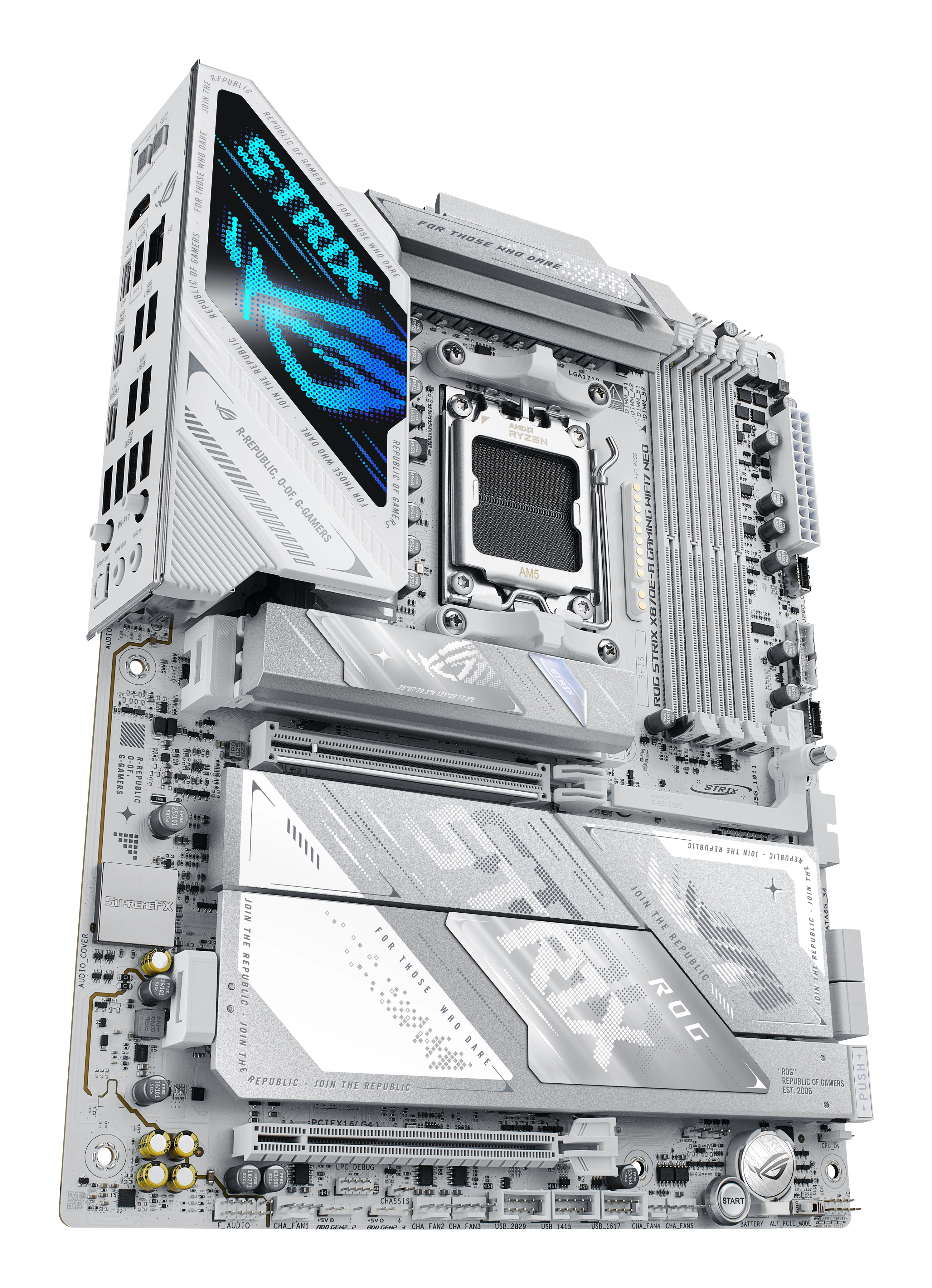

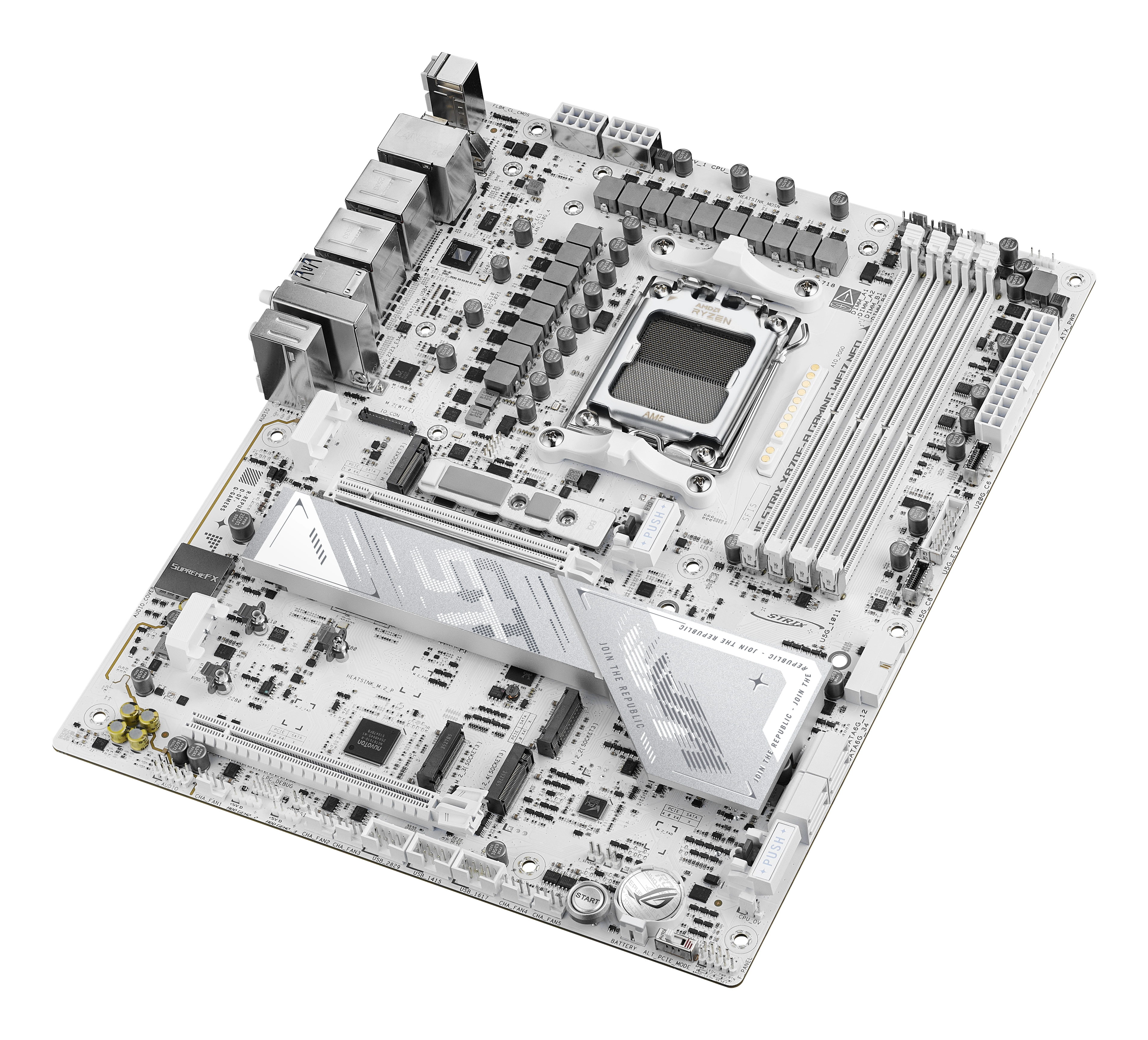

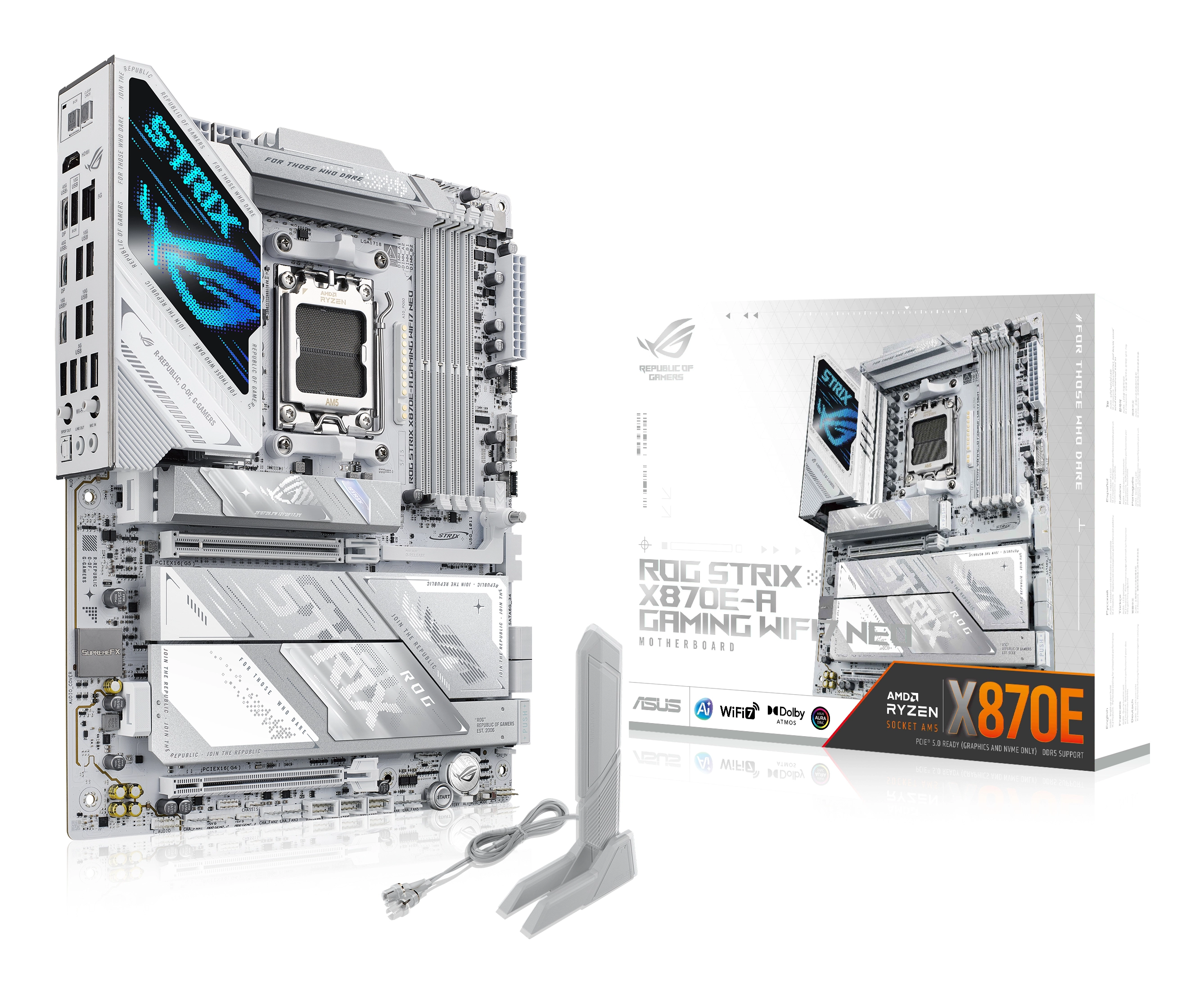

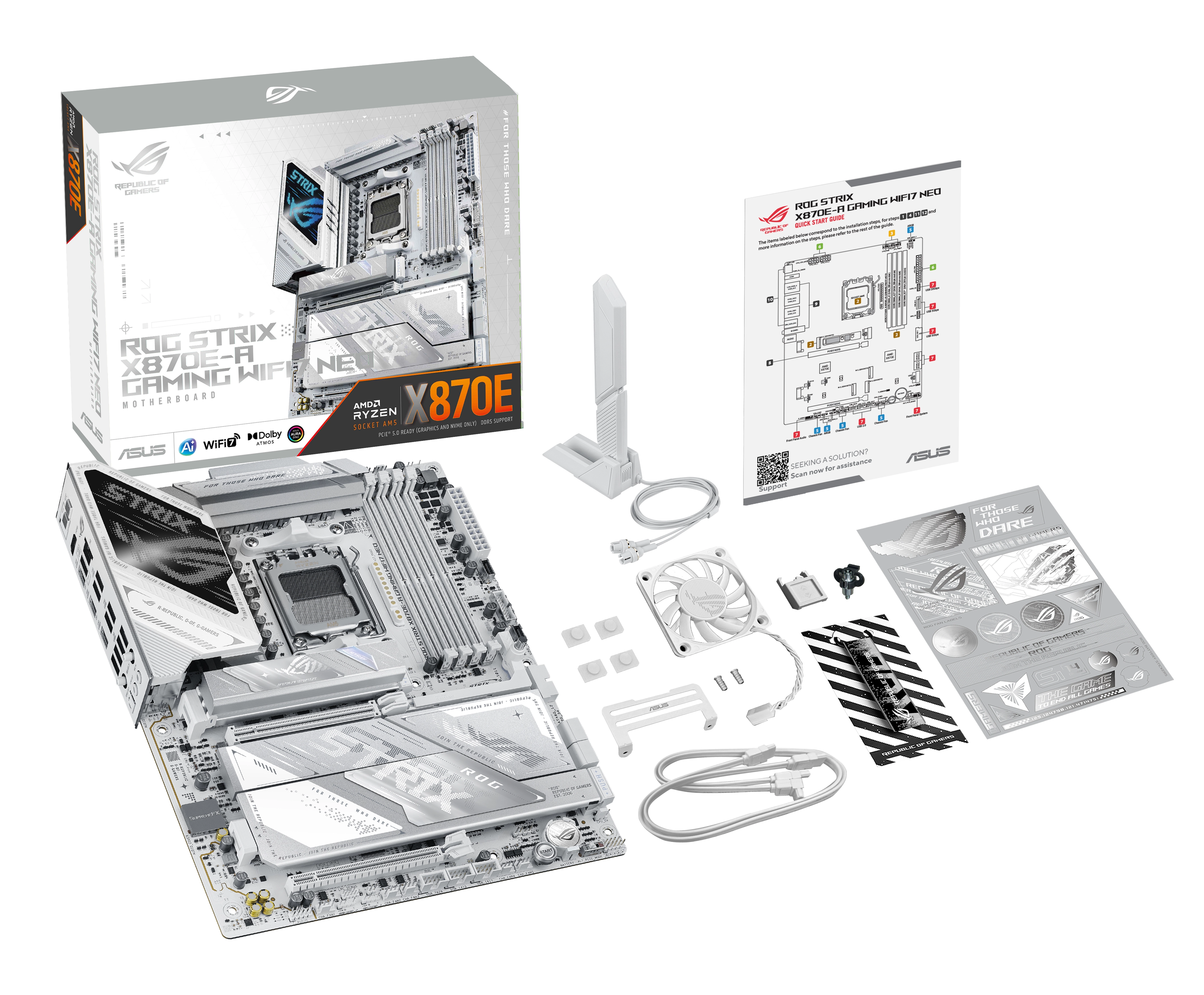

ROG STRIX X870E-A gaming wifi7 Neo
Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor—and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP—simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4® Type-C ports, WiFi 7, and Realtek® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.

Specification

Product
Product id	1016122
Brand	AsusTek
Partnr	90MB1P30-M0EAY0
EAN/UPC code	4711636491617
Warranty (months)	36 months
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Maximum internal memory	256 GB
Supported memory clock speed (max)	9600 MHz
Unbuffered memory	Y
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III, M.2
Number of HDDs supported	4
Number of storage drives supported	8
RAID levels	0, 1, 5, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	4
Front panel audio connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	5
Chassis intrusion connector	Y
Number of CPU fan connectors	1
EPS power connector (8-pin)	Y
12V power connector	Y
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB4 Gen 3x2 ports quantity	2
HDMI ports quantity	1
Microphone in	Y
S/PDIF out port	Y
Network
Ethernet LAN	Y
Ethernet interface type	5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7925
Bluetooth	Y
Bluetooth version	5.4
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Audio output channels	7.1 kanalen
Product colour	Multicolour
Windows operating systems supported	Windows 11
Expansion slots
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	4
1st M.2 largest key size	2280
BIOS
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
Clear CMOS button	Y
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	50 mm
Other features
Weight	1898 g
Package weight	2698 g
