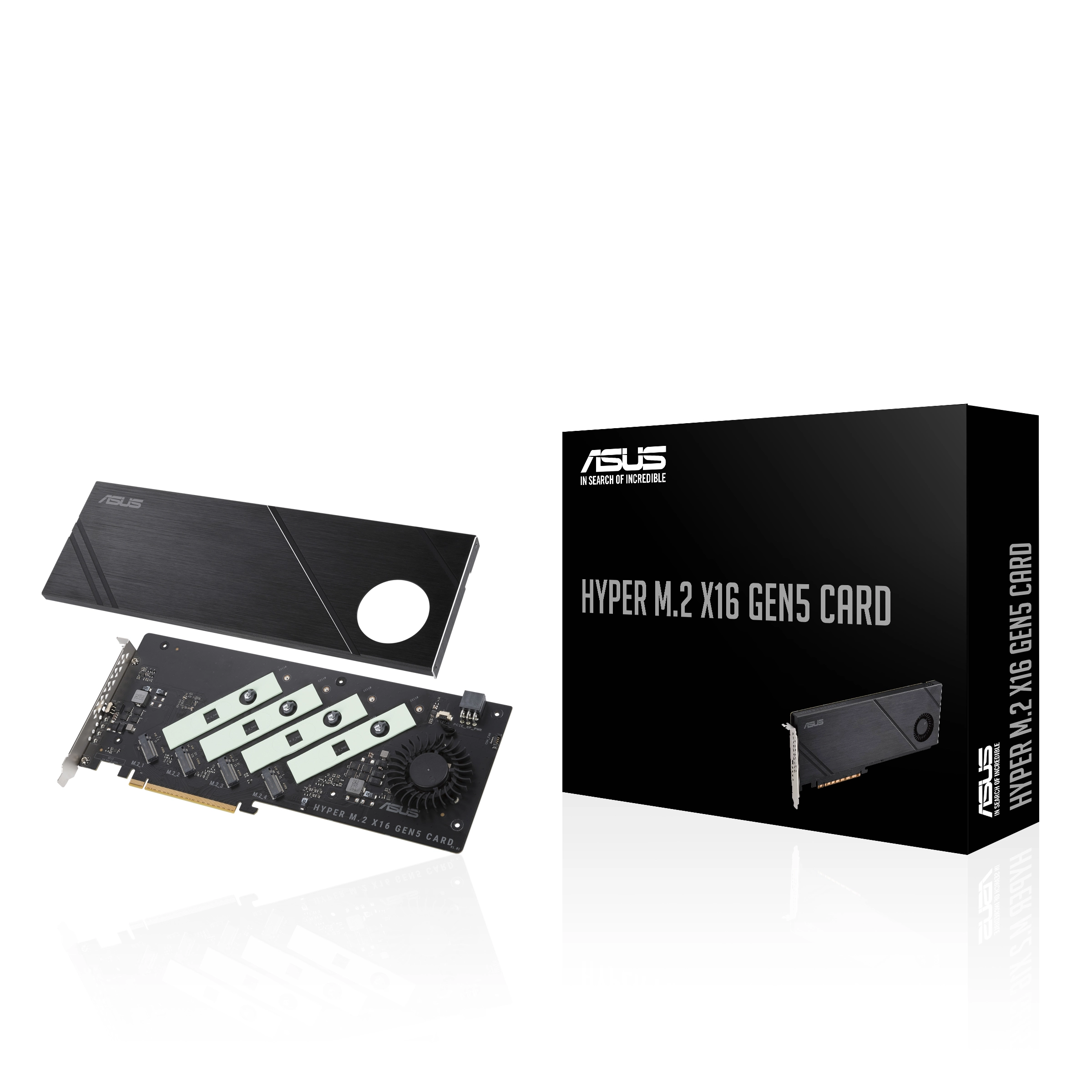

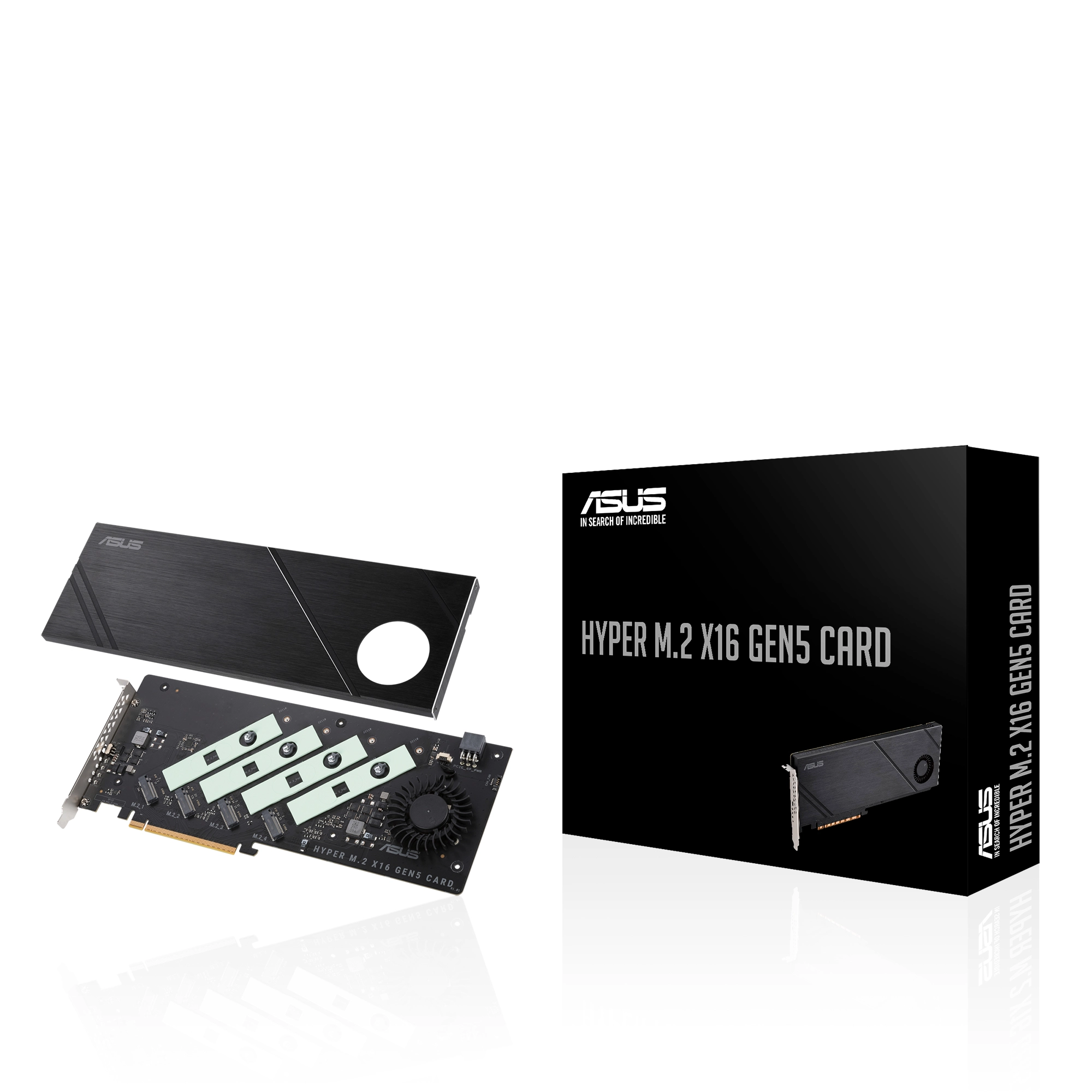

ASUS HYPER M.2 X16 GEN 5 CARD



AsusTek
Not in stock
€ 73,45
€ 88,87 incl 21% VAT
ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platforms

Support RAID Function
The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs*.

One Card,
8X The Bandwidth

The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card — 8X the bandwidth of a single PCIe 4.0 drive.

Enhanced Cooling
The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance.

A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers.

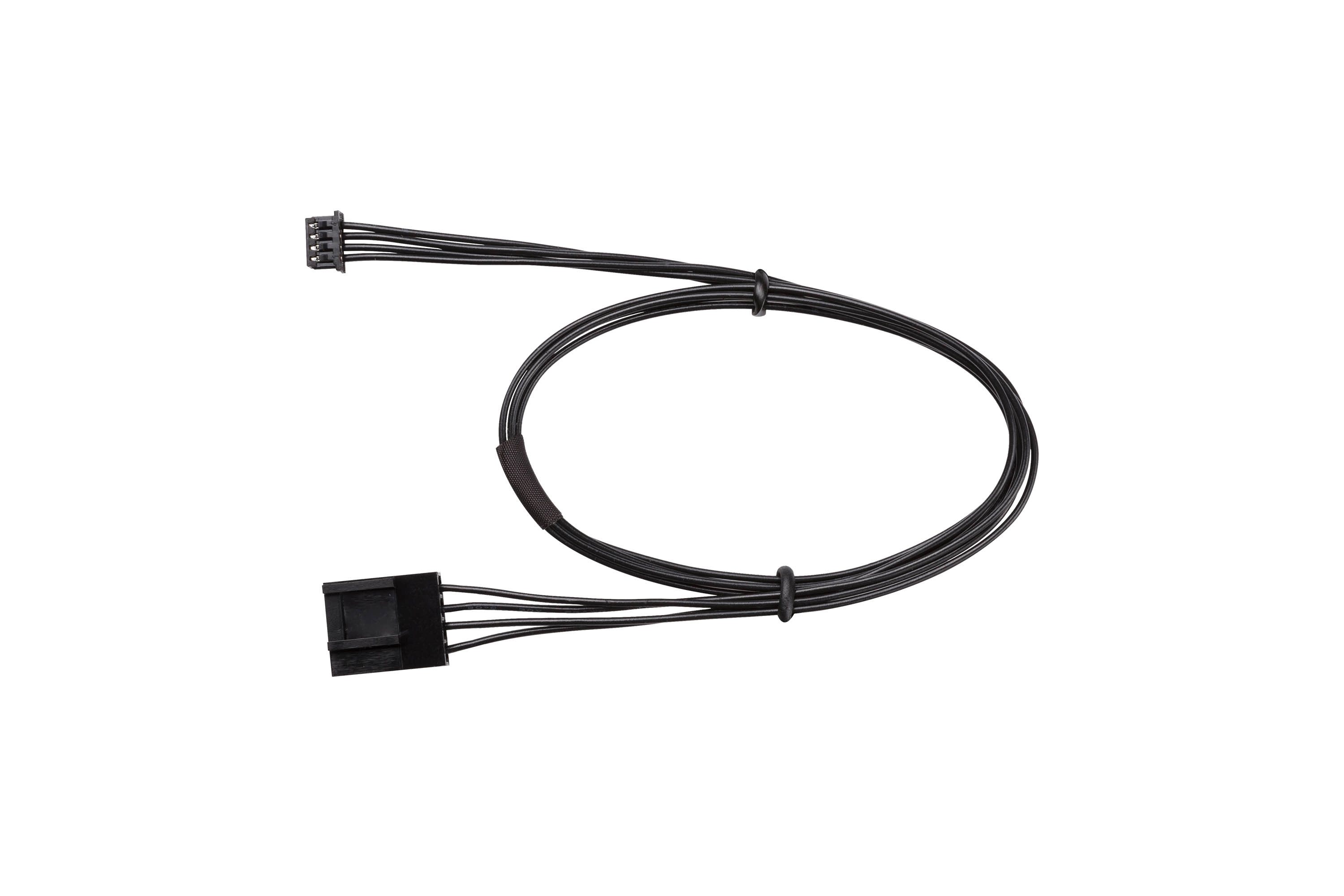

The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4.

Designed For Unthrottled Transfer Speeds

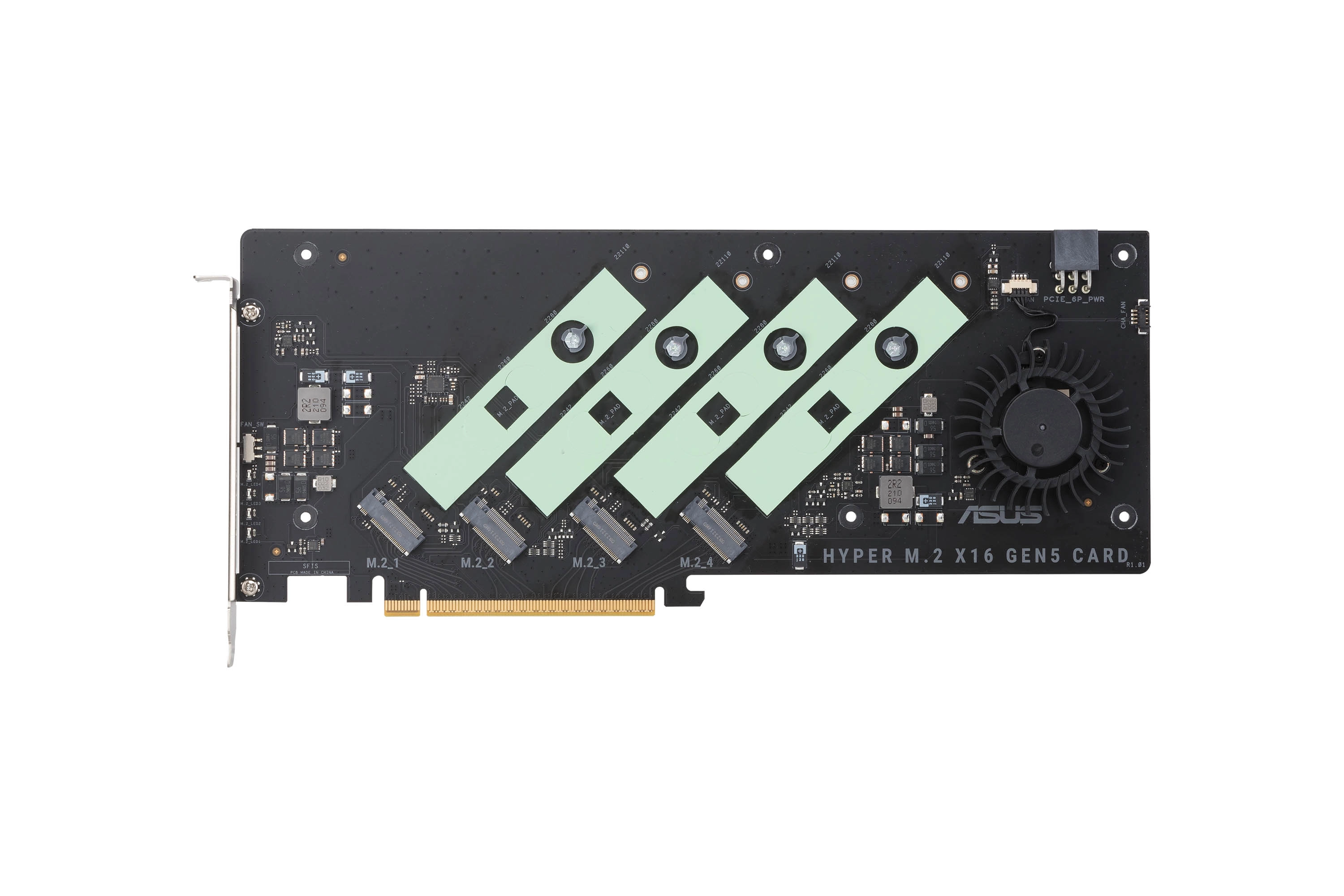

The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots — supporting both PCIe 5.0 and 4.0 — that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots , providing up to 128 GT/s bandwidth per M.2 slot.

Specification

Product
Product id 909942
Brand AsusTek
Partnr 90MC0CY0-M0EAY0
EAN/UPC code 4711387353288
Warranty (months) 36 months
Ports & interfaces
Host interface PCIe
Output interface M.2
Expansion card standard PCIe 5.0
NVMe Y
Design
Internal Y
Product colour Black
Purpose PC
Cooling type Active
Number of fans 1 ventilator(en)
Number of expansion slots 4
LED indicators Access
Easy to install Y
Features
Data transfer rate (max) 512 Gbit/s
Weight & dimensions
Width 290 mm
Depth 122 mm
Height 15 mm
Logistics data
Quantity per pack 1 stuk(s)
