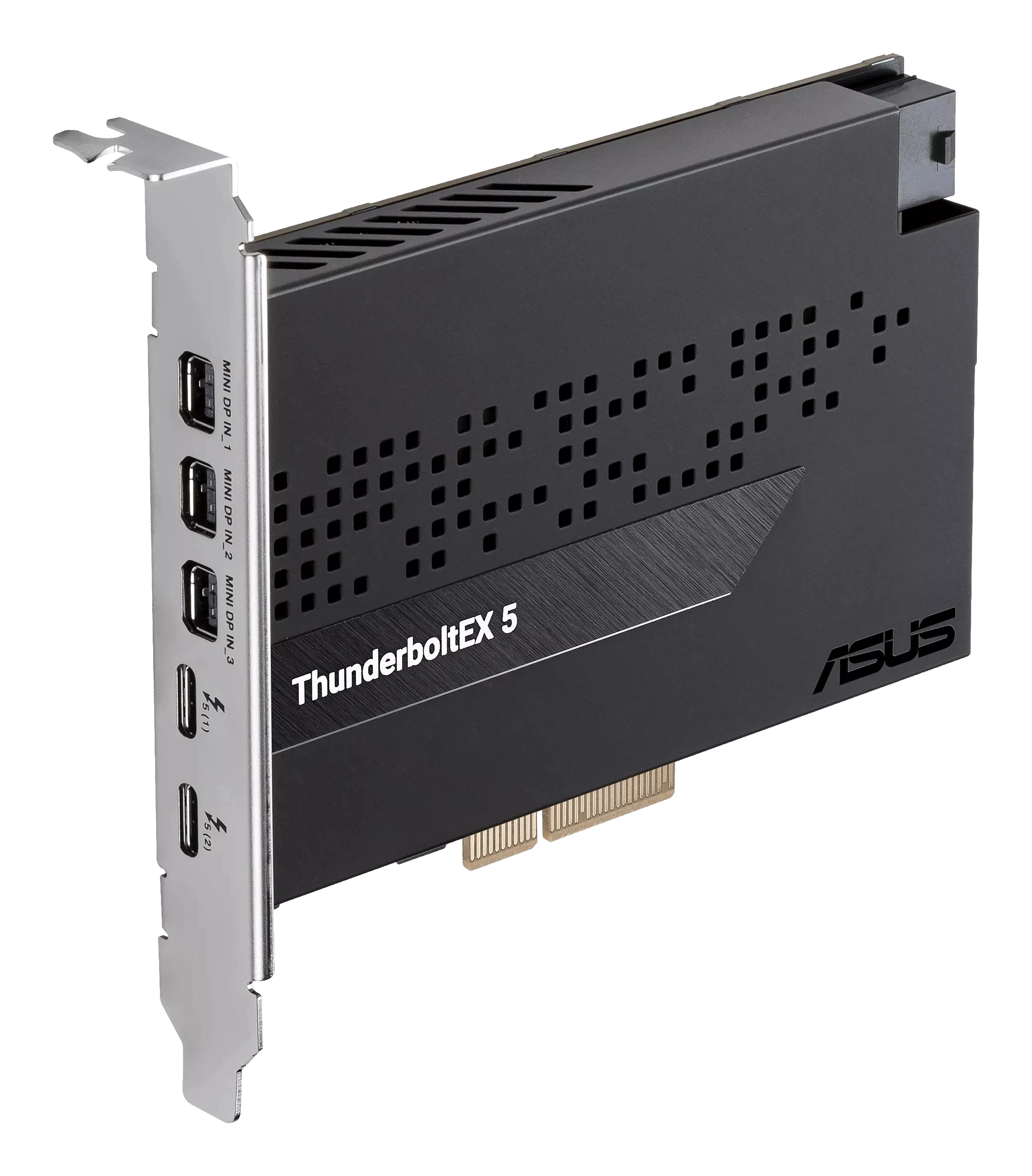

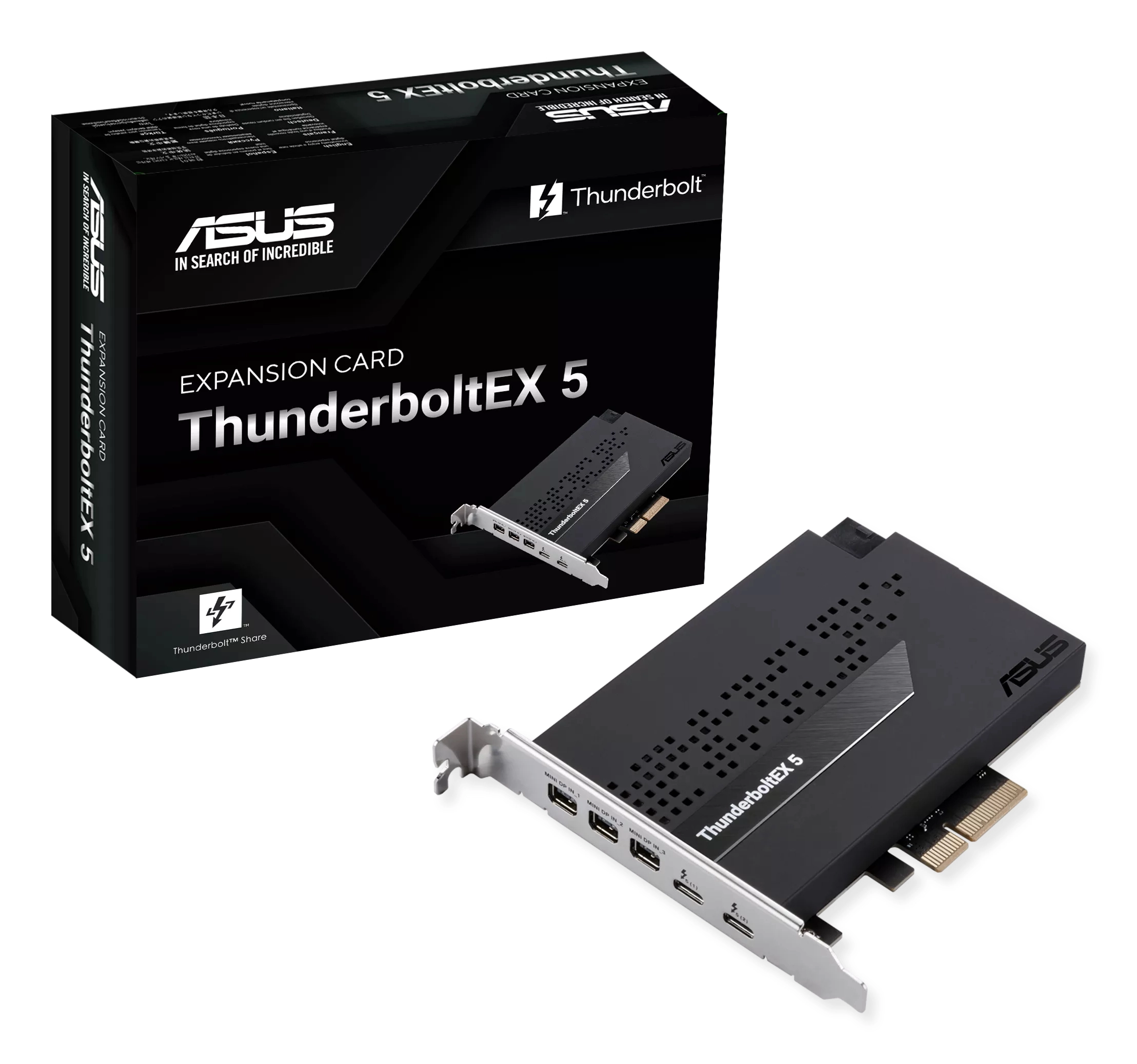

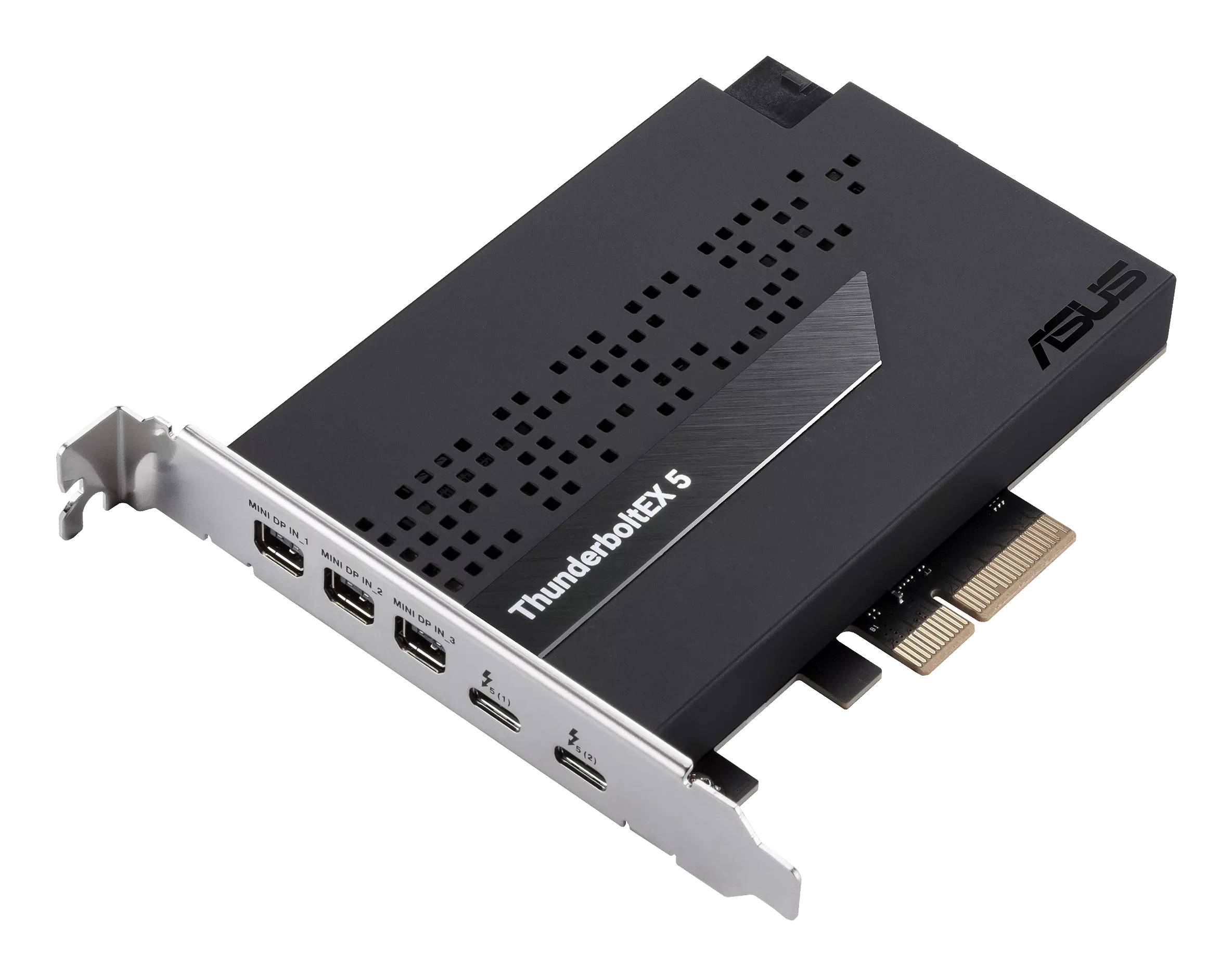

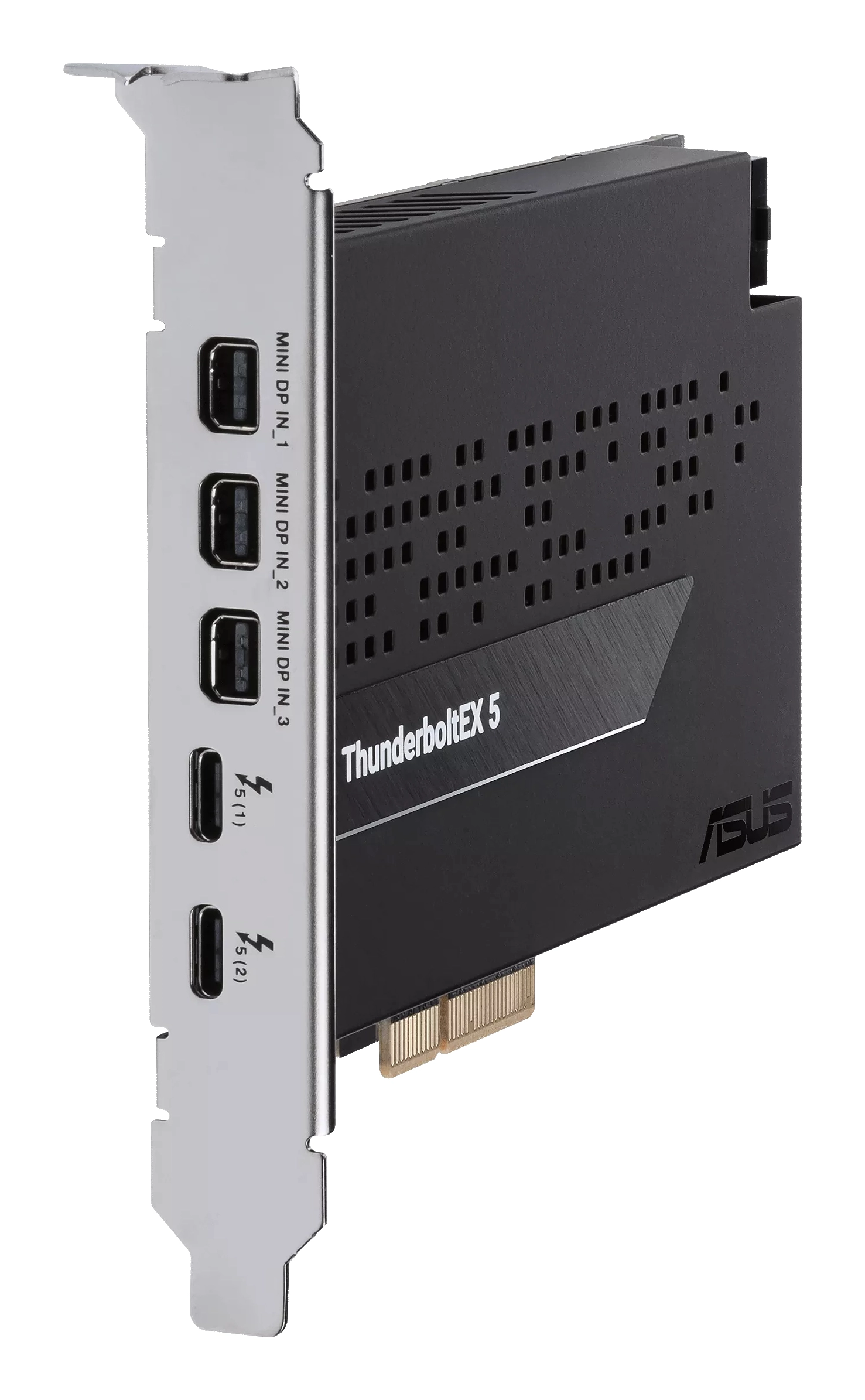

ASUS ThunderboltEX 5 Expansion Card : Dual Thunderbolt™ 5 USB‑C ports, DisplayPort™ 2.1, PCIe 4.0 x4 Interface

Experience Lightning-Fast Speed and Versatile Connectivity
The ASUS ThunderboltEX 5 card offers up to 120 Gbps of Thunderbolt™ 5 bandwidth, support for DisplayPort™ 2.1 with a compatible GPU, USB4® compatibility, plus support for up to five Thunderbolt™ devices in a daisy-chain and up to 130 total watts of fast charging.

Seamless Dual-PC Sharing with Thunderbolt™ Share
Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share—the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.

*A certified Thunderbolt™ or USB4® cable is required to meet minimum bandwidth requirements. Cable not included.

One Cable, Multiple Devices
Simplify your setup by daisy-chaining multiple Thunderbolt™ devices to one Thunderbolt™ 5 port.

Optimized for Blistering Data Transfer Speeds

Specification

Product
Product id	1005812
Brand	AsusTek
Partnr	90MC0E50-M0EAY0
EAN/UPC code	4711387776469
Warranty (months)	36 months
Technical details
Chipset	Intel JHL9580 Thunderbolt 5 Controller
Ports & interfaces
Host interface	PCIe

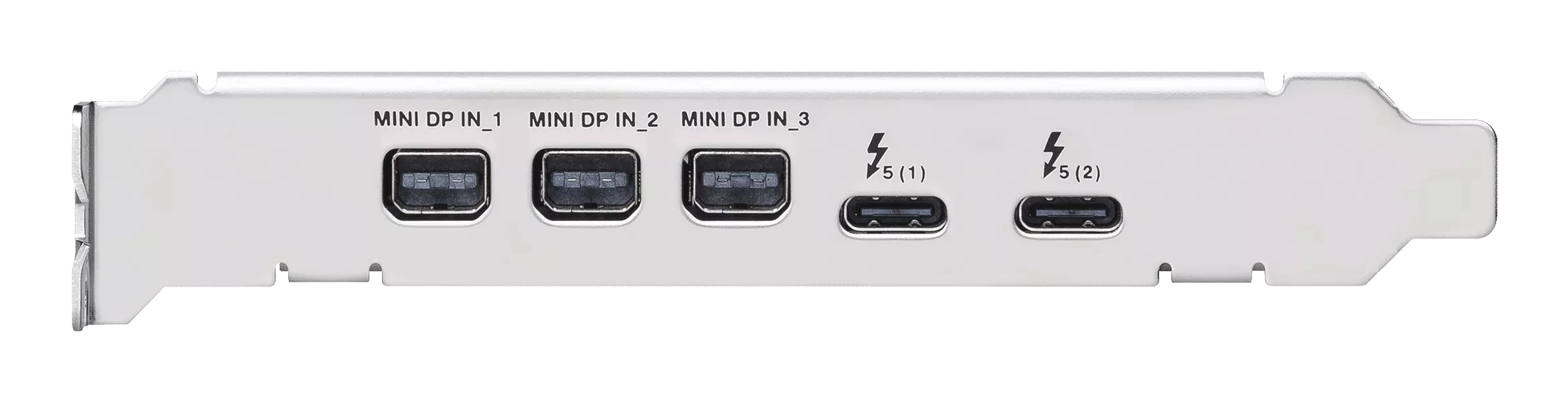

Output interface	Mini DisplayPort, PCIe, USB 2.0
Expansion card standard	PCIe 4.0
Design
Internal	Y
Product colour	Multicolour
Purpose	PC
Features
Data transfer rate (max)	120 Gbit/s
Packaging data
Package type	Box
System requirements
Windows operating systems supported	Windows 11 x64
Weight & dimensions
Width	88.9 mm
Depth	119.5 mm
Logistics data
Quantity per pack	1 stuk(s)
Other features
Maximum resolution	7680 x 4320 Pixels
