Ultra-compact mini PC with AMD Ryzen™ 7000U Series Processor and AMD Radeon ™ Graphics, supports Quad displays and 4K resolution, 1x PCIe® Gen3x4 M.2 NVMe™ SSD, 2.5 Gb LAN, WiFi 6E

Ultra-compact Mini PC provides flexible, comprehensive solutions
ASUS ExpertCenter PN53-S1 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 7000 Series Processor with Radeon™ graphics, and can accommodate multiple storage combinations.

Specification

Product
Product id	996652
Brand	AsusTek
Partnr	90MR0112-M00070
EAN/UPC code	4711636042109
Warranty (months)	24 months
Processor
Built-in processor	Y
Processor manufacturer	AMD
Processor family	AMD Ryzen 5
Processor generation	AMD Ryzen 7000 Series
Processor frequency	2 GHz
Processor cores	6
Processor threads	12
Processor boost frequency	4.5 GHz
L2 cache	3 MB
L3 cache	16 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5, M.2 "
SSD form factor	M.2
Storage drive interface	M.2, Serial ATA
NVMe	Y
Card reader integrated	N
Graphics
On-board graphics adapter	Y
Graphics adapter family	AMD
On-board graphics adapter model	AMD Radeon Graphics
Maximum resolution	4096 x 2160 Pixels
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Copper ethernet cabling technology	2.5GBASE-T
Bluetooth version	5.2
Bluetooth	Y

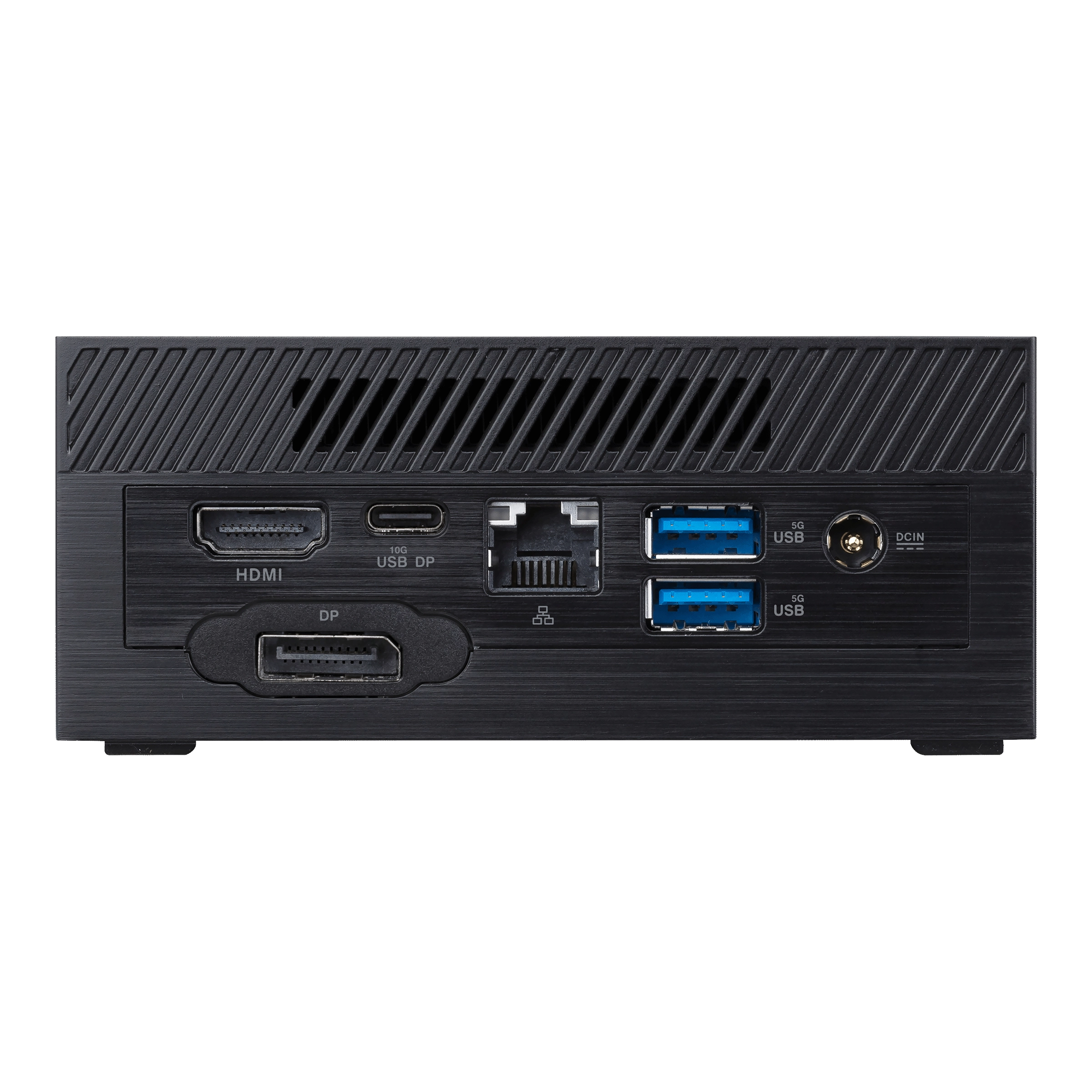

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Combo headphone/mic port	Y
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Design
Chassis type	0.62L sized PC
Product colour	Black
On/off switch	Y
Cable lock slot	Y
Cable lock slot type	Kensington
Product type	Mini PC (<= 3L) barebone
Certification	BSMI / CB / CE / FCC / UL / CCC / Energy Star / C-Tick / WiFi / RF / VCCI
Technical details
Sustainability certificates	ENERGY STAR
Power
Power supply	90 W
AC adapter output voltage	19 V
AC adapter output current	4.74 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95 procent
Weight & dimensions
Width	115 mm
Depth	115 mm
Height	49 mm
Weight	550 g
Package width	183 mm
Package depth	151 mm
Package height	127 mm
Package weight	1840 g
