ASUS ExpertCenter PN54-S1 Mini PC
Trusted Performance, Energy Efficient
ASUS ExpertCenter PN54-S1 Mini PC strikes the perfect balance of performance and energy efficiency. Featuring AMD Ryzen™ 200 Series processors , it delivers robust performance with quad 4K display support, 6 USB ports, and Wi-Fi 7 for seamless everyday computing

Specification

Product
Product id	1013604
Brand	AsusTek
Partnr	90MS0391-M002L0
EAN/UPC code
Processor
Processor manufacturer	AMD
Processor family	AMD Ryzen 5
Processor generation	AMD Ryzen 200 Series
Processor model	220
Processor cores	6
Processor frequency	3.2 GHz
Processor boost frequency	4.9 GHz
Processor cache type	L2 & L3
Processor threads	12
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	512 GB
Optical drive type	N
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	AMD Radeon
On-board GPU manufacturer	AMD
On-board graphics adapter model	AMD Radeon 740M
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Y
Bluetooth version	5.4

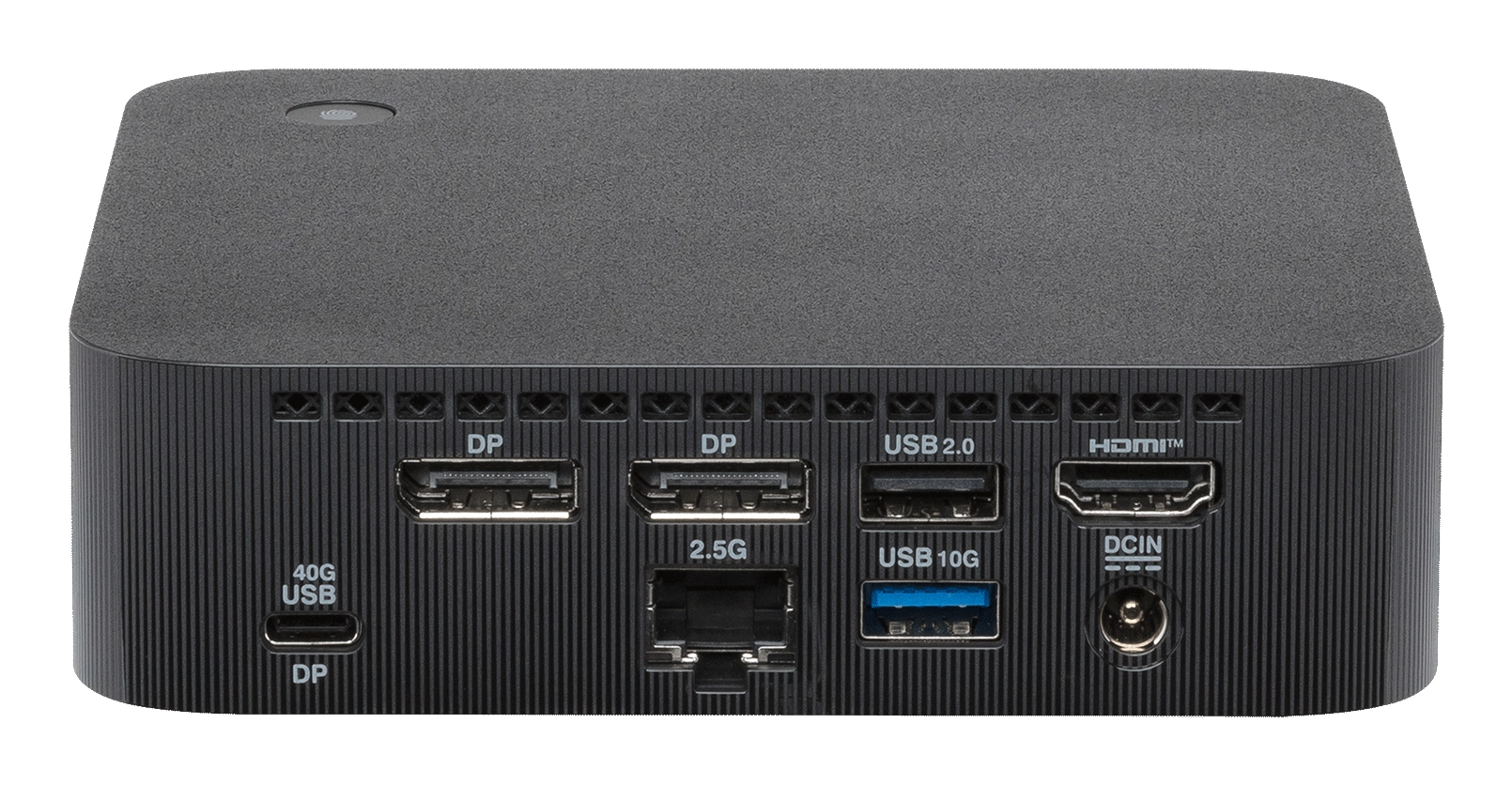

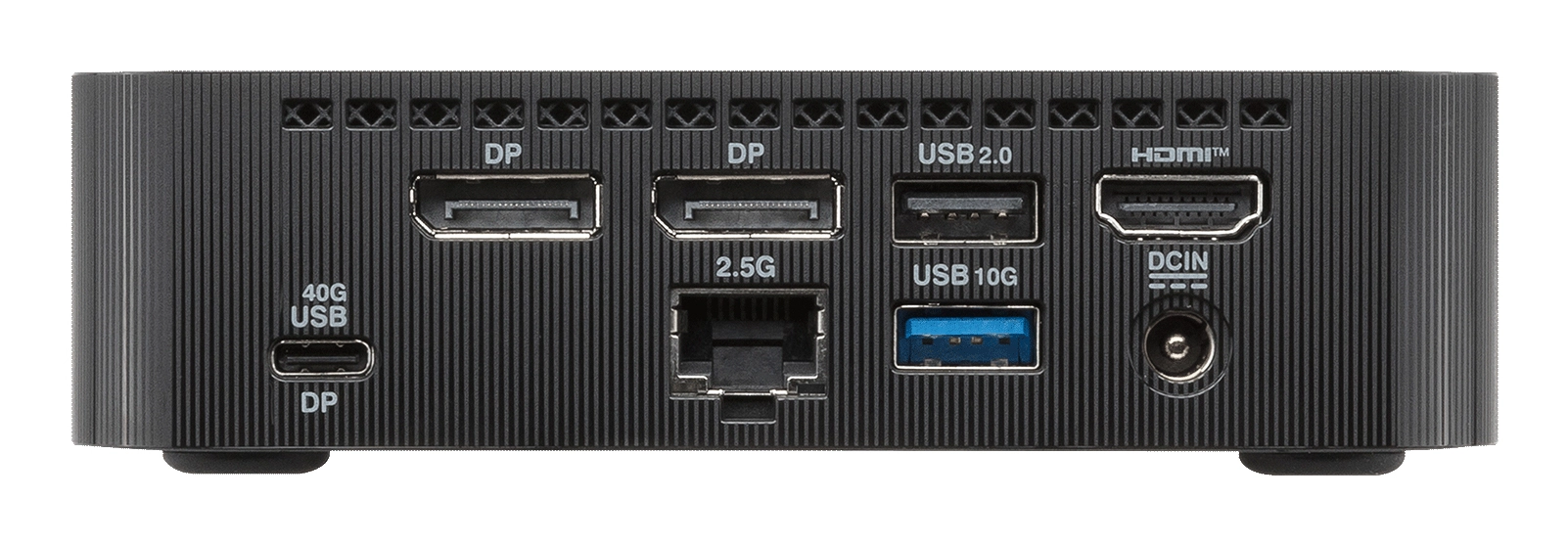

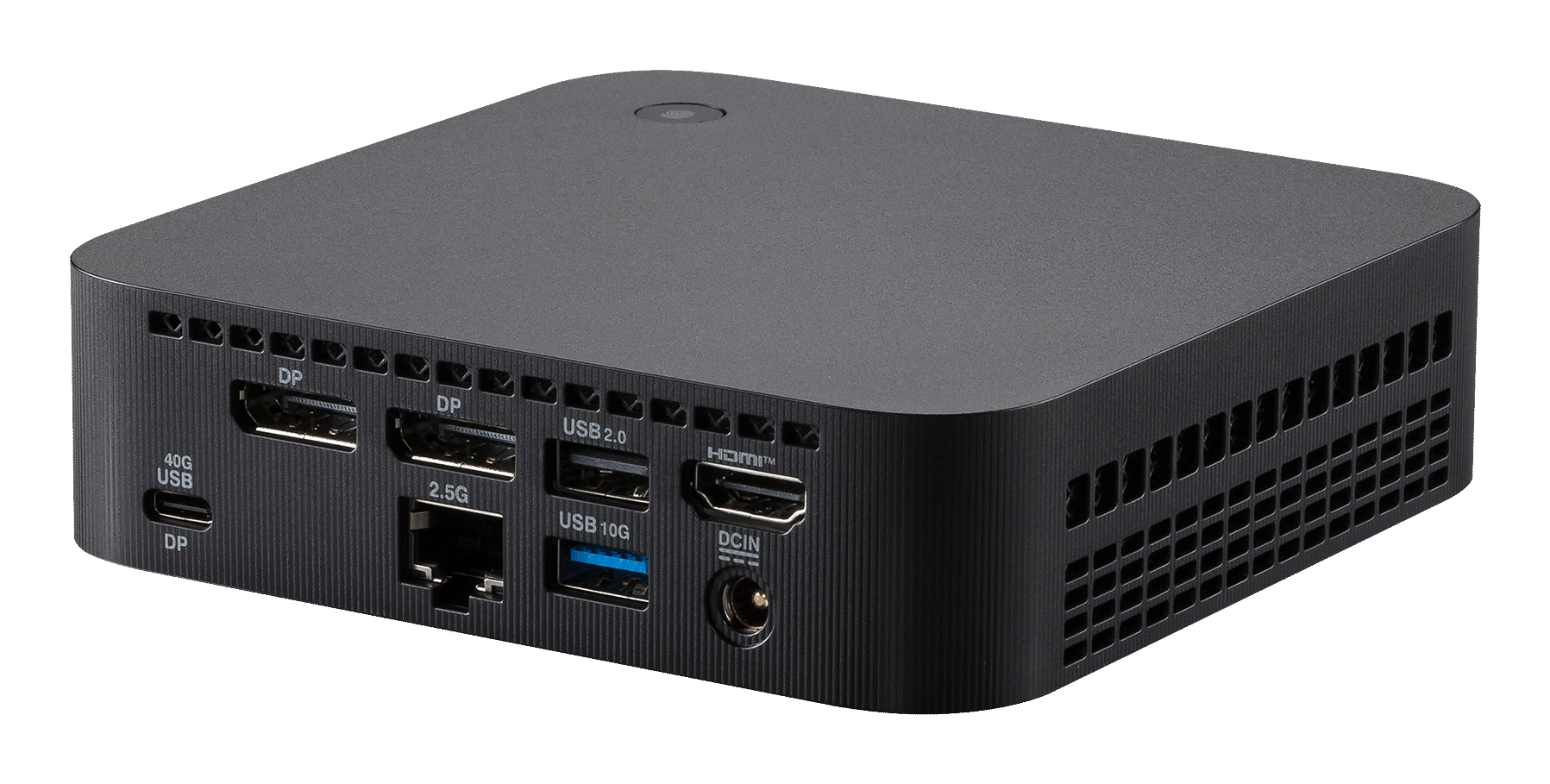

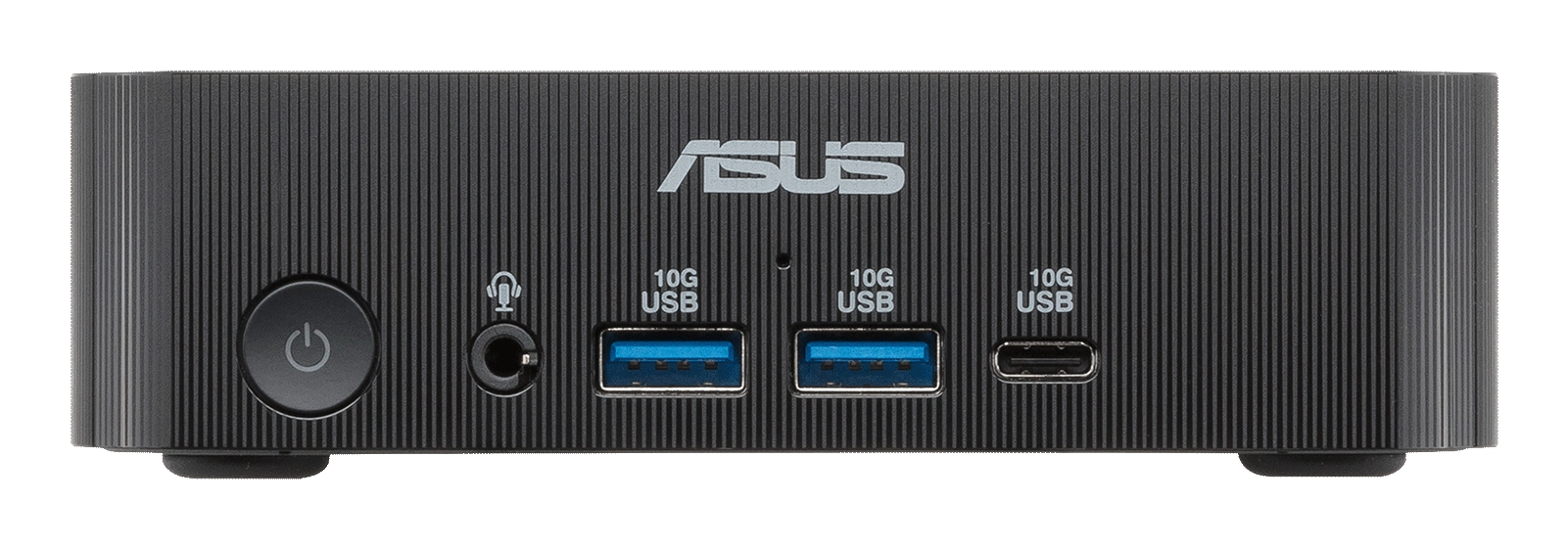

Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
Headphone outputs	1
DC-in jack	Y
Design
Chassis type	Mini PC
Colour name	Black
Placement supported	Horizontal/Vertical
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Performance
Product type	Mini PC (<= 3L)
Audio chip	Realtek ALC3251
Audio system	High Definition Audio
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Power
Power supply	120 W
Weight & dimensions
Width	130 mm
Depth	130 mm
Height	34 mm
Weight	550 g
Package width	189 mm
Package depth	157 mm
Package height	134 mm
Package weight	1480 g
Packaging content
Display included	N
