Intel Xeon Scalable platform design

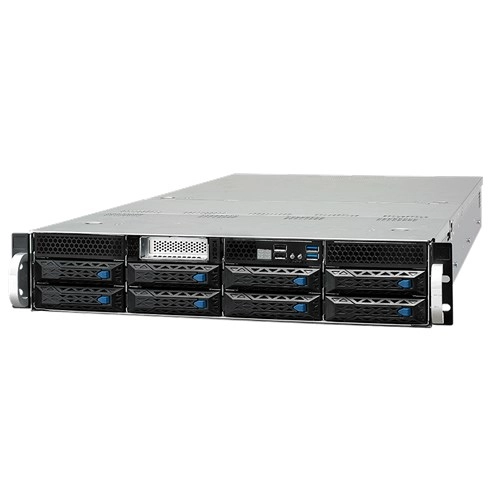

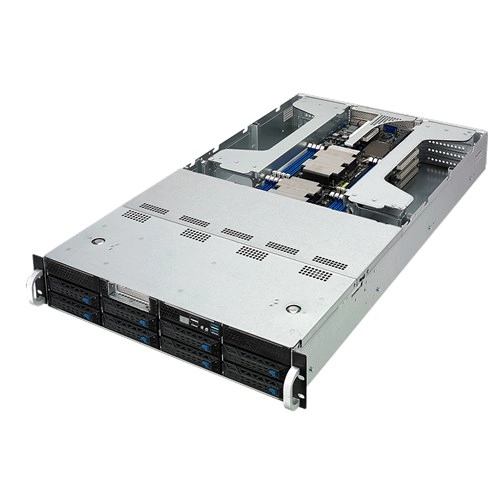

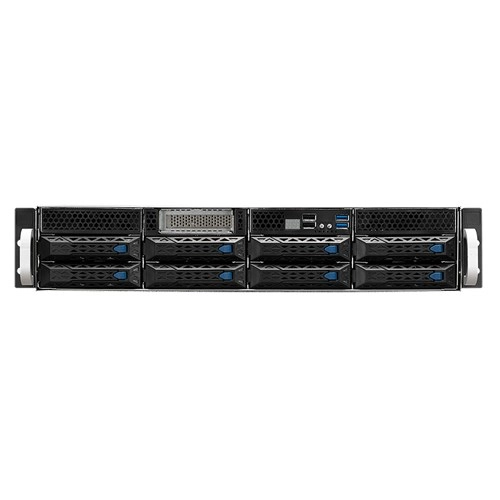

ASUS ESC4000 G4 is built on the Intel Xeon Scalable Platform to deliver incredible 2U server performance, packing incredible power into minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

Flexible choice on versatile accelerators
ESC4000 G4 supports up to four double-deck server GPUs in a 2U form factor. Broad GPU support including NVIDIA, AMD and Intel

Maximum flexible 8+3 expansion slots in a 2U server

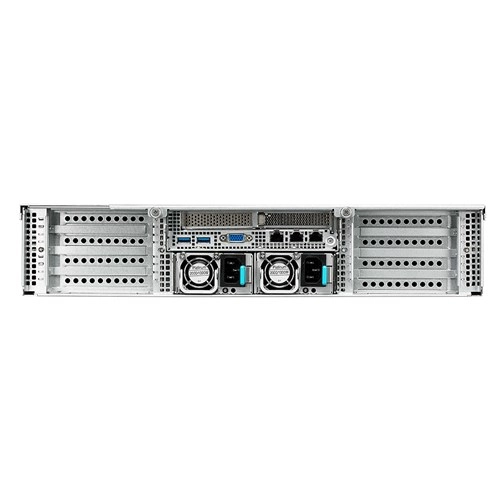

ESC4000 G4 offers eight full-length PCI Express 3.0 x16 (4 at x16 Link or 8 at x8 Link), one low-profile PCI Express 3.0 x24 with support of a riser card for additional one PCI Express x16 (x16 Gen3 Link) and one PCI Express x8. One PCI Express x8 for internal HBA/RAID card. Flexible expandability in a 2U form factor supports diverse storage and networking applications to meet the demands of future expansion and high scalability.

User-friendly design for easier server maintenance
ESC4000 G4 features numerous user-friendly design features that simplify server maintenance. The server's Q-code is visible from the outside of the case to make diagnosing issues easier and more convenient. A tool-less chassis design is included for easy server installation and removal, and a tool-less, hot-swappable fan provides faster and simpler maintenance.

Expandable storage for faster transfer speeds
ESC4000 G4 features full-bandwidth port-to-port OCuLink for two NVMe storage devices with 3X faster transfer speeds compared to PCIe switch IC solutions. One M.2 slot accommodates 2280-size SSDs with support for additional OS storage and PCIe 3.0 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds. ESC4000 G4 is ideal for data centers with high storage and processing demands.

Fully integrated remote server management
The latest ASMB9-iKVM module enables remote BIOS updates, standalone KVM/Java utilities, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching.
Learn more about ACC.

Smart thermal design for energy efficiency

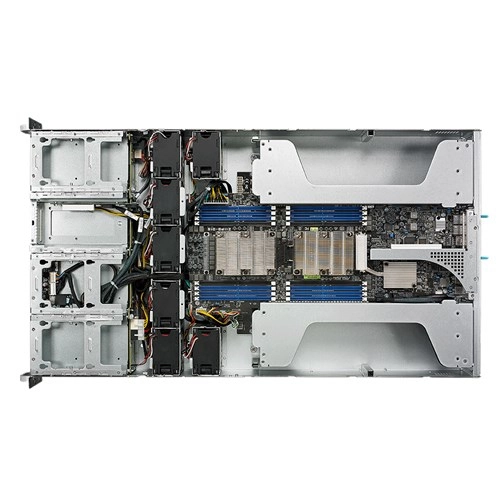

ESC4000 G4 features a smart thermal radar design with more ambient thermal sensors for the CPU, memory, GPU, SSD, LAN card and front-panel board that provide improved temperature monitoring and enable dynamic fan speed adjustment for better power efficiency. This smart thermal design reduces fan power consumption by up to 20% and eliminates the power-sharing board for improved efficiency and lower operation costs.

Specification

Product
Product id	606796
Brand	AsusTek
Partnr	90SF0071-M00340
EAN/UPC code	4712900956603
Processor
Built-in processor	Y
Motherboard chipset	Intel C621
Processor socket	LGA 3647 (Socket P)
Processor family	Intel Xeon Scalable
Number of processors supported	2
Memory
Number of DIMM slots	16
Supported memory types	DDR4-SDRAM
Supported DIMM module capacities	4GB, 8GB, 16GB, 32GB, 64GB
Maximum internal memory	2048 GB
Maximum RDIMM memory	64 GB
Storage
Number of storage drives supported	8
Hot-swap HDD bays	Y
Storage drive sizes supported	2.5, 3.5 "
Supported storage drive interfaces	M.2
Graphics
On-board graphics adapter model	Aspeed AST2500
On-board graphics adapter memory	64 MB
Network
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
LAN controller	Intel I350-AM2
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	3
VGA (D-Sub) ports quantity	1
Expansion slots
PCI Express slots version	3.0
PCI Express x16 slots	8
Features
Harmonized System (HS) code	84714100
Design
Chassis type	Rack (2U)
Product colour	Black, Silver
LED indicators	HDD, LAN, Power
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 90 procent
Weight & dimensions
Width	440 mm
Depth	800 mm
Height	88 mm
