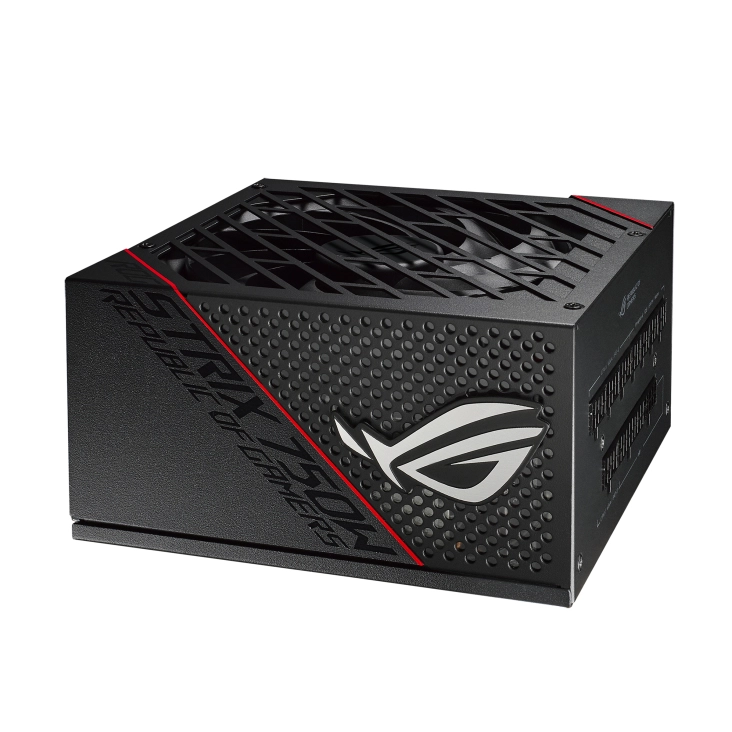

Frozen Silence
The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. In terms of cooling, massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX™ graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.

ROG Heatsinks
Let it sink in
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

80 Plus Gold Certification
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

Cosmetic Customization
Aesthetic
Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.

Specification

Product
Product id	1005334
Brand	AsusTek
Partnr	90YE00A7-B0NA00
EAN/UPC code	4711387232521
Warranty (months)	10-year warranty
Power
Total power	750 W
AC input voltage	100 - 240 V
Combined power (+3.3V)	100 W
Combined power (+12V)	744 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector	24-pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	8
SATA power cable length	120, 150, 450 mm
Peripheral (Molex) power connectors (4-pin)	4
Peripheral (Molex) power cable length	120, 450 mm
PCI Express power connectors (6+2 pin)	3
PCI Express power connectors (16-pin)	1
PCI Express power cable length	675 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	1000 mm
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Bearing technology	DBB
Design
Product colour	Black
Cooling type	Active
Fan diameter	135 mm
Number of fans	1 ventilator(en)
Fan location	Top
On/off switch	Y
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	160 mm
Depth	150 mm
Height	86 mm
Weight	1820 g
Packaging data
Cables included	CPU, PCIe, Peripheral (Molex), SATA
Package width	310 mm
Package depth	180 mm
Package height	115 mm
Package weight	3170 g
Package type	Box
