ASUS ROG -STRIX-850G-WHITE-N. Total power: 850 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120, 150, 410, 450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Specification

Product
Product id	1005333
Brand	AsusTek
Partnr	90YE00A9-B0NA00
EAN/UPC code	4711387232200
Warranty (months)	60 months
Endurance
Mean time between failures (MTBF)	120000 uur
Power
Total power	850 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	840 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces

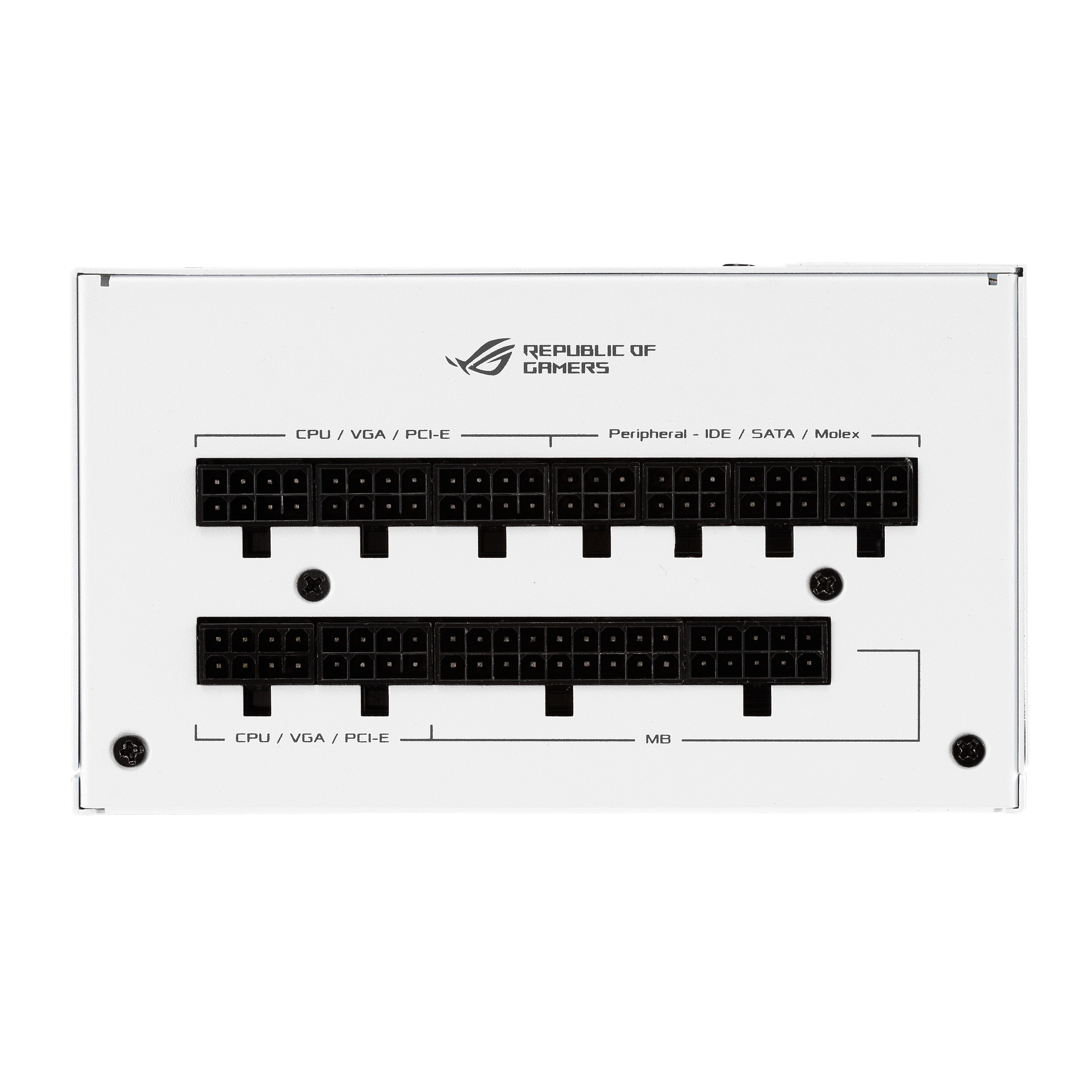

Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	8
SATA power cable length	120, 150, 410, 450 mm
Peripheral (Molex) power connectors (4-pin)	6
Peripheral (Molex) power cable length	120, 450 mm
PCI Express power connectors (6+2 pin)	3
PCI Express power connectors (16-pin)	1
PCI Express power cable length	675 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	1000 mm
ATX power connector (20+4 pin)	Y
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Silent mode	Y
Design
Product colour	White
Cooling type	Active

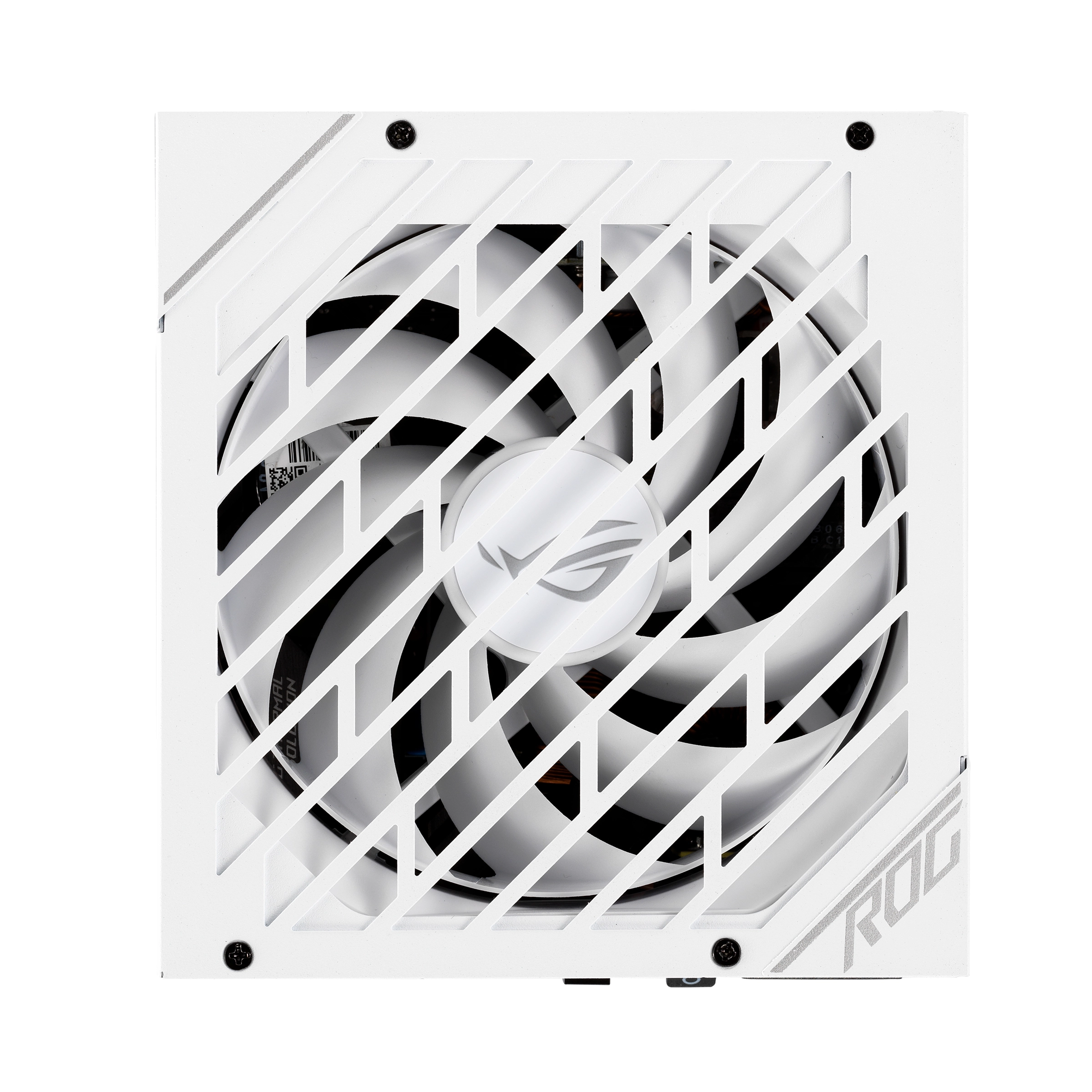

Fan diameter	135 mm
Number of fans	1 ventilator(en)
Fan location	Top

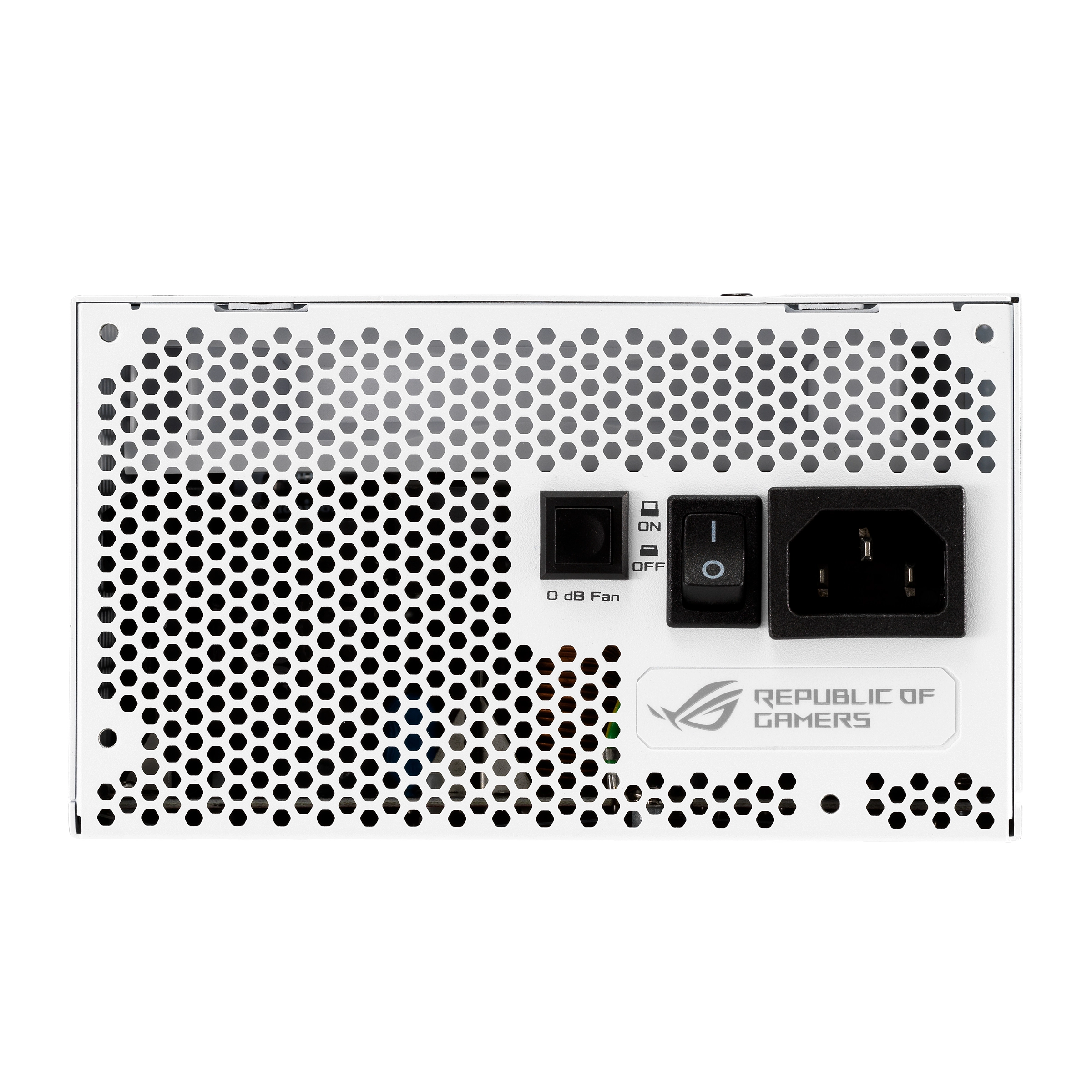

On/off switch	Y
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	160 mm
Depth	150 mm
Height	86 mm
Weight	1830 g
Packaging data

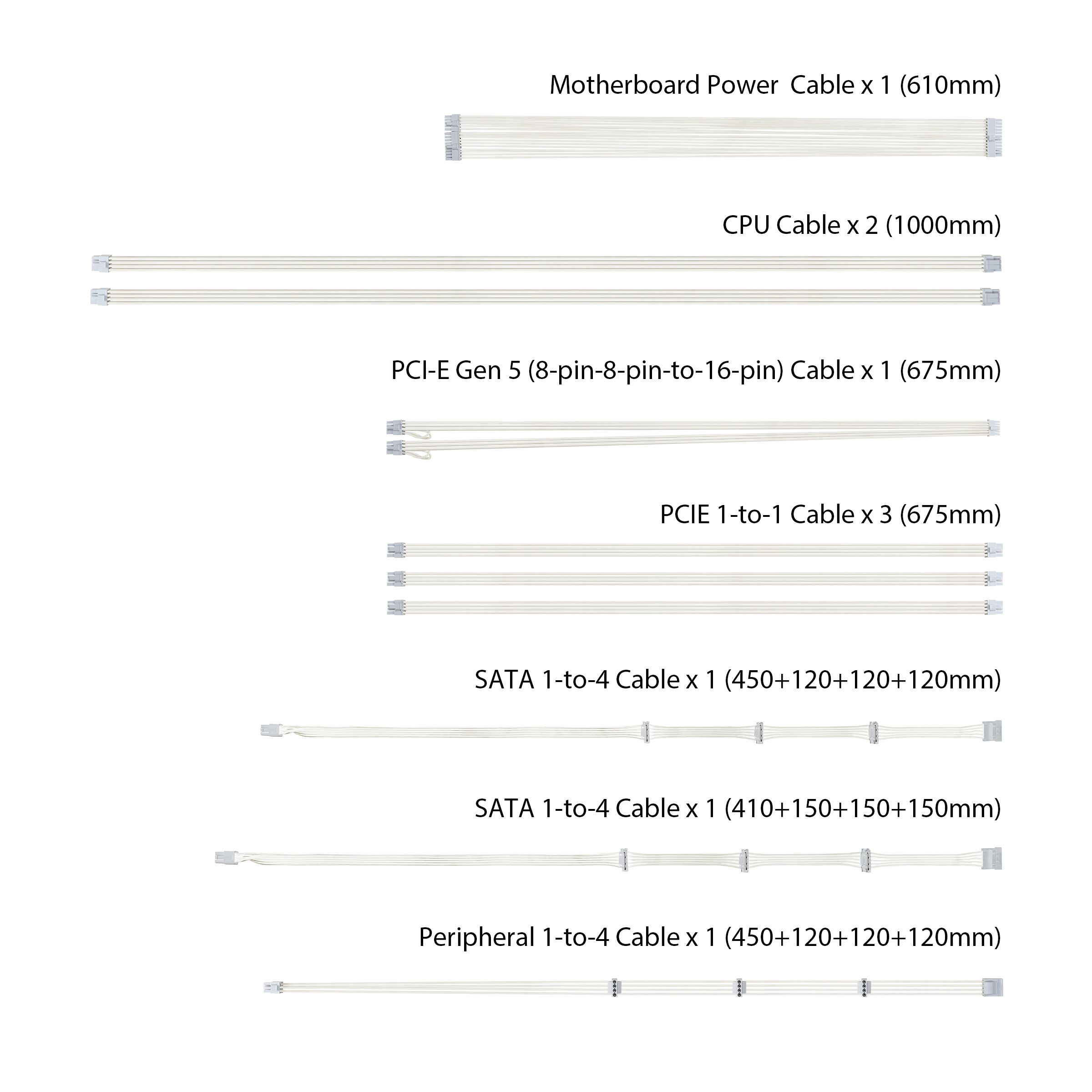

Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package type	Box
