Built For The Long Haul
TUF Gaming Bronze EVO series PSUs deliver dependable power with military-grade components, a robust cooling solution, and ATX 3.1 compatibility. High-quality capacitors and chokes endure rigorous testing to meet military specifications. The dual-ball fan bearings ensure longevity, making this PSU ideal for TUF Gaming rigs or any build designed for years of AAA gaming.

Specification

Product
Product id	1009717
Brand	AsusTek
Partnr	90YE00D5-B0NA00
EAN/UPC code	4711636170406
Warranty (months)	6-year warranty included.
Endurance
Mean time between failures (MTBF)	120000 uur
Power
Total power	750 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	80 W
Combined power (+12V)	750 W
Combined power (+5V)	80 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	12 A
Max output current (+12V)	62.5 A
Max output current (+5V)	12 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces

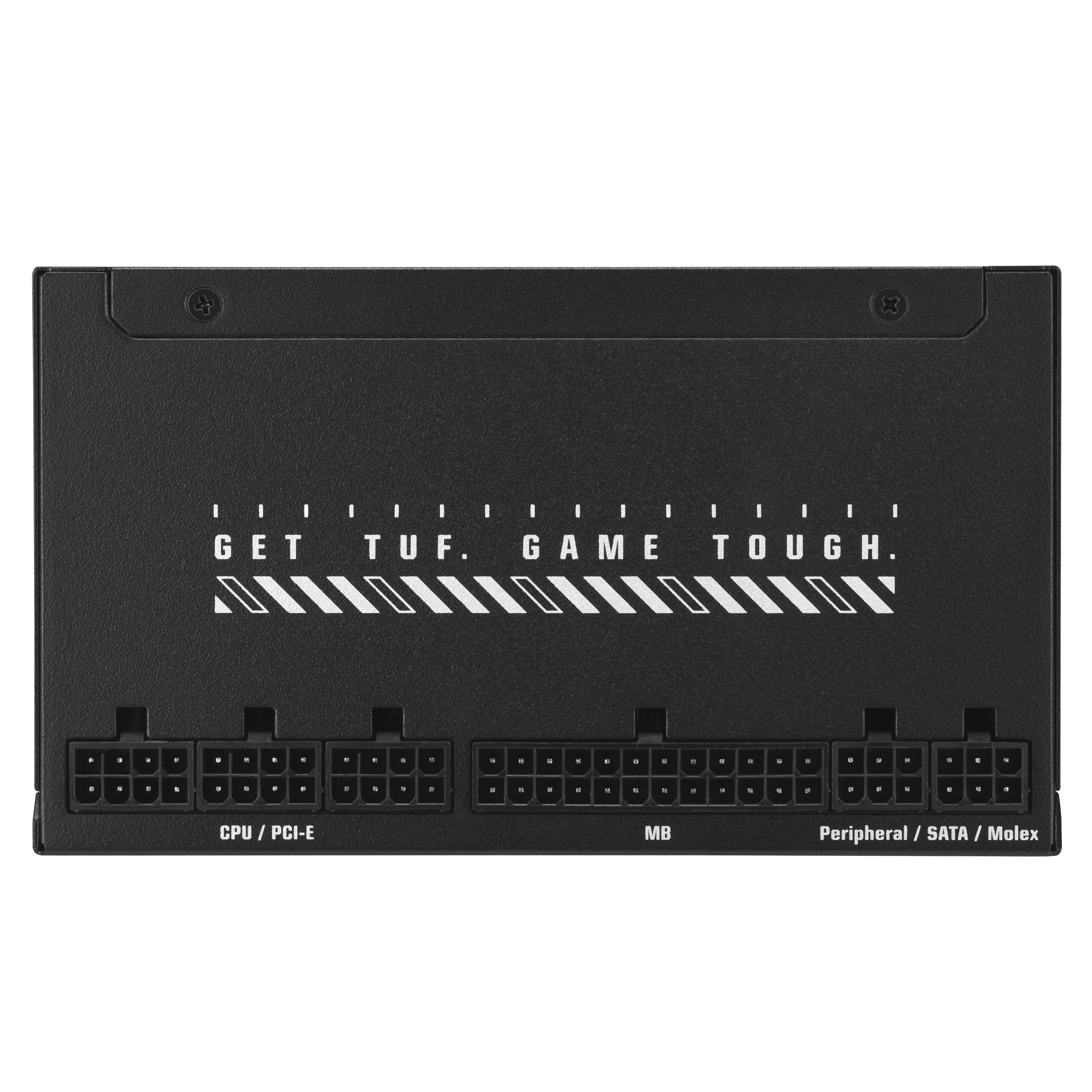

Motherboard power connector	20+4 pin ATX
Motherboard power cable length	500 mm
Number of SATA power connectors	4
SATA power cable length	400, 120 mm
Peripheral (Molex) power connectors (4-pin)	2
Peripheral (Molex) power cable length	400, 120 mm
PCI Express power connectors (6+2 pin)	3
PCI Express power cable length	600 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	650 mm
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	3.1
Bearing technology	DBB
Design
Product colour	Black
Cooling type	Active
Number of fans	1 ventilator(en)
Fan location	Top
On/off switch	Y
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	86 mm
Weight	1411 g
Packaging data
Cables included	CPU, PCIe, Peripheral (Molex), SATA
Package width	282 mm
Package depth	182 mm
Package height	127 mm
Package weight	2110 g
Package type	Box
