Prime 850W Gold Black Edition
STELLAR
PERFORMANCE

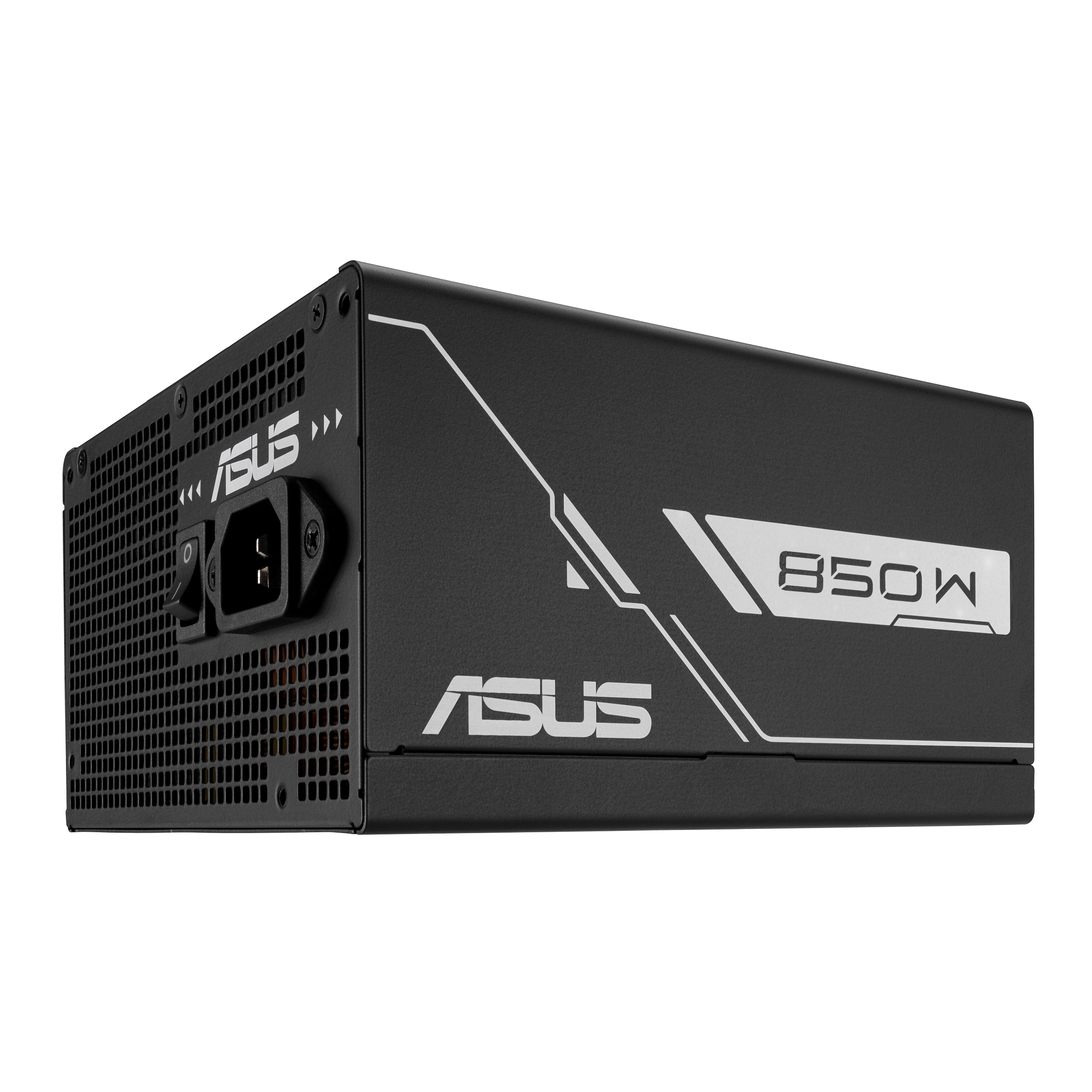

A Prime Gold Black Edition power supply unit in a blue, space vibe background.
With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

Specification

Product
Product id	1009723
Brand	AsusTek
Partnr	90YE00U2-B0NA00
EAN/UPC code	4711636288194
Warranty (months)	8-year warranty is included
Endurance
Mean time between failures (MTBF)	120000 uur
Power
Total power	850 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	846 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	600 mm
Number of SATA power connectors	5
SATA power cable length	400, 120 mm
Peripheral (Molex) power connectors (4-pin)	4
Peripheral (Molex) power cable length	400, 150 mm
PCI Express power connectors (6+2 pin)	2
PCI Express power connectors (16-pin)	1
PCI Express power cable length	600 mm
CPU power connector (4+4 pin)	Y
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	DBB
Design
Product colour	Black
Cooling type	Active
Number of fans	1 ventilator(en)
Fan location	Top
On/off switch	Y
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1480 g
Packaging data
Cables included	CPU, PCIe, Peripheral (Molex), SATA
Package width	320 mm
Package depth	213 mm
Package height	113 mm
Package weight	2880 g
Package type	Box
