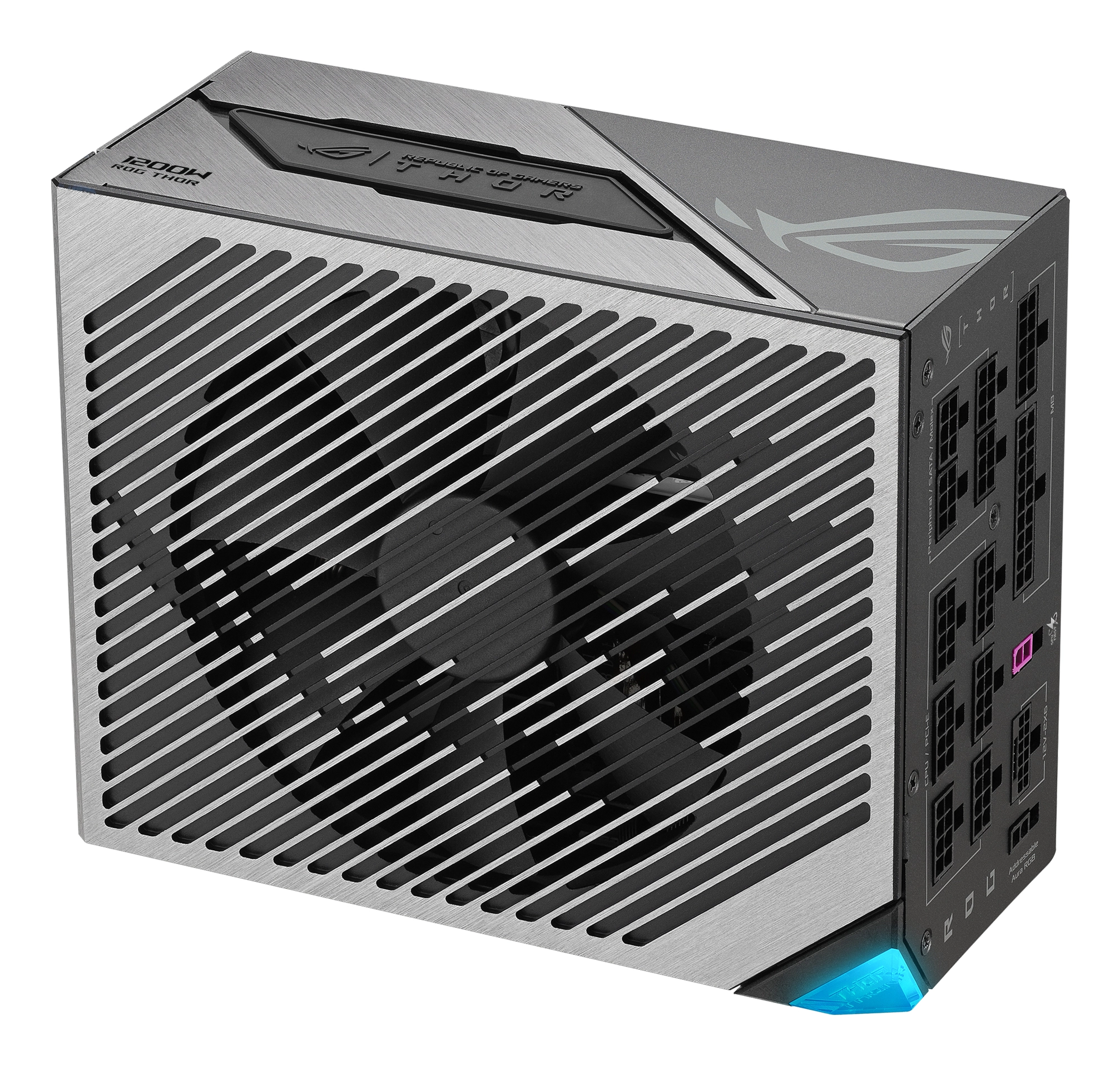

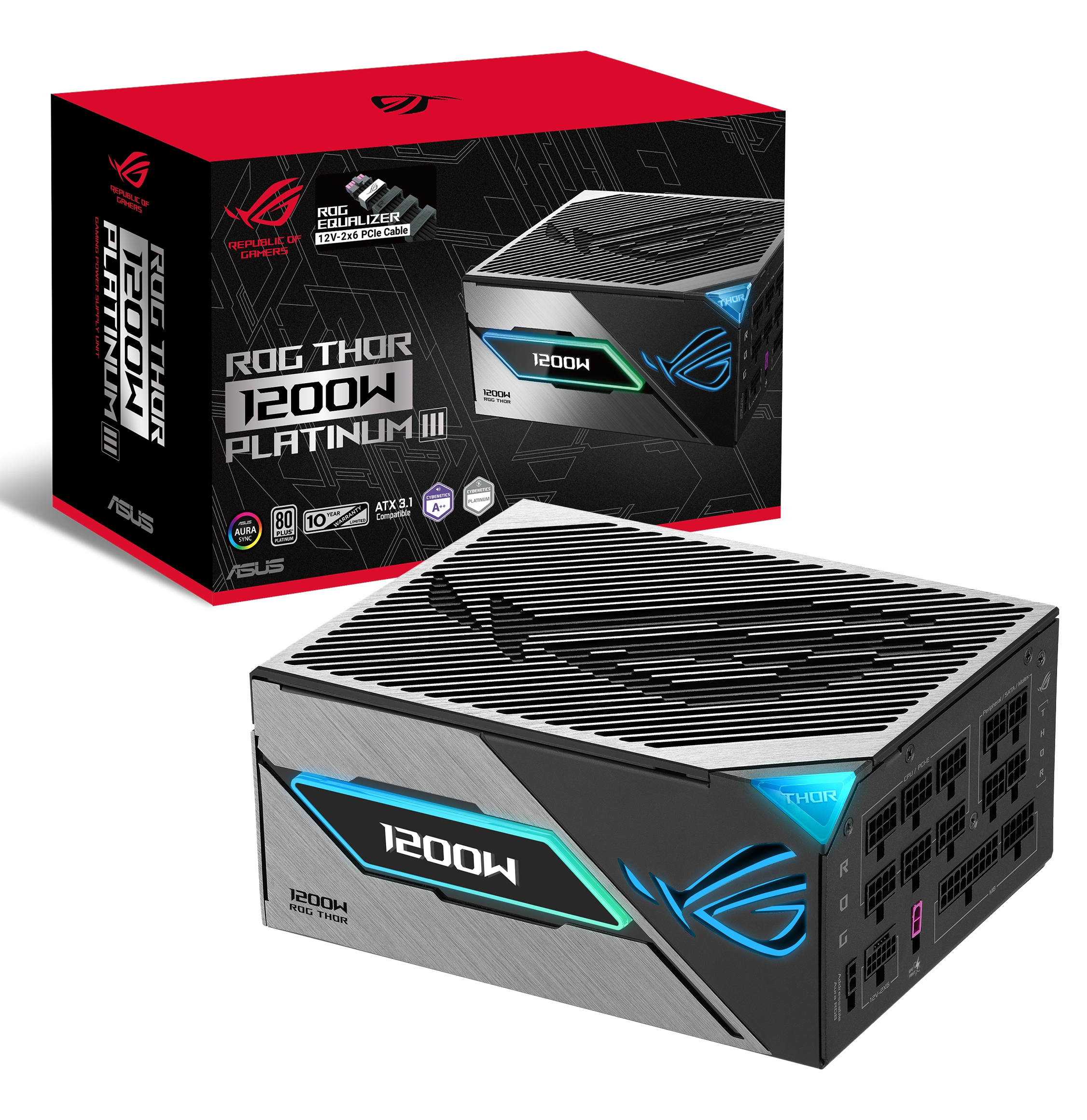

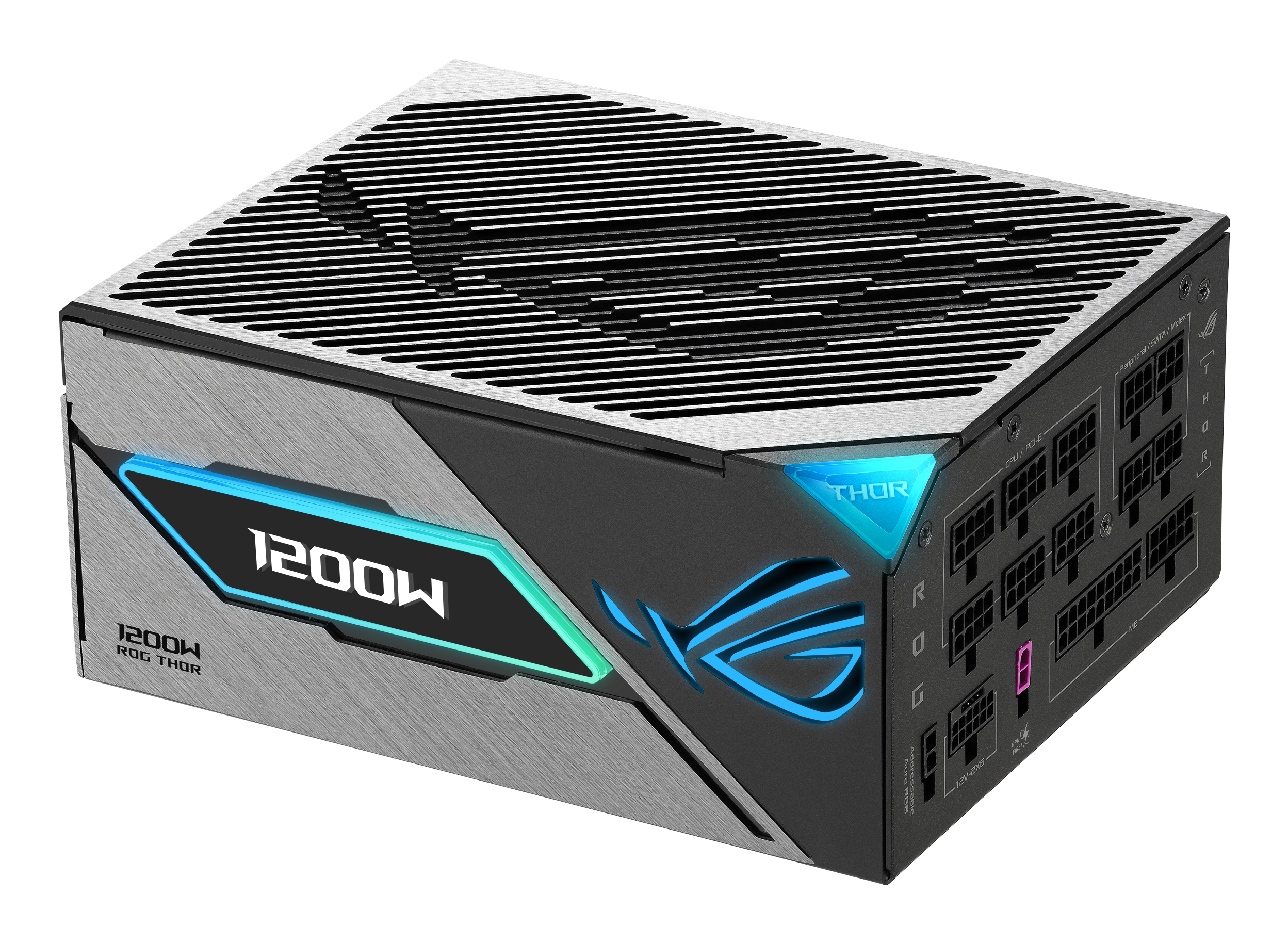

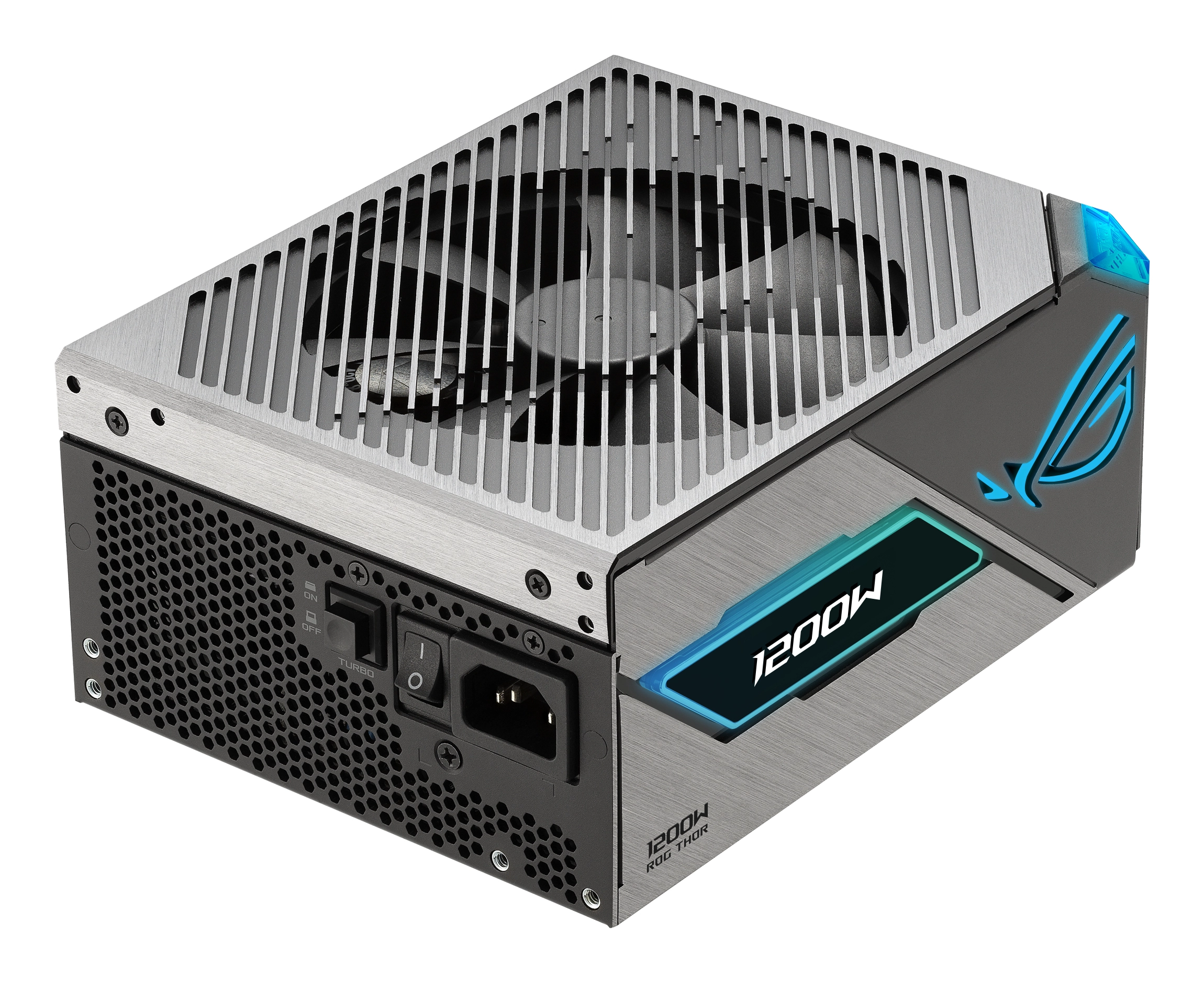

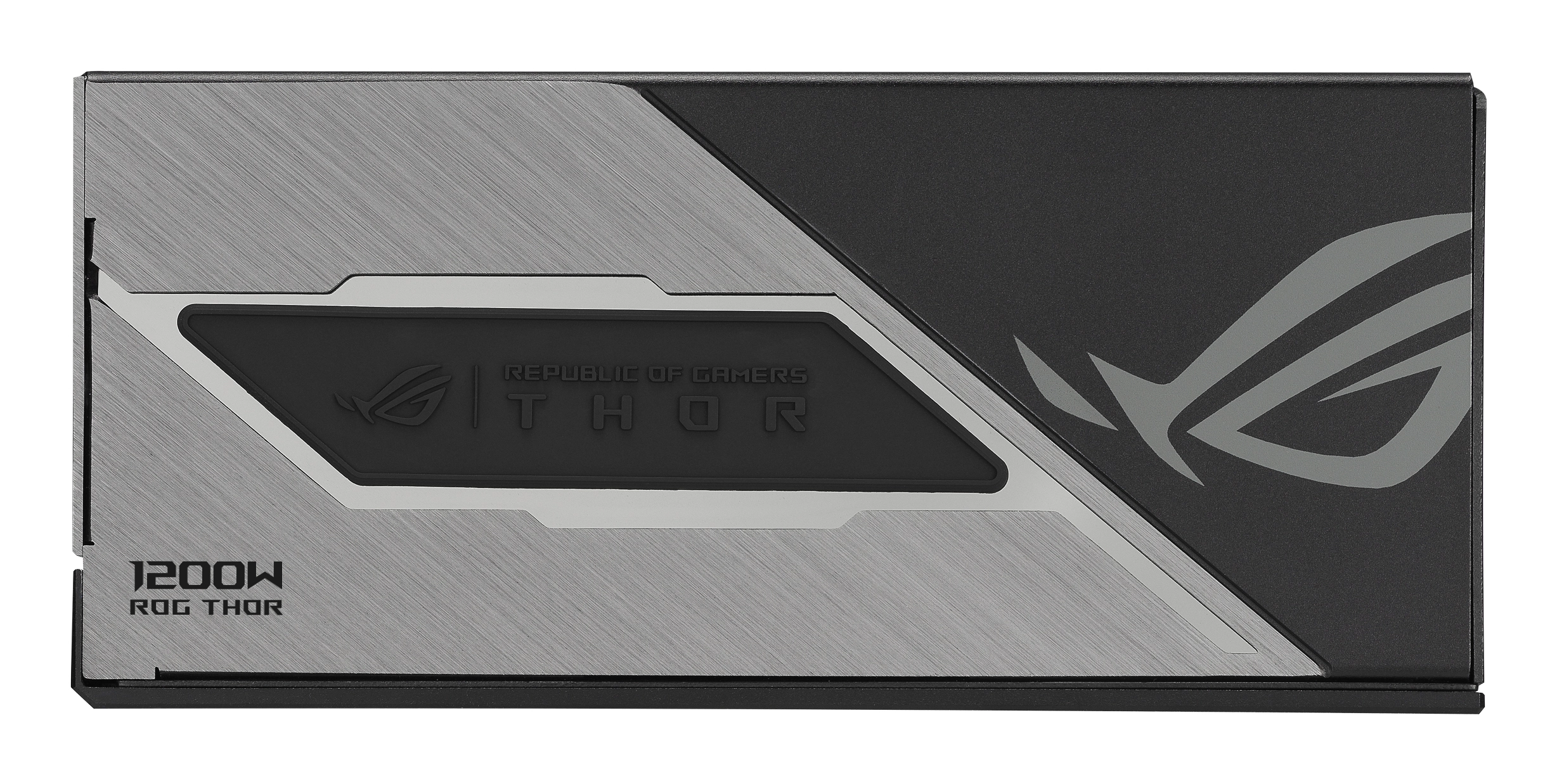

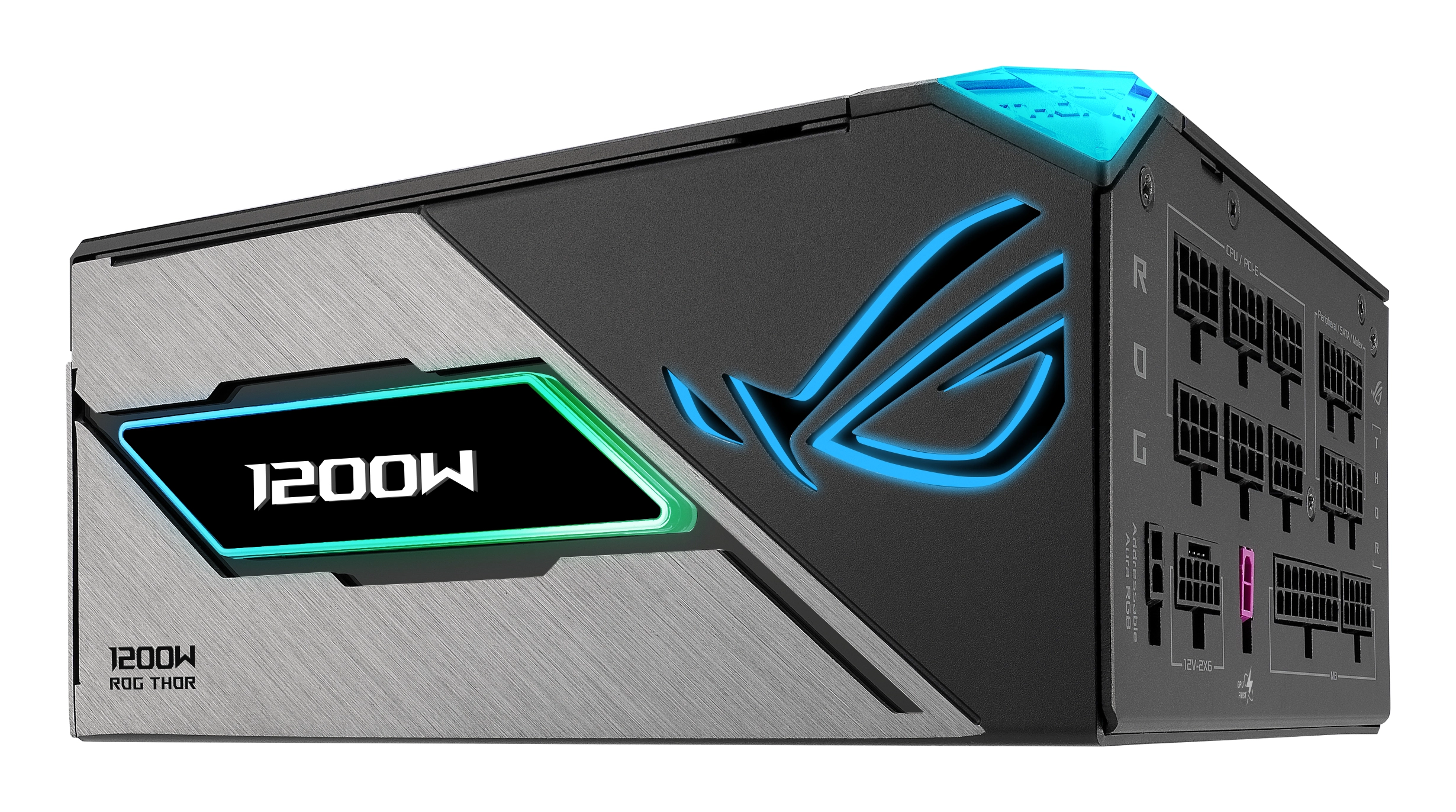

ROG Thor 1200W Platinum III
Ultimate Power. Unmatched Stability
The ROG Thor 1200W Platinum III delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.

The ROG Thor 1200W Platinum III also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Platinum Series ensures your high-end rig has the power to conquer any challenge.

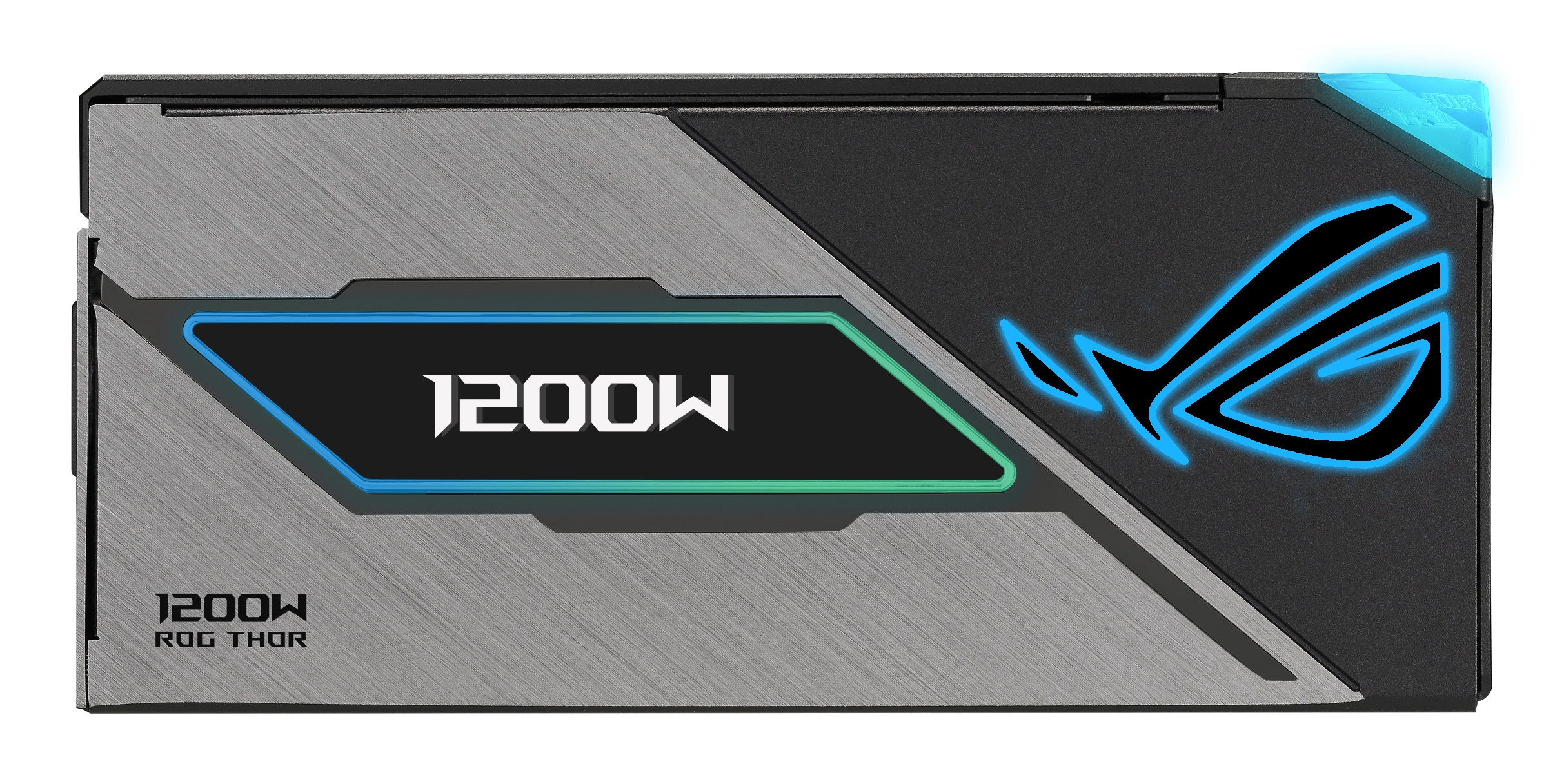

The ROG Thor 1200W Platinum III retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations.

Specification

Product
Product id	1021515
Brand	AsusTek
Partnr	90YE00V7-B0NA00
EAN/UPC code	4711636457729
Warranty (months)	60 months
Endurance
Mean time between failures (MTBF)	120000 uur
Power
Total power	1200 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1200 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	30 A
Max output current (+12V)	100 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Under voltage, Short circuit, Over current
Ports & interfaces
Motherboard power connector	24-pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	7
SATA power cable length	120, 400 mm
Peripheral (Molex) power connectors (4-pin)	6
Peripheral (Molex) power cable length	150, 400 mm
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (16-pin)	1
PCI Express power cable length	750 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	1000 mm
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Cybenetics certification	Platinum
Design
Product colour	Black
Cooling type	Active
Number of fans	1 ventilator(en)
Illumination	Y
On/off switch	Y
Weight & dimensions
Width	190 mm
Depth	150 mm
Height	86 mm
Weight	2370 g
Packaging data
Package width	379 mm
Package depth	241 mm
Package height	127 mm
Package weight	5220 g
Package type	Box
