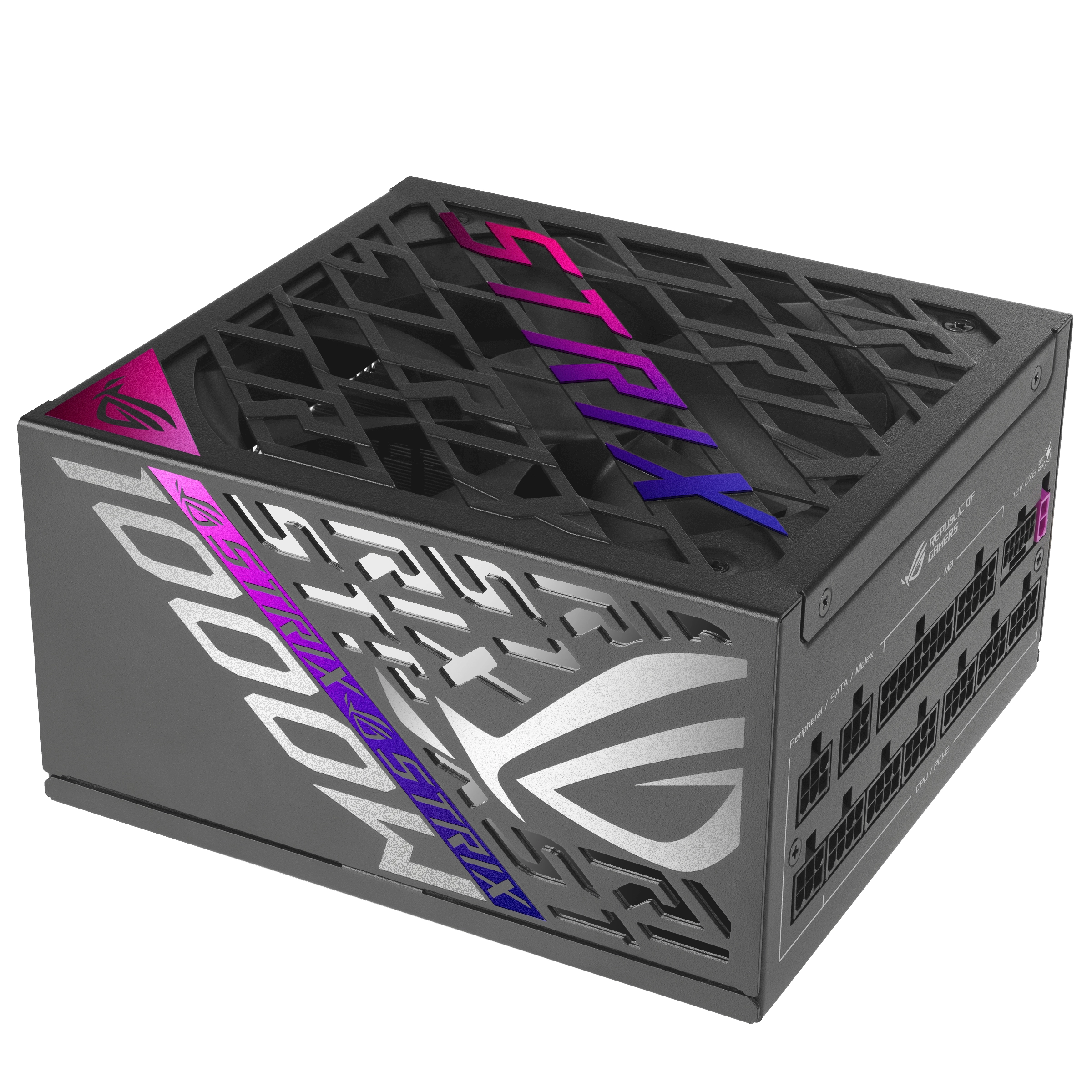

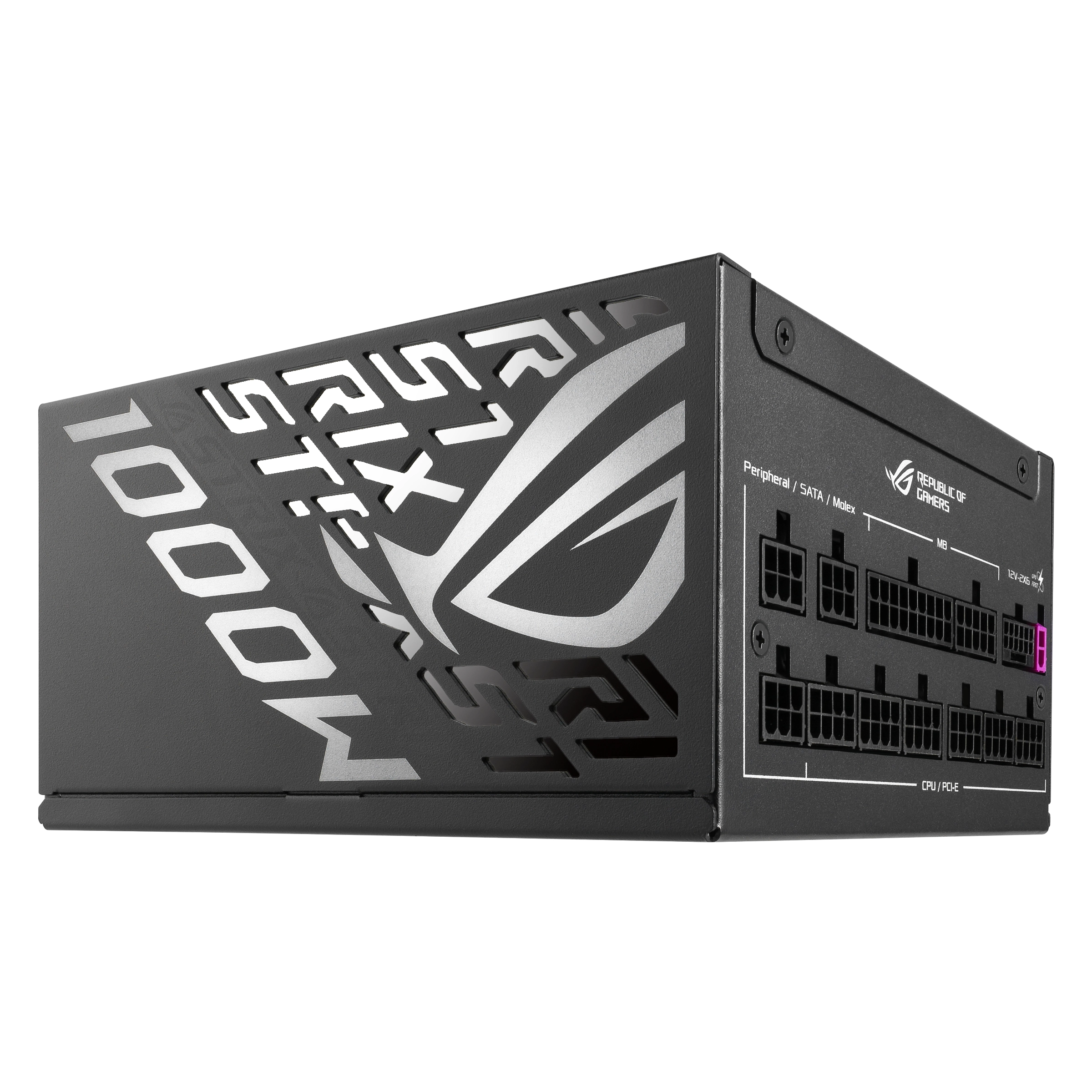

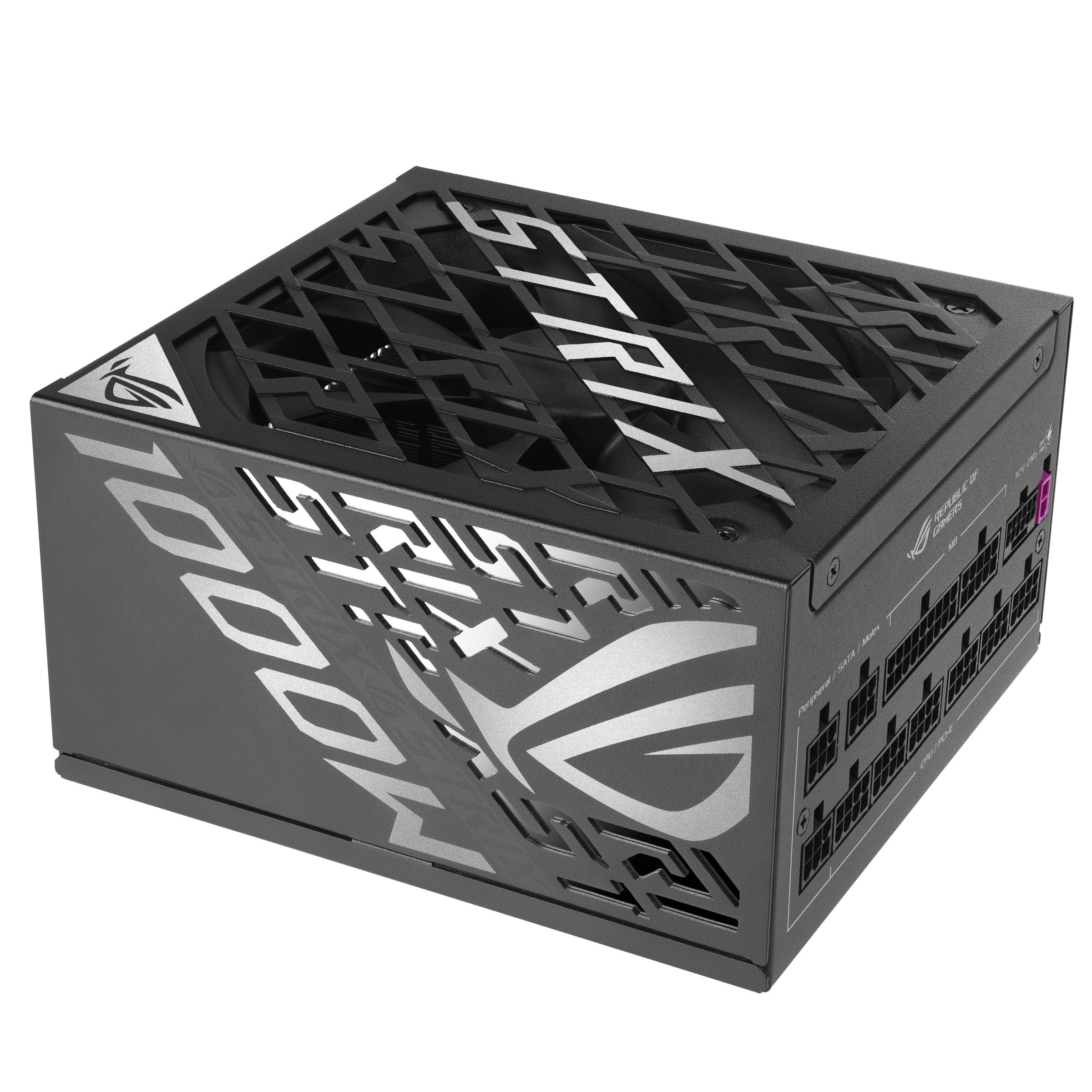

ROG STRIX 1000W PLATINUM (ROG EQUALIZER)
Superior Stability.
Next-Level Efficiency
The ROG Strix 1000W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabilizer to maintain a steady and reliable flow of power to the graphics card.

The ROG Strix 1000W Platinum further includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2×6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.

Specification

Product
Product id	1021519
Brand	AsusTek
Partnr	90YE00W7-B0NA00
EAN/UPC code
Warranty (months)	60 months
Endurance
Mean time between failures (MTBF)	120000 uur
Power
Total power	1000 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	1000 W
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.3 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Overheating, Over current, Over power, Over voltage, Short circuit, Under power

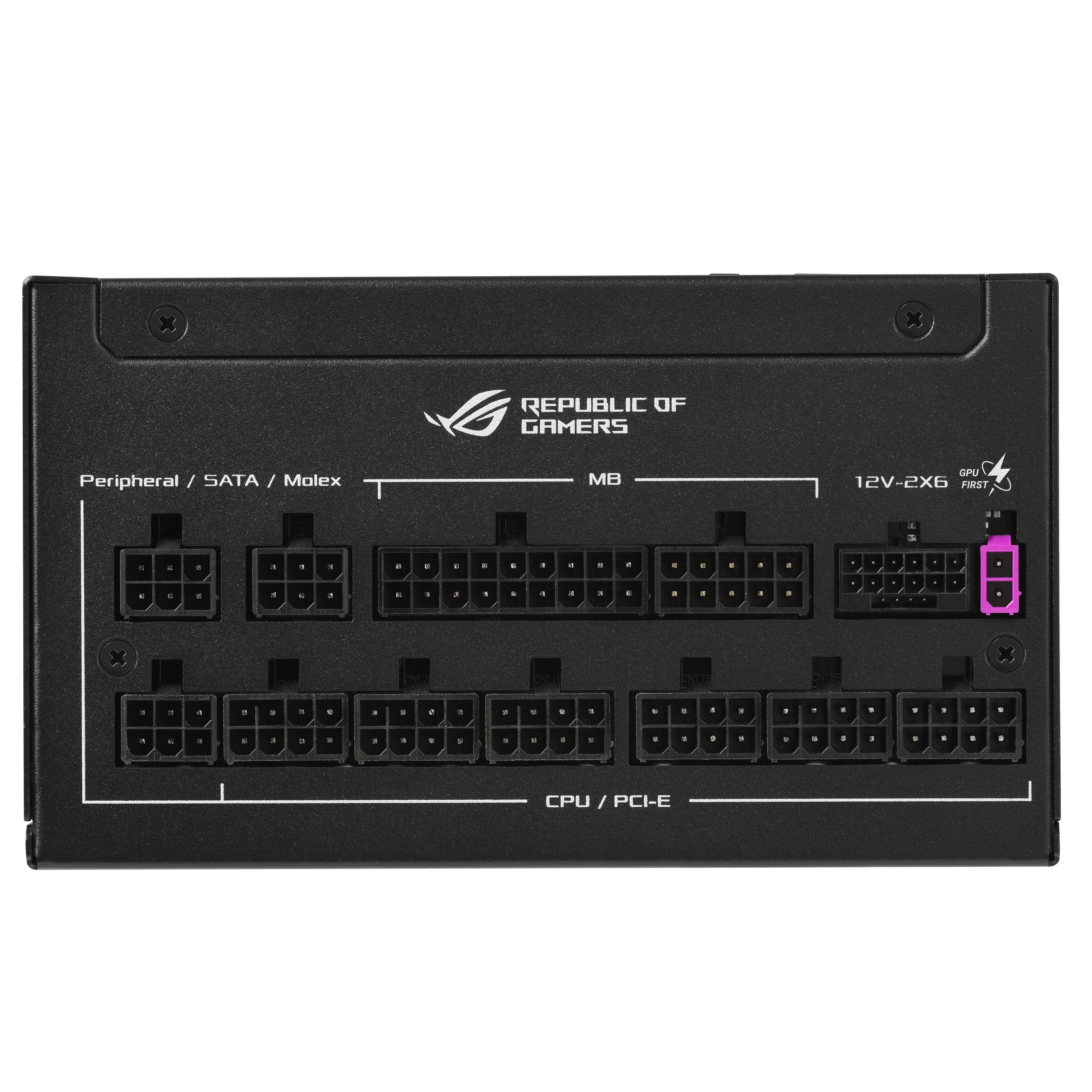

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	6
SATA power cable length	400, 120 mm
Peripheral (Molex) power connectors (4-pin)	3
Peripheral (Molex) power cable length	400, 150 mm
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (16-pin)	1
PCI Express power cable length	750 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	1000 mm
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	DBB
Design
Product colour	Black
Cooling type	Active
Number of fans	1 ventilator(en)
Fan location	Top
On/off switch	Y
Weight & dimensions
Width	160 mm
Depth	150 mm
Height	86 mm
Weight	1810 g
Packaging data
Cables included	CPU, PCIe, SATA, Peripheral (Molex)
Package width	320 mm
Package depth	200 mm
Package height	108 mm
Package weight	3620 g
Package type	Box
