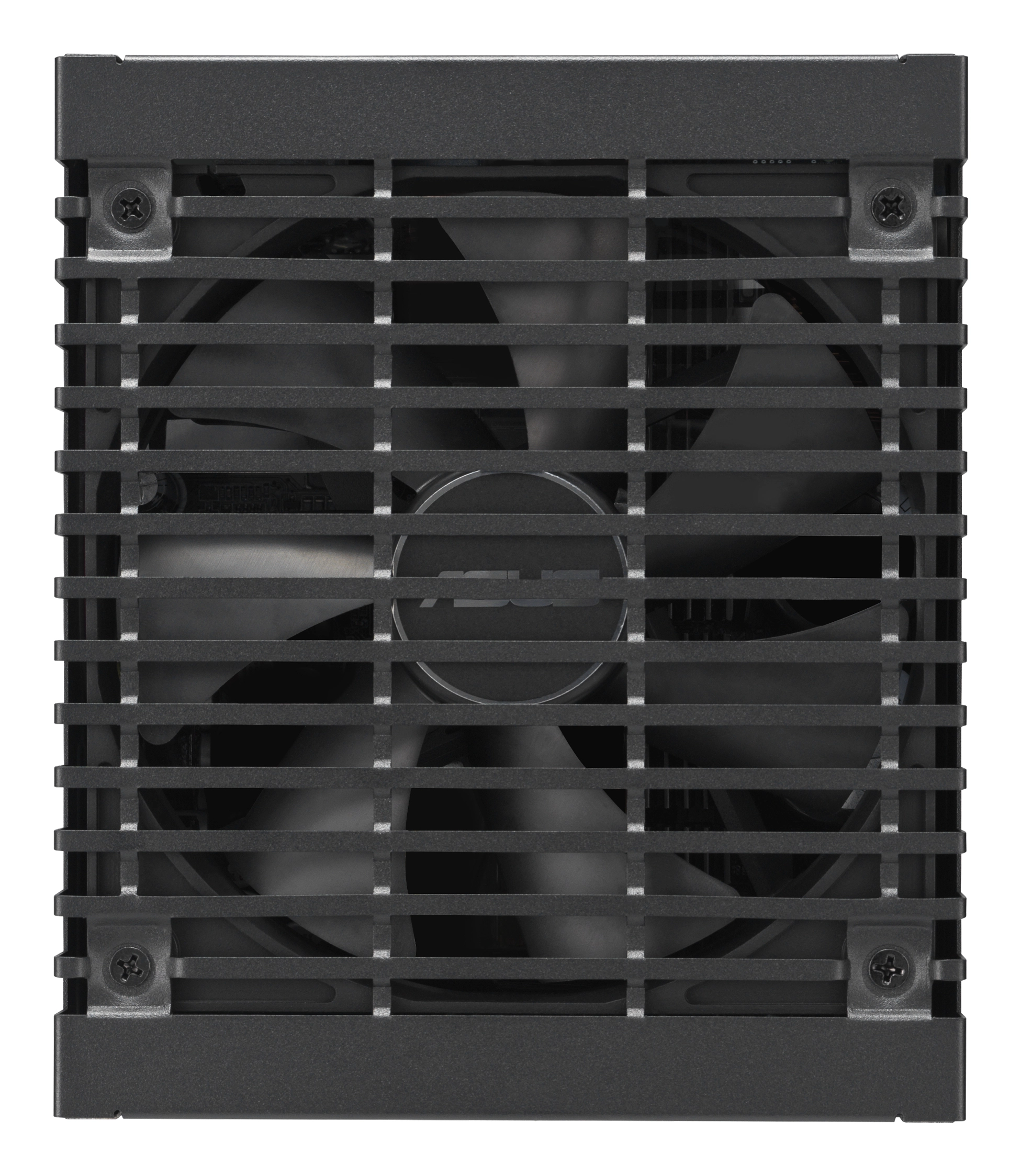

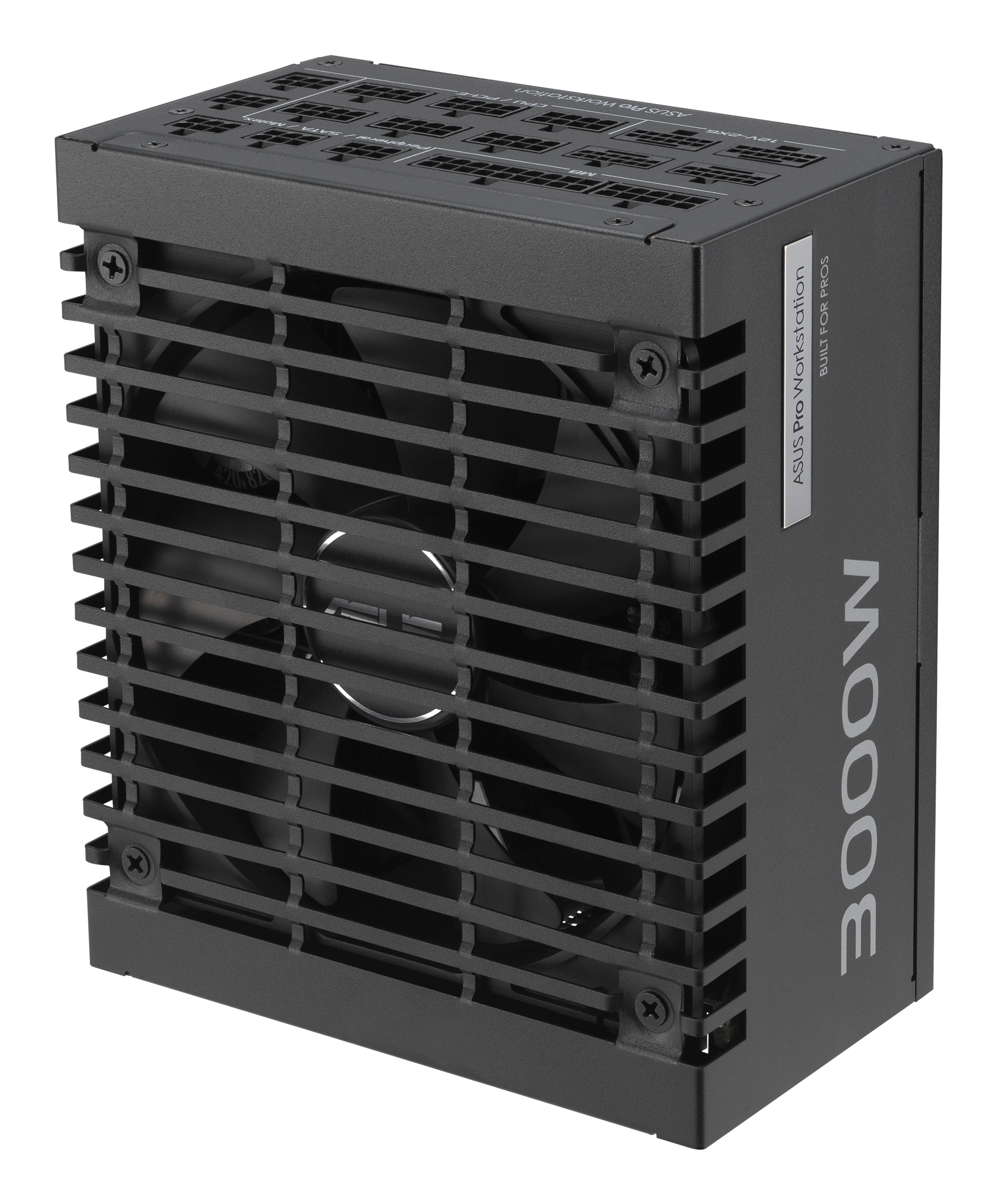

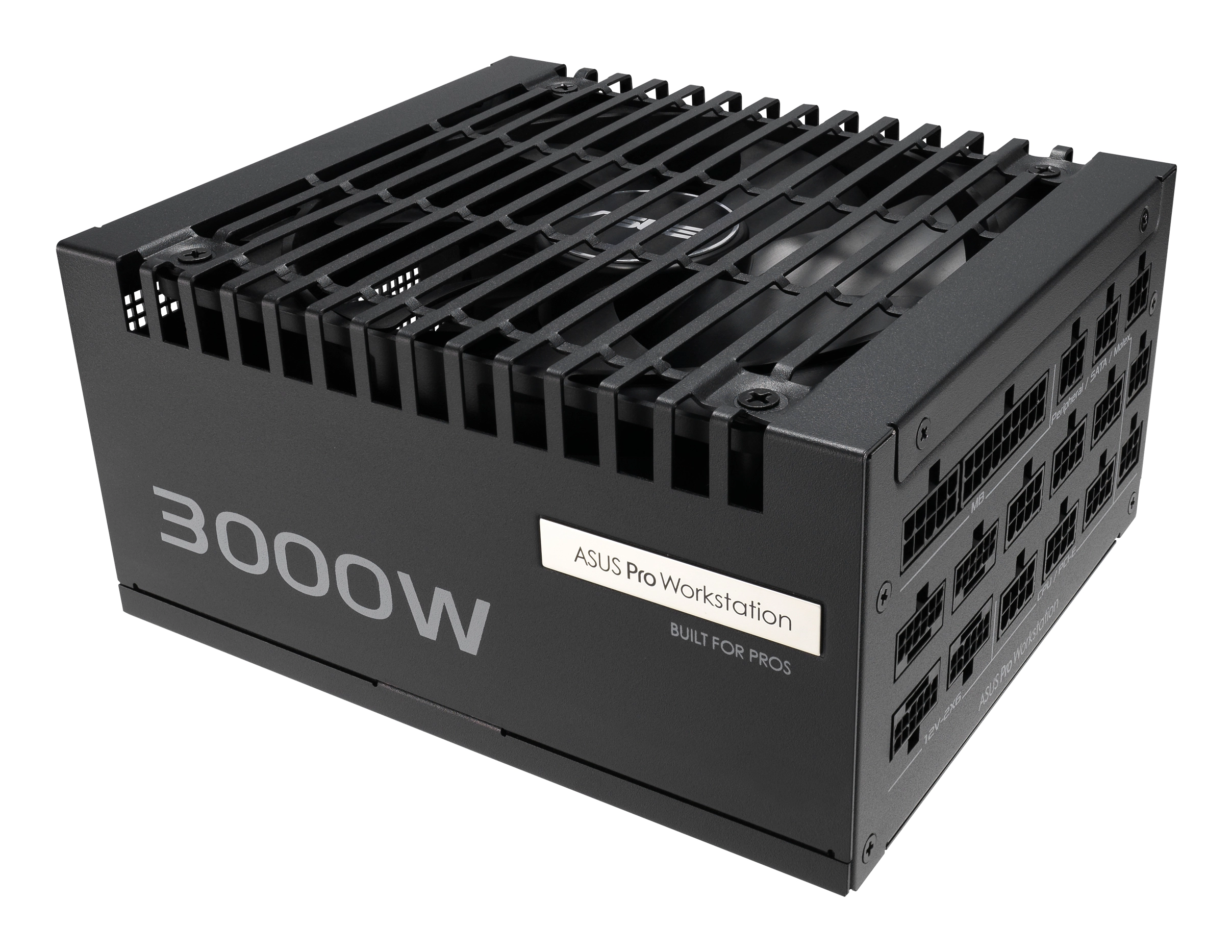

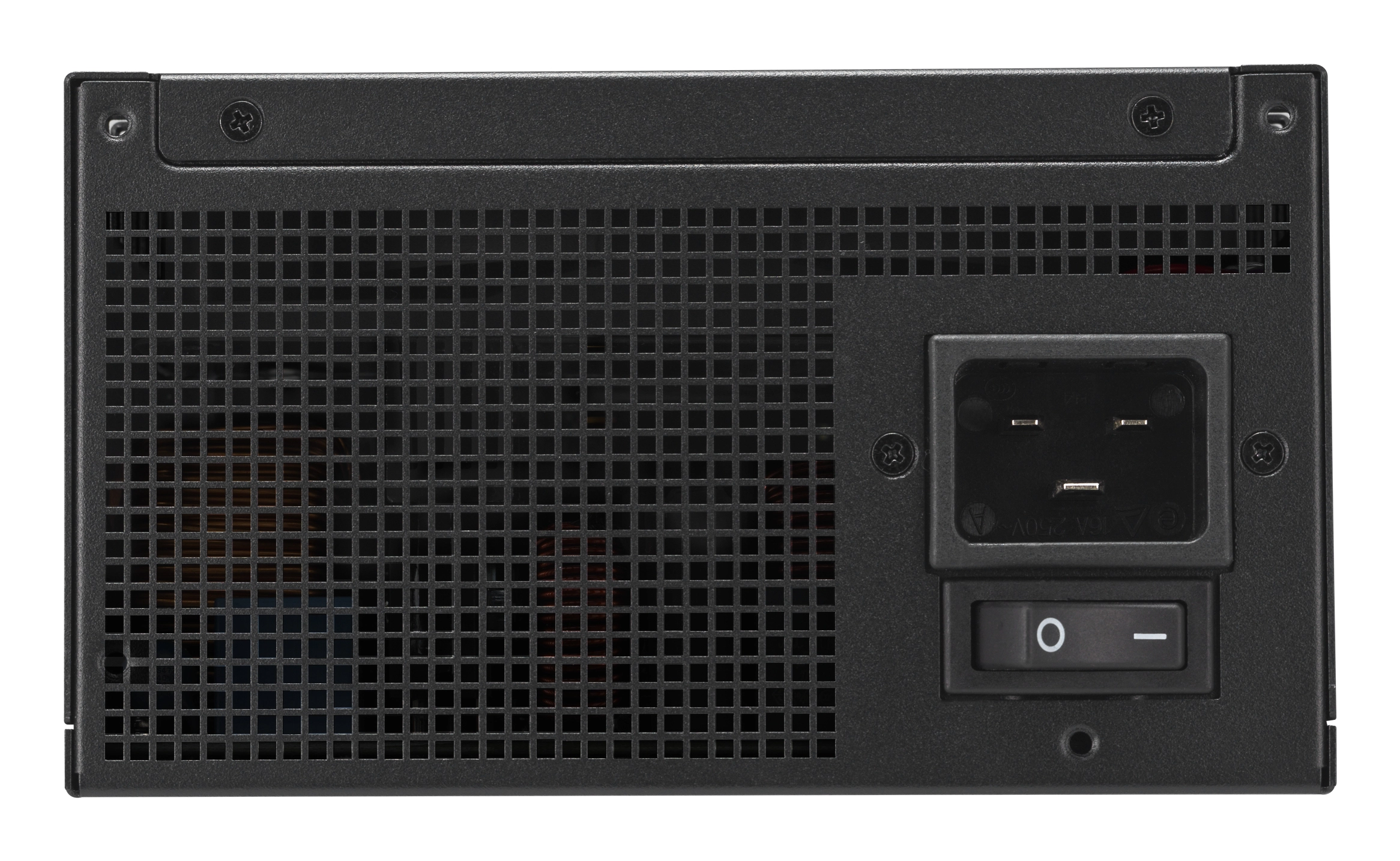

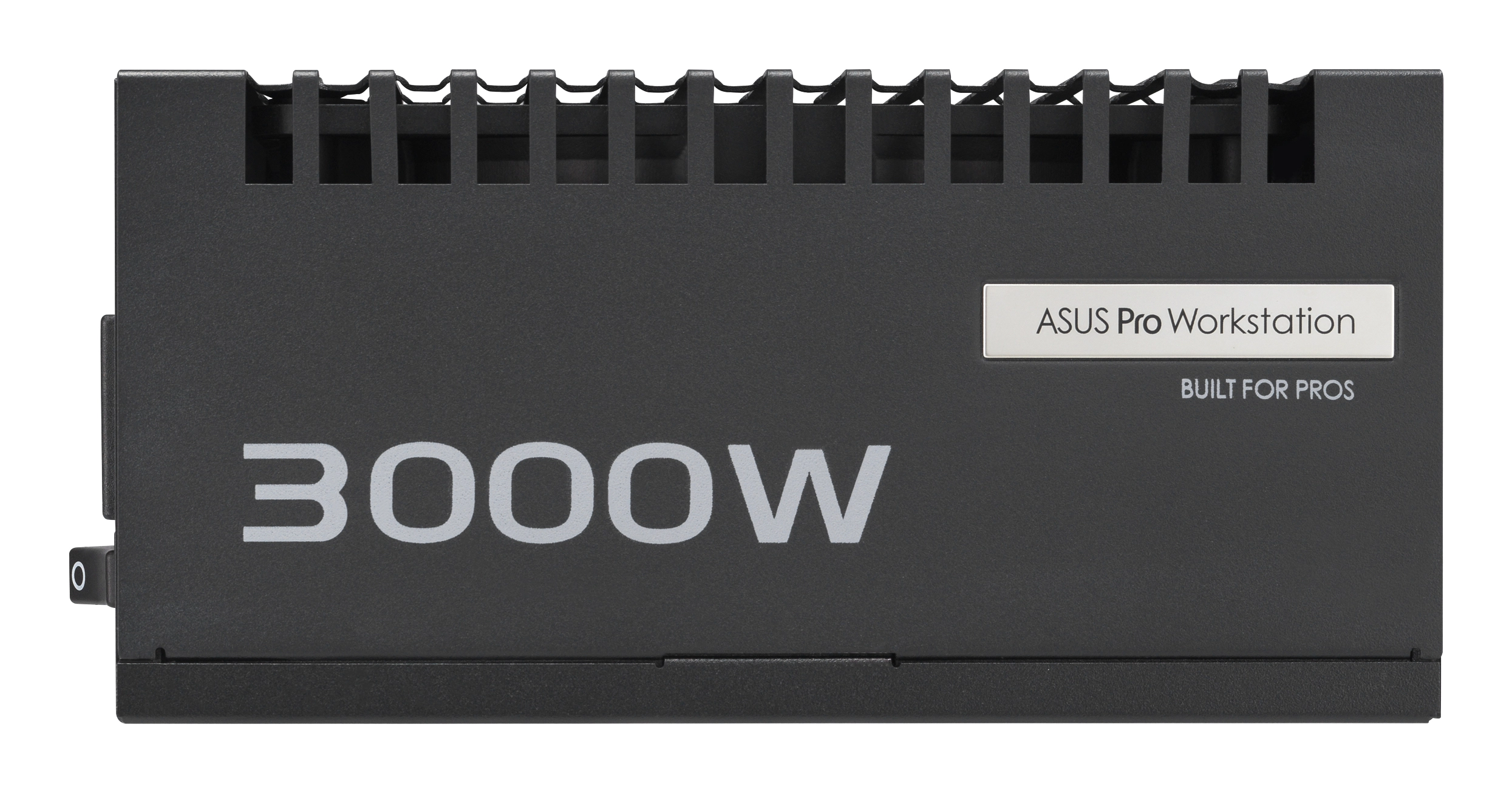

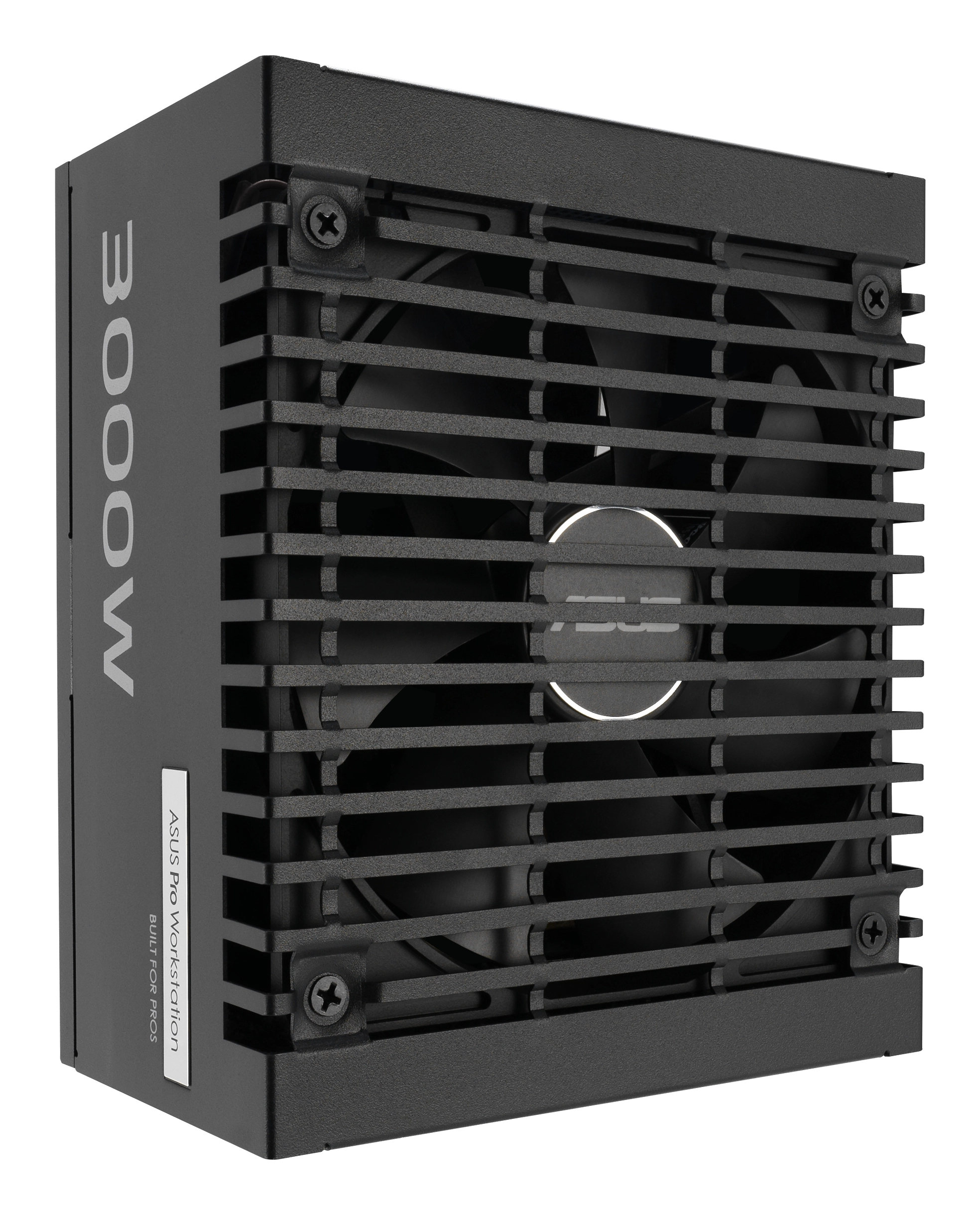

ASUS Pro WS 3000W Platinum
The ASUS Pro WS 3000W Platinum PSU is engineered to support up to four GeForce RTX™ 5090 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.

Specification

Product
Product id	996359
Brand	AsusTek
Partnr	90YE00Z0-B0EA00
EAN/UPC code	4711387972793
Warranty (months)	10-year warranty: Provides confidence in long-term reliability
Power
Total power	3000 W
AC input voltage	220 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	3000 W
Combined power (+5V)	130 W
Combined power (-12V)	0.8 W
Combined power (+5Vsb)	3 W
Max output current (+3.3V)	25 A
Max output current (+12V)	250 A
Max output current (+5V)	25 A
Max output current (-12V)	9.6 A
Max output current (+5Vsb)	15 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

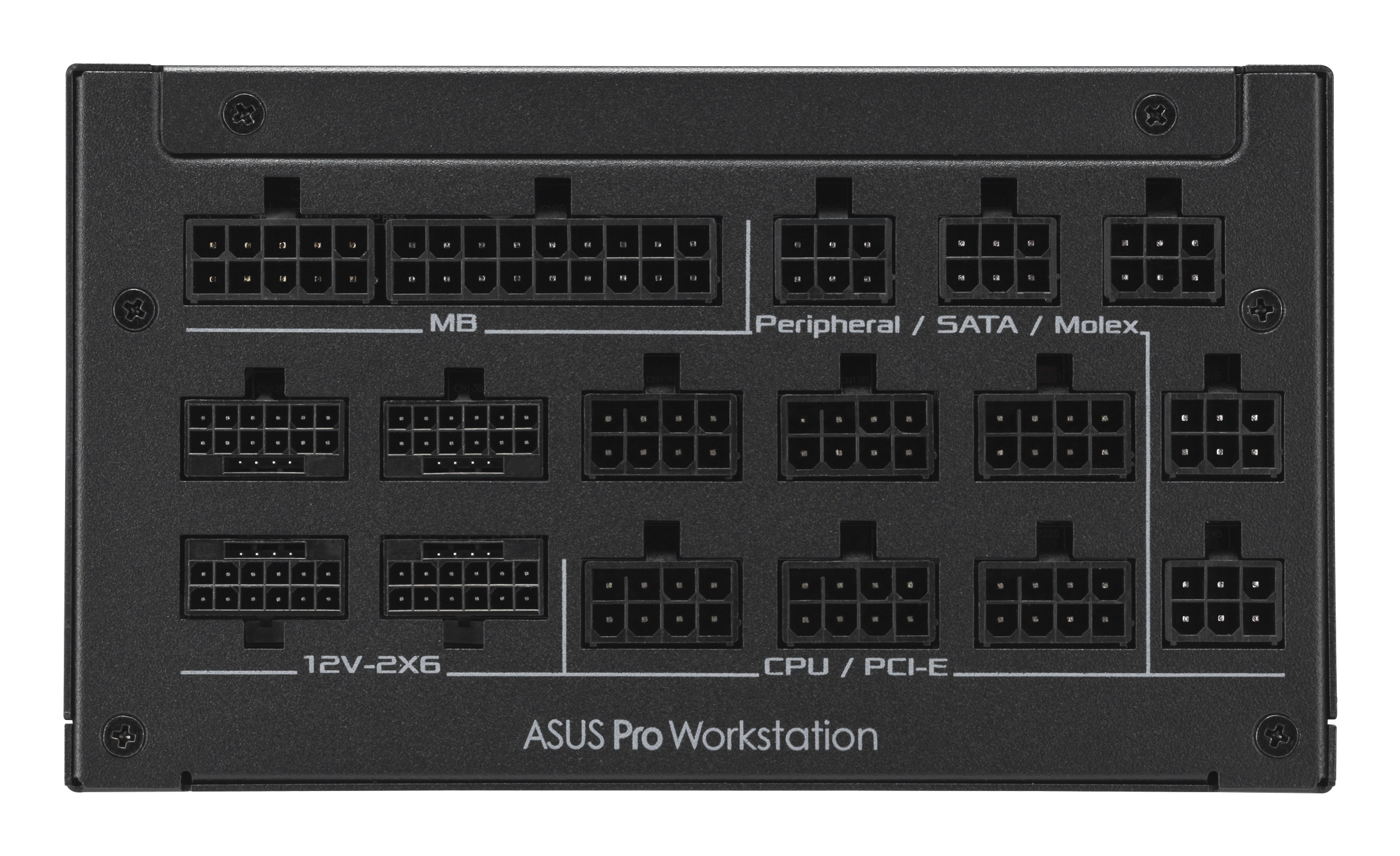

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	12
SATA power cable length	120, 400 mm
Peripheral (Molex) power connectors (4-pin)	3
Peripheral (Molex) power cable length	150, 400 mm
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (16-pin)	4
PCI Express power cable length	750 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	1000 mm
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	DBB
Design
Product colour	Black
Cooling type	Active
Weight & dimensions
Width	175 mm
Depth	150 mm
Height	86 mm
Weight	2160 g
Packaging data
Package width	346 mm
Package depth	208 mm
Package height	144 mm
Package weight	5090 g
Package type	Box
