2x Fans. 2x Fun.

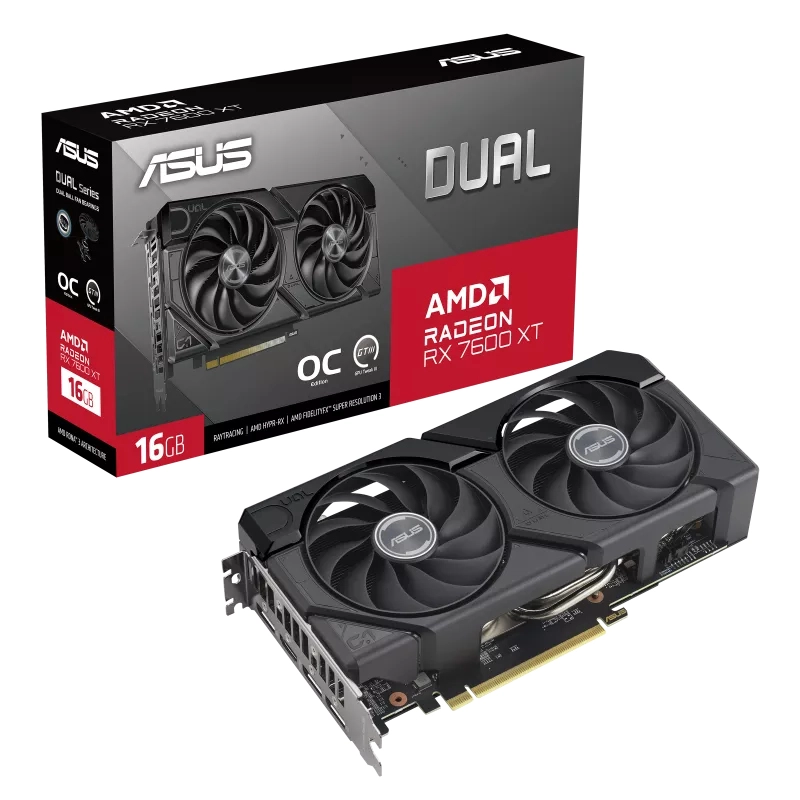

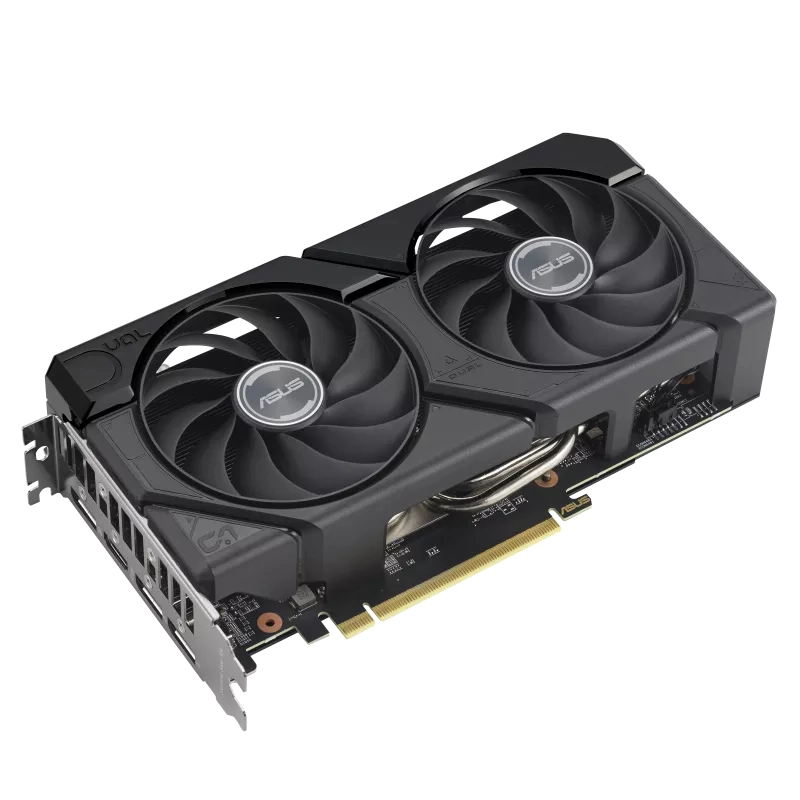

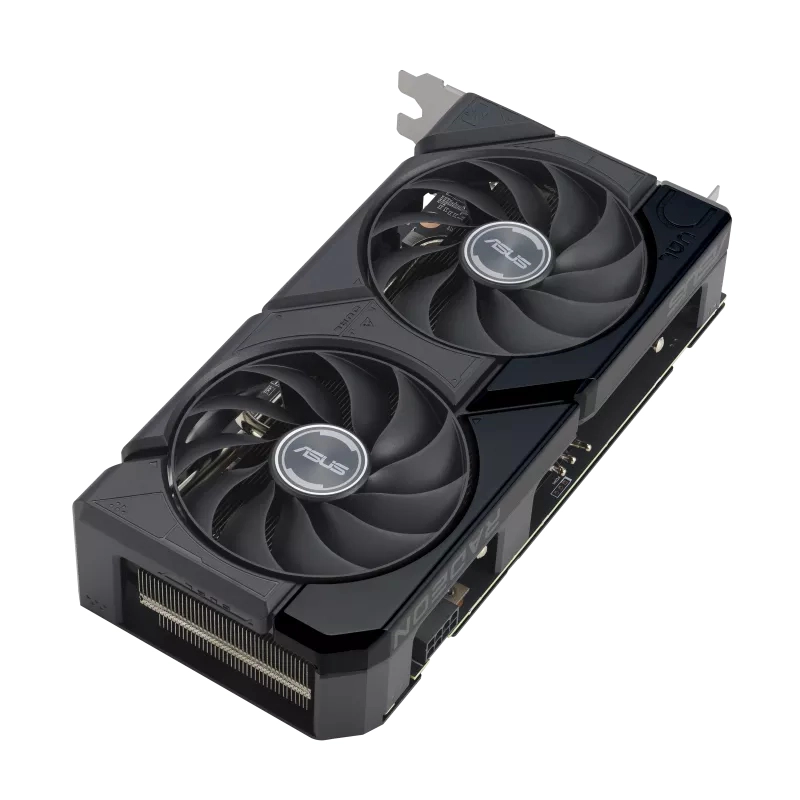

ASUS Dual Radeon™ RX 7600 XT fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

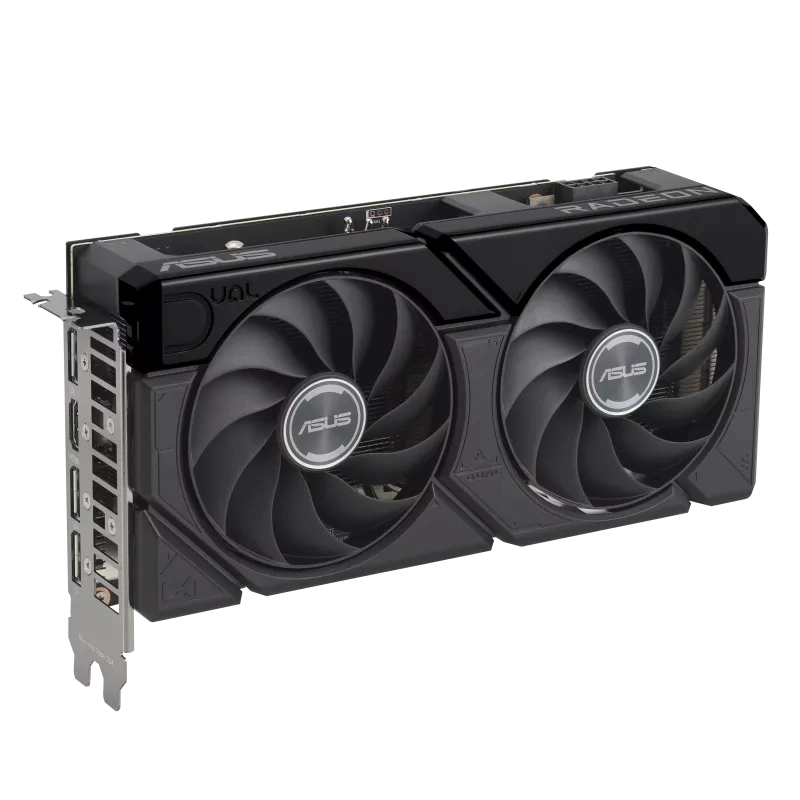

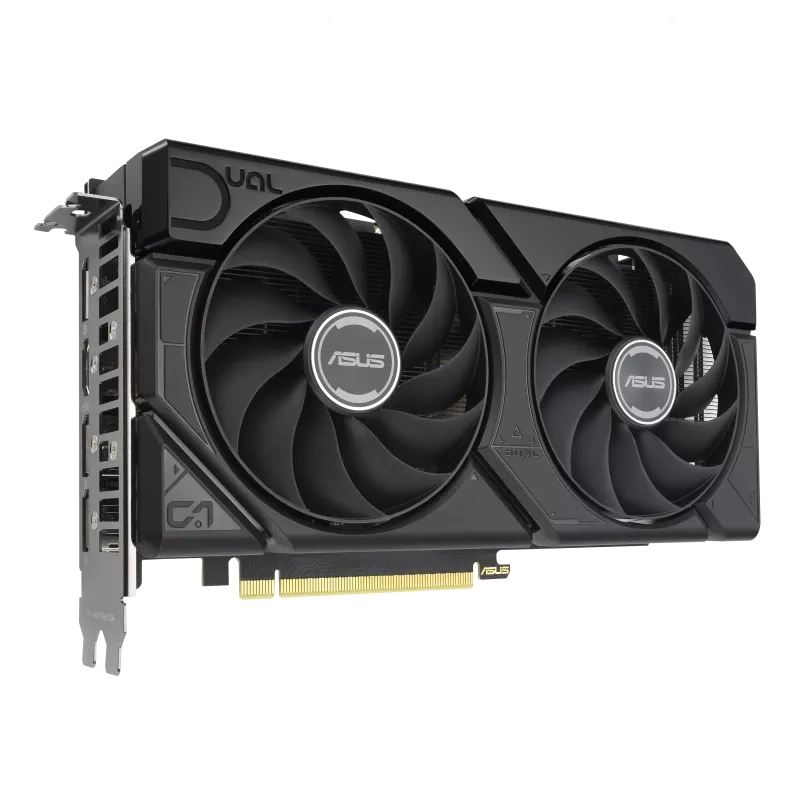

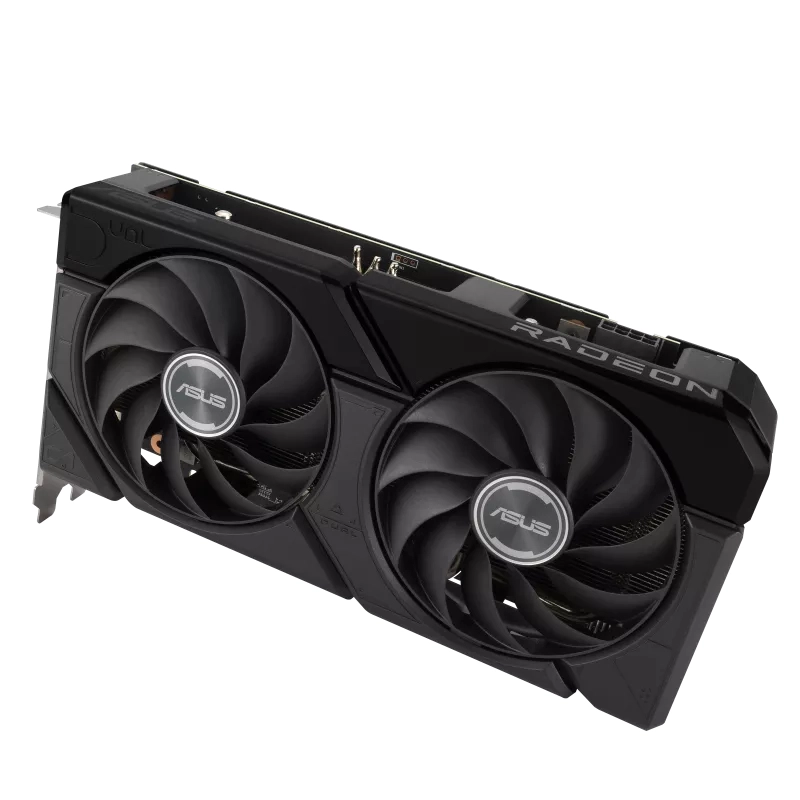

Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

Pair with a PSU
Use our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG Thor, ROG Loki or ROG Strix AURA power supply for ultimate performance.

Specification

Product
Product id	948494
Brand	AsusTek
Partnr	90YV0K21-M0NA00
EAN/UPC code	4711387459218
Warranty (months)	36 months
Processor
Graphics processor family	AMD
Graphics processor	Radeon RX 7600 XT
Maximum resolution	7680 x 4320 Pixels
Processor boost clock speed	2781 MHz
Processor boost clock speed (OC mode)	2801 MHz
Maximum displays per videocard	4
Processor boost clock speed (Gaming mode)	2513 MHz
Stream processors	2048
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	16 GB
Graphics adapter memory type	GDDR6
Memory bus	128 Bit
Data transfer rate	18 Gbit/s

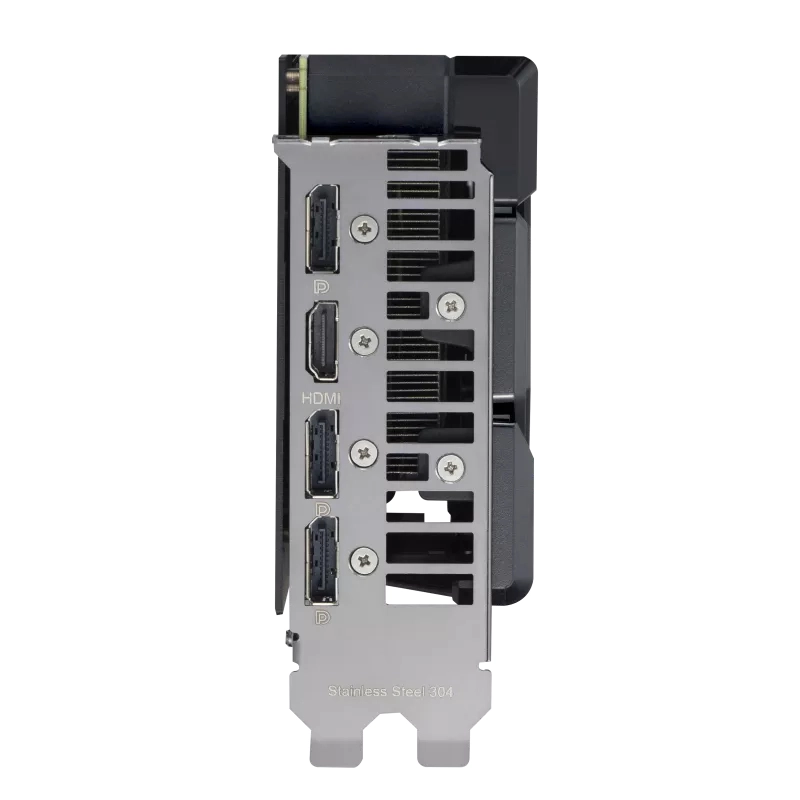

Ports & interfaces
Interface type	PCI Express 4.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1
DisplayPort version	2.1
Performance
TV tuner integrated	N
OpenGL version	4.6
HDCP	Y
HDCP version	2.3
Dual Link DVI	N
Design
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	2 ventilator(en)
Number of slots	2.5
Product colour	Black
Power
Minimum system power supply	600 W

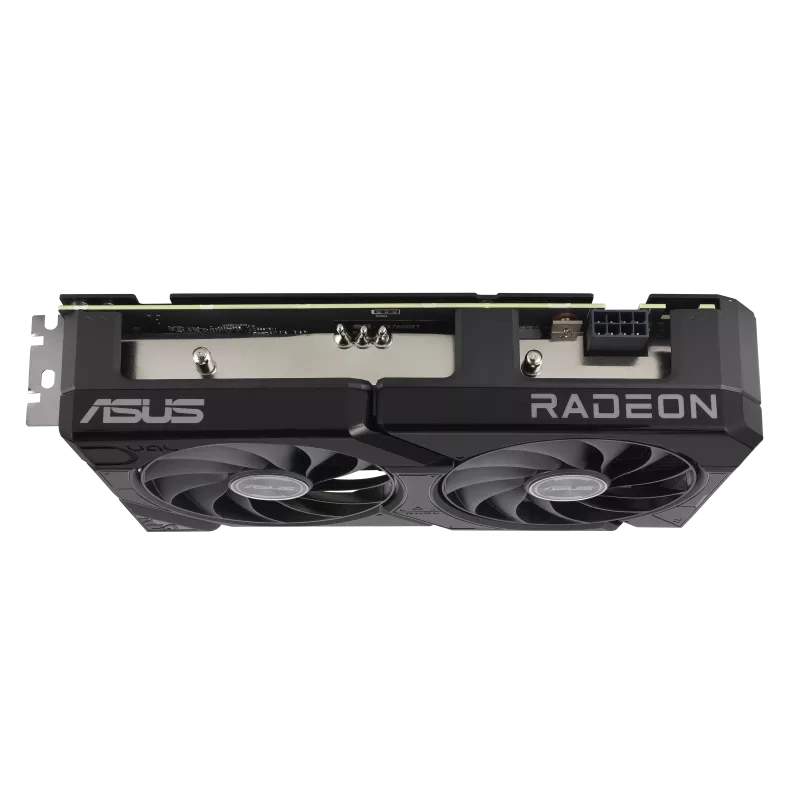

Supplementary power connectors	1x 8-pin
Weight & dimensions
Weight	733 g
Depth	123.24 mm
Height	49.6 mm
Width	227.2 mm
Packaging data
Manual	Y
Package width	368 mm
Package depth	220.5 mm
Package height	68 mm
Package weight	1185 g
Package type	Box
