Game TUF. Built to Last.

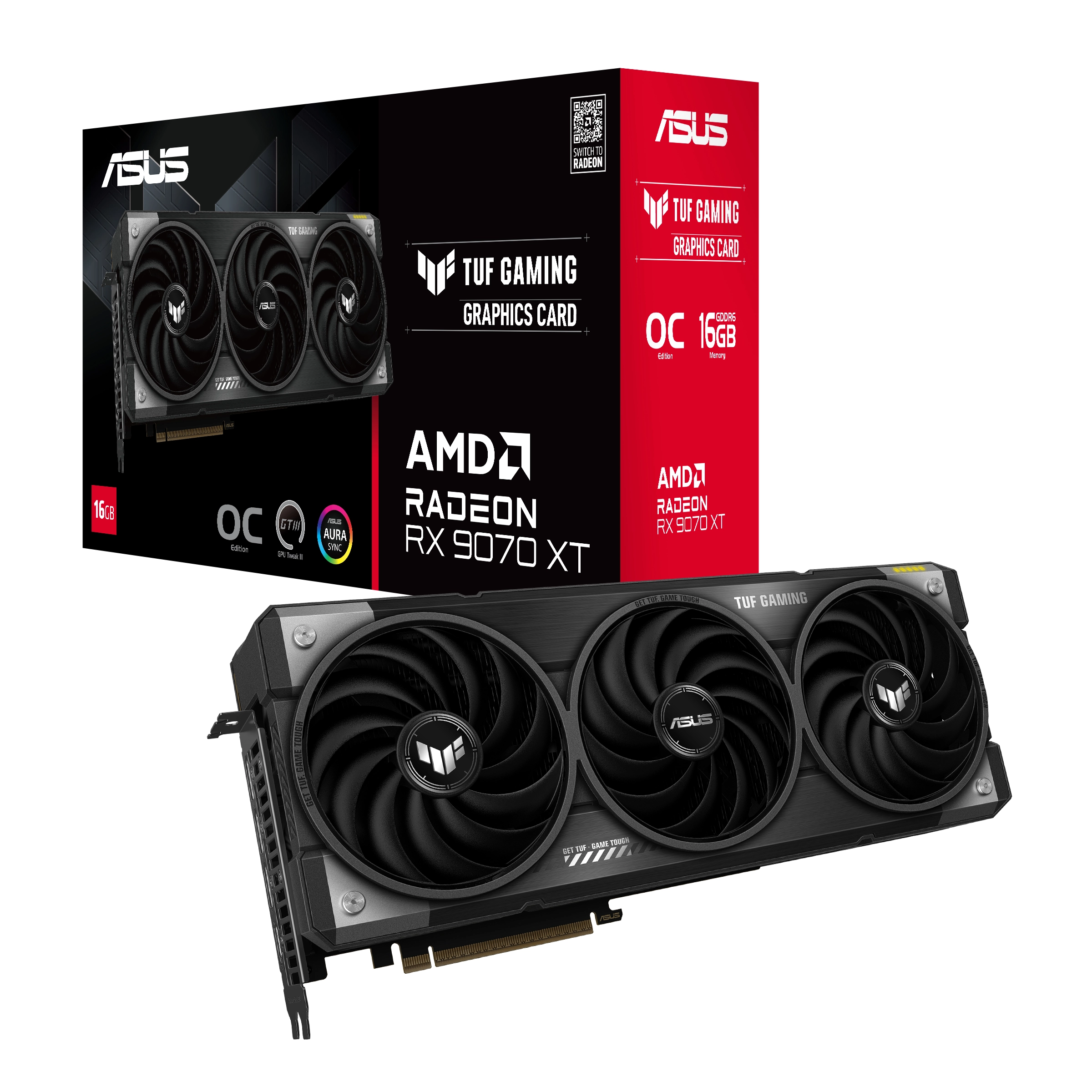

ASUS TUF Gaming Radeon™ RX 9070 XT
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.

Premium Durability
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.

TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80, 000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.

Cooling Mastery
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.

MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel up to 31% more air than standard fans.

New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 55°C, for quieter operation during light tasks. They restart above 60°C, following a speed curve that balances performance and acoustics.

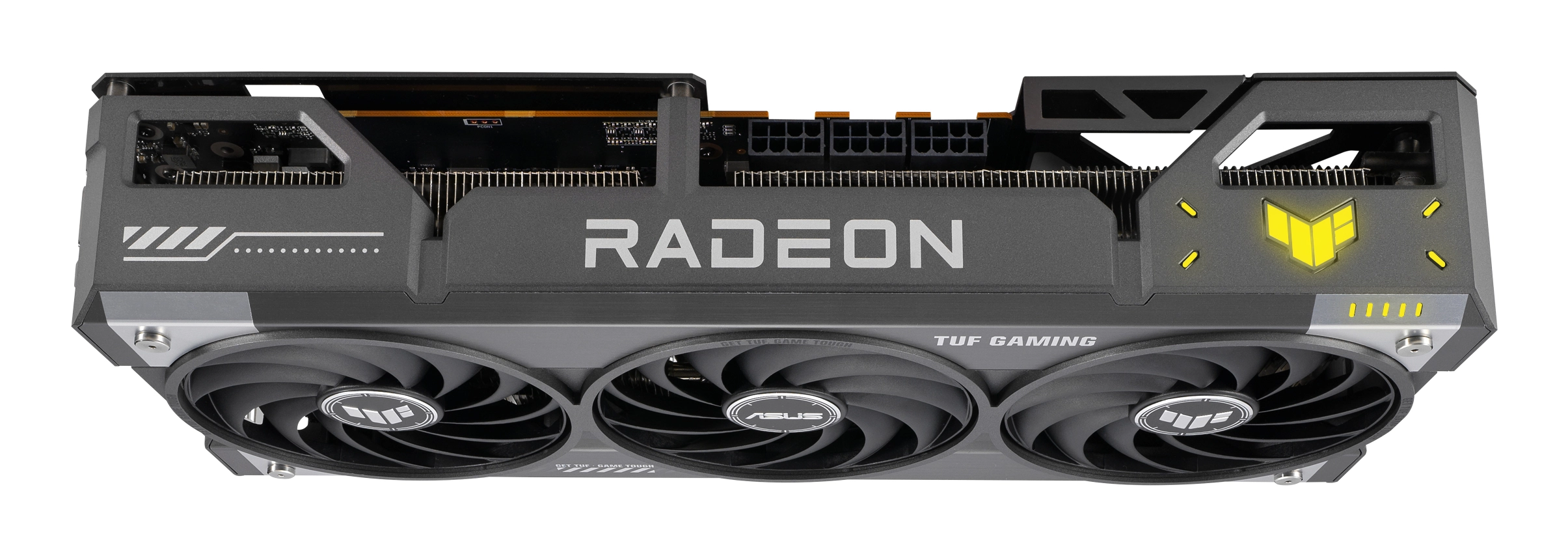

Vented Exoskeleton
A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation.

The Perfect PSU for the TUF Gaming Radeon™ RX 9000 Series
The TUF Gaming Gold Series PSUs are the perfect match for TUF Gaming Radeon™ RX 9000 Series graphics cards, offering exceptional durability and reliable power delivery. Built with high-quality components and military-grade capacitors, these PSUs ensure your gaming setup performs at its best, even during the most demanding sessions.

Reliability
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

Specification

Product
Product id	987477
Brand	AsusTek
Partnr	90YV0L70-M0NA00
EAN/UPC code	4711387829578
Warranty (months)	36 months
Processor
Graphics processor family	AMD
Graphics processor	Radeon RX 9070 XT
Maximum resolution	7680 x 4320 Pixels
CUDA	N
Processor boost clock speed	3060 MHz
Maximum displays per videocard	4
Stream processors	4096
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	16 GB
Graphics adapter memory type	GDDR6
Memory bus	256 Bit
Data transfer rate	20 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1a
Performance
TV tuner integrated	N
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Y
HDCP version	2.3
Dual Link DVI	N
Overclocked (OC) edition	Y
Design
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	3 ventilator(en)
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	3.125
Illumination	Y
Illumination colour	Multi
Product colour	Black, Silver
Power
Minimum system power supply	850 W
Supplementary power connectors	3x 8-pin
Weight & dimensions
Weight	1480 g
Depth	62.5 mm
Length	330 mm
Height	140 mm
Packaging data
User guide	Y
Package width	420 mm
Package depth	226 mm
Package height	126 mm
Package weight	2560 g
Package type	Box
