The Final Frontier

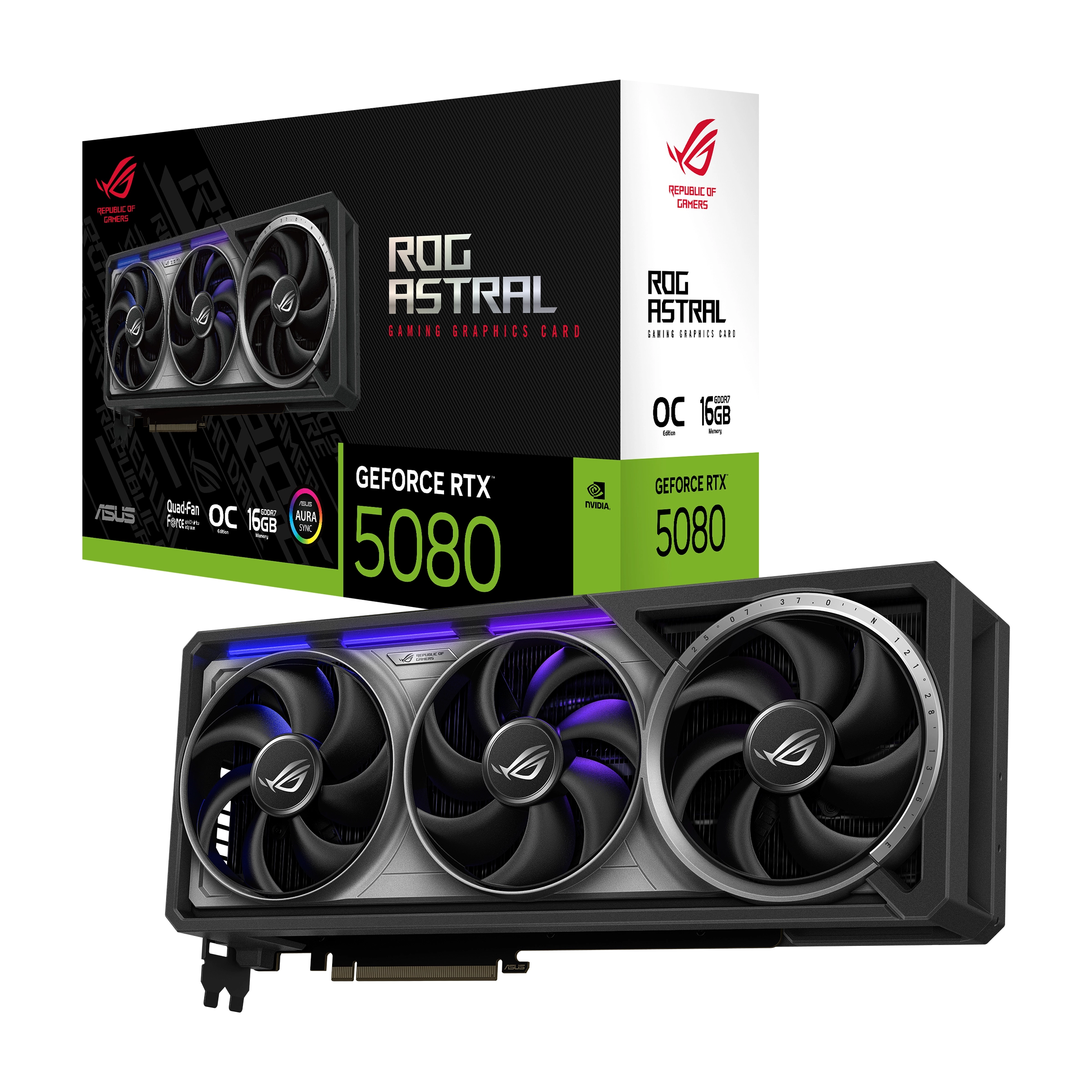

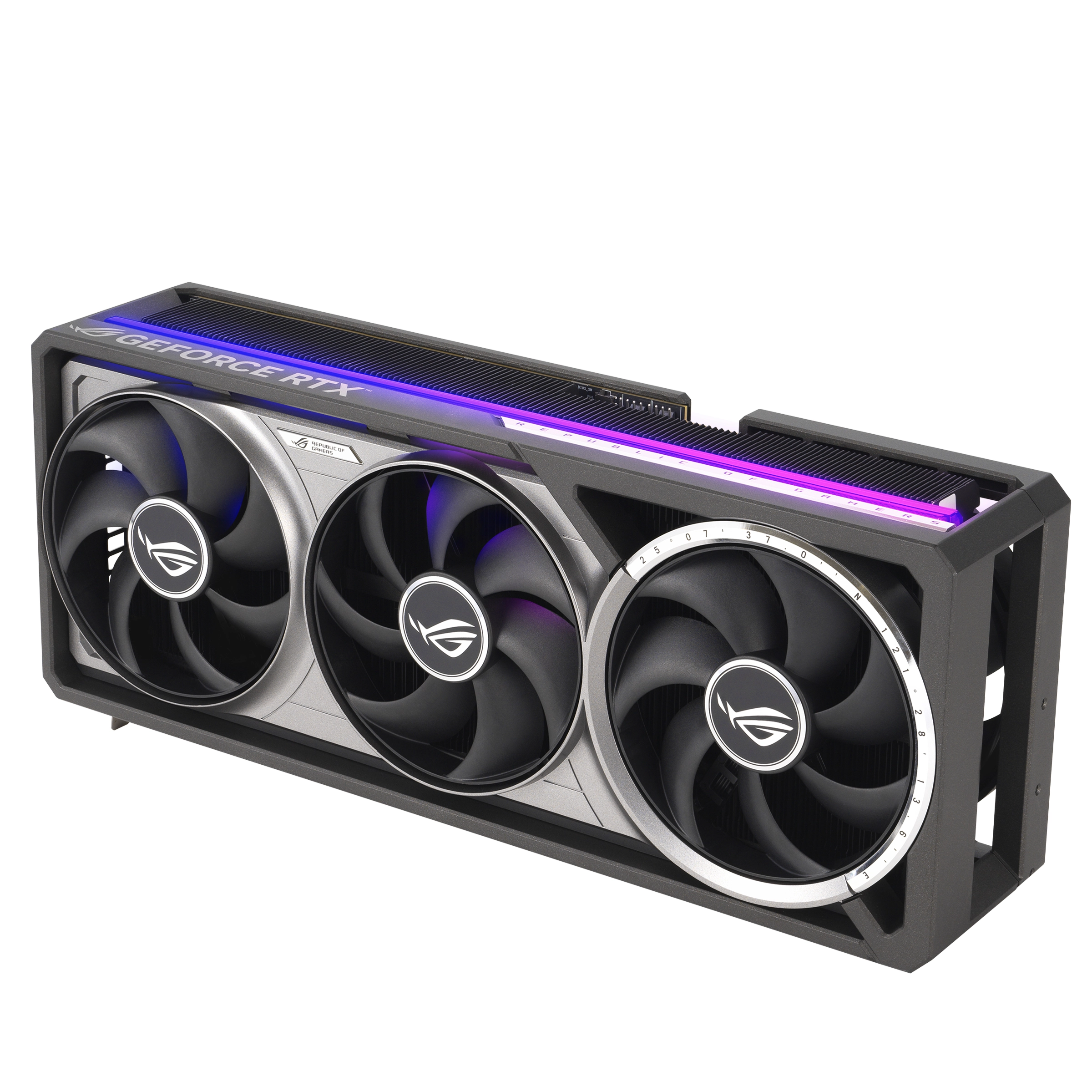

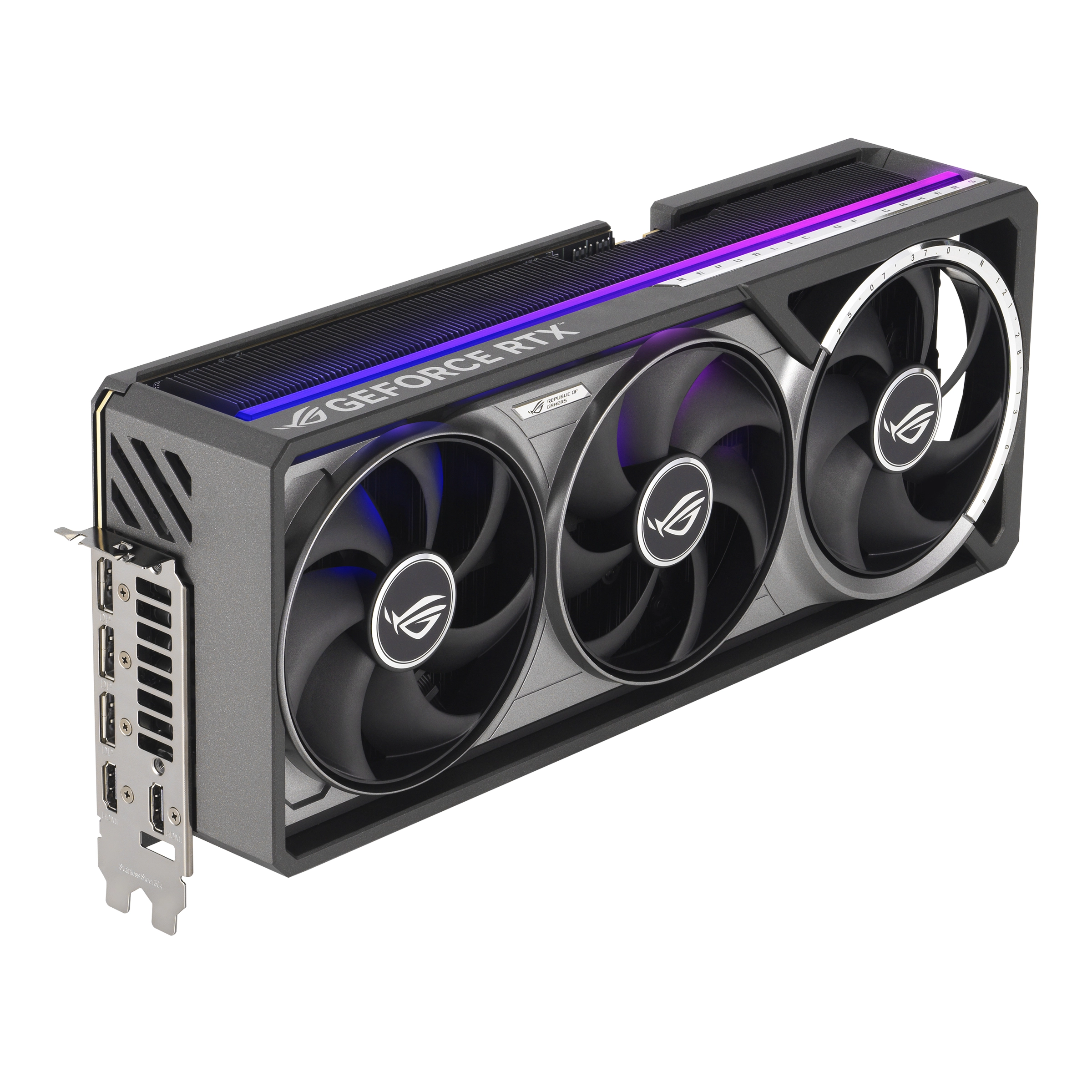

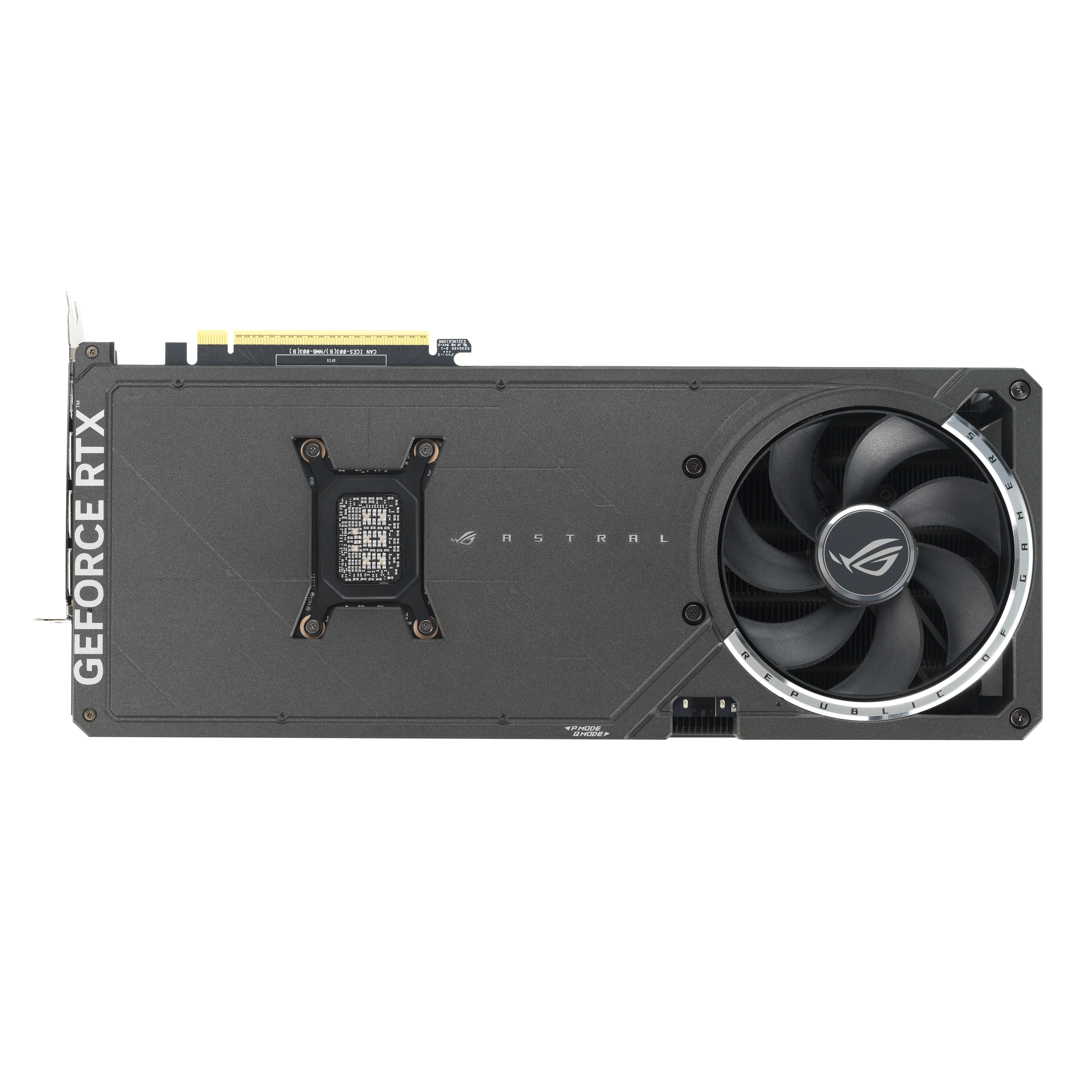

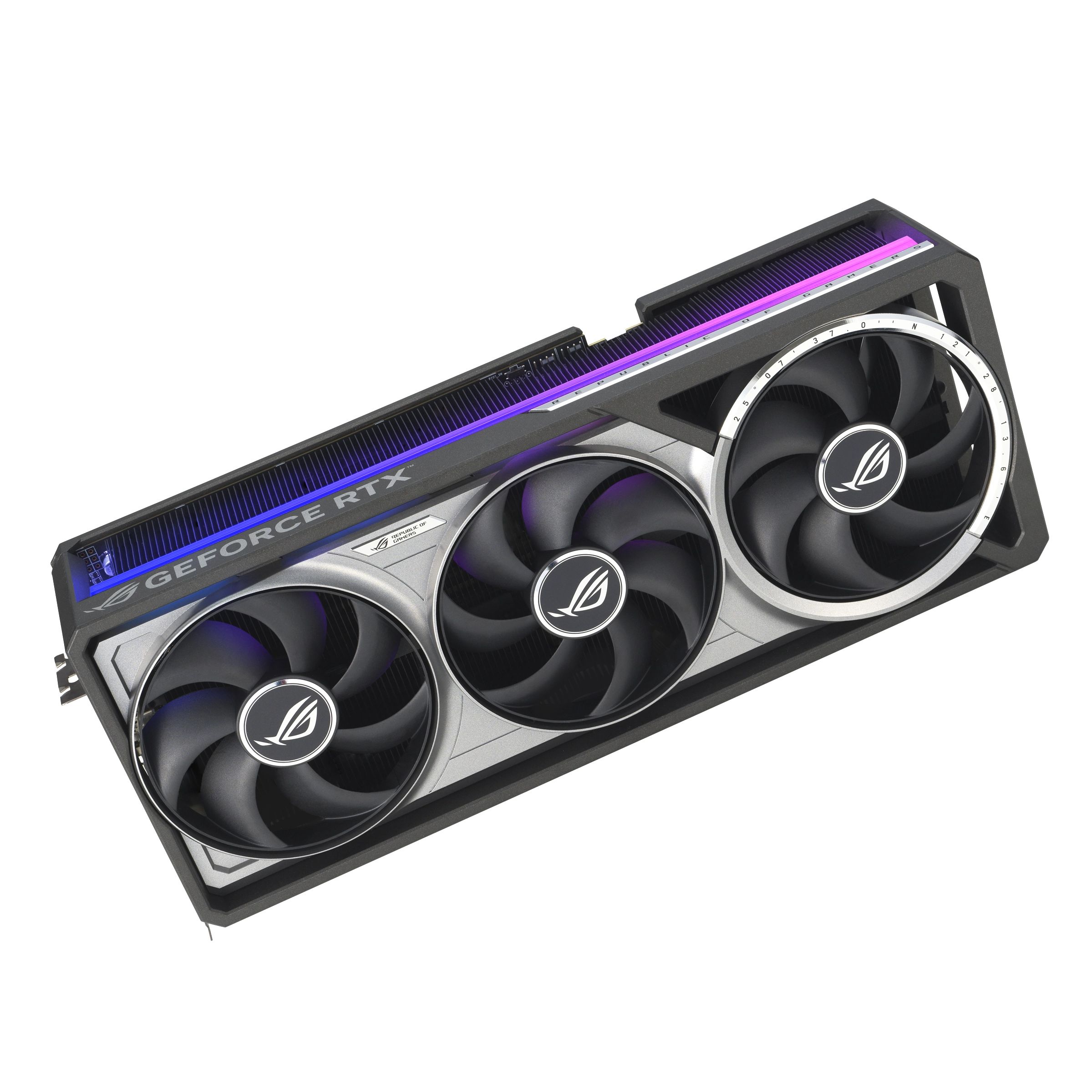

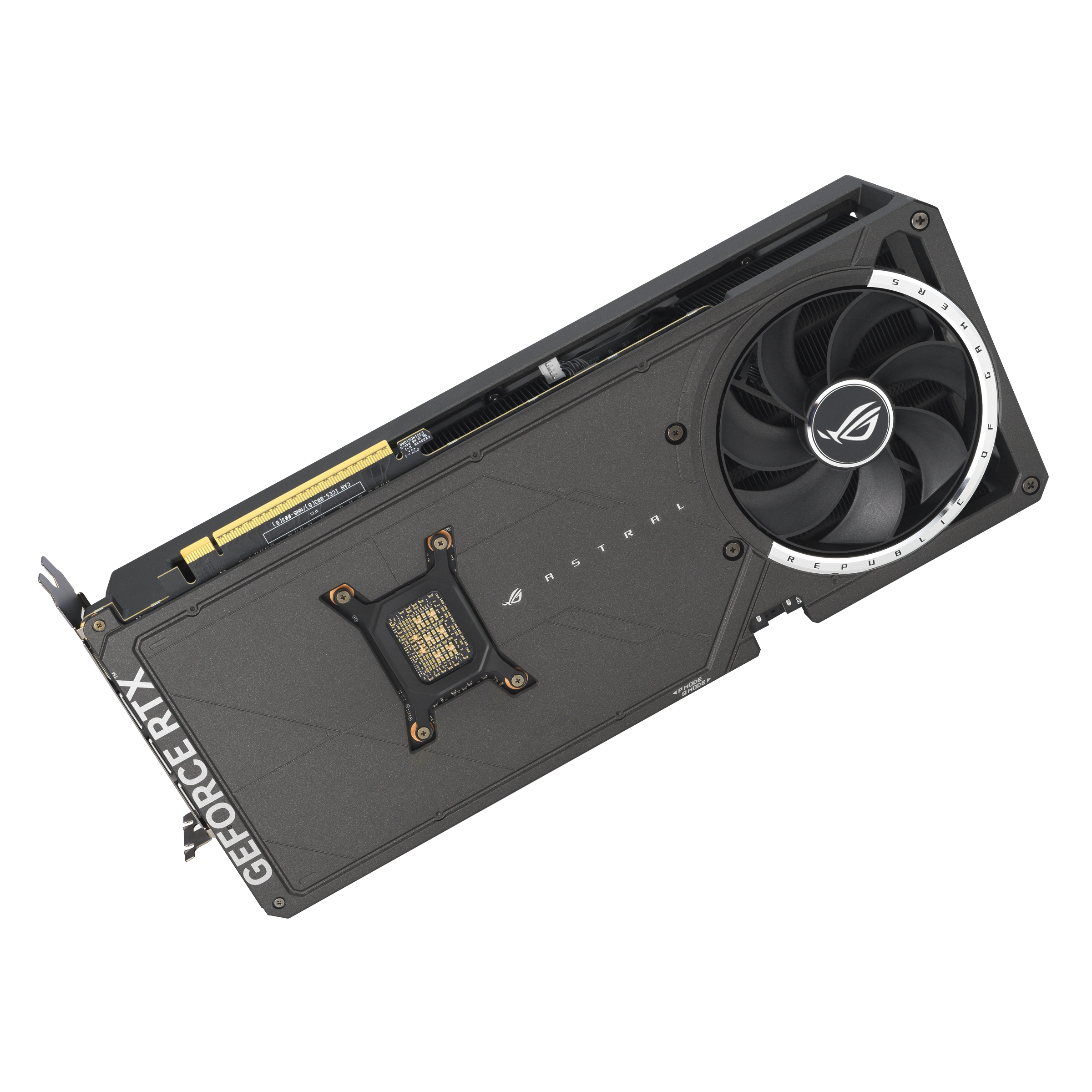

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.

Specification

Product
Product id	984626
Brand	AsusTek
Partnr	90YV0LV0-M0NA00
EAN/UPC code	4711387837917
Warranty (months)	36 months
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 5080
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	10752
Processor boost clock speed	2760 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	16 GB
Graphics adapter memory type	GDDR7
Memory bus	256 Bit
Data transfer rate	30 Gbit/s

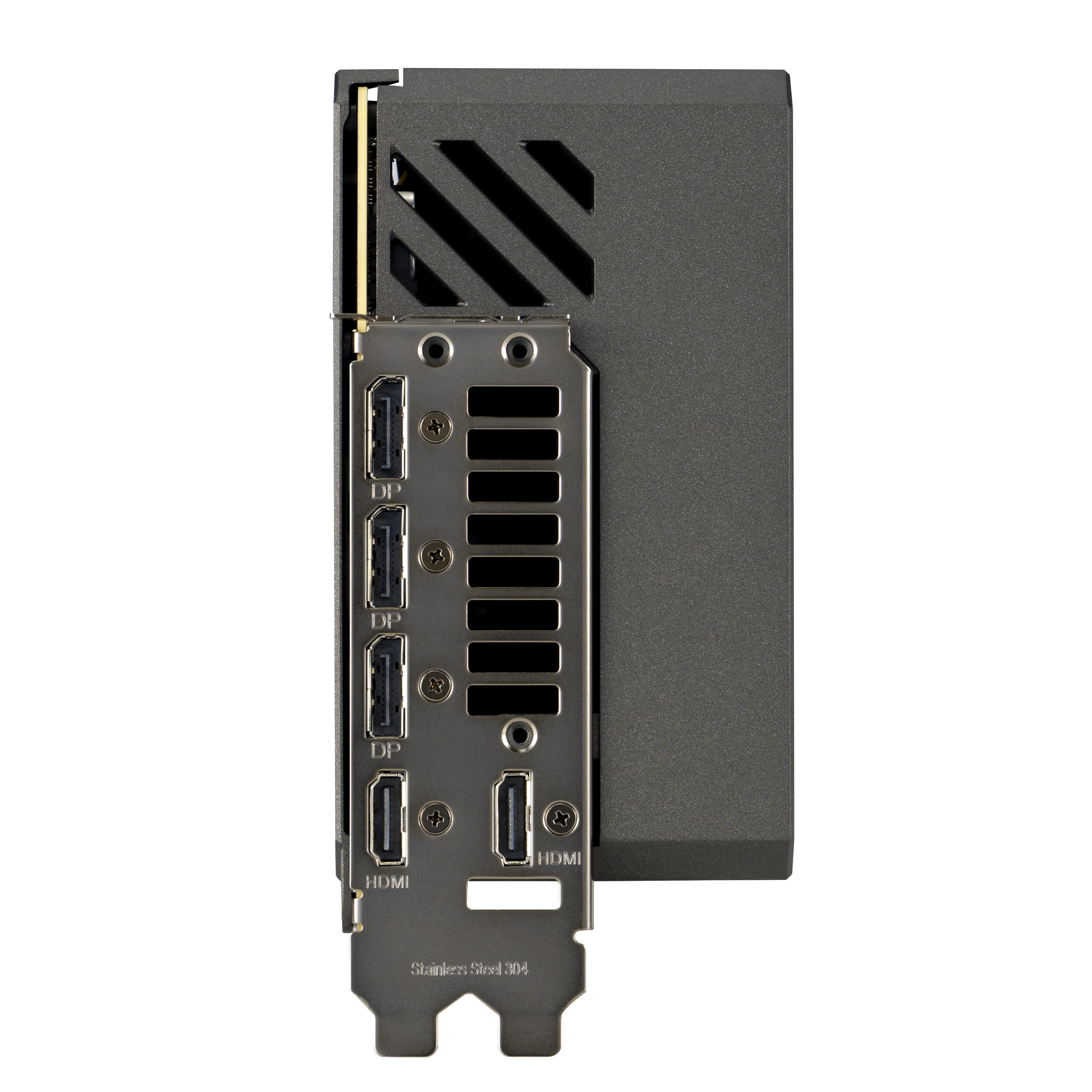

Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	2
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1a
Performance
OpenGL version	4.6
Virtual Reality (VR) ready	Y
HDCP	Y
HDCP version	2.3
Dual Link DVI	N
NVIDIA G-SYNC	Y
Design
Cooling type	Active
Number of fans	4 ventilator(en)
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	3.8
Illumination	Y
Illumination colour	Multi
Product colour	Multicolour
Power
Minimum system power supply	850 W
Supplementary power connectors	1x 16-pin
System requirements
Windows operating systems supported	Y
Weight & dimensions
Weight	2860 g
Depth	76 mm
Length	357.6 mm
Height	149.3 mm
Packaging data
Package width	420 mm
Package depth	226 mm
Package height	126 mm
Package weight	4300 g
Package type	Box
