Game TUF. Built to Last.

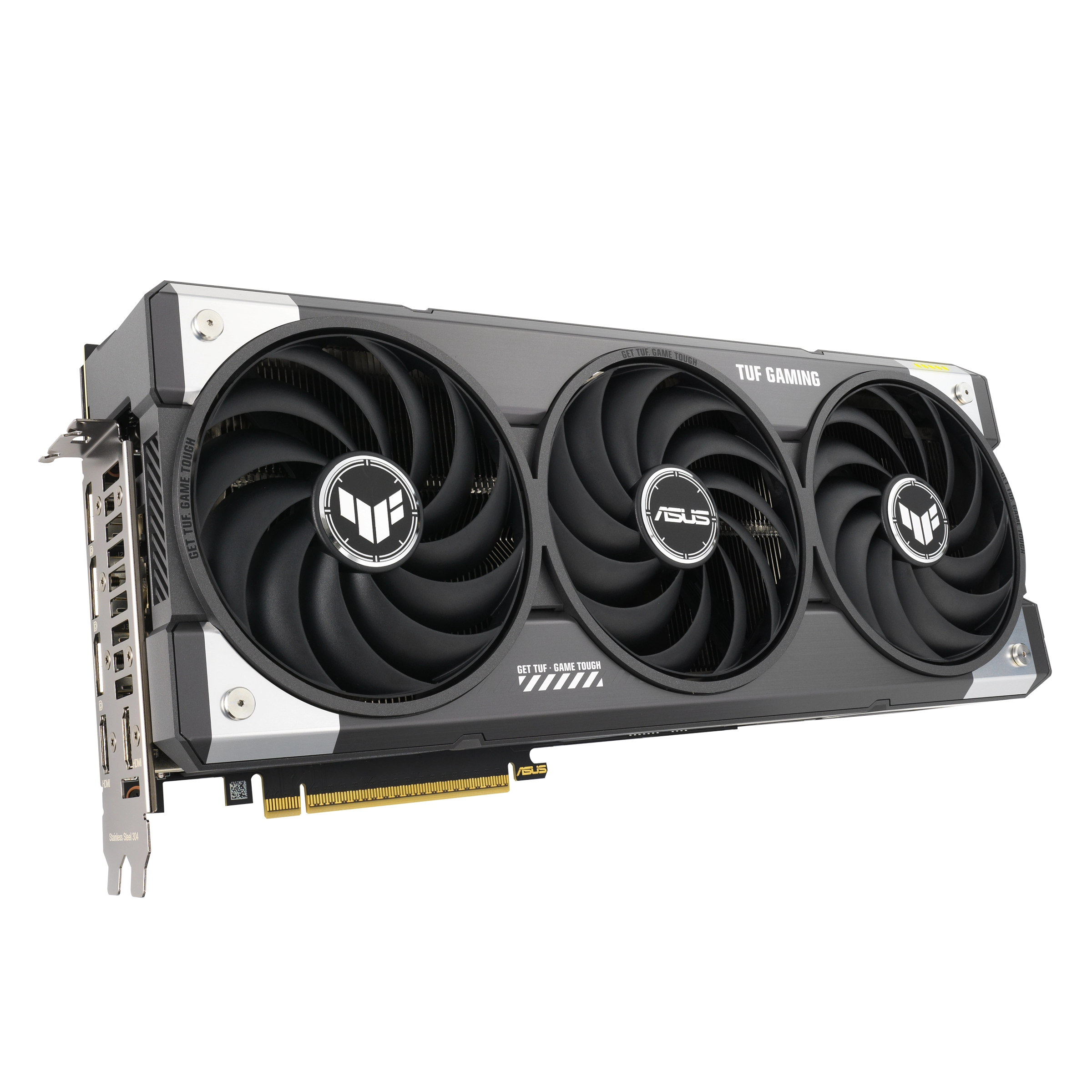

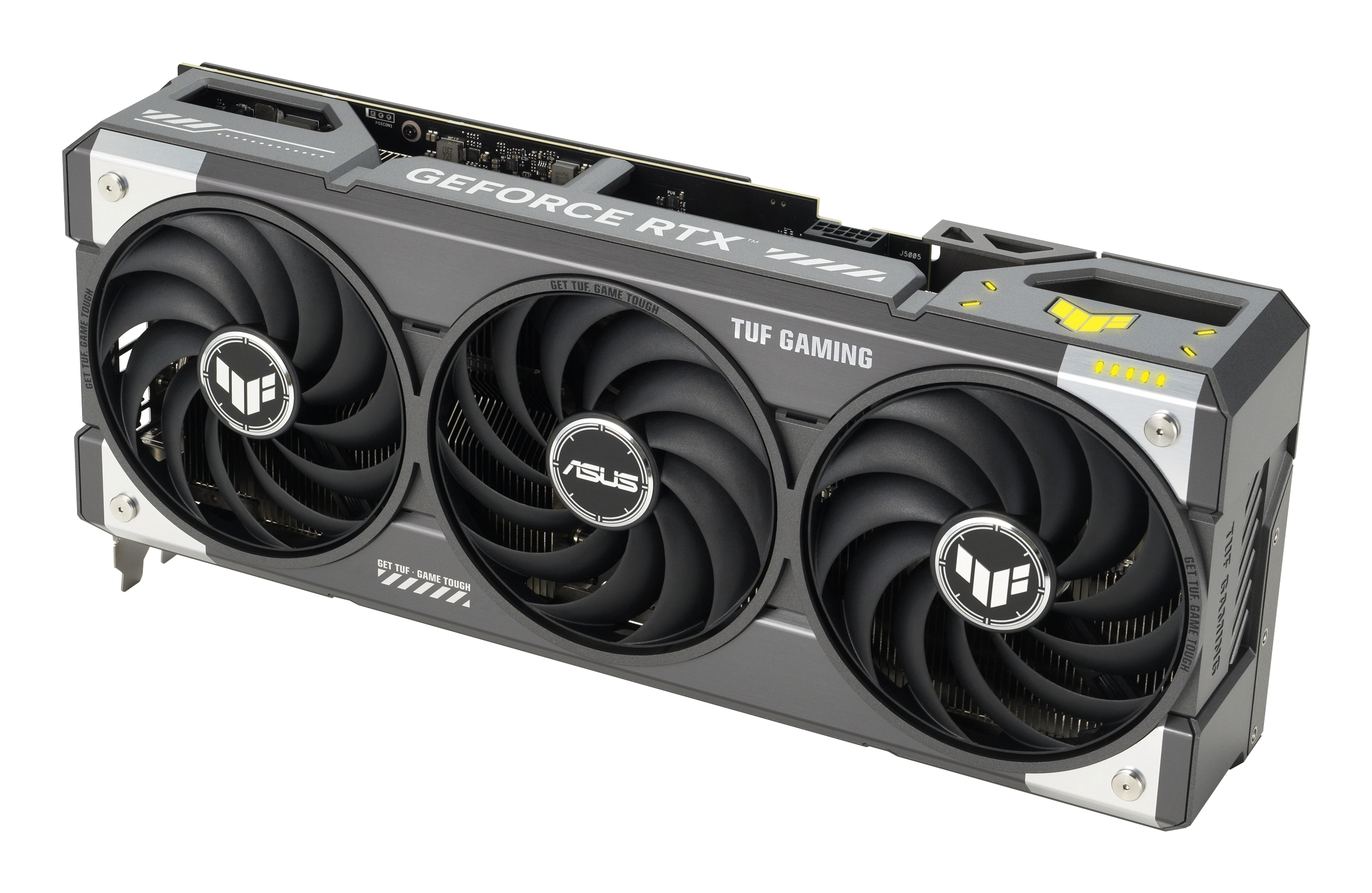

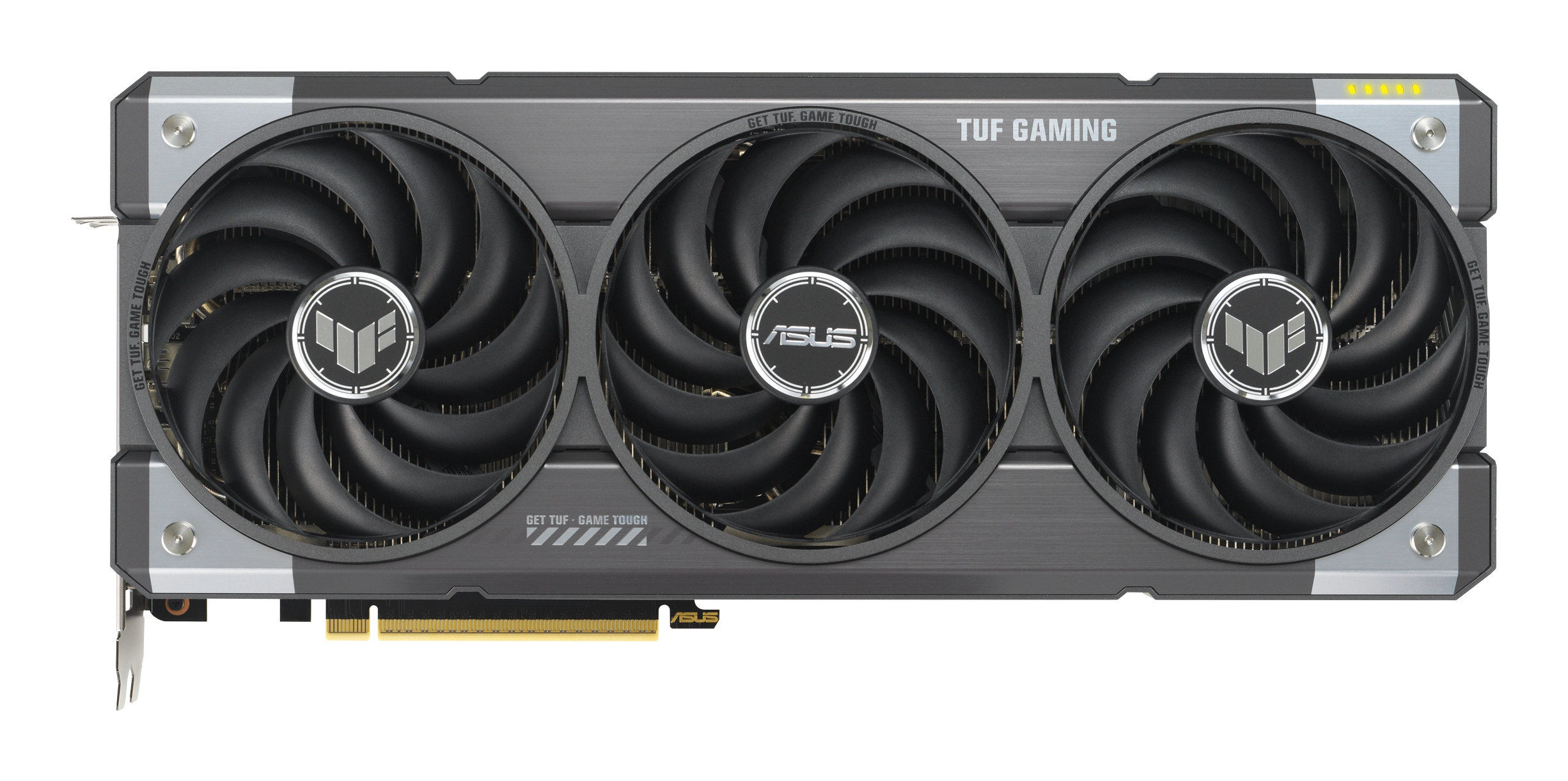

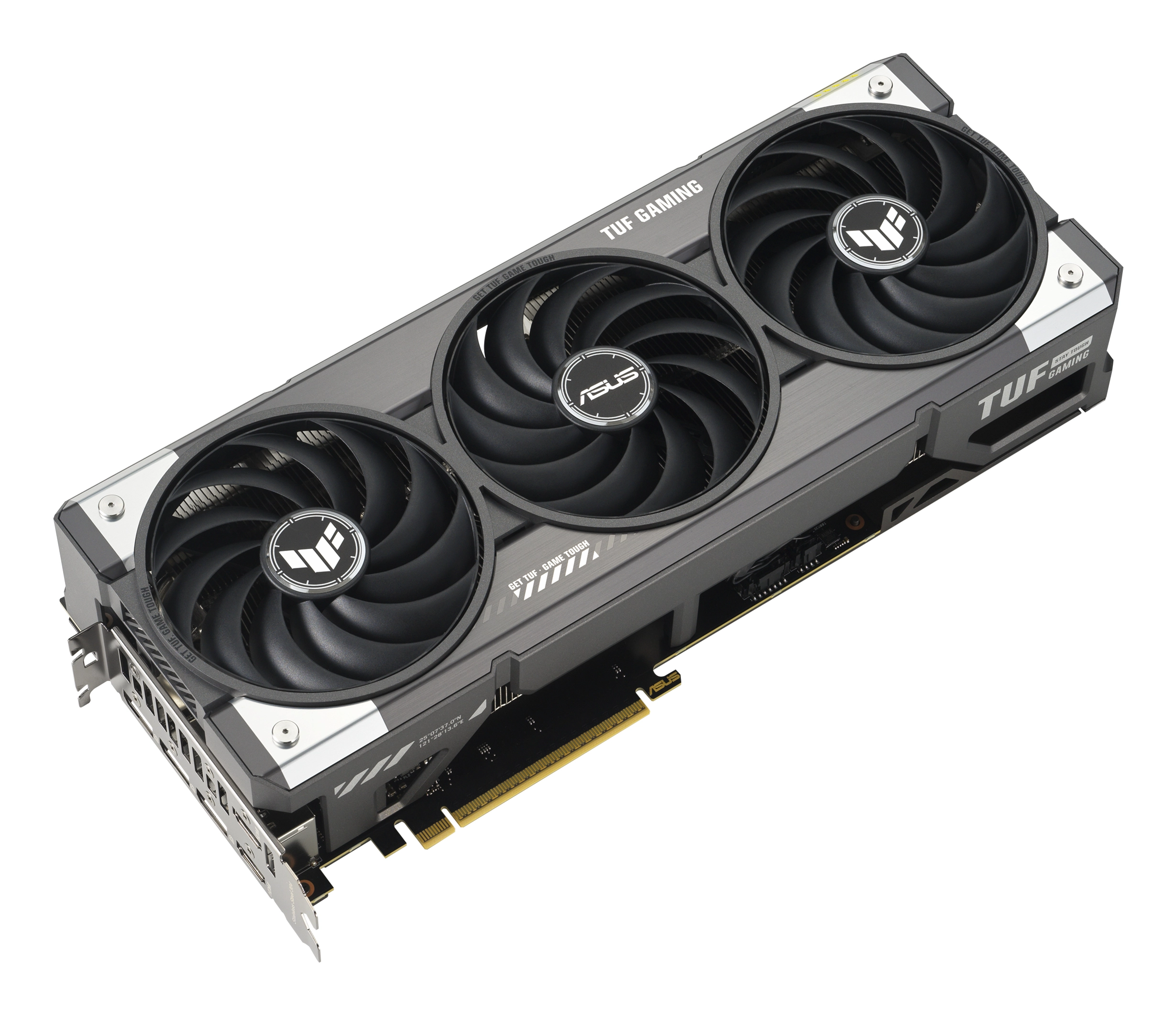

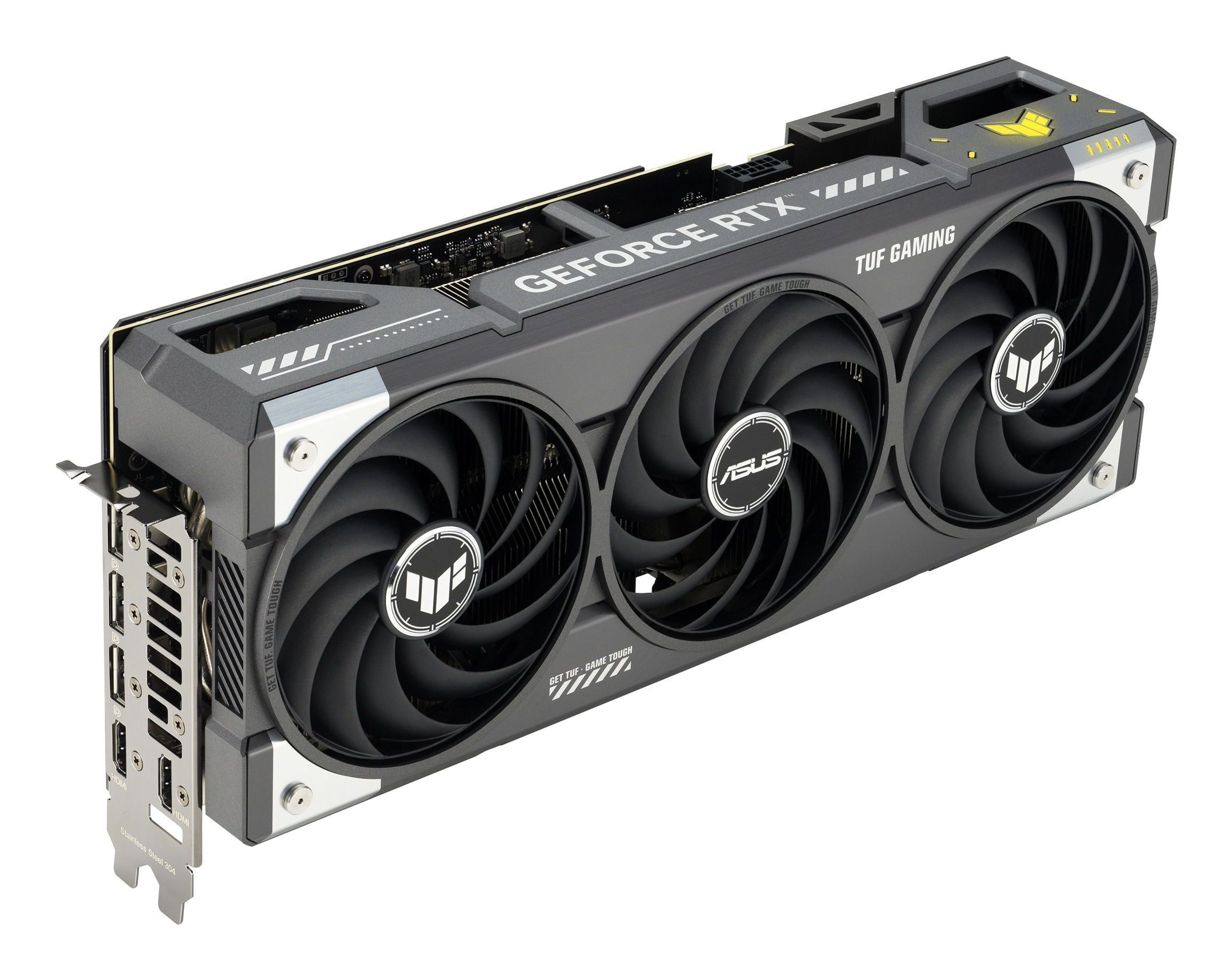

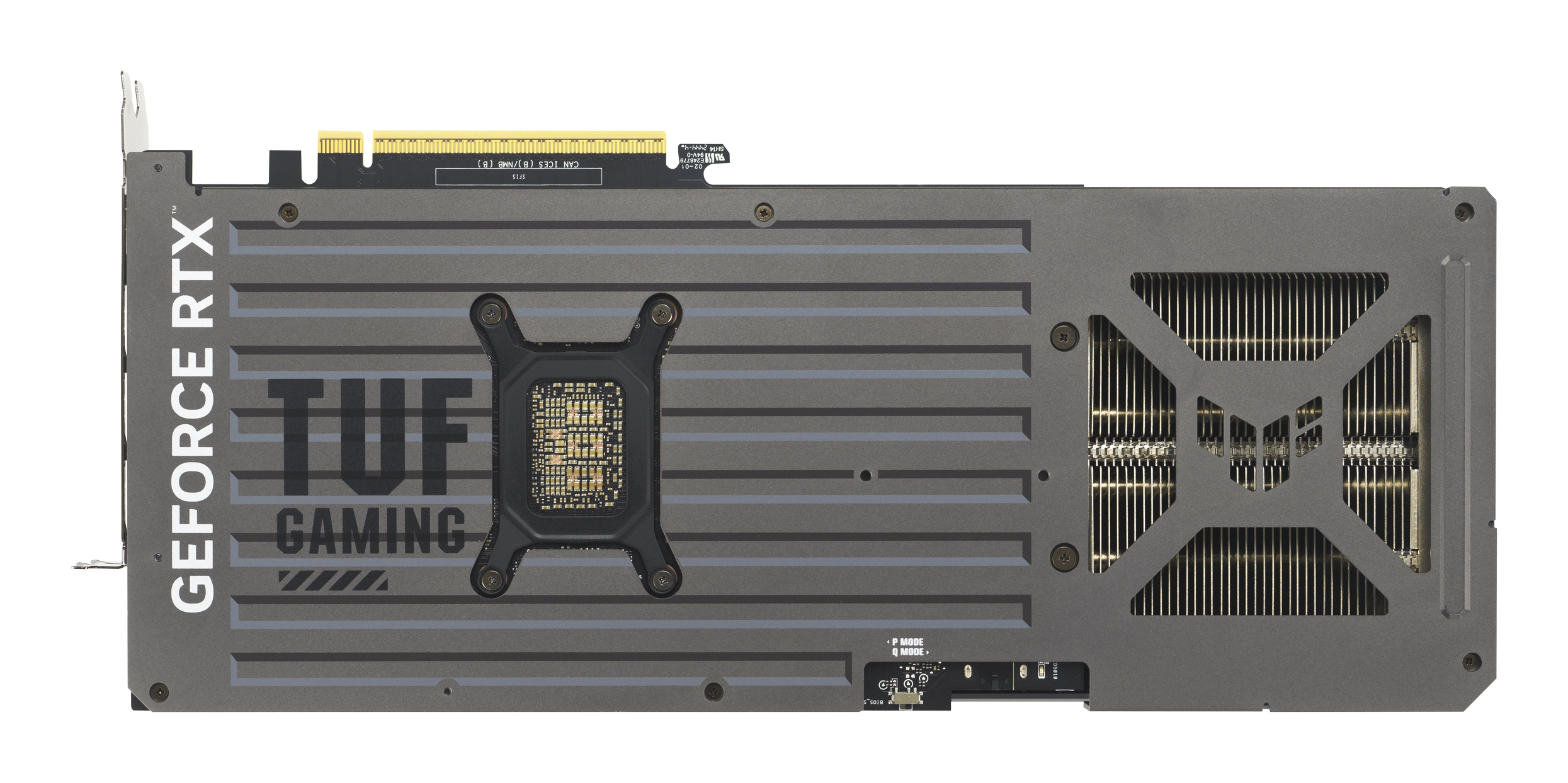

ASUS TUF Gaming GeForce RTX™ 5070
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5070, designed to withstand the harshest conditions and deliver unparalleled performance.

TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.

TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80, 000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling

Specification

Product
Product id	987478
Brand	AsusTek
Partnr	90YV0LZ0-M0NA00
EAN/UPC code	4711387849071
Warranty (months)	36 months
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 5070
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	6144
Processor boost clock speed	2610 MHz
Processor frequency (OC mode)	2640 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	12 GB
Graphics adapter memory type	GDDR7
Memory bus	192 Bit
Data transfer rate	28 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0

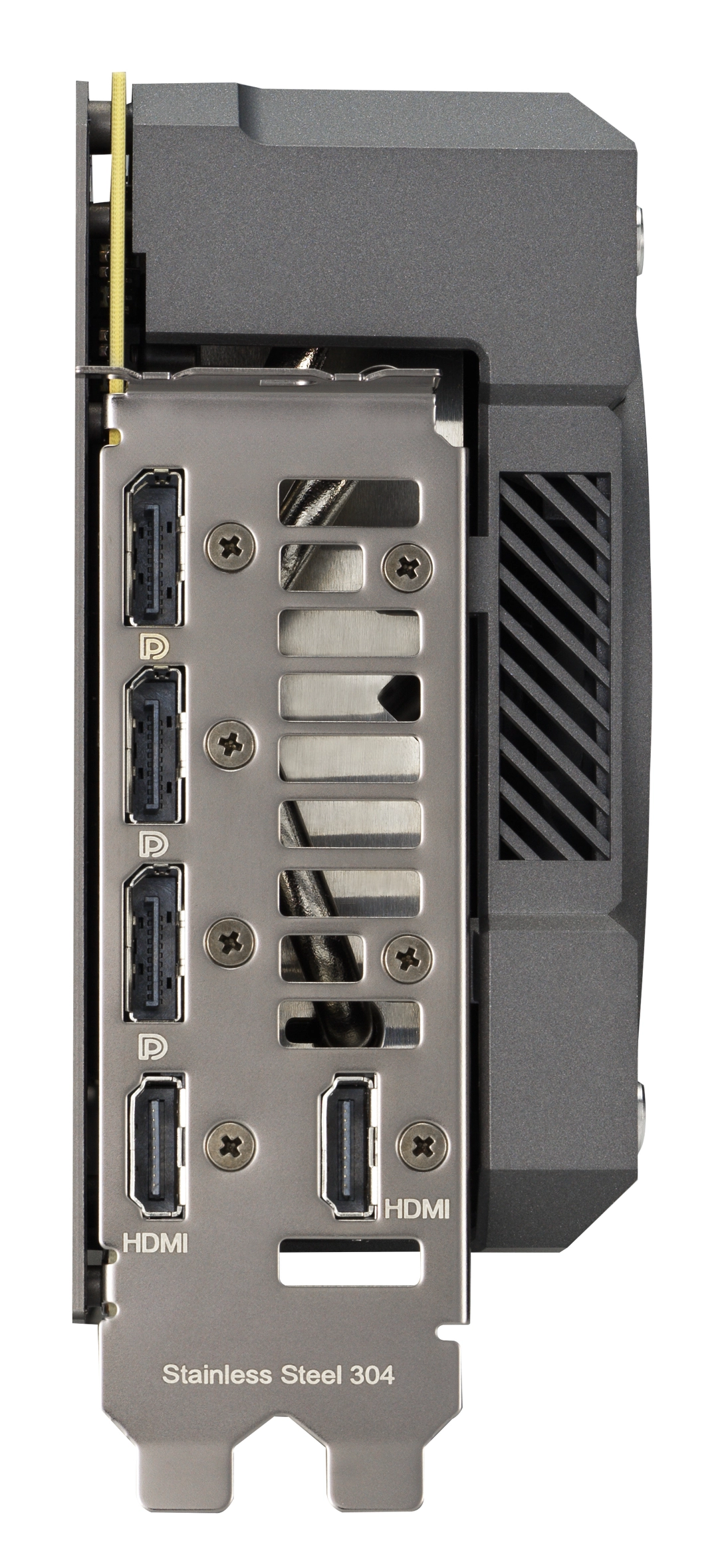

HDMI ports quantity	2
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1b
Performance
TV tuner integrated	N
OpenGL version	4.6
HDCP	Y
HDCP version	2.3
Dual Link DVI	N
NPU performance up to	1026 TOPs
Overclocked (OC) edition	Y
Design
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	3 ventilator(en)
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	3.125
Illumination	Y
Illumination colour	Multi
Product colour	Black, Grey
Power
Minimum system power supply	750 W
Supplementary power connectors	1x 16-pin
Weight & dimensions
Weight	1533 g
Depth	62.5 mm
Length	329 mm
Height	140 mm
Packaging data
Manual	Y
Package width	420 mm
Package depth	226 mm
Package height	87 mm
Package weight	2327 g
Package type	Box
