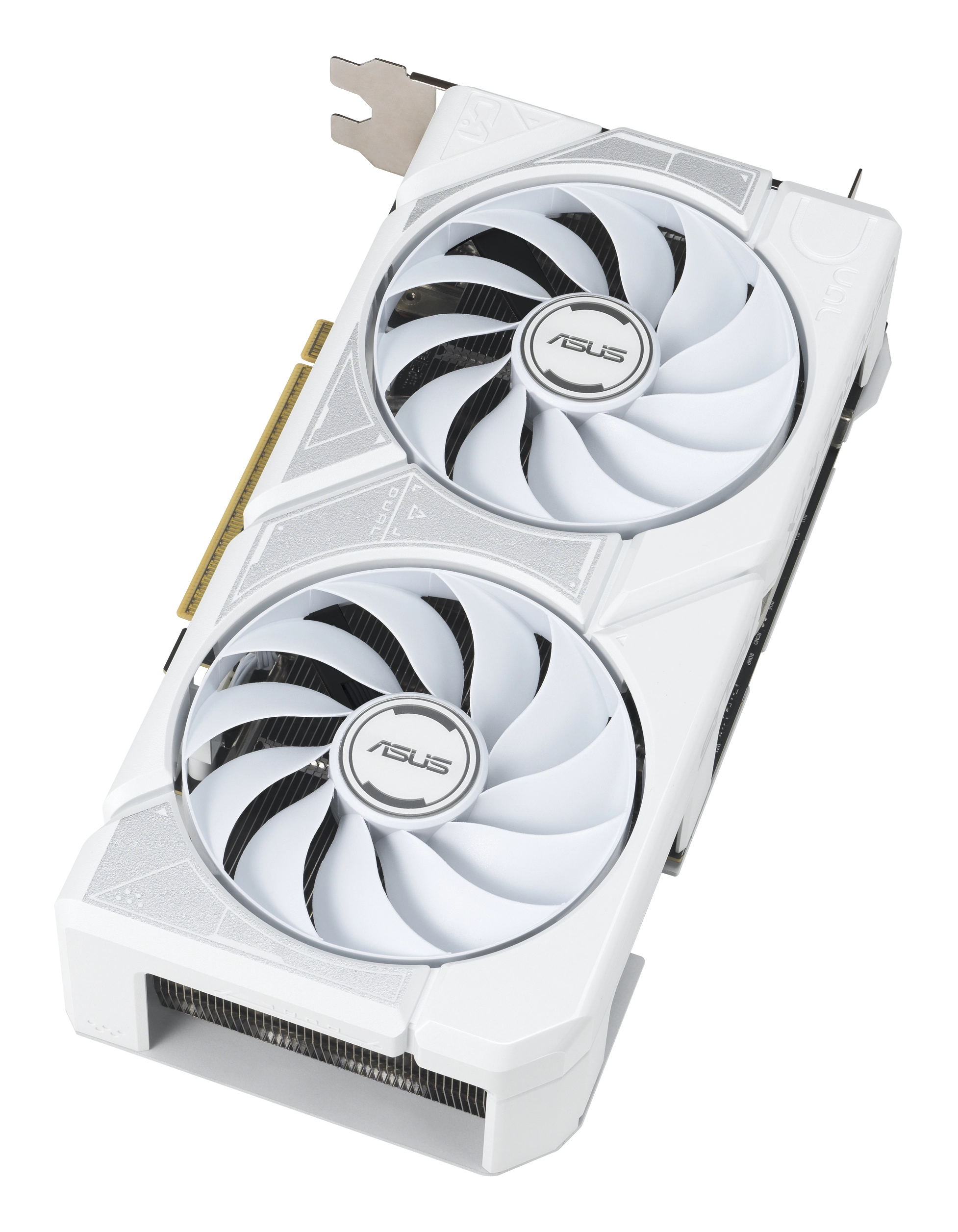

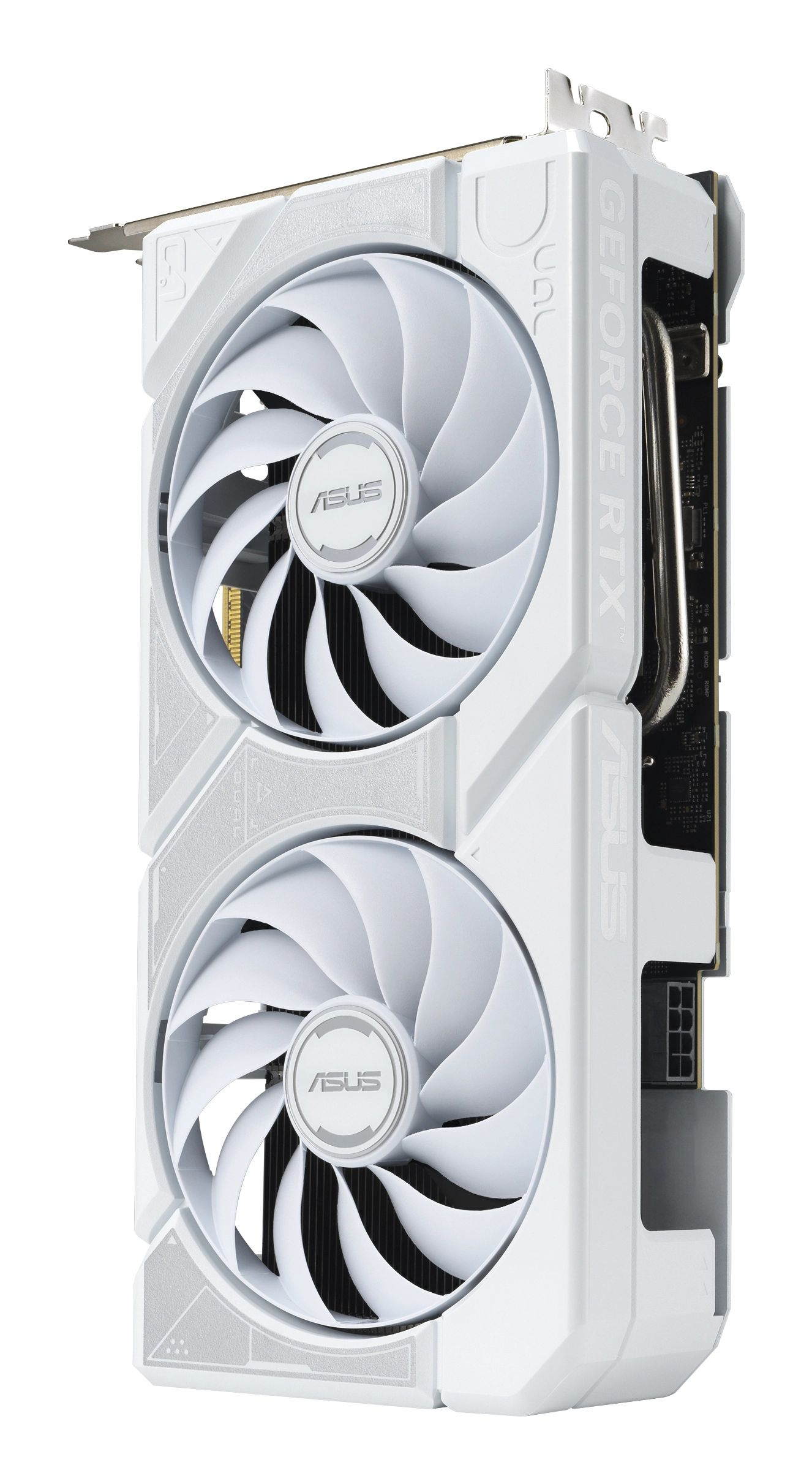

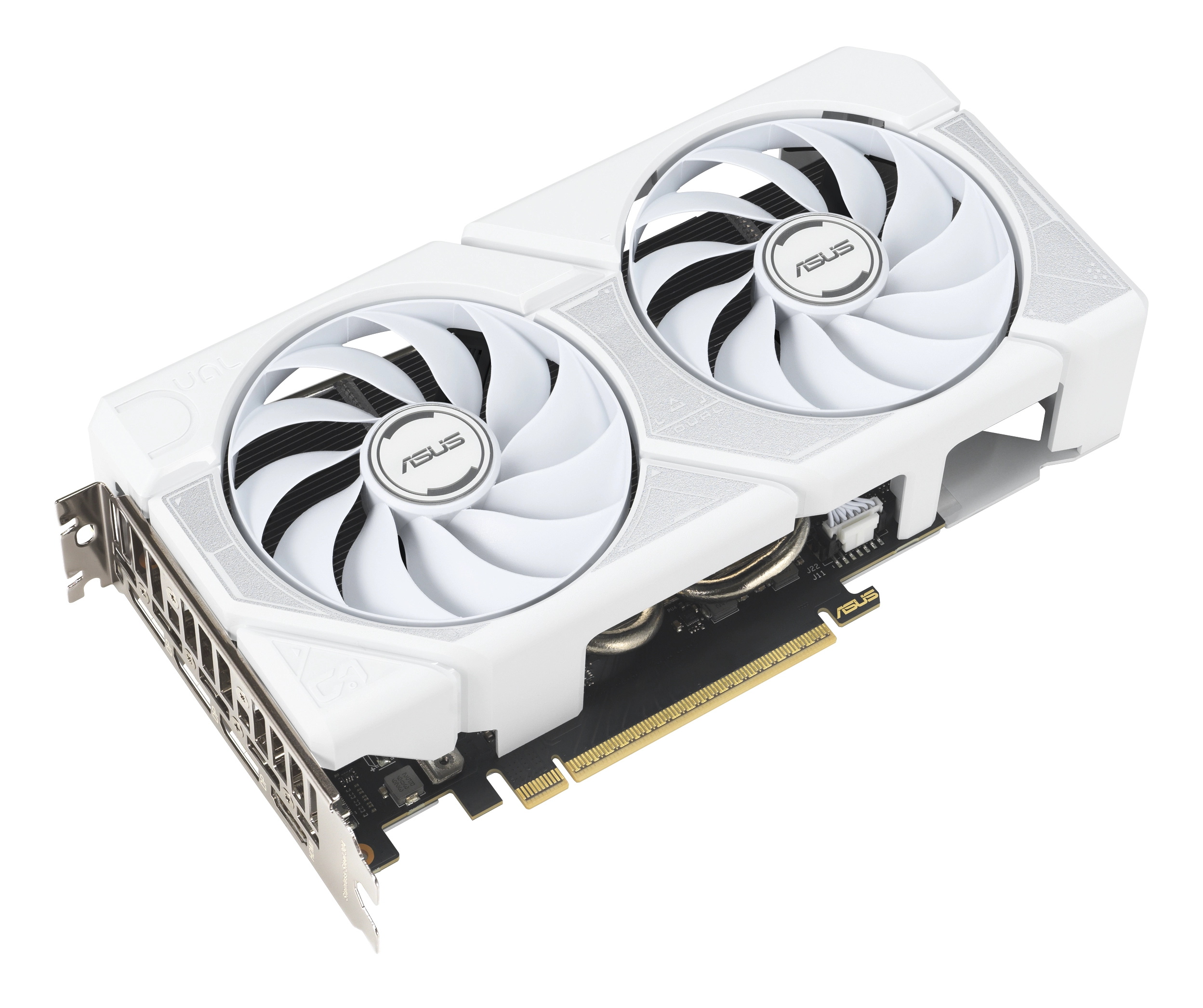

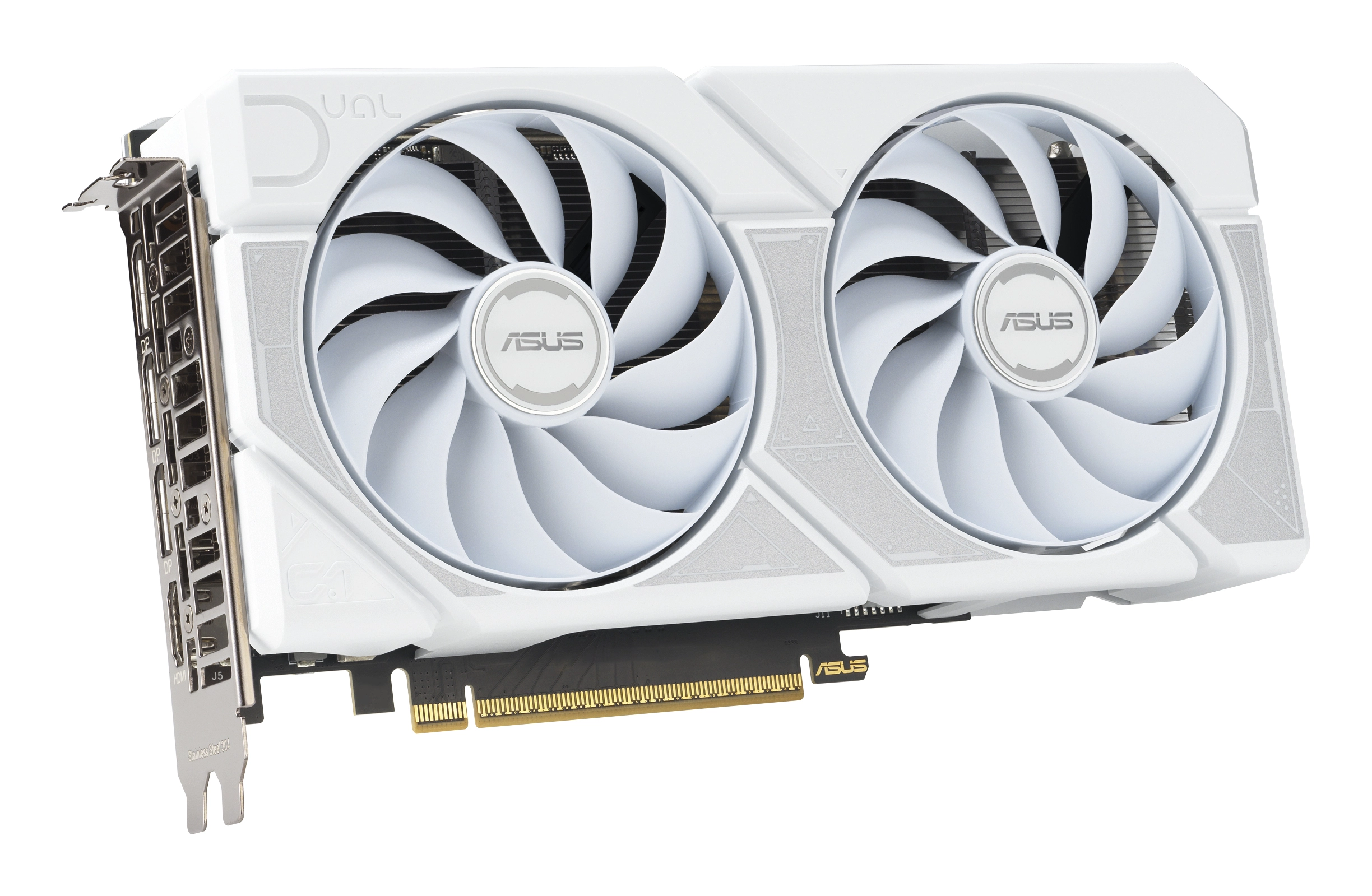

DUAL GEFORCE RTX™ 5060 Ti White Edition
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 Ti White Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Cooling
2.5-slot Design

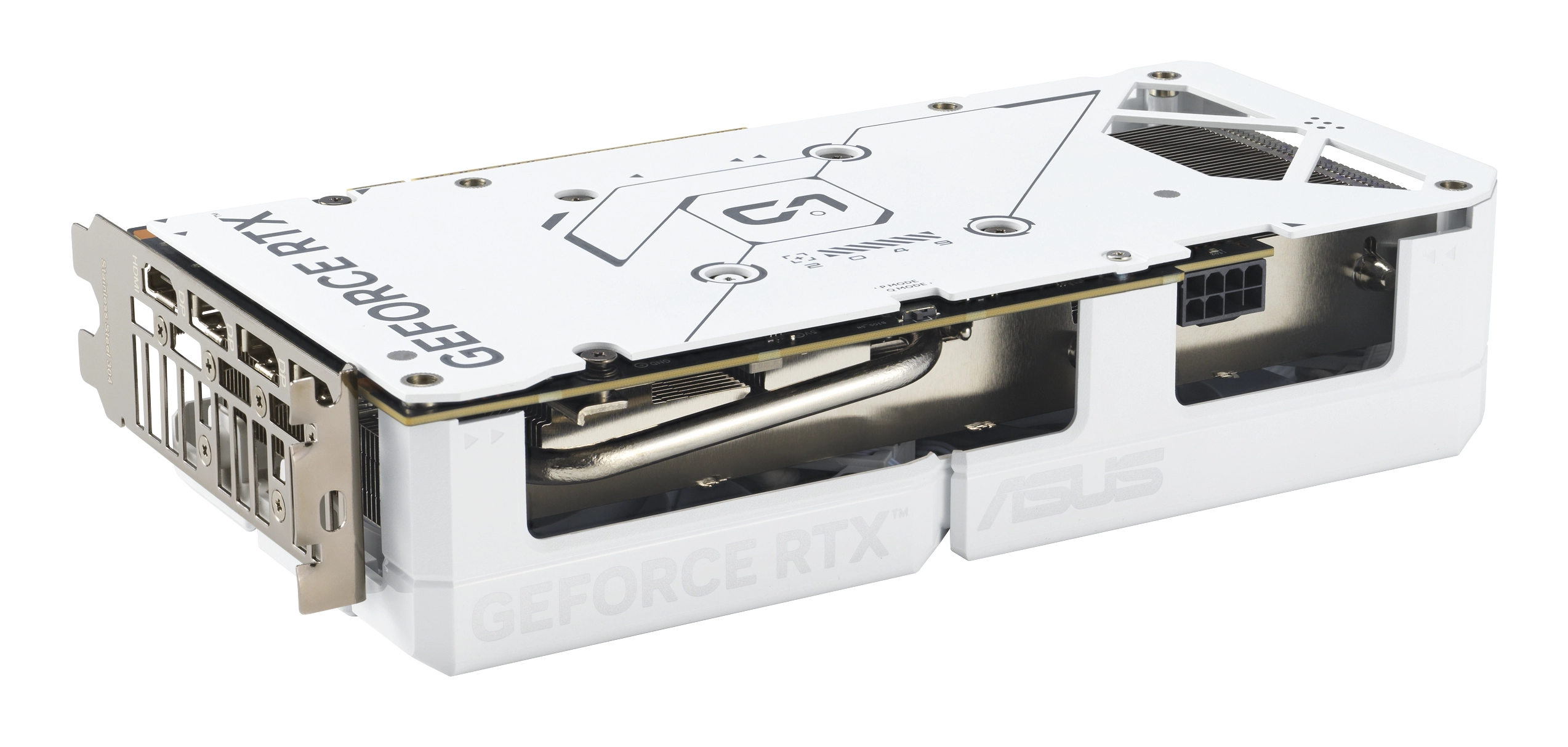

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

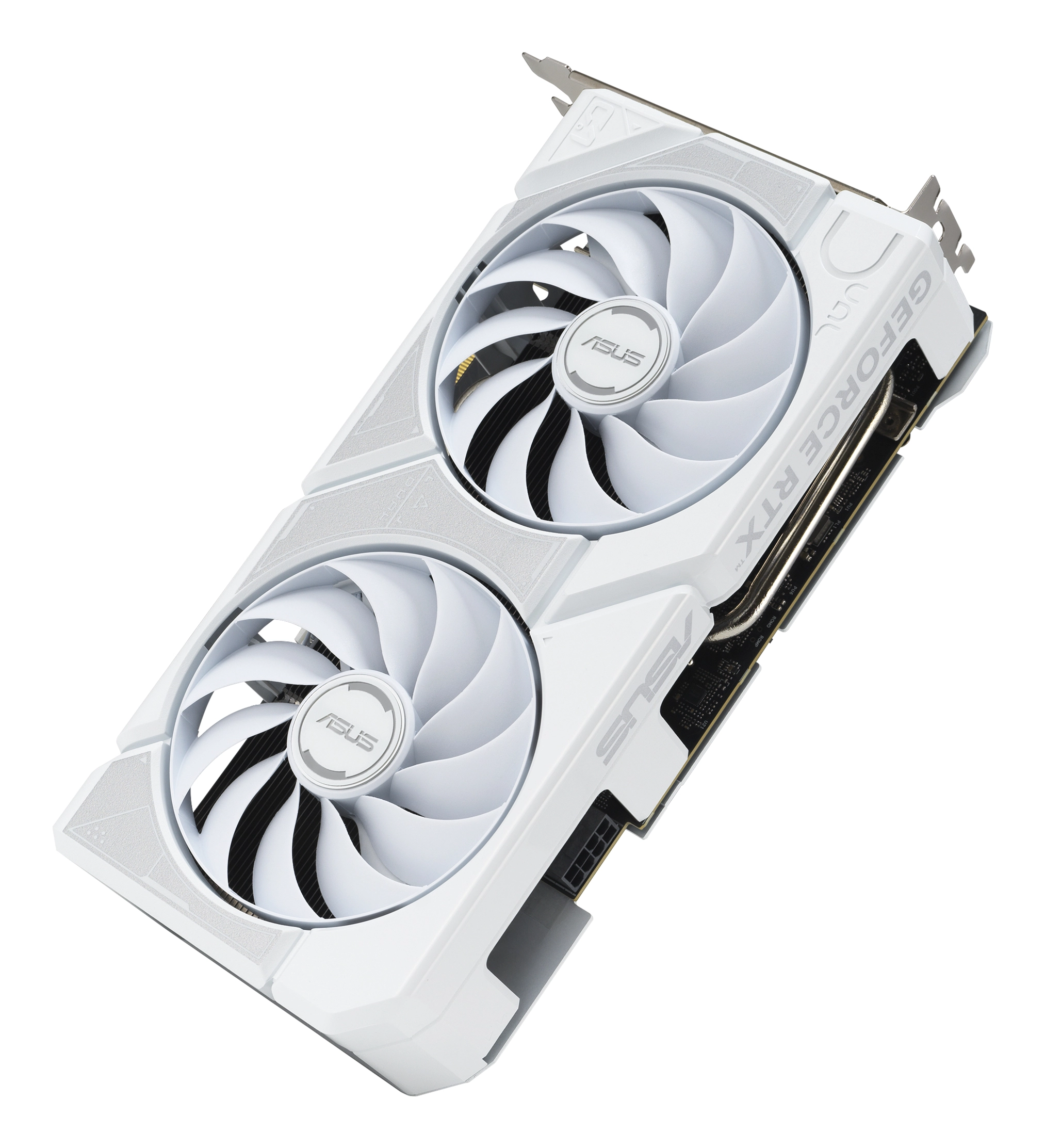

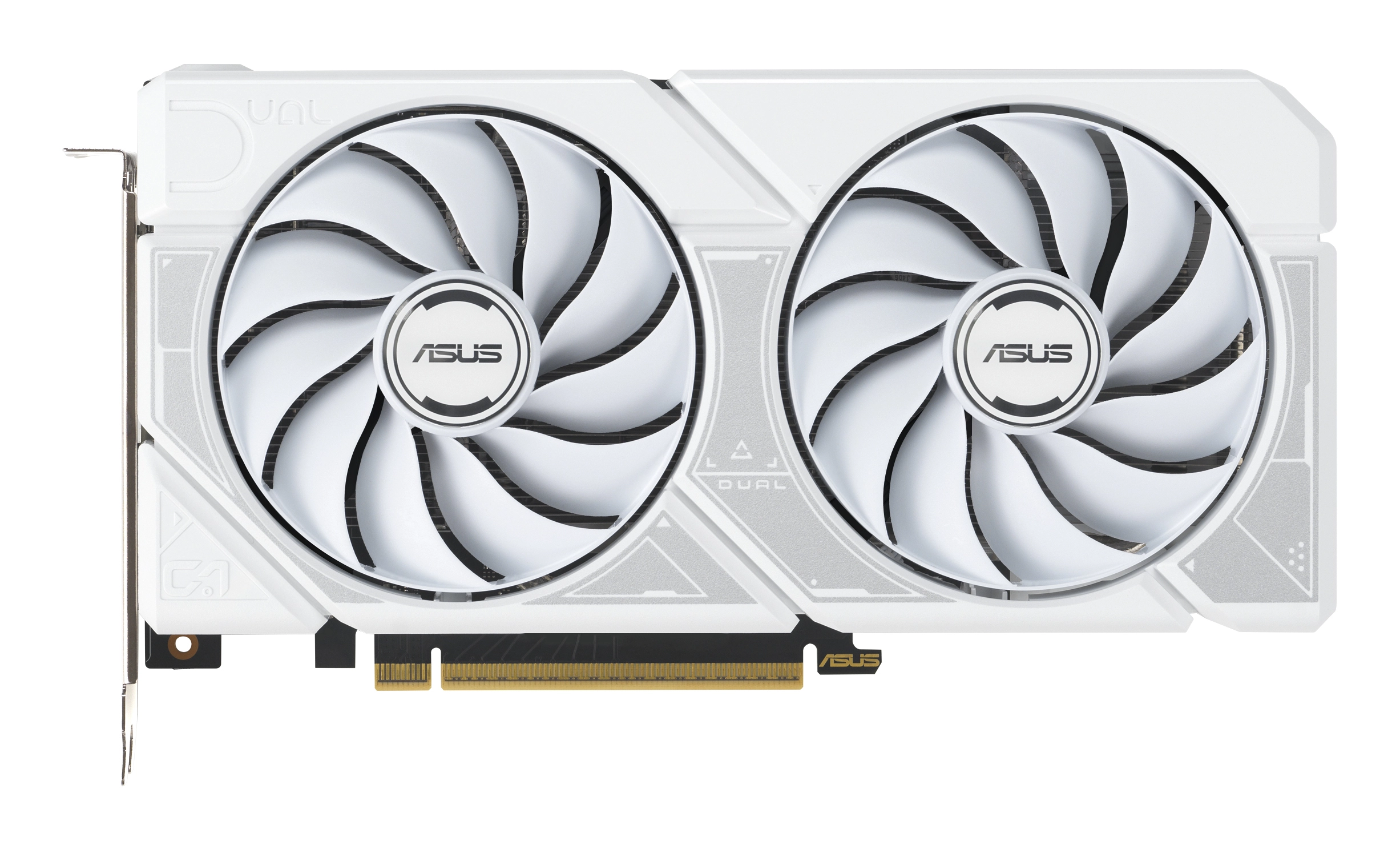

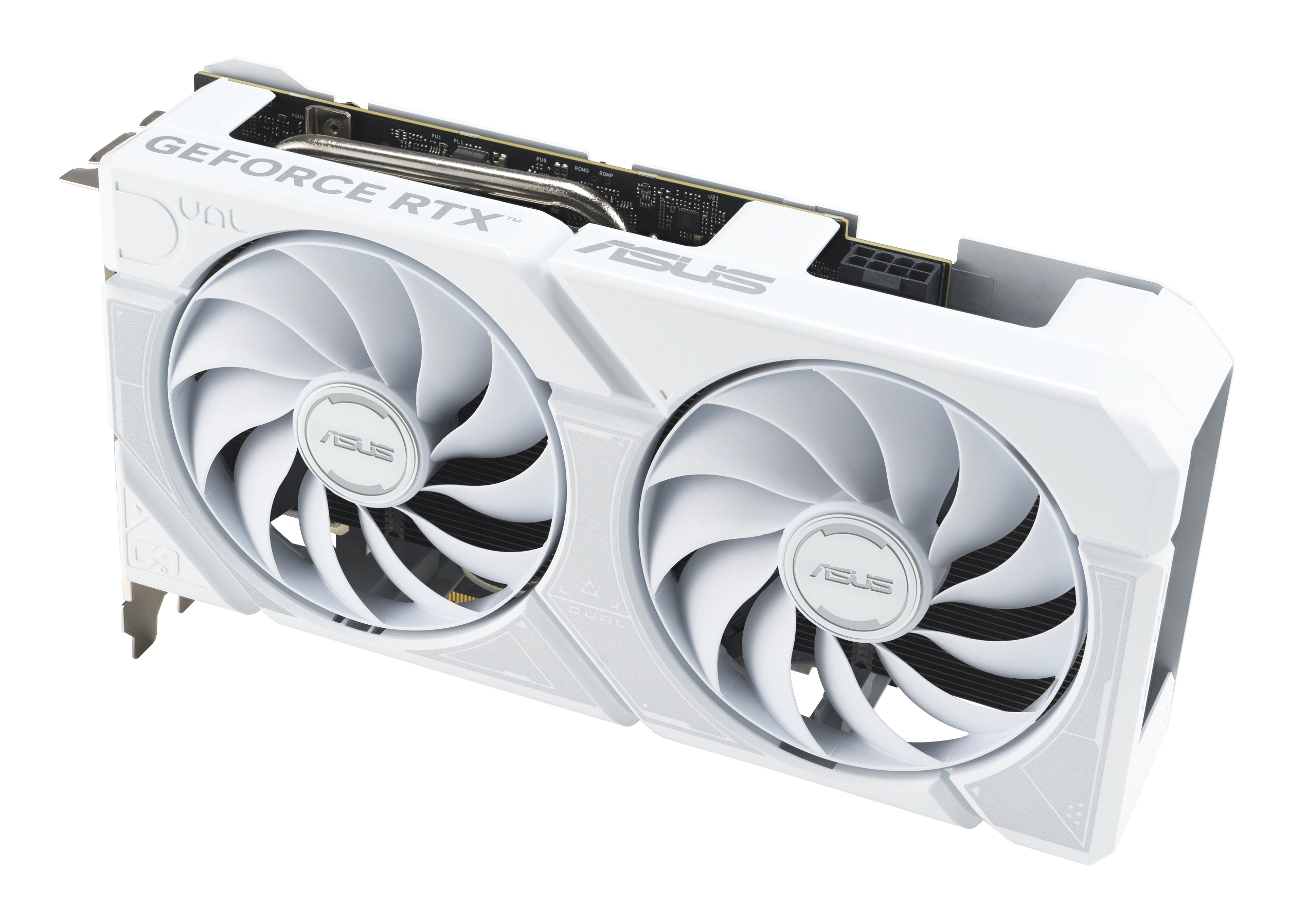

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

Specification

Product
Product id	996618
Brand	AsusTek
Partnr	90YV0MH6-M0NA00
EAN/UPC code	4711636179973
Warranty (months)	36 months
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 5060 Ti
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	4608
Processor boost clock speed	2602 MHz
Processor frequency (OC mode)	2632 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	16 GB
Graphics adapter memory type	GDDR7
Memory bus	128 Bit
Data transfer rate	28 Gbit/s

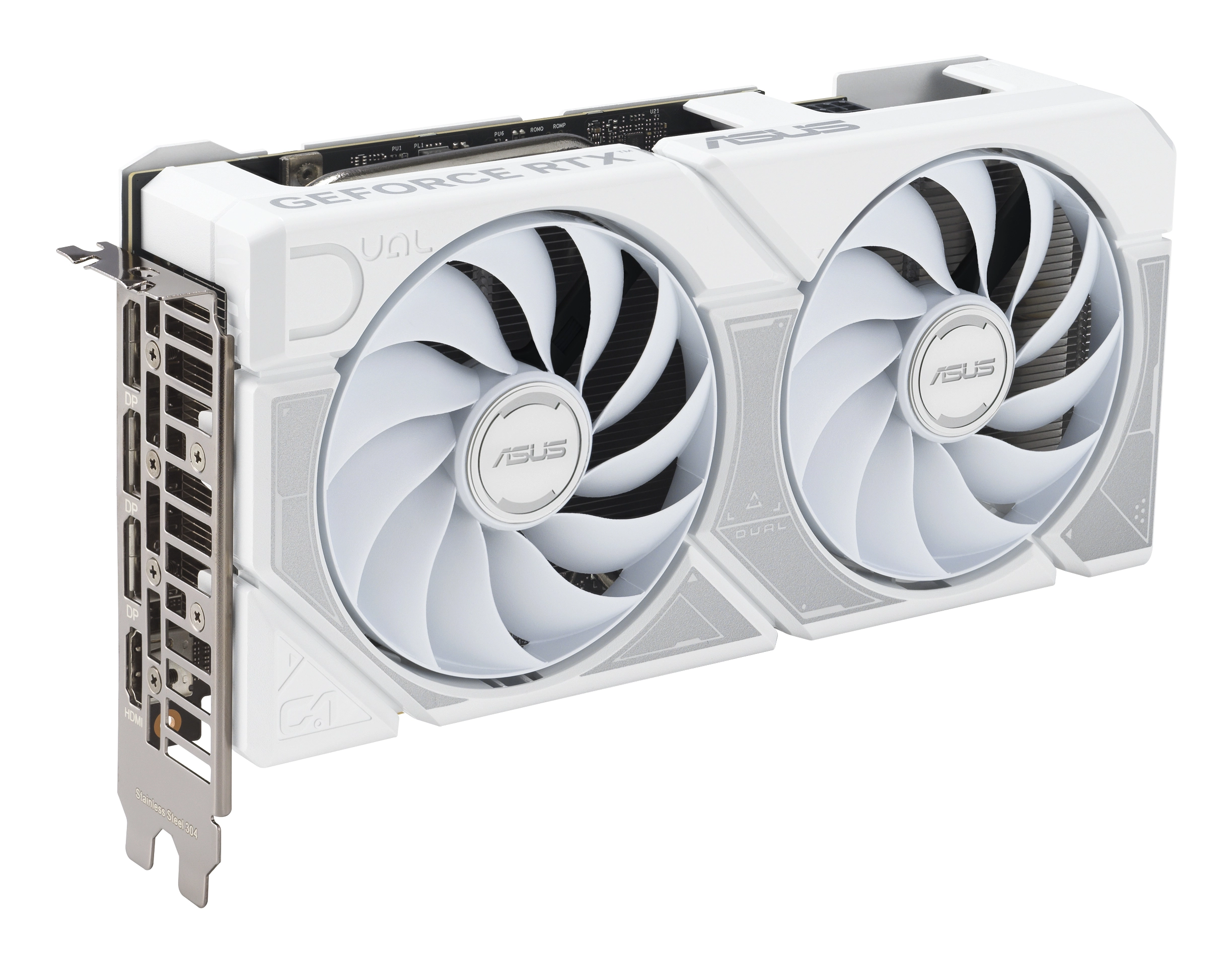

Ports & interfaces
Interface type	PCI Express 5.0

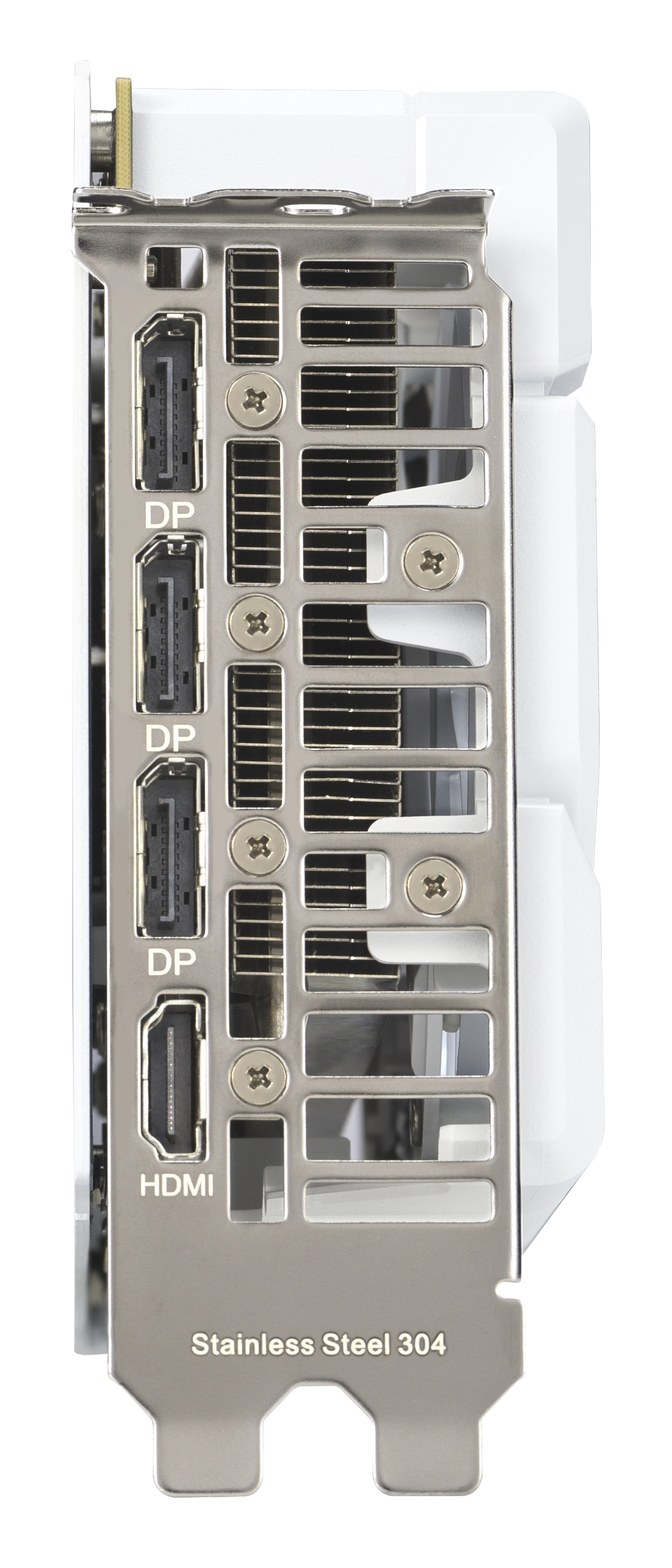

HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1b
Performance
TV tuner integrated	N
OpenGL version	4.6
HDCP	Y
HDCP version	2.3
NPU performance up to	767 TOPs
Overclocked (OC) edition	Y
Design
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	2 ventilator(en)
Number of slots	2.5
Product colour	White
Power
Minimum system power supply	550 W

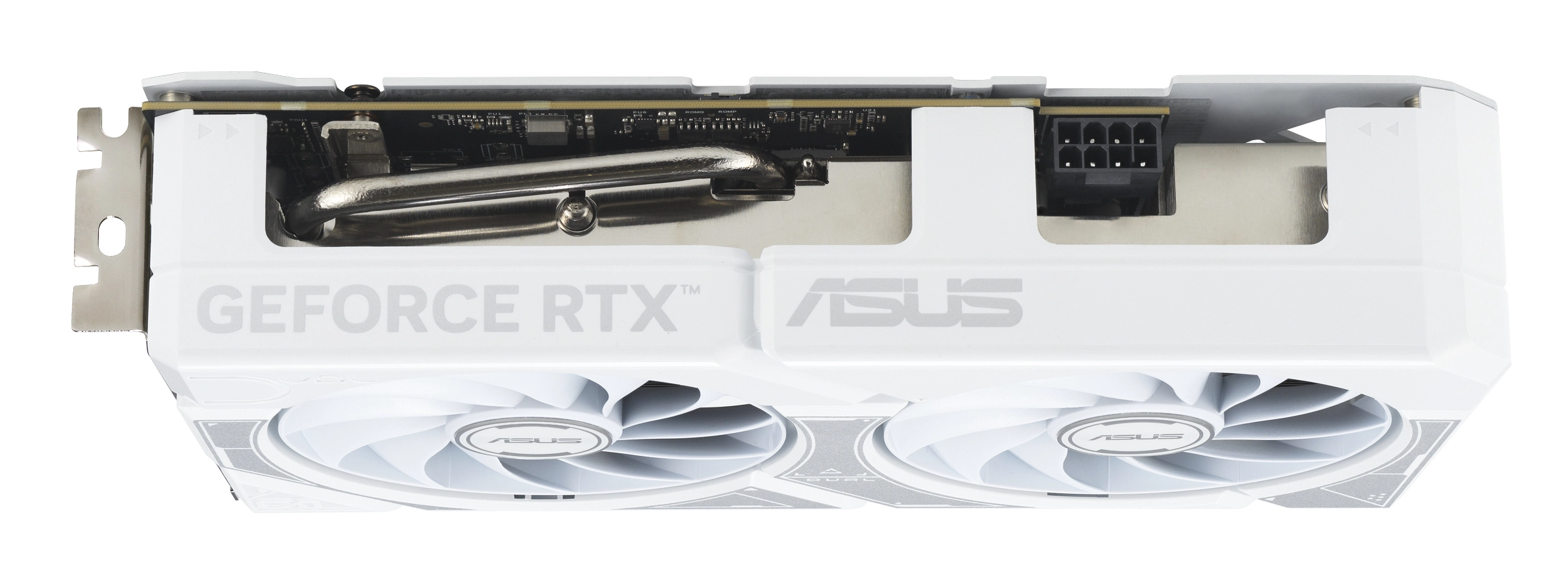

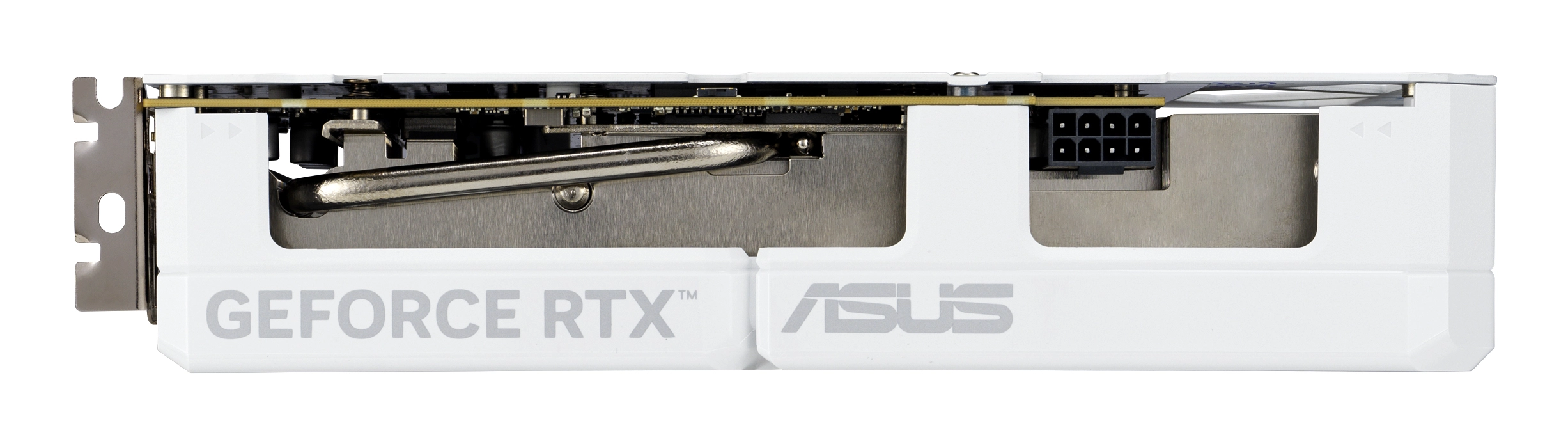

Supplementary power connectors	1x 8-pin
Weight & dimensions
Weight	656 g
Depth	50 mm
Length	229 mm
Height	120 mm
Packaging data
Manual	Y
Package width	364 mm
Package depth	217 mm
Package height	66 mm
Package weight	1116 g
Package type	Box
