Dual Radeon™ RX 9060 XT
Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

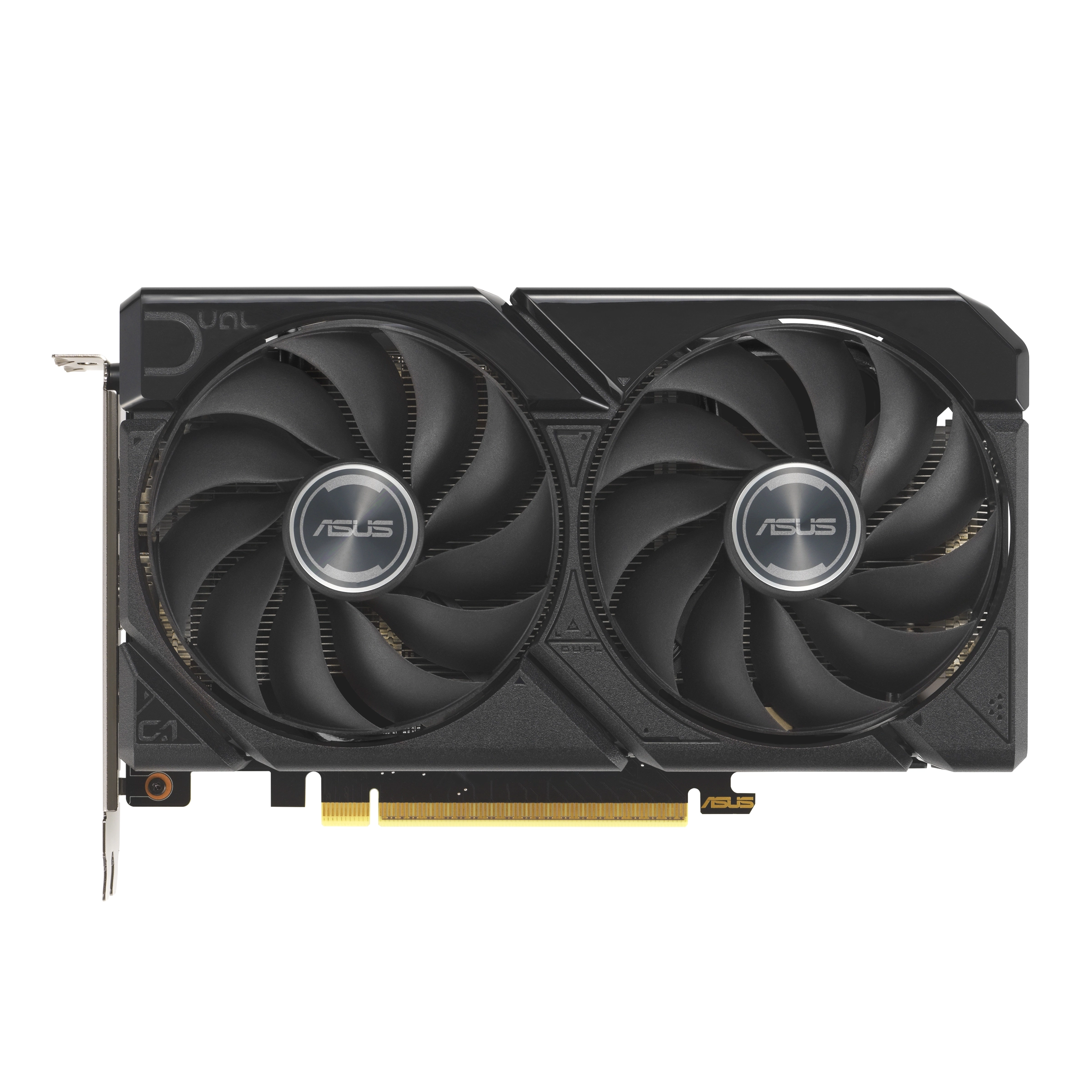

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

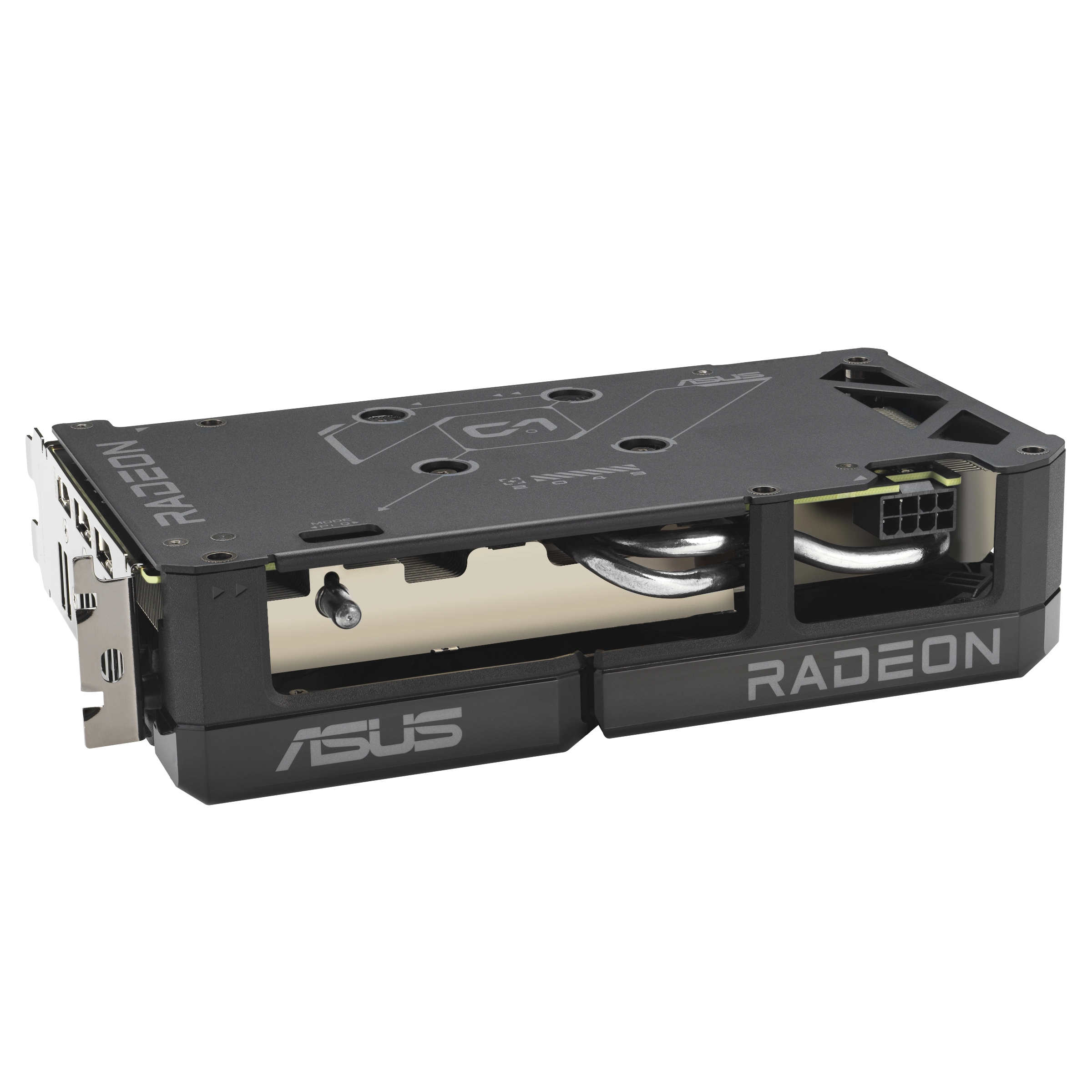

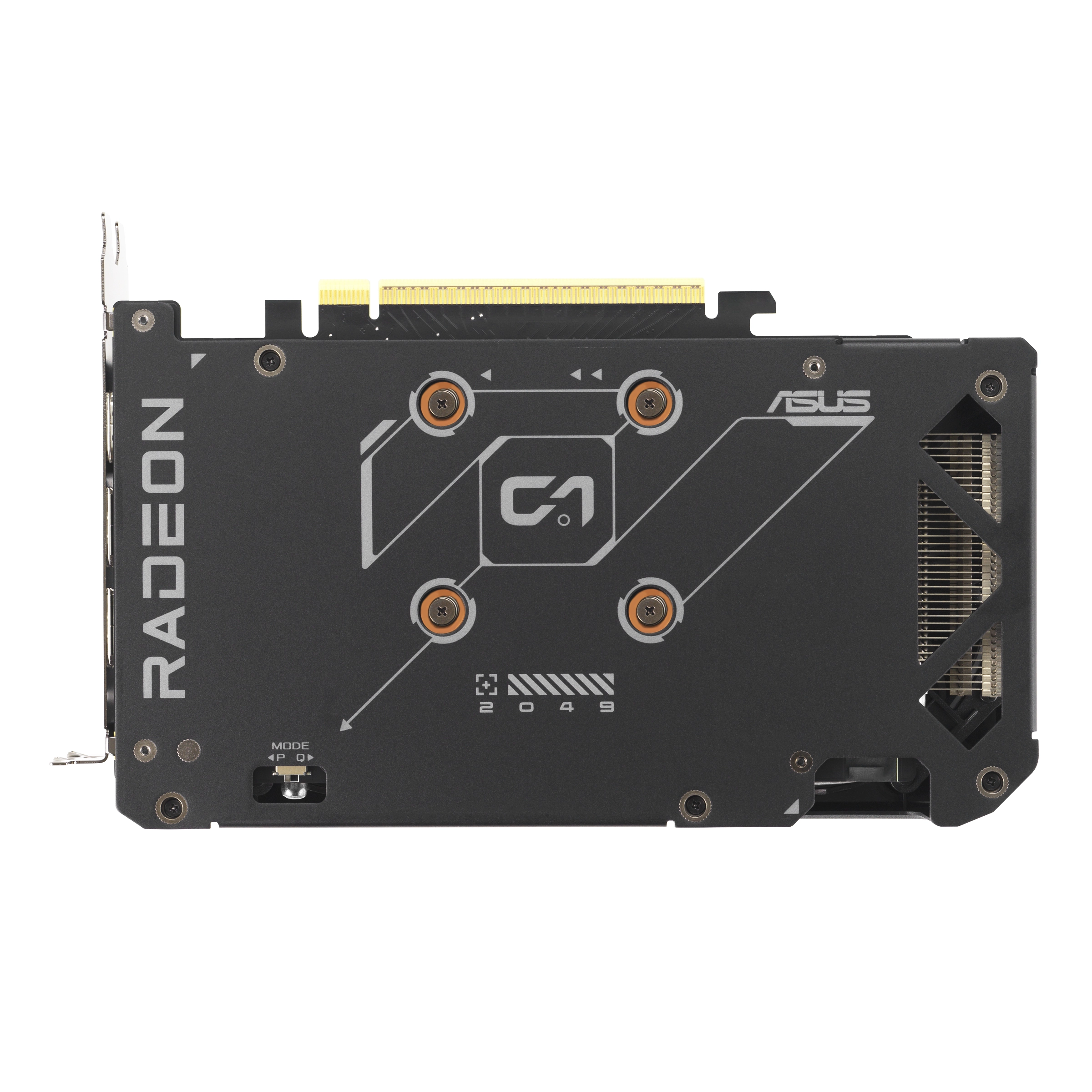

Vented Backplate
A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Specification

Product
Product id	996130
Brand	AsusTek
Partnr	90YV0MI1-M0NA00
EAN/UPC code	4711387994269
Warranty (months)	36 months
Processor
Graphics processor family	AMD
Graphics processor	Radeon RX 9060 XT
Maximum resolution	7680 x 4320 Pixels
CUDA	N
Processor boost clock speed	3130 MHz
Maximum displays per videocard	3
Stream processors	2048
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	8 GB
Graphics adapter memory type	GDDR6
Memory bus	128 Bit
Data transfer rate	20 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DisplayPorts quantity	2
HDMI version	2.1b
DisplayPort version	2.1a
Performance
TV tuner integrated	N
OpenGL version	4.6
HDCP	Y
HDCP version	2.3
Dual Link DVI	N
Design
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	2 ventilator(en)
Form factor	Full-Height/Half-Length (FH/HL)
Number of slots	2.5
Product colour	Black
Power
Minimum system power supply	550 W
Supplementary power connectors	1x 8-pin
Weight & dimensions
Weight	601 g
Depth	49 mm
Length	202 mm
Height	120 mm
Packaging data
Manual	Y
Package width	364 mm
Package depth	219 mm
Package height	66 mm
Package weight	1060 g
Package type	Box
