Visionary. Versatile. Timeless.

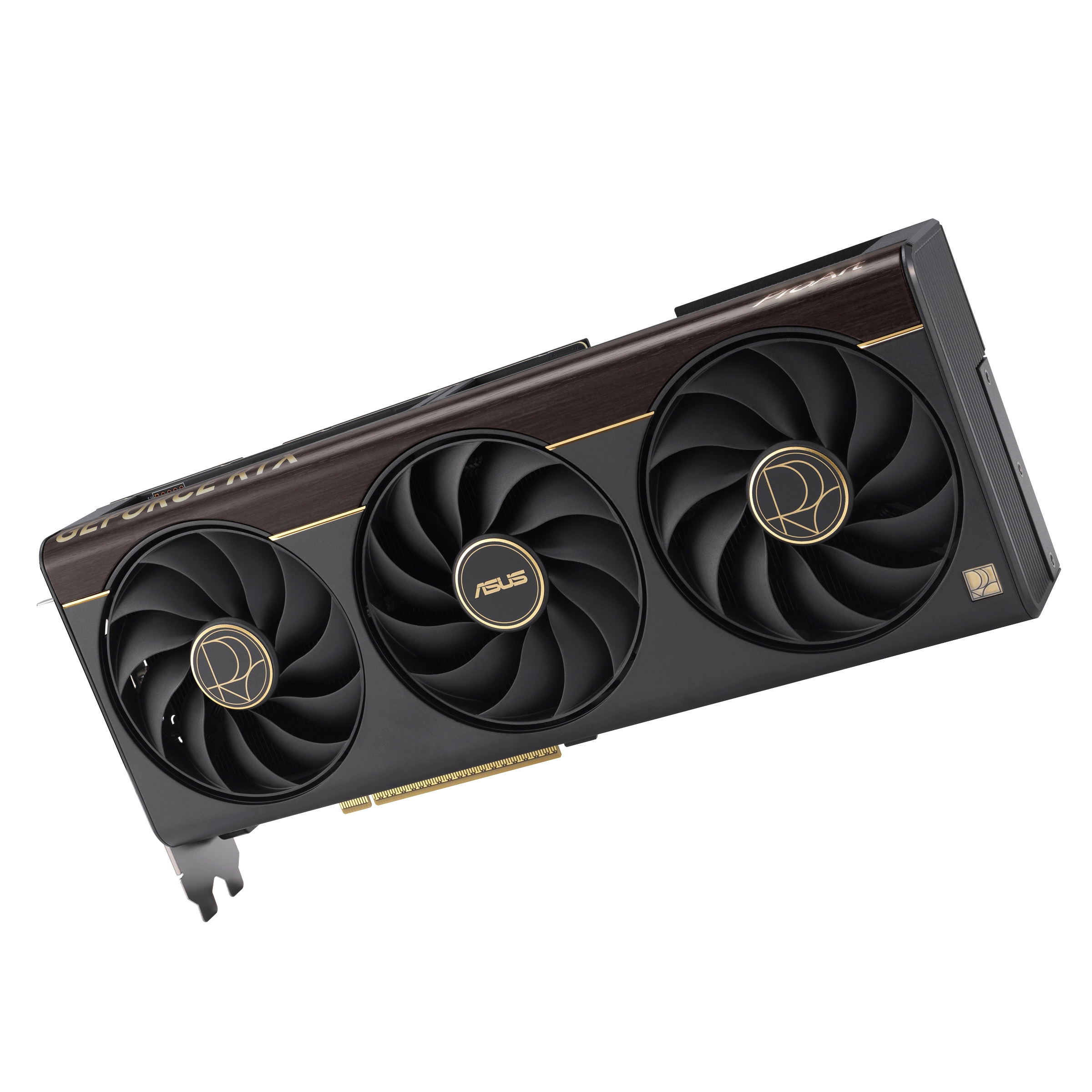

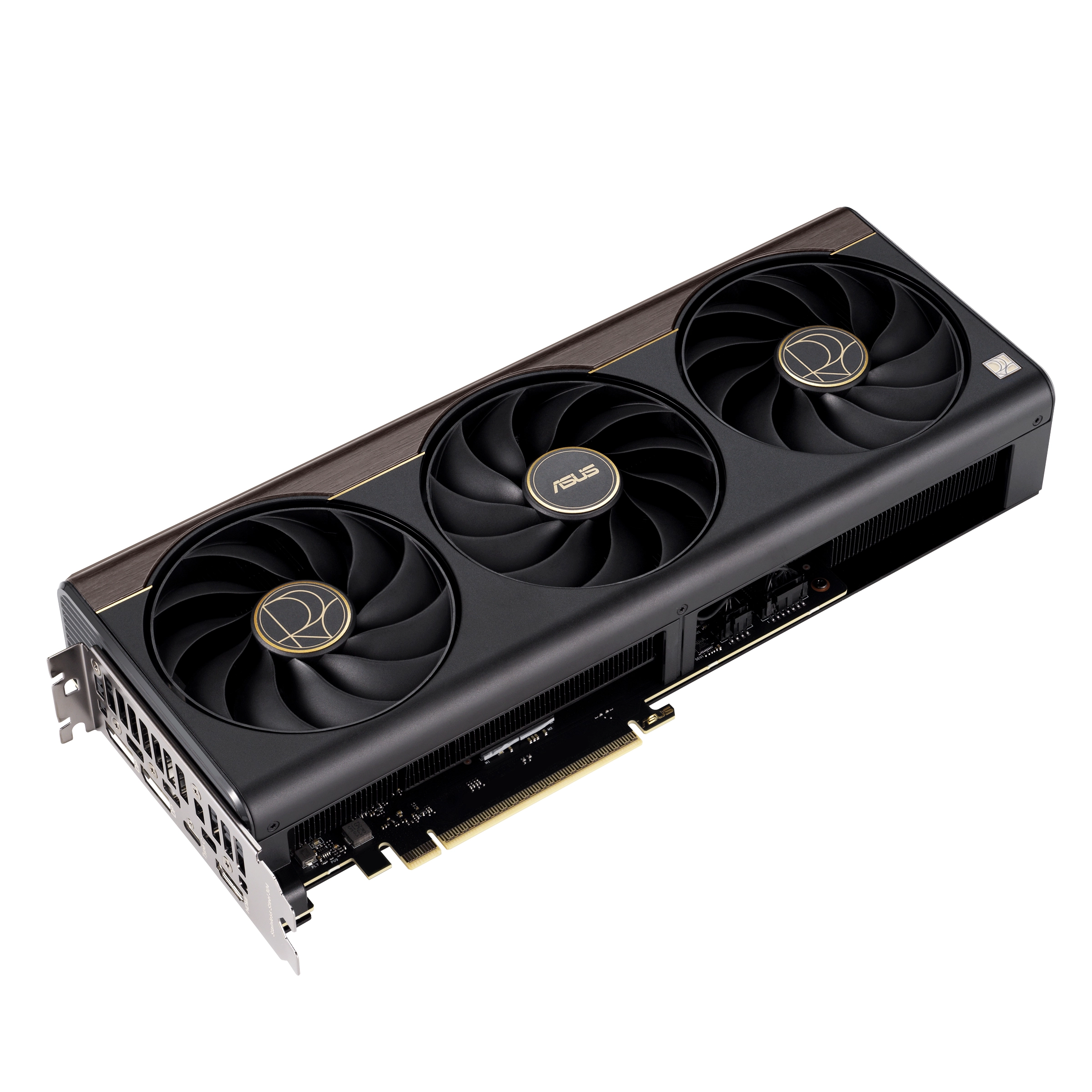

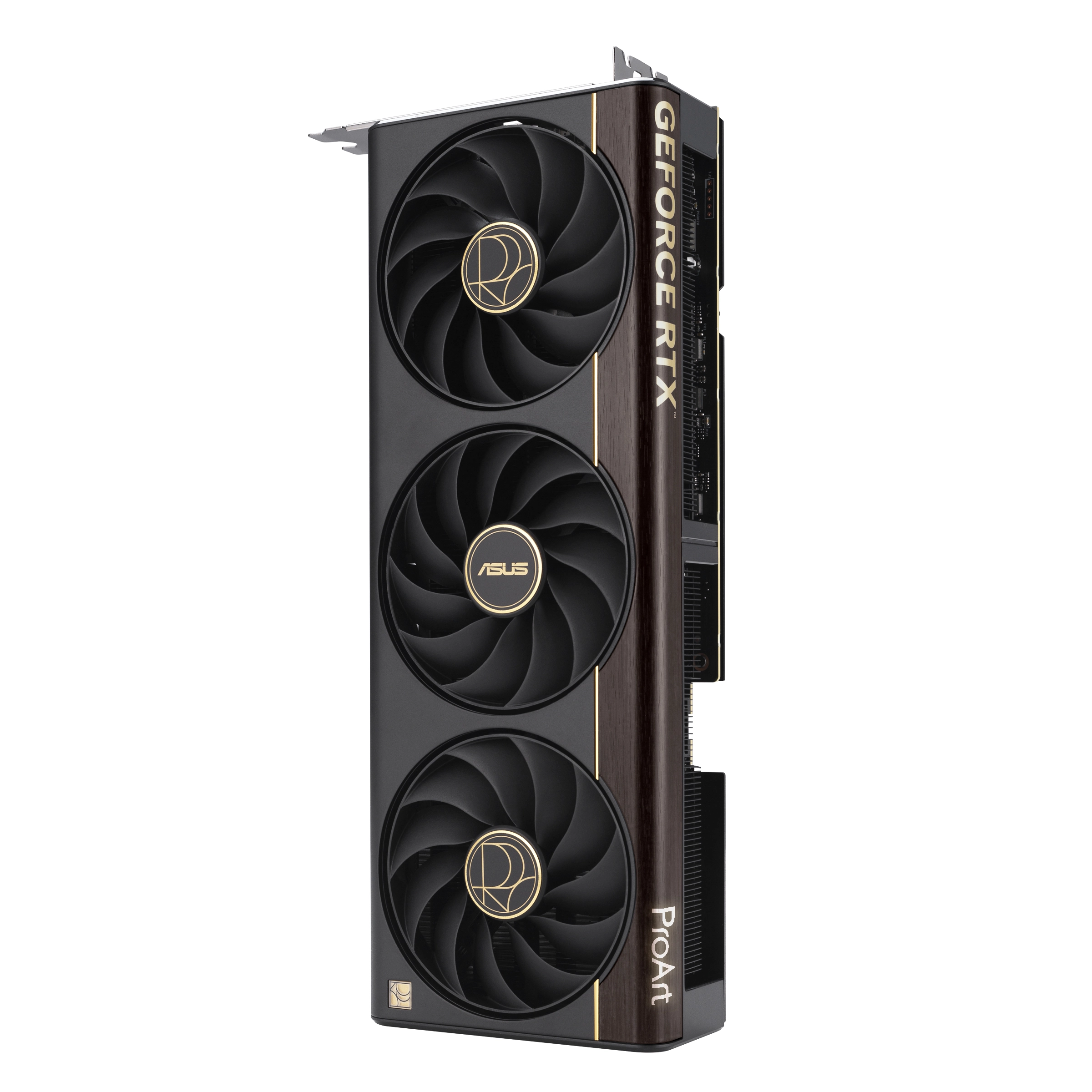

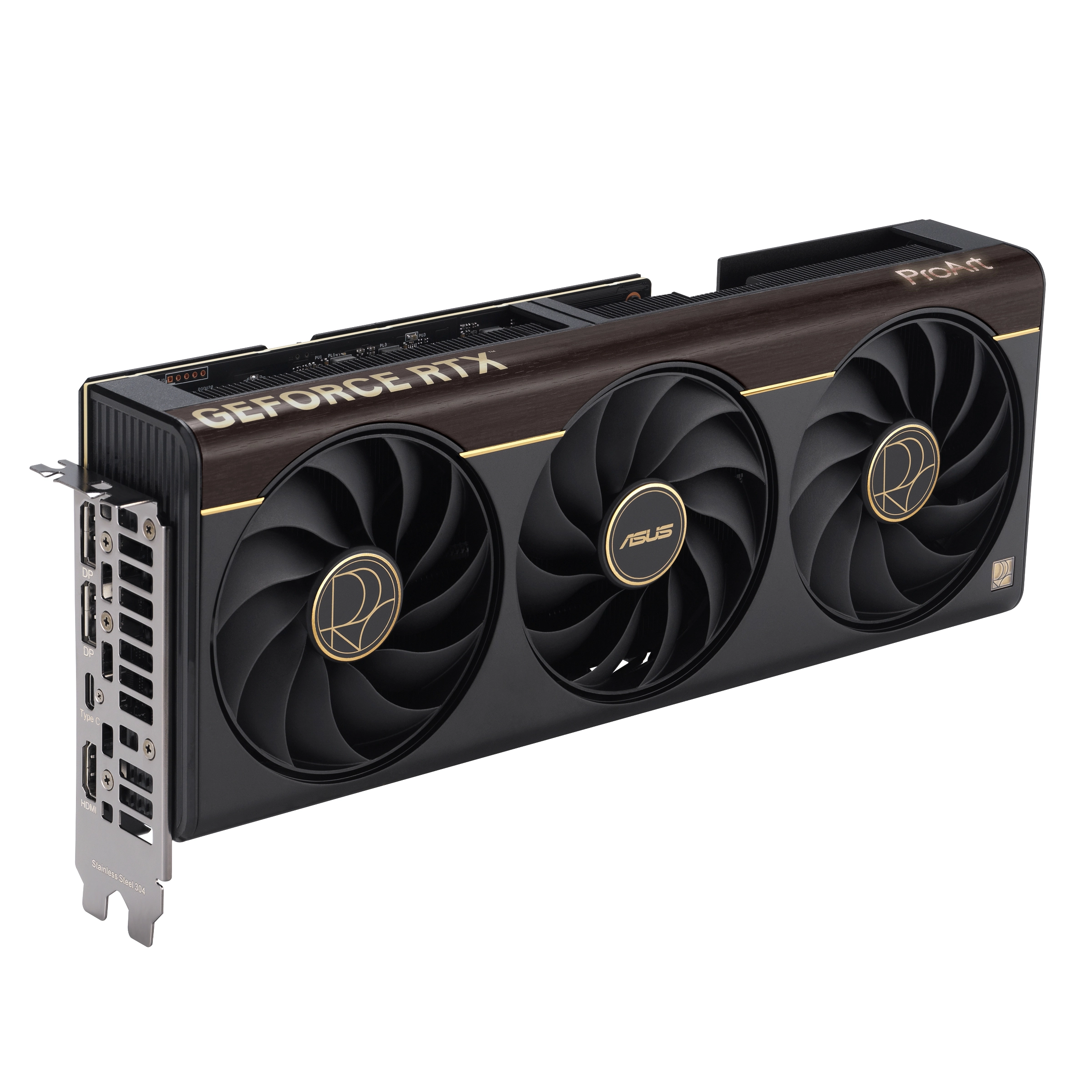

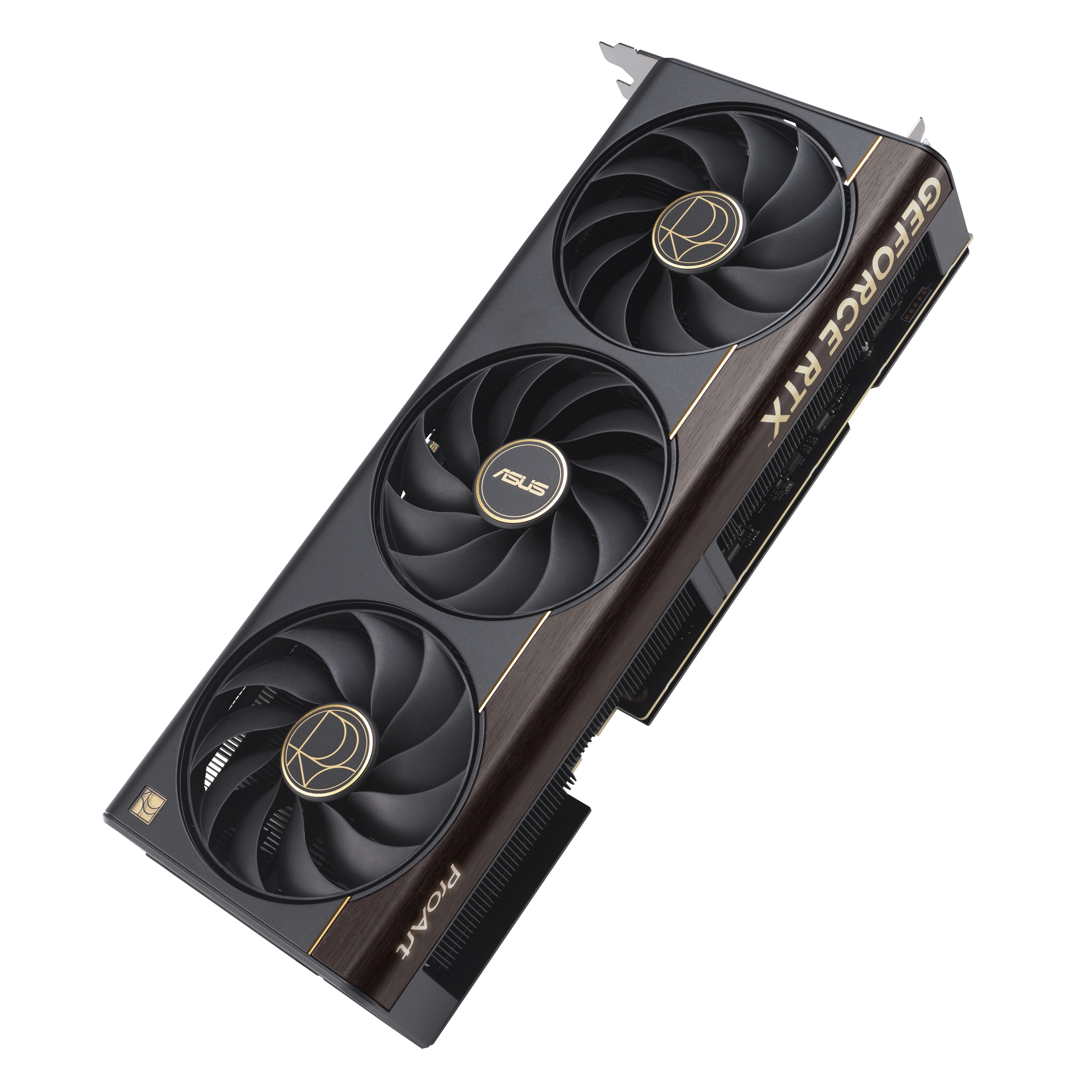

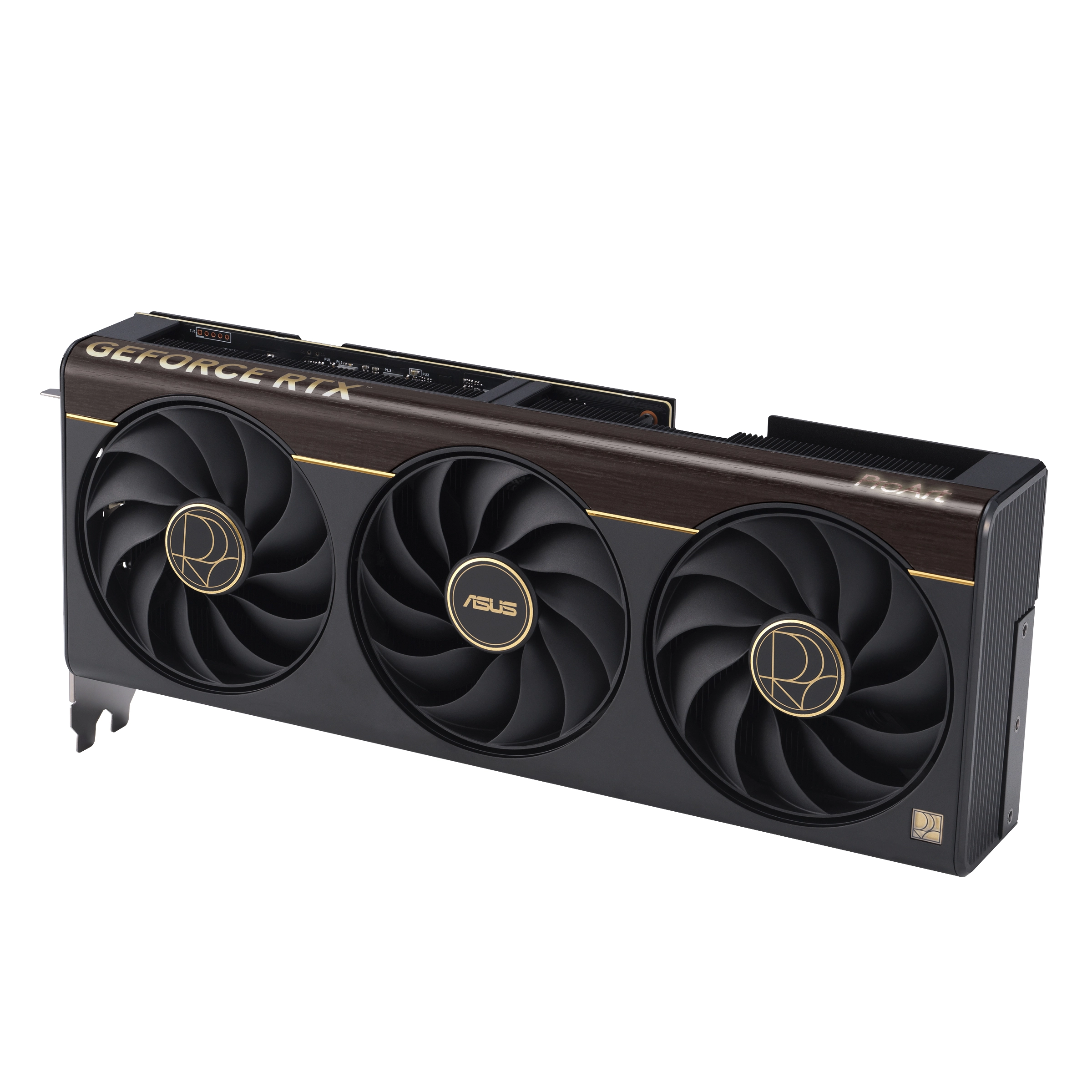

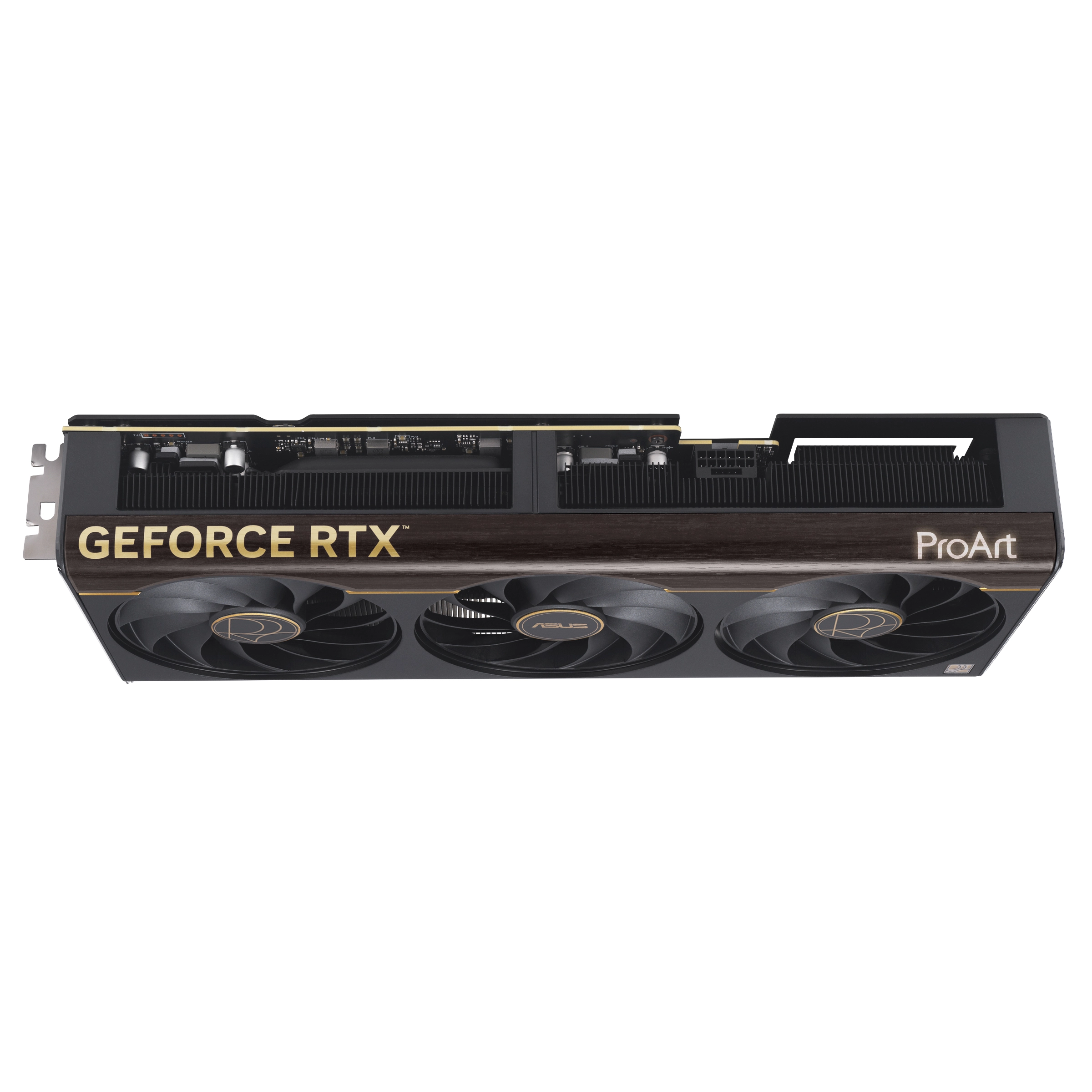

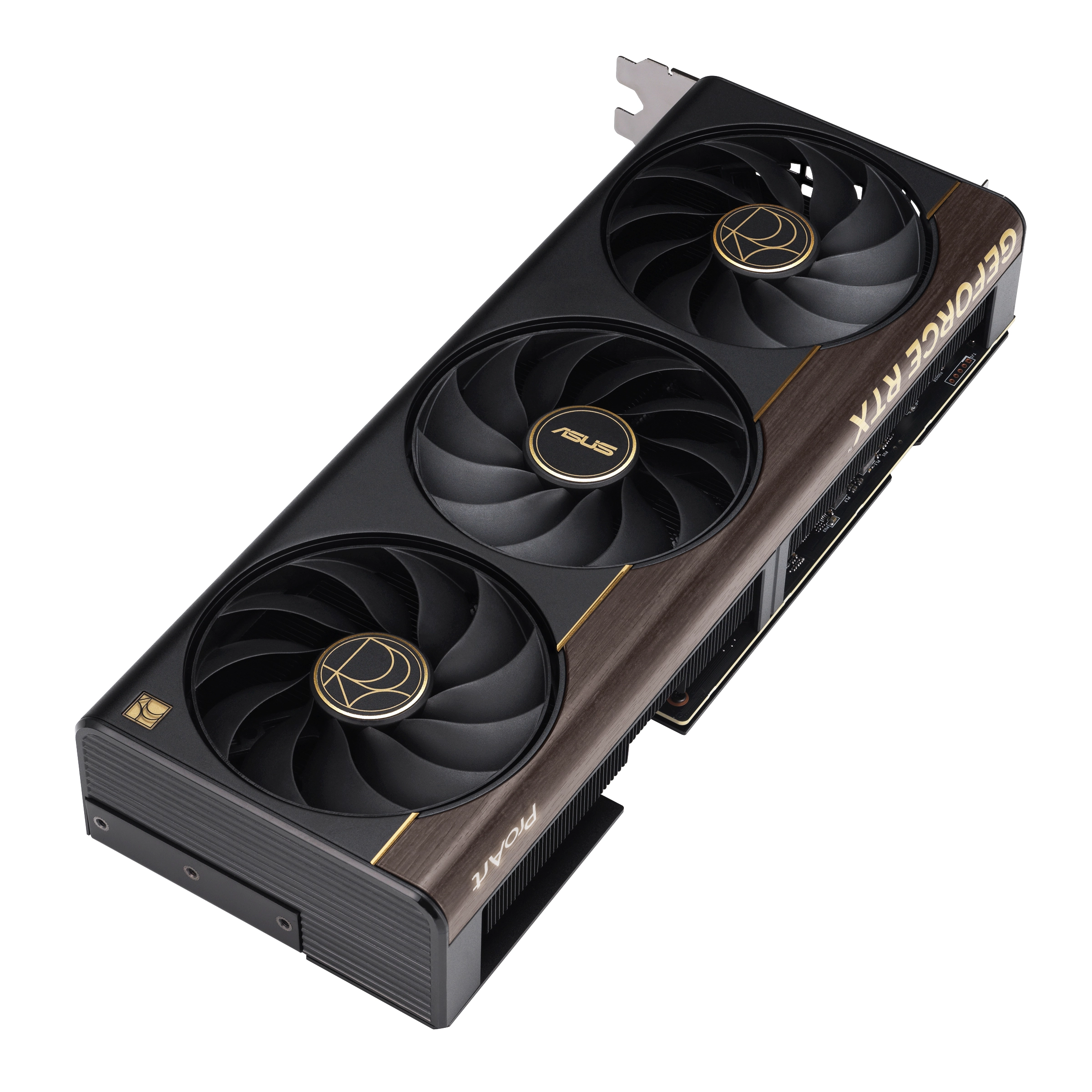

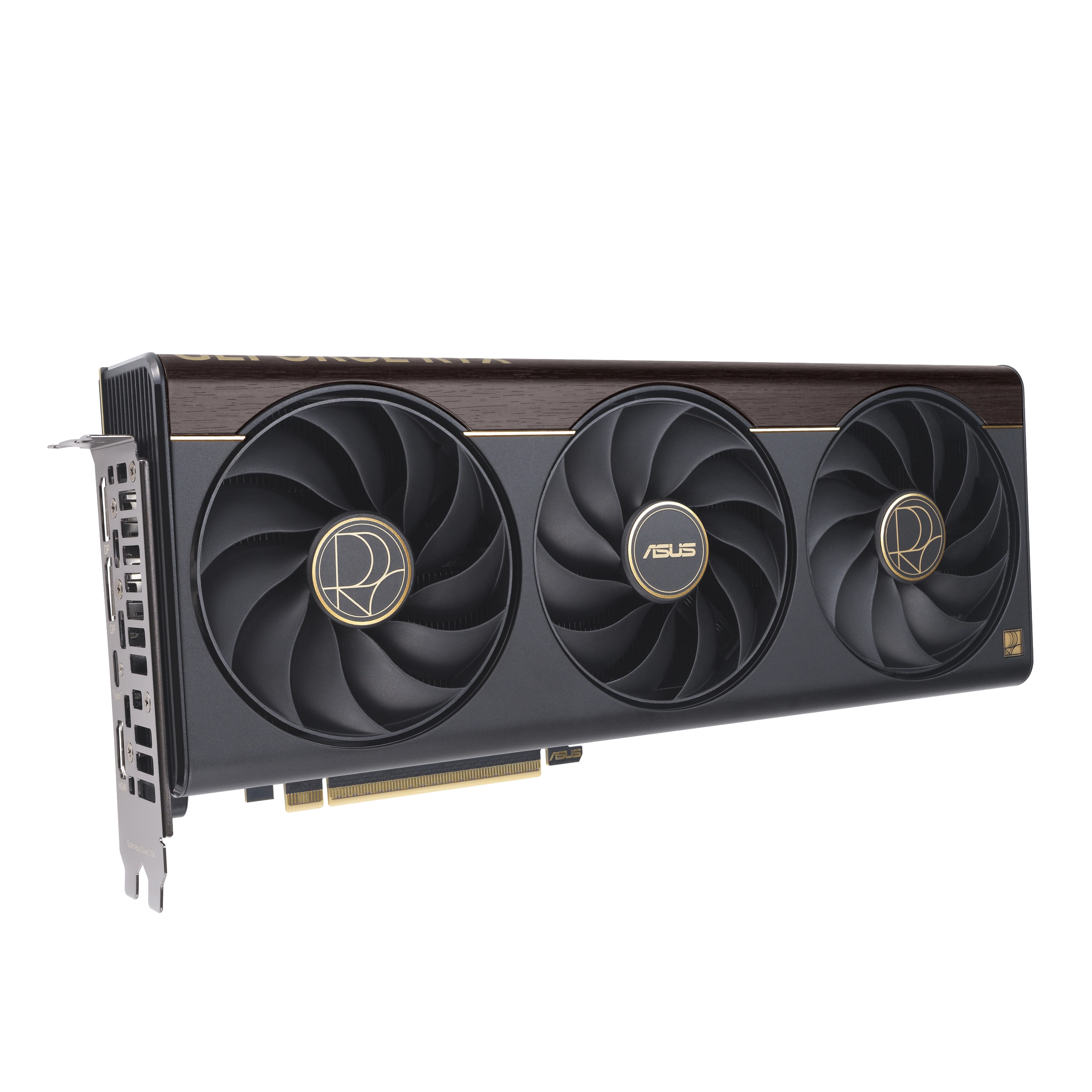

The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.

Specification

Product
Product id	999001
Brand	AsusTek
Partnr	90YV0NR0-M0NA00
EAN/UPC code	4711636226998
Warranty (months)	36 months
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 5070 Ti
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	8960
Processor boost clock speed	2588 MHz
Processor frequency (OC mode)	2610 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	16 GB
Graphics adapter memory type	GDDR7
Memory bus	256 Bit
Data transfer rate	28 Gbit/s

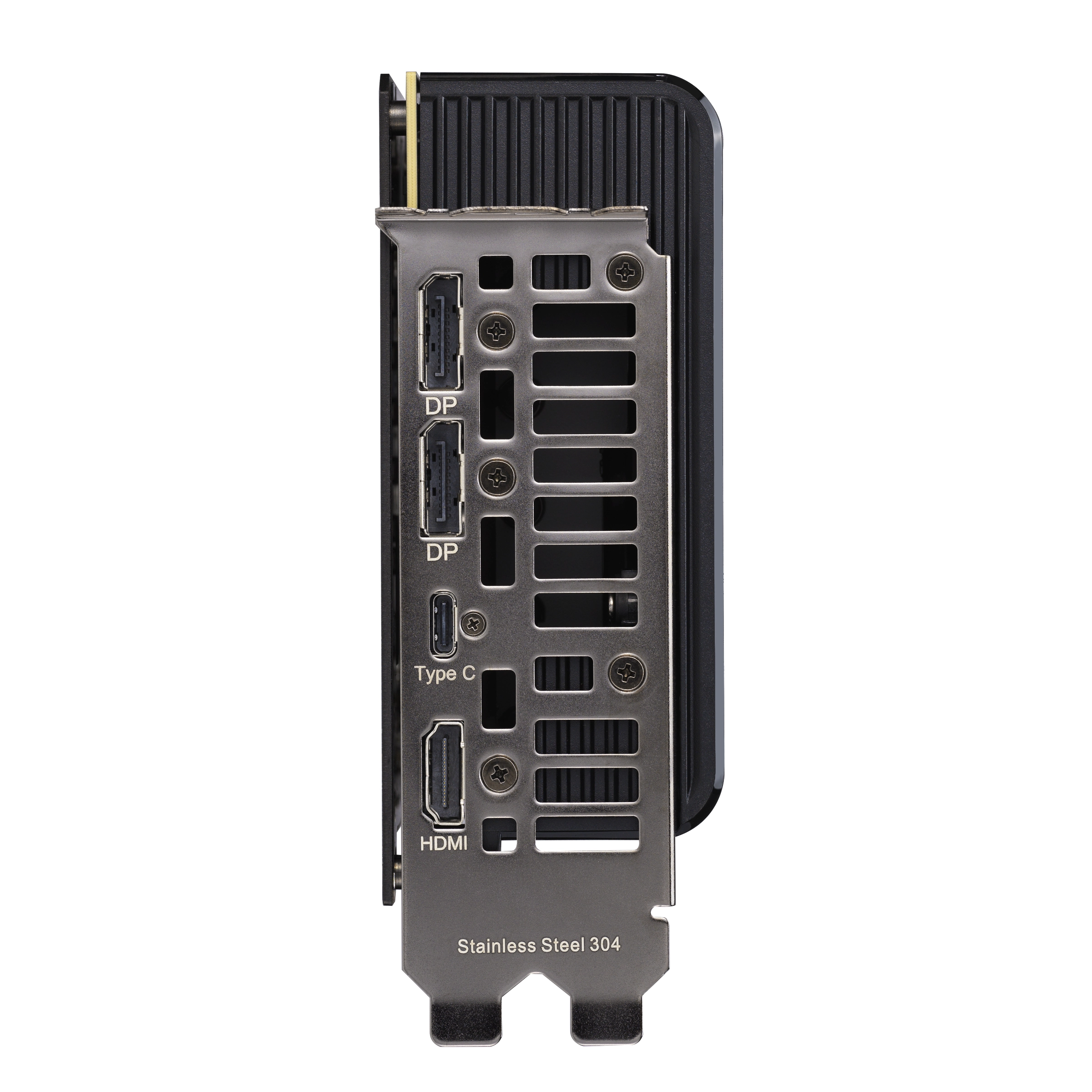

Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DisplayPorts quantity	2
HDMI version	2.1b
USB Type-C ports quantity	1
DisplayPort version	2.1b
Performance
OpenGL version	4.6
HDCP	Y
HDCP version	2.3
Dual Link DVI	N
NVIDIA G-SYNC	Y
Overclocked (OC) edition	Y
Design
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	3 ventilator(en)
Number of slots	2.5
Product colour	Multicolour
SFF ready	Y
Power
Minimum system power supply	850 W
Supplementary power connectors	1x 16-pin
System requirements
Windows operating systems supported	Y
Weight & dimensions
Weight	1390 g
Depth	50 mm
Length	304 mm
Height	126 mm
Packaging data
Package width	405 mm
Package depth	233 mm
Package height	88.5 mm
Package weight	2040 g
Package type	Box
